Description

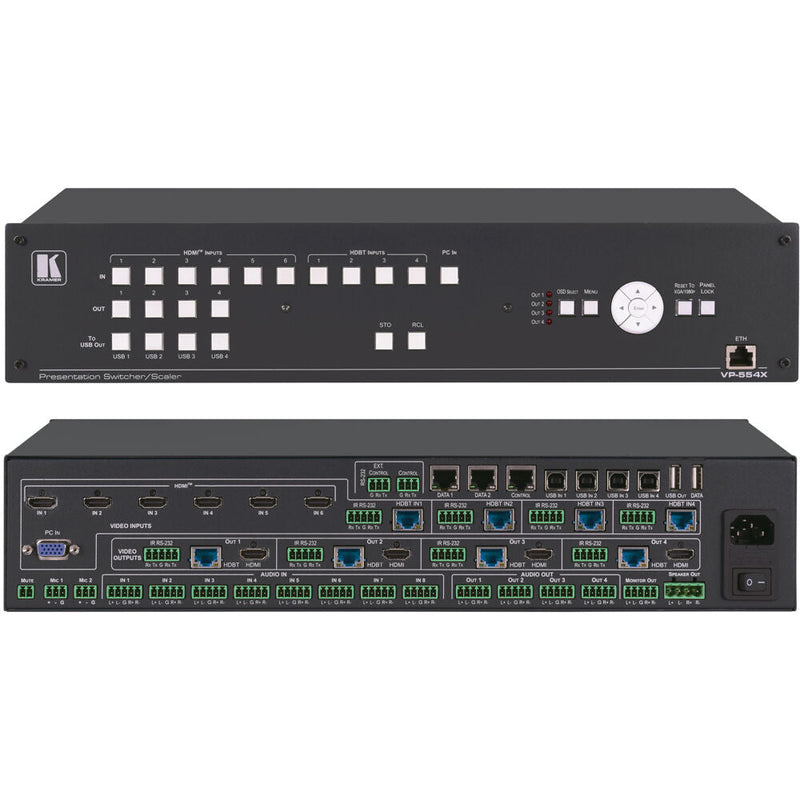

The Kramer VP-554X is a high-performance 11×4 presentation scaler/switcher designed for boardrooms, conference rooms, and advanced AV installations. It delivers flexible multi-format connectivity, powerful video scaling, mirrored HDMI/HDBaseT outputs, and robust audio DSP capabilities—all within a compact 2U chassis.
Engineered with Kramer’s Pix-Perfect™ scaling technology, the VP-554X ensures precise, artifact-free image processing with seamless switching and constant output sync. Multiple HDMI, HDBaseT, and VGA inputs support up to 4K60 4:4:4, while four pairs of mirrored HDMI/HDBaseT outputs ensure easy distribution to remote displays up to 100m (4K) or 180m (1080p).
The VP-554X also integrates advanced audio management, including embedded and balanced stereo audio, microphone inputs with 48V phantom power, DSP mixing/EQ, and a built-in 2×20W power amplifier. With extensive control options—front panel, RS-232, Ethernet, IR, and built-in web UI—this presentation router is a complete solution for modern AV environments requiring reliability, flexibility, and uncompromising performance.
| Category | Details |
|---|---|
| Inputs | 6 HDMI; 1 VGA (PC); 4 HDBaseT; 8 Balanced Stereo Audio; 2 Unbalanced Mono Audio |
| Outputs | 4 HDMI; 4 HDBaseT (mirrored per HDMI output); 5 Balanced Stereo; 1 Balanced Stereo (large terminal block) |
| USB | 4 USB-B host ports; 1 USB-A client; 1 USB-A for firmware |
| Audio Performance | Frequency response 20Hz–20kHz ±1dB; S/N ratio up to 81dB (A-weighted); THD+N <0.014% |
| Microphone Inputs | 47kΩ impedance; −37dBu sensitivity; 48V phantom power per input |
| Amplifier | 2×20W @ 4Ω; Class-D amplifier |
| Video Resolution | HDMI: 4K60 4:4:4; HDBaseT: 4K60 4:2:0; VGA: up to 1080p |
| Compliance | HDMI 2.0; HDCP 2.2/2.3 |
| Ethernet | 4× 100Base-T ports; max 100Mbps bandwidth |
| Control Ports | RS-232 (front/back + HDBT tunneling), IR, Ethernet |
| Power Consumption | Max 190VA |
| Operating Conditions | 0°C to +40°C; 10–90% humidity (non-condensing) |
| Dimensions (W×D×H) | 43.7 × 23.6 × 8.8 cm (17.2" × 9.3" × 3.5") |
| Weight | Net: 5.0 kg (11 lbs); Shipping: 6.3 kg (13.9 lbs) |
| Included Accessories | Power adapter cord |
