Description

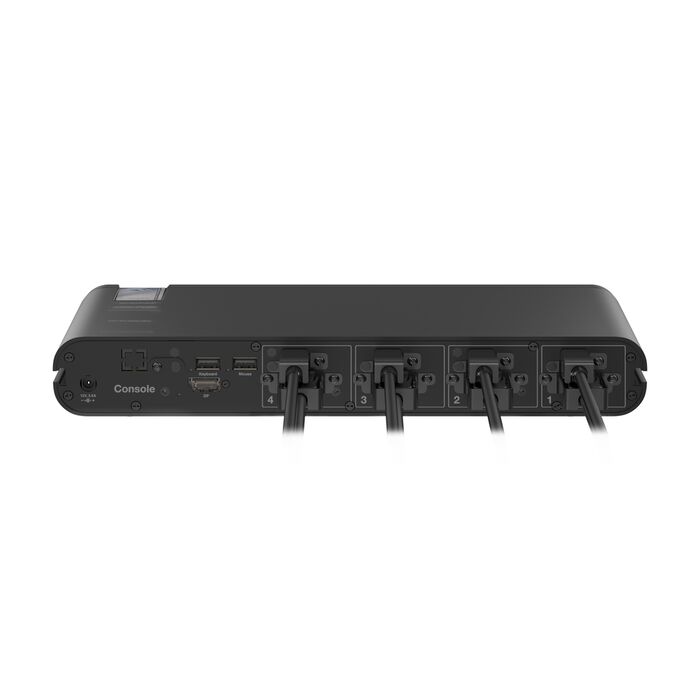

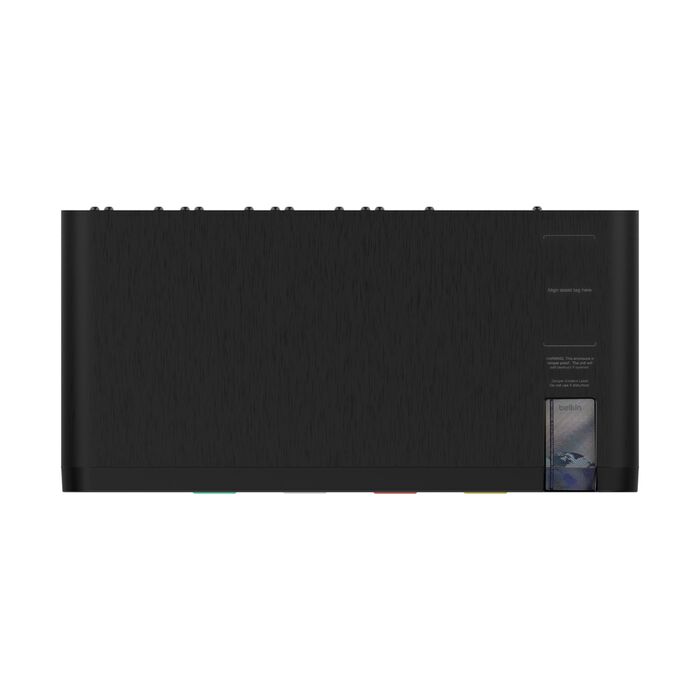

The Belkin IsoClave RED/BLACK Secure KVM Switch is engineered for environments that demand uncompromising cybersecurity and strict signal isolation between systems. Designed to meet advanced NIAP Protection Profile PSD 4.0 requirements and stringent red/black isolation standards, this 4-port single-head KVM enables secure switching between multiple computers while preventing data leakage and unauthorized access.
Built for mission-critical operations in government, military, finance, and high-security enterprise environments, this solution features preinstalled isolating cables, tamper-resistant construction, and blocked peripheral interfaces to ensure only authorized communication paths are used. The system delivers true plug-and-play deployment while maintaining maximum protection with active anti-tamper technology that permanently disables the unit upon breach detection.
With support for UHD 4K resolution at 60Hz and intuitive port identification through customizable color coding, operators benefit from both high performance and improved situational awareness. The IsoClave series provides a secure, reliable, and deployment-ready platform for organizations that cannot compromise on data integrity or operational security.
| Specification | Details |
|---|---|
| Number of Supported Computers | Supports up to 4 host systems |
| Display Support | Single display (single-head configuration) |
| Maximum Resolution | Supports up to 3840 x 2160 (4K UHD) at 60Hz |
| Video Interface | DisplayPort 1.2 |
| Console Ports | Dedicated USB ports for keyboard and mouse with secure filtering |
| Computer Connections | USB Type-B for keyboard/mouse and DisplayPort for video |
| Security Standard Compliance | Designed to meet NIAP Protection Profile PSD 4.0 requirements |
| Signal Isolation | Provides 60 dB isolation between red and black systems |
| Data Protection | Optical data diodes enforce unidirectional USB data flow |
| Tamper Protection | Always-on active anti-tamper system disables device if breached |
| Cable Design | Preinstalled, secured cables with tamper-resistant fasteners |
| Port Security | Non-essential ports blocked to prevent unauthorized connections |
| Port Identification | Customizable color-coded ports for improved operator awareness |
| Build Quality | Heavy-duty aluminum enclosure for durability and shielding |
| Power Requirements | 12V DC power supply with global AC input compatibility |
| Operating Temperature | Designed for stable operation in standard office and data center environments |
| Compliance & Deployment | TAA compliant and suitable for government and secure enterprise use |
| Warranty | 3-year standard warranty with extended options available |
