Description
The Belkin Universal 2nd Gen Secure KVM Switch 4-Port Dual Head is engineered for mission-critical environments that demand uncompromising security, flexibility, and performance. Designed to meet stringent NIAP Protection Profile PSD 4.0 standards, this secure KVM solution enables seamless control of up to four computers while maintaining strict data isolation between systems.
Built for modern and legacy compatibility, this KVM switch supports DisplayPort, HDMI, and DVI-D through passive cabling, delivering up to 4K resolution at 60Hz without the need for external converters. Its advanced architecture ensures secure video channel switching and peripheral isolation, preventing data leakage across security domains.
The tamper-proof design includes an always-on, battery-backed anti-tamper system that safeguards the unit both in transit and during operation. Enhanced usability features such as configurable port identification, optional remote control integration, and ergonomic mounting options make it ideal for government, military, financial, and other high-security environments.
With a rugged aluminum enclosure, TAA compliance, and long-term reliability backed by a multi-year warranty, this KVM switch provides a future-ready solution for secure multi-system management.
| Specification | Details |
|---|---|
| Product Type | Secure KVM Switch |
| Number of Computers Supported | 4 Systems |
| Display Support | Dual Head (2 Displays) |
| Maximum Resolution | Up to 3840 x 2160 (4K UHD) @ 60Hz |
| Video Interfaces | DisplayPort 1.2, HDMI 2.0, DVI-D (via passive cabling) |

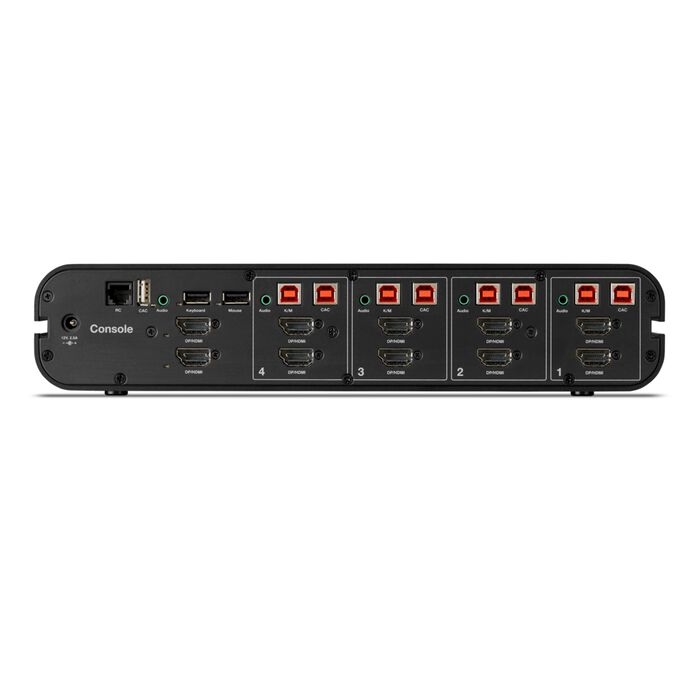

| Console Ports | USB keyboard and mouse (Type-A), dual video outputs |
| Computer Ports | USB Type-B for keyboard/mouse, dual video inputs per system |
| Audio Support | 3.5mm audio jack with audio freeze functionality |
| CAC Support | Integrated CAC port with channel freeze capability |
| Security Features | NIAP PP PSD 4.0 compliant, data isolation, optical data diodes |
| Anti-Tamper Protection | Always-on, battery-backed tamper-proof system |
| Remote Management | RJ14 port for optional remote control integration |
| Power Supply | 12V DC power adapter (100–240V AC input) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 0–80% non-condensing |
| Enclosure | Heavy-duty aluminum with metal faceplate |
| Mounting Options | Desktop or optional under-desk/work surface mount |
| Compliance | TAA compliant, FCC, CE, UL, RoHS |
| Warranty | 3-Year standard (extendable) |
