The Belkin Universal 2nd Gen Secure KVM Switch (F1DN204KVMUNN4Z) is engineered for high-security environments that require strict isolation between multiple systems. Designed to meet NIAP Protection Profile PSD 4.0 standards, this 4-port dual-head secure KVM enables operators to seamlessly switch between up to four computers while maintaining uncompromised data security.
Supporting DisplayPort, HDMI, and DVI-D through passive cabling, this solution delivers up to 4K resolution at 60Hz, ensuring exceptional visual clarity across dual displays. Its advanced architecture includes peripheral isolation, secure video switching, and an always-on anti-tamper system that protects against unauthorized access or physical breaches.
Built for government, military, financial, and enterprise applications, this model excludes CAC functionality while maintaining robust cybersecurity protections. With a durable aluminum enclosure, intuitive front panel controls, and compatibility with optional remote control accessories, it offers both security and operational efficiency in mission-critical environments.
| Specification | Details |
|---|---|
| Product Type | Secure KVM Switch (SKVM) |
| Ports | 4-Port |
| Display Support | Dual Head (2 Displays) |
| Video Interfaces | DisplayPort 1.2, HDMI 2.0, DVI-D (via passive cabling) |
| Maximum Resolution | Up to 3840 x 2160 @ 60Hz (4K UHD) |
| CAC Support | Not Included |
| Security Standard | NIAP Protection Profile PSD 4.0 |
| Peripheral Isolation | Yes, secure USB and video channel isolation |
| Anti-Tamper Protection | Always-on, battery-backed active anti-tamper system |

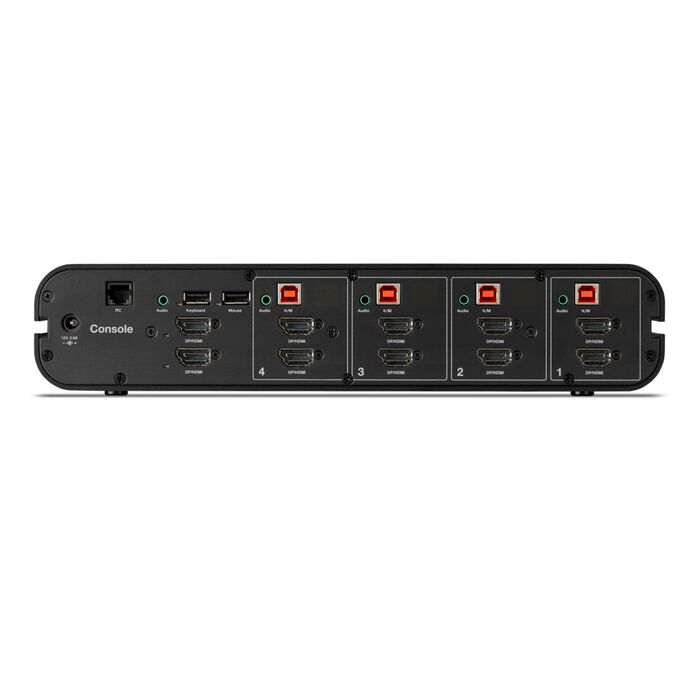

| Console Ports | USB keyboard and mouse, dual video output, audio |
| Computer Ports | USB Type-B, dual video inputs per system, audio |
| Audio Support | 3.5mm analog audio |
| Remote Control | RJ14 port for optional remote control unit |
| Power Supply | 12V DC, universal AC input (100–240V) |
| Construction | Heavy-duty aluminum enclosure |
| Mounting Options | Desktop or optional under-desk mount |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Compliance | FCC, CE, RoHS, UL, ICES, RCM, UKCA |
| Warranty | 3-Year Limited Warranty |
| TAA Compliance | Yes |
