Description
The Belkin Universal 2nd Gen Secure KVM Switch delivers enterprise-grade cybersecurity and operational efficiency for environments that demand strict data isolation. Designed for government, military, and mission-critical commercial applications, this 4-port dual-head KVM enables seamless control of multiple systems while maintaining complete separation between security domains.
Engineered to meet NIAP Protection Profile PSD 4.0 requirements, this secure KVM ensures uncompromised protection with advanced peripheral isolation, unidirectional data flow, and an always-on anti-tamper mechanism. Its universal video compatibility supports DisplayPort, HDMI, and DVI-D through passive cabling, allowing organizations to integrate both legacy and modern systems without additional converters.
With support for UHD 4K resolution at 60Hz, dual display output, and intuitive front-panel controls, this solution enhances operator productivity while minimizing switching errors. The inclusion of CAC support, audio freeze functionality, and compatibility with optional remote control accessories further strengthens usability in high-security workflows.
Built with a durable aluminum enclosure and assembled in the USA, the Belkin Universal 2nd Gen SKVM is a future-ready platform designed to protect sensitive environments while enabling efficient multi-system access.
| Specification | Details |
|---|---|
| Product Type | Secure KVM Switch |
| Number of Computers Supported | 4 Systems |
| Number of Displays Supported | Dual Head (2 Displays) |
| Maximum Resolution | Up to 3840 x 2160 (4K UHD) at 60Hz |
| Video Interfaces | DisplayPort, HDMI, and DVI-D via combo connectors |

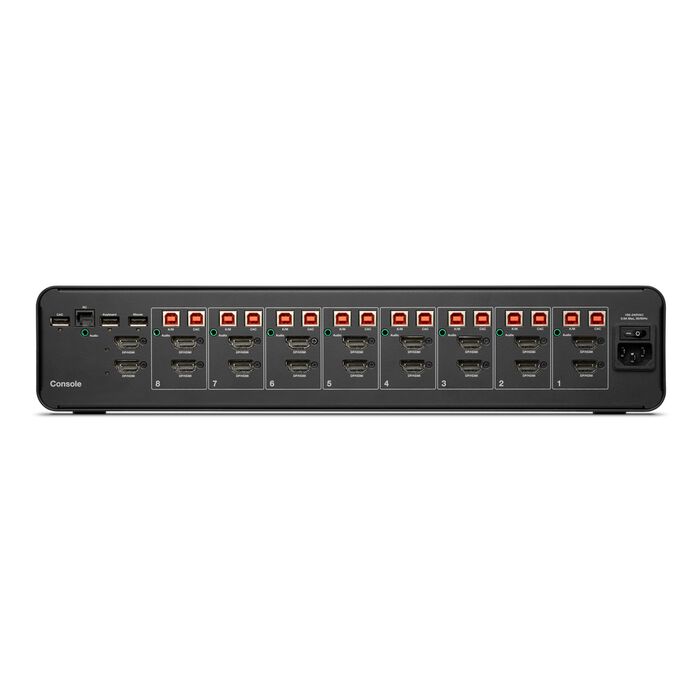

| Console Ports | USB keyboard and mouse (Type-A), dual video output, audio jack, CAC input |
| Computer Ports | USB Type-B for keyboard/mouse, video combo ports, audio, CAC |
| Security Compliance | NIAP Protection Profile PSD 4.0 |
| Data Protection | Peripheral isolation and unidirectional data flow |
| Anti-Tamper Protection | Always-on active anti-tamper system with battery backup |
| CAC Support | Dedicated CAC port with channel locking capability |
| Audio Management | Audio freeze functionality for secure channel control |
| Remote Control Support | Compatible with optional secure remote control with integrated keyboard |
| Connectivity Technology | Wired |
| Power Requirements | 12V DC power supply, 100–240V AC input |
| Enclosure Type | Heavy-duty aluminum with metal faceplate |
| Mounting Options | Desktop or under-desk mounting (optional brackets available) |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Humidity Range | 0–80% non-condensing |
| Compliance Certifications | FCC, UL, CE, RoHS, ICES, RCM, UKCA |
| Build & Support | Assembled in USA with US-based technical support |
| Warranty | 3 years standard, upgradeable to 5 years |
| Lifecycle | 5-year product lifecycle |
