Description

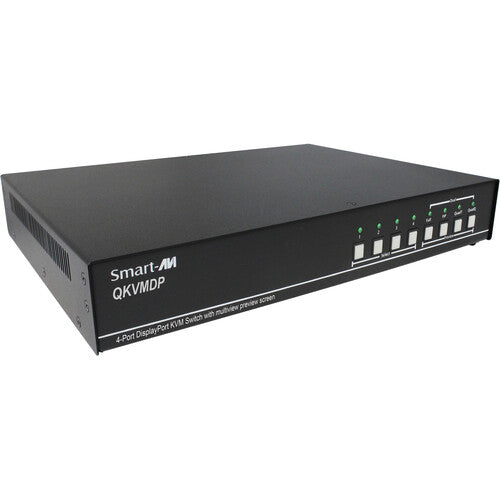

The SmartAVI SM-QKVMDP-S is a high-performance 4-port DisplayPort KVM switch designed for environments that demand real-time monitoring and seamless control of multiple systems. Featuring an integrated multiview preview screen, this solution allows users to simultaneously view up to four connected computers while maintaining full control over a selected system on the main display.
Built for mission-critical operations such as control rooms, financial systems, broadcast studios, and industrial environments, this KVM switch enhances productivity by eliminating constant switching between sources. Its flexible display modes, including quad-view, dual-view, and picture-in-picture, provide dynamic visualization tailored to your workflow.
With support for ultra-high-definition resolutions up to 4K, USB 2.0 peripheral sharing, and intuitive control via front panel buttons, hotkeys, on-screen display, or RS-232, the SM-QKVMDP-S delivers a powerful and efficient multi-system management solution.
| Specification | Details |
|---|---|
| Product Type | 4-Port DisplayPort KVM Switch with Multiview Preview |

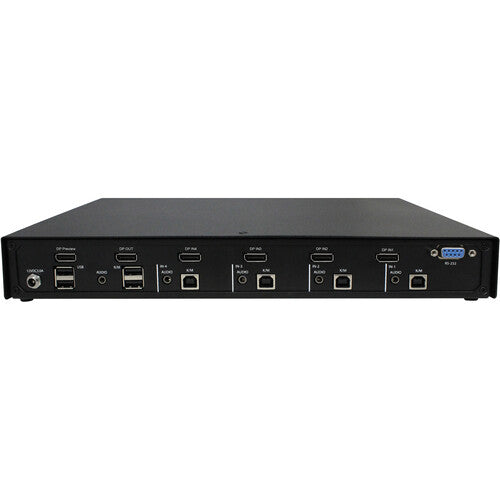

| Video Input | 4 x DisplayPort |
| Video Output | 1 x DisplayPort (main), 1 x preview output |
| Maximum Resolution | Up to 3840 x 2160 @ 30Hz |
| Supported Resolutions | 720i, 720p, 1080i, 1080p, 2K, 4K |
| Display Modes | Full Screen, Quad View, Dual View, Picture-in-Picture |
| USB Support | USB 2.0 for peripherals, USB 1.0 for keyboard and mouse |
| USB Interfaces | 4 x USB Type B (input), USB Type A for K/M and devices |
| Audio Support | Stereo audio input and output |

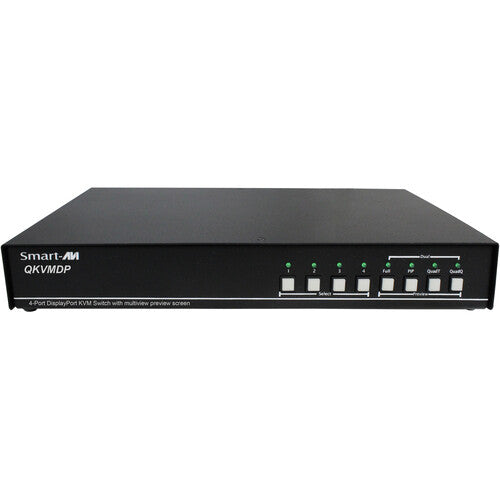

| Control Methods | Front panel buttons, keyboard hotkeys, OSD, RS-232 |
| On-Screen Display | Yes, for configuration and switching |
| HDCP Compliance | 1.0 / 2.0 |
| Power Supply | External 100–240VAC to 12VDC, 36W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Humidity | Up to 80% (non-condensing) |
| Dimensions | 12.57” W x 1.76” H x 6.69” D |
| Weight | 4.2 lbs |
| Compliance | UL, CE, RoHS |
