Description
The CK4-HPD404C is a high-security 4-port KVM switch engineered for mission-critical environments that require strict data isolation and multi-display control. Designed for quad-head operation, this secure KVM supports DisplayPort, HDMI, and DVI interfaces simultaneously, allowing operators to manage multiple systems across four monitors from a single workstation.

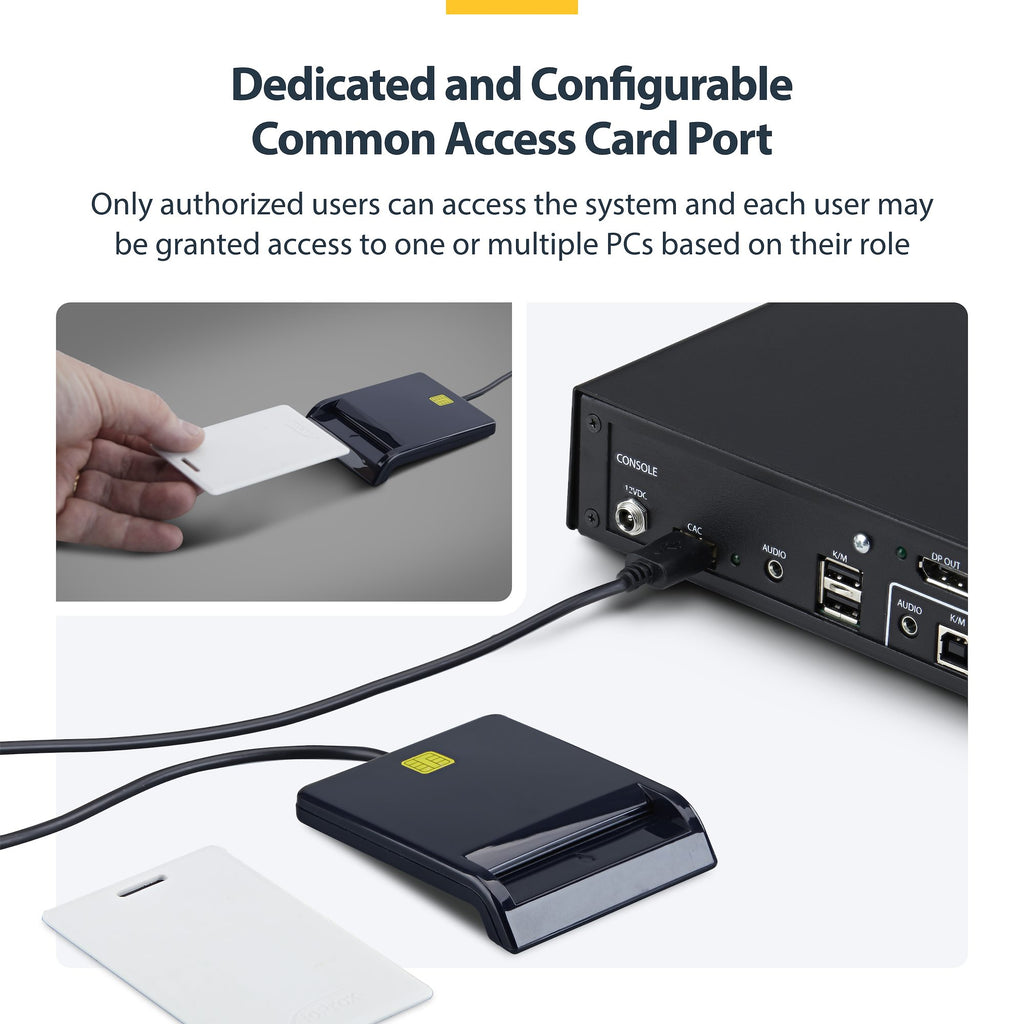

Built to meet stringent security standards, this solution features CAC (Common Access Card) support for secure authentication, along with advanced USB emulation to prevent data leakage between connected systems. The unit ensures seamless switching with front panel controls while maintaining signal integrity and consistent video performance up to 4K resolution.
Ideal for government, defense, financial, and other regulated environments, the CK4-HPD404C delivers reliable, secure, and efficient multi-system control without compromising performance or compliance.

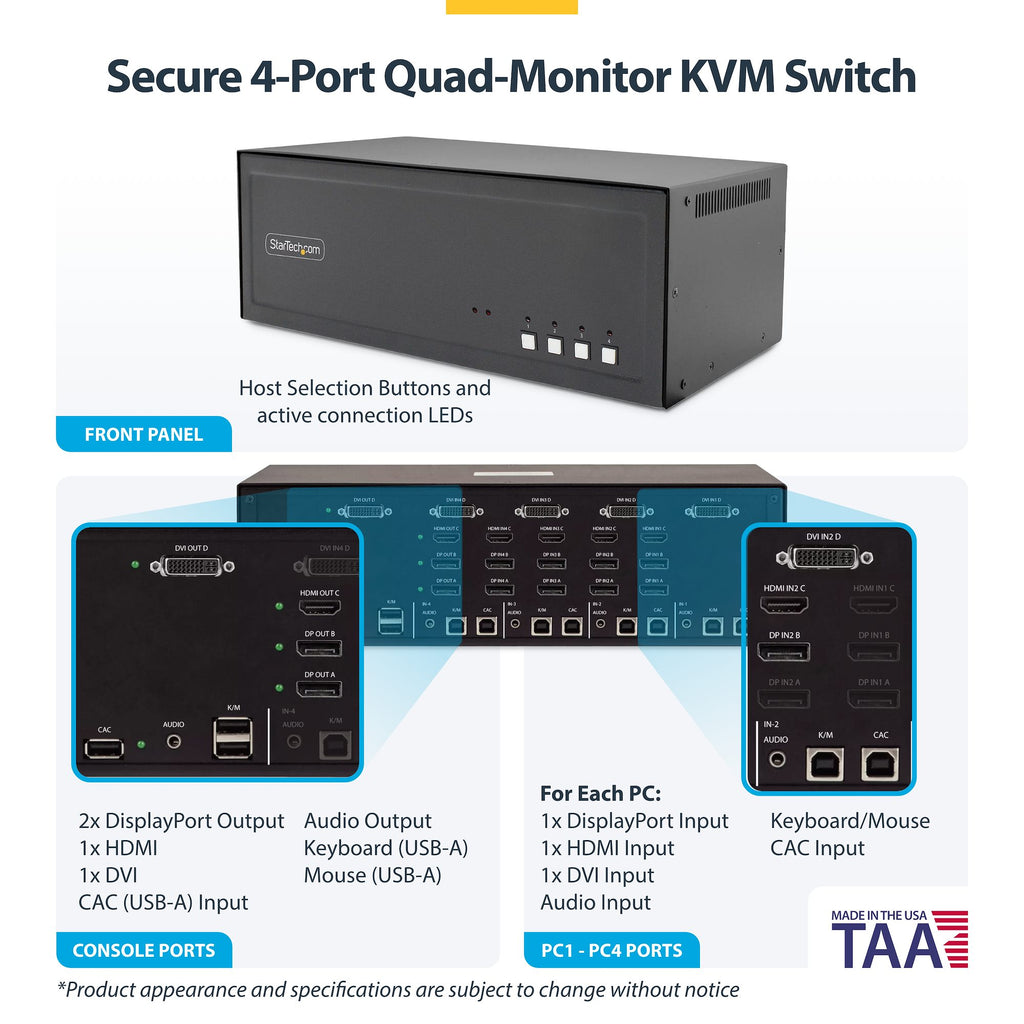

| Specification | Details |
|---|---|
| Ports | 4-Port Secure KVM |
| Display Support | Quad-Head (4 Displays) |
| Video Formats | DisplayPort, HDMI, DVI-I |
| Maximum Resolution | Up to 3840 x 2160 @ 30Hz |
| Max Pixel Clock | 248 MHz |
| Data Rate | 1.65 Gbps |
| Input Interfaces | 8x DisplayPort, 4x HDMI, 4x DVI-I |
| Output Interfaces | 2x DisplayPort, 1x HDMI, 1x DVI-I |
| USB Input | 8x USB Type-B |
| USB Output | 2x USB Type-A for keyboard and mouse |
| USB Emulation | USB 1.1 and USB 2.0 compatible |
| CAC Support | Configurable USB 2.0 CAC port |
| Audio Input | 4x 3.5mm stereo |
| Audio Output | 1x 3.5mm stereo |
| Control Method | Front panel selection buttons |
| Input Cable Length | Up to 20 ft |
| Output Cable Length | Up to 20 ft |
| Power Supply | External 100-240 VAC to 12VDC, 3A (36W) |
| Dimensions | 12.57” W x 4.9” H x 6.69” D |
| Weight | 4.2 lbs |
| Compliance | NIAP PP 4.0, UL, CE, RoHS |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | Up to 80% non-condensing |
