Description

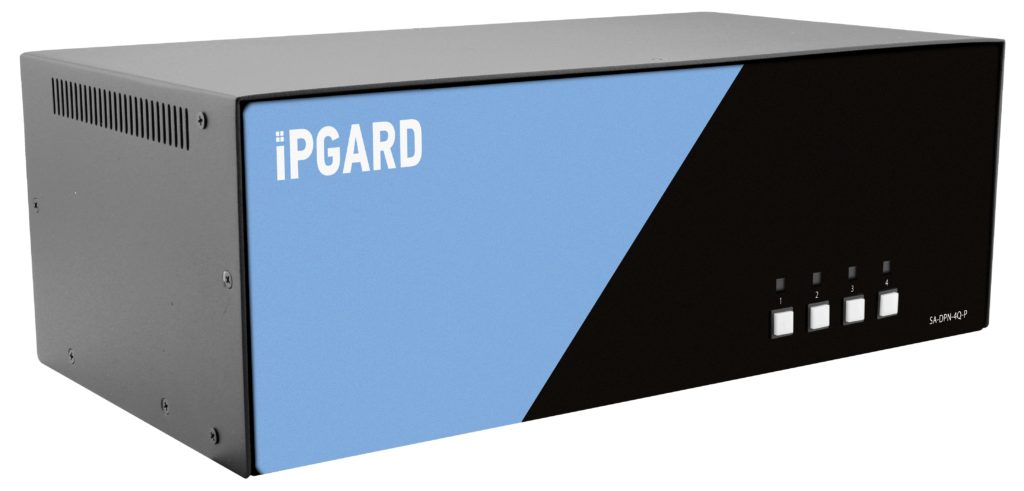

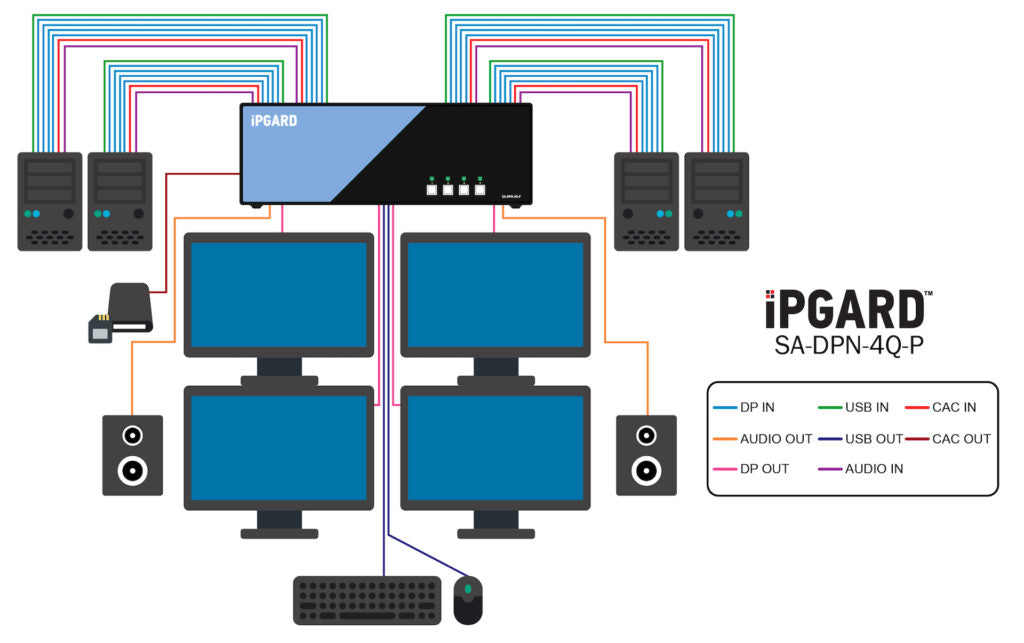

The iPGARD SA-DPN-4Q-P is a high-assurance 4-port secure KVM switch engineered for mission-critical environments where data isolation and system integrity are essential. Designed with quad-head DisplayPort support, this solution enables operators to manage up to four computers across four monitors simultaneously while maintaining strict separation between connected systems.
Built to meet rigorous security standards, the SA-DPN-4Q-P supports Common Access Card (CAC) authentication and ensures controlled USB connectivity for keyboard, mouse, and smart card devices. Its advanced architecture eliminates data leakage risks while delivering smooth, high-resolution video performance up to 4K at 60Hz. Integrated audio switching further enhances operational efficiency without compromising security.
Ideal for government, defense, healthcare, and enterprise deployments, this secure KVM solution combines performance, compliance, and reliability in a compact, easy-to-use platform.
| Category | Specification |
|---|---|
| Ports | 4-Port Secure KVM Switch |
| Video Support | Quad-Head DisplayPort |
| Max Resolution | Up to 3840 x 2160 @ 60Hz |

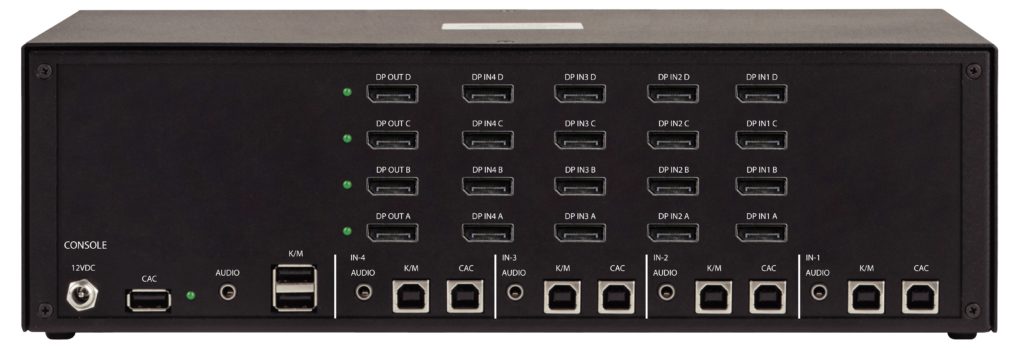

| Host Interfaces | 16 DisplayPort 20-pin female connectors |
| Console Interfaces | 4 DisplayPort 20-pin female connectors |
| USB Support | USB 1.1/1.0 for keyboard and mouse; USB 2.0 for CAC |
| USB Ports | 8 USB Type-B (host); 2 USB Type-A for keyboard/mouse; 1 USB Type-A for CAC |
| Audio Support | Stereo audio input and output (3.5 mm connectors) |
| CAC Support | Yes, dedicated CAC port for smart card authentication |
| Input Cable Length | Up to 20 feet |
| Output Cable Length | Up to 20 feet |
| Security Certification | Common Criteria validated to NIAP Protection Profile PSS Ver. 4.0 |
| Emulation | Keyboard, mouse, and video emulation |

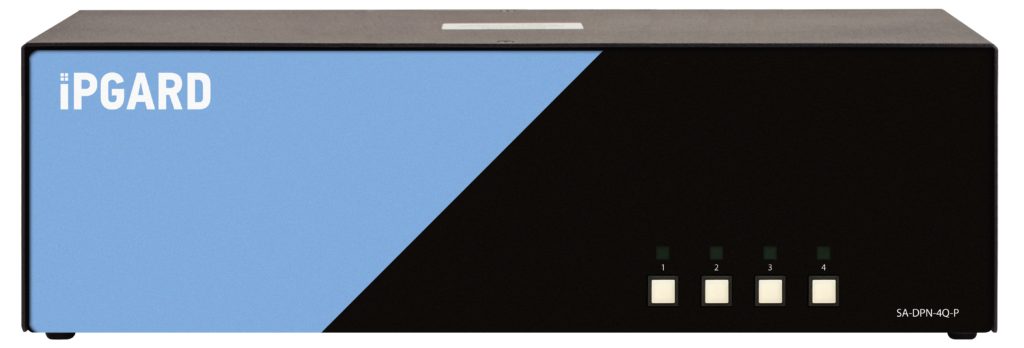

| User Controls | Front-panel push buttons |
| Power Supply | 12V DC, 3A external adapter |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Humidity | 0–80% non-condensing |
| Build | Designed for secure and high-reliability environments |
