Description

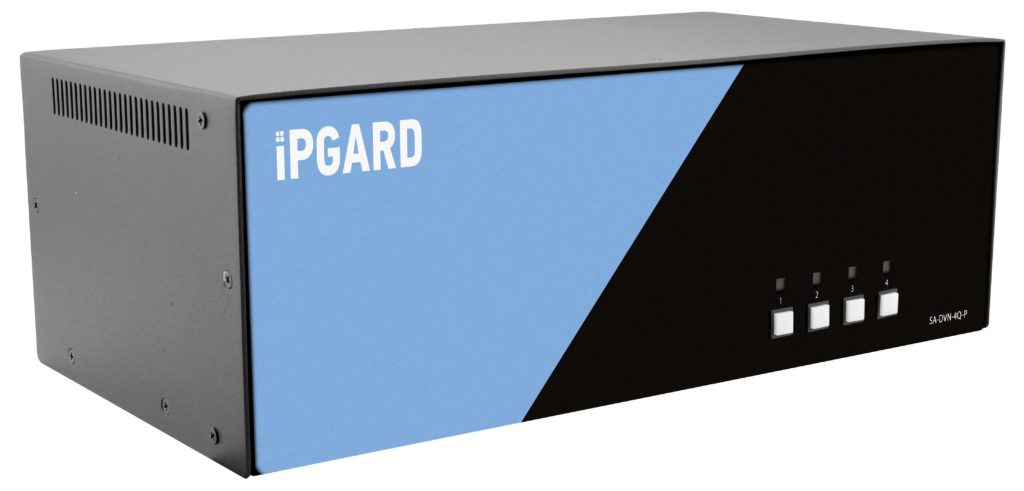

The iPGARD SA-DVN-4Q-P is a high-security 4-port quad-head DVI-I KVM switch designed for mission-critical environments where data isolation and system integrity are paramount. Built to meet stringent security standards, this secure KVM ensures complete separation between connected systems, preventing data leakage and unauthorized communication.
Supporting quad-head DVI-I video with resolutions up to 2560x1600 at 60Hz and up to 4K Ultra-HD via adapter, the unit delivers exceptional visual performance for advanced multi-display setups. Its dedicated Common Access Card (CAC) port enables secure authentication through smart card or biometric devices, while strict peripheral filtering ensures only authorized USB keyboard, mouse, and CAC devices are accepted.
With no hotkey switching and fully isolated channels, the SA-DVN-4Q-P eliminates the risk of data crossover. It features tactile front-panel controls, LED indicators for channel status, and advanced emulation technologies for seamless, secure switching. Ideal for government, defense, financial, healthcare, and enterprise environments, this KVM provides uncompromising protection without sacrificing usability or performance.
| Specification | Details |
|---|---|
| Device Type | Secure KVM Switch |
| Number of Ports | 4-Port |
| Display Support | Quad-Head DVI-I |
| Video Format | DVI-I Dual Link, DVI-D, XVGA |
| Maximum Resolution | Up to 2560x1600 @ 60Hz; up to 3840x2160 @ 30Hz via adapter |

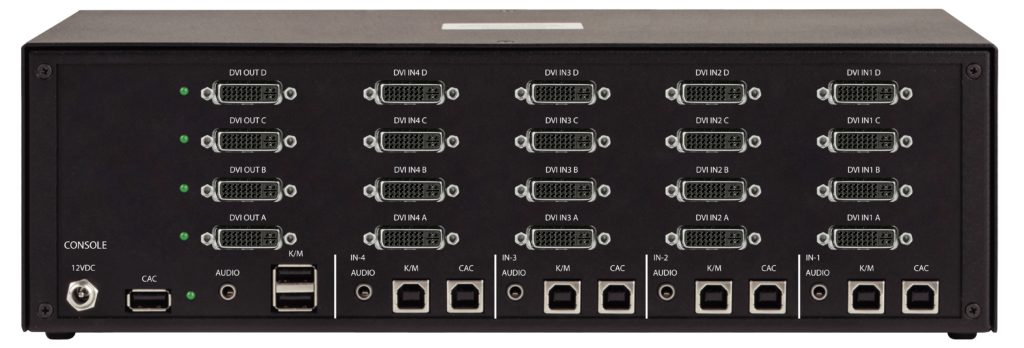

| Input Video Ports | 16 × DVI-I (29-pin) |
| Output Video Ports | 4 × DVI-I (29-pin) |
| USB Input Ports | 8 × USB Type B |
| USB Output Ports | 2 × USB Type A for keyboard and mouse |
| USB Support | USB 1.1 and USB 2.0 compatible |
| CAC Support | Dedicated configurable USB 2.0 CAC port |
| Audio Input | 4 × 3.5mm stereo |
| Audio Output | 1 × 3.5mm stereo |

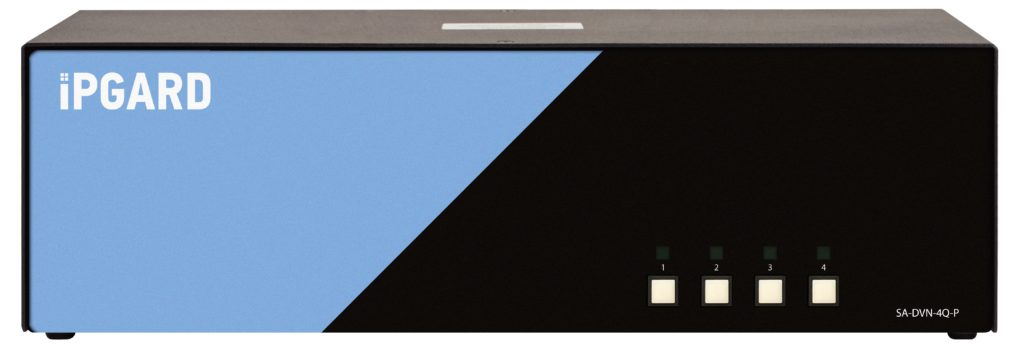

| Switching Method | Front panel tactile buttons only (no hotkeys) |
| Security Features | Full channel isolation, no data storage, peripheral filtering, tamper-evident design |
| Emulation | Keyboard, mouse, and video EDID emulation for secure and seamless switching |
| Power Supply | External power adapter (100–240VAC to 12VDC, 24W) |
| Dimensions | 12.57” W × 4.9” H × 6.69” D |
| Weight | 4.2 lbs |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Humidity | Up to 80% non-condensing |
| Compliance | NIAP PP 4.0, UL, CE, RoHS |
| Use Cases | Government, defense, control rooms, finance, healthcare, enterprise IT |
