Description

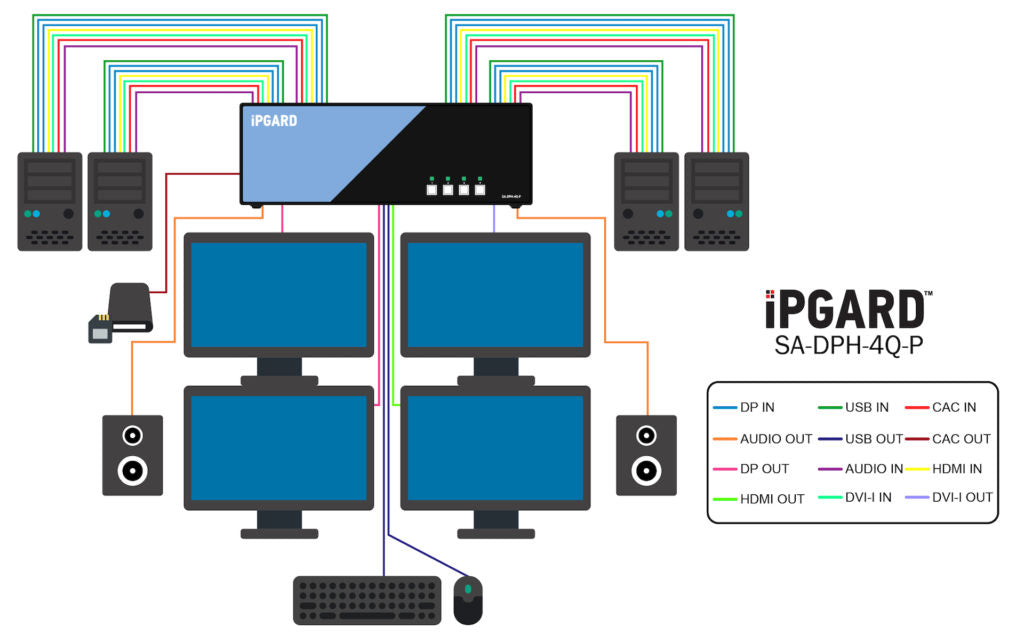

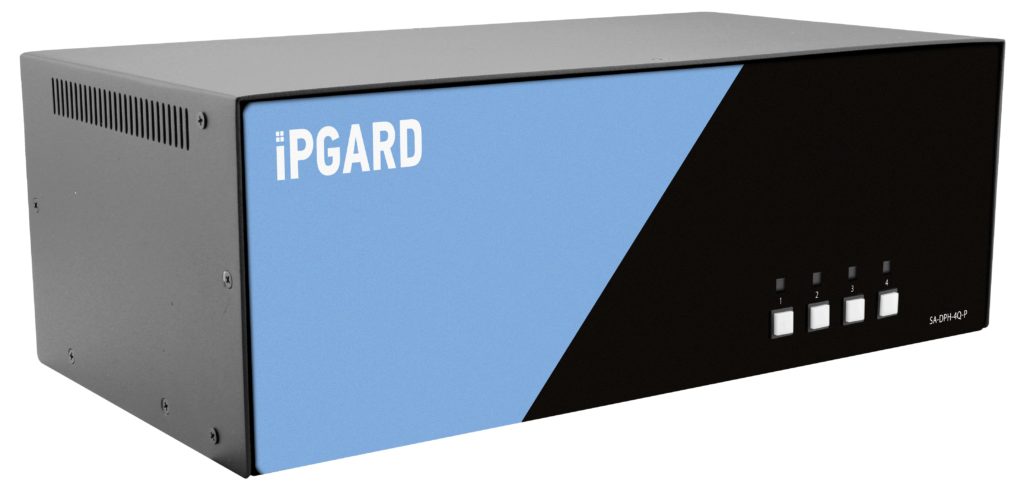

The iPGARD SA-DPH-4Q-P is a high-security, multi-interface KVM switch engineered for mission-critical environments that demand strict data isolation and uncompromised performance. Designed to support up to four computers, this advanced quad-head solution enables simultaneous management of DisplayPort, HDMI, and DVI-I video outputs, making it ideal for control rooms, defense applications, and secure enterprise operations.
Built with robust security architecture and Common Criteria validation, this KVM ensures data integrity by preventing unauthorized data leakage between connected systems. The device supports dual-head DisplayPort alongside single-head HDMI and DVI-I outputs, delivering crisp 4K resolution at 60Hz for superior visual clarity across multiple displays.
With integrated audio switching and CAC (Common Access Card) support, the SA-DPH-4Q-P enhances workflow efficiency while maintaining strict compliance with security protocols. Its intuitive front-panel controls, automatic EDID learning, and reliable USB connectivity make deployment seamless and operation straightforward in high-demand environments.
| Specification | Details |
|---|---|
| Product Type | Secure Quad-Head KVM Switch |
| Number of Ports | 4-Port |
| Video Interfaces (Host) | 8× DisplayPort, 4× HDMI, 4× DVI-I |
| Console Video Outputs | 2× DisplayPort, 1× HDMI, 1× DVI-I |
| Maximum Resolution | Up to 3840 × 2160 @ 60Hz |
| Video Signal Handling | Automatic input equalization |
| USB Support | USB 1.1/1.0 for keyboard and mouse, USB 2.0 for CAC |

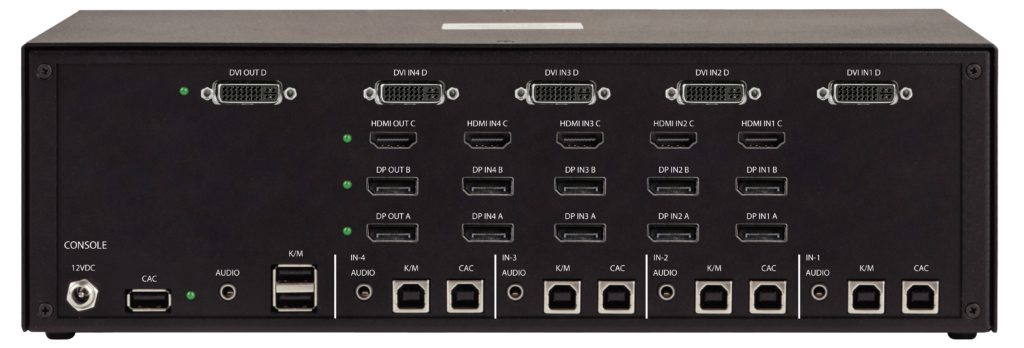

| USB Connectors | 8× USB Type-B (host), 2× USB Type-A (keyboard/mouse), 1× USB Type-A (CAC) |
| Audio Support | 3.5mm stereo input (4 ports), 3.5mm stereo output (1 port) |
| CAC Support | Yes, via dedicated USB interface |
| Security Compliance | Common Criteria Validated, NIAP Protection Profile PSS v4.0 |

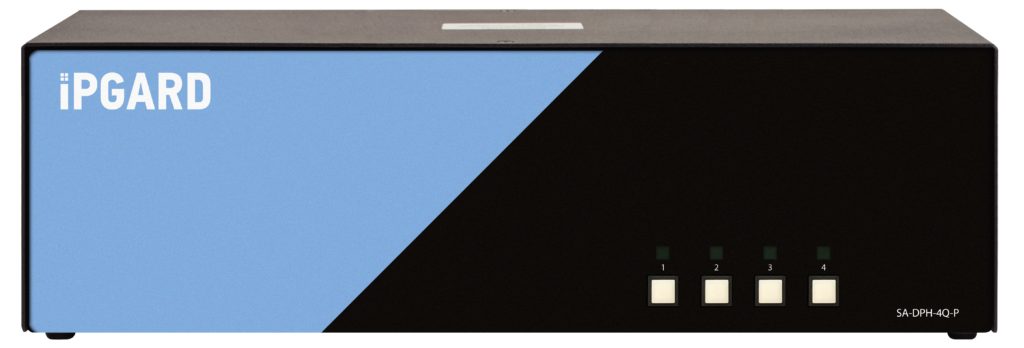

| Control Interface | Front panel push buttons |
| EDID Management | Automatic EDID learning |
| Input Cable Length | Up to 20 ft |
| Output Cable Length | Up to 20 ft |
| Power Supply | 12V DC, 3A adapter |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 0–80% RH, non-condensing |
| Build | Designed for high-security environments |
