Description

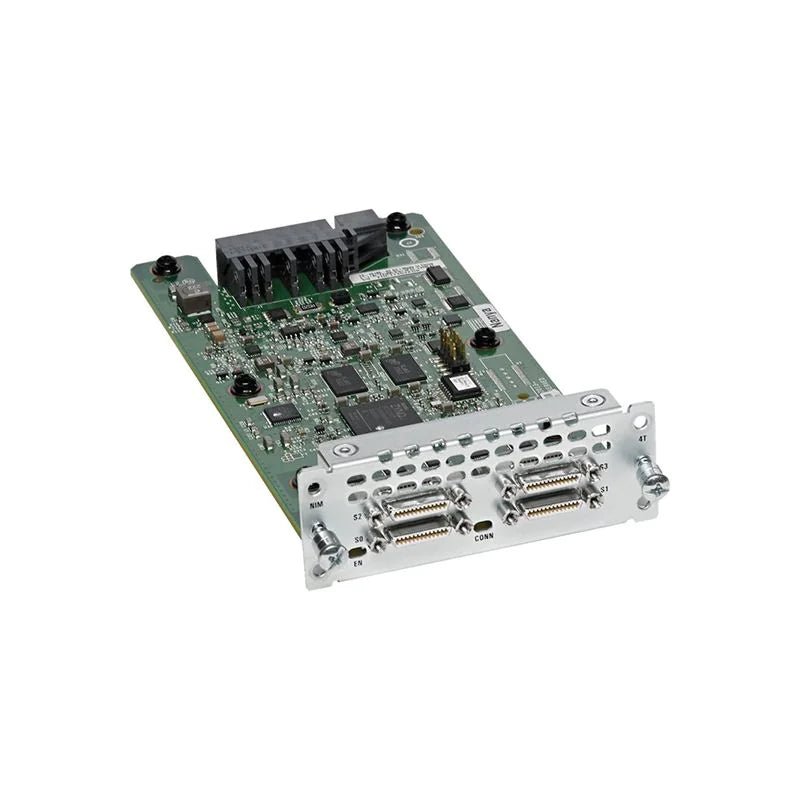

The Cisco NIM-4T is a 4-port synchronous serial WAN Network Interface Module designed for Cisco Integrated Services Routers. It delivers reliable, high-performance serial connectivity for branch offices and WAN aggregation environments. Supporting industry-standard WAN protocols such as HDLC, PPP, and Frame Relay, the NIM-4T enables flexible point-to-point and point-to-multipoint network designs.
Each serial port supports synchronous speeds of up to 8 Mbps, making the module ideal for low- to medium-density WAN deployments. Using Cisco Smart Serial connectors, the NIM-4T is compatible with a wide range of serial cabling options and integrates seamlessly into supported Cisco ISR platforms. Its compact, single-wide design allows efficient use of router expansion slots while maintaining enterprise-grade reliability.
| Specification | Details |
|---|---|
| Product Type | Serial WAN Network Interface Module |
| Ports | 4 x Synchronous Serial |
| Maximum Speed (Per Port) | Up to 8 Mbps |
| WAN Protocols | HDLC, PPP, Frame Relay |
| Serial Standards Supported | EIA-232, EIA-449, EIA-530, EIA-530A, V.35, X.21 |
| Connector Type | Cisco Smart Serial |
| Form Factor | Single-wide NIM |
| Dimensions (H × W × D) | 1.25 × 3.50 × 7.24 in (3.18 × 8.89 × 18.39 cm) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 149°F (-20°C to 65°C) |
| Relative Humidity | 10% to 90%, non-condensing |
| Compatibility | Cisco Integrated Services Routers (supported models) |
