Description

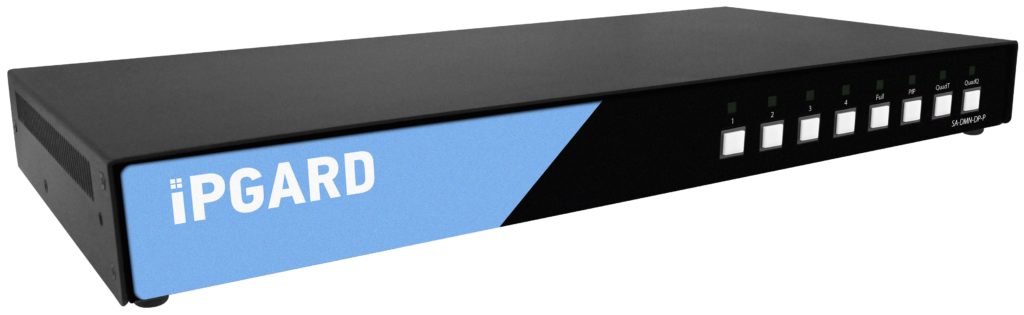

The iPGARD SA-DMN-DP-P is a high-security 4-port DisplayPort KVM switch engineered for mission-critical environments where data isolation and system integrity are non-negotiable. Designed to meet stringent security standards, this solution enables seamless control of up to four computers from a single console while ensuring complete channel isolation to prevent data leakage.

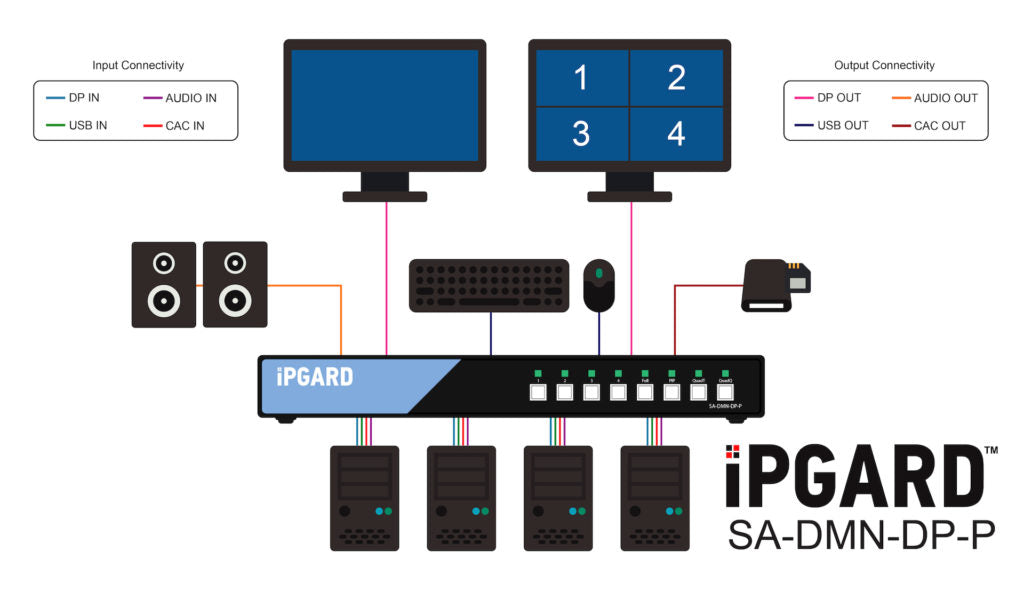

Equipped with advanced security features such as anti-tamper protection, secure EDID emulation, and isolated USB channels, this KVM switch is ideal for government, defense, financial, and enterprise deployments. The integrated preview screen enhances operational awareness by allowing users to monitor multiple systems simultaneously through various viewing modes including full screen, PIP, and quad display layouts.
With support for high-resolution DisplayPort video, dedicated CAC (Common Access Card) connectivity, and analog audio switching, the SA-DMN-DP-P delivers both performance and compliance in a compact, easy-to-deploy solution.
| Specification | Details |
|---|---|
| Product Type | Secure KVM Switch |
| Number of Ports | 4-Port |
| Video Interface | DisplayPort |

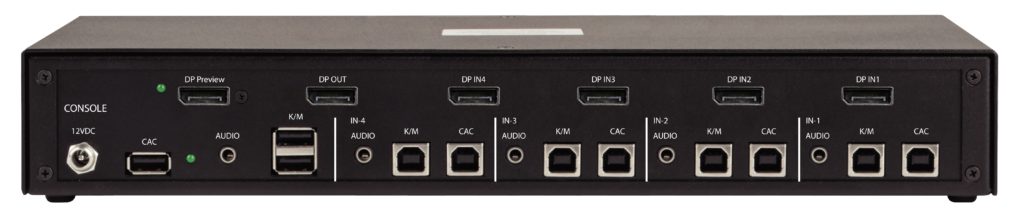

| Host Connections | 4 x DisplayPort Inputs |
| Console Outputs | 2 x DisplayPort Outputs |
| Maximum Resolution | Up to 3840 x 2160 @ 30Hz |
| USB Support | USB 1.1 for keyboard/mouse, USB 2.0 for CAC |
| USB Interfaces | 4 x USB Type-B (input), 2 x USB Type-A (console), 1 x USB Type-A (CAC) |
| Audio Support | Stereo 3.5mm input (4), stereo 3.5mm output (1) |
| CAC Support | Yes (Smart Card / Authentication Devices) |
| Preview Screen | Yes (Full, PIP, QuadT, QuadQ modes) |
| Security Features | Anti-tamper switches, tamper-evident seals, secure EDID emulation, isolated USB channels |
| Firmware Protection | Protected against reprogramming and unauthorized access |

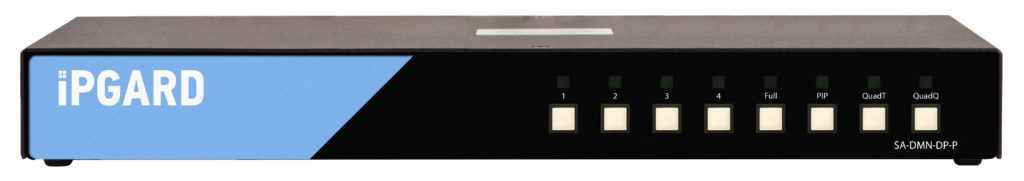

| Control Method | Front panel push buttons |
| Power Supply | 12V DC, 2A minimum |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Humidity | 0–80% RH, non-condensing |
| Compliance | Common Criteria Validated to NIAP PSS Ver. 4.0 |
| Device Compatibility | Windows, Linux systems, servers, thin clients |
