Description

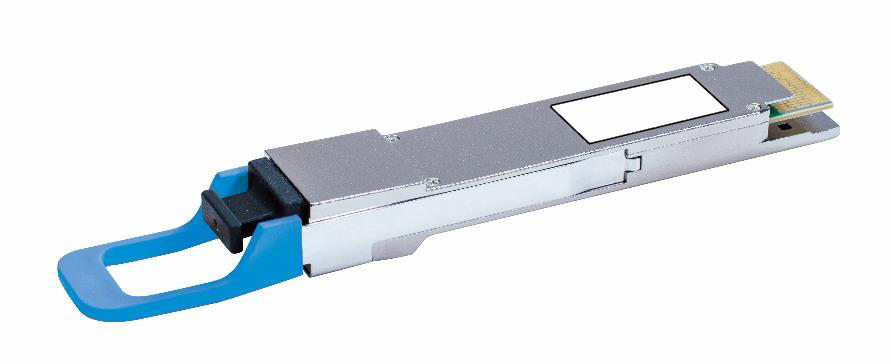

The NVIDIA Mellanox MMS1V00-WM is a single-mode, 4-channel (DR4) QSFP-DD optical transceiver for 400GbE links of up to 500m over single-mode fiber. It converts 8 channels of 50Gb/s PAM4 electrical data into 4 channels of 100Gb/s PAM4 optical signals at a nominal 1310nm wavelength. The optical interface uses four fibers in each direction through a standard MPO-12 connector.
The module complies with IEEE 802.3bs-2017 (400GBASE-DR4 optical and 400GAUI-8 electrical interfaces), QSFP-DD MSA Hardware Rev 5.0 Type 2 housing, and QSFP-DD CMIS Rev 4.0. It provides a two-wire serial interface with digital diagnostic monitoring and is RoHS compliant.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | NVIDIA Mellanox |
| MPN | MMS1V00-WM |
| Product Type | QSFP-DD Optical Transceiver |
| Protocol | 400GbE (IEEE 802.3bs-2017 400GBASE-DR4 / 400GAUI-8) |
| Electrical Interface | 8 x 50Gb/s PAM4 |
| Optical Interface | 4 x 100Gb/s PAM4 |
| Signaling Rate per Lane | 53.125 GBd (typical) |
| Wavelength | 1310nm |
| Fiber Type | Single-mode, parallel |
| Operating Distance | 2m to 500m |
| Optical Connector | MPO-12 |
| Housing | QSFP-DD MSA HW Rev 5.0, Type 2 |
| Management | QSFP-DD CMIS Rev 4.0, two-wire serial interface with DDM |
| Max Power Dissipation | 12W (1.5W in low-power mode) |
| Supply Voltage | 3.135β3.465V (3.3V typical) |
| Operating Case Temperature | 0Β°C to 70Β°C |
| Storage Temperature | -40Β°C to 85Β°C |
| Relative Humidity | 5% to 95% non-condensing |
| Compliance | RoHS (EU Directive 2011/65/EU) |
| Warranty | 1-year limited hardware warranty |
