Description

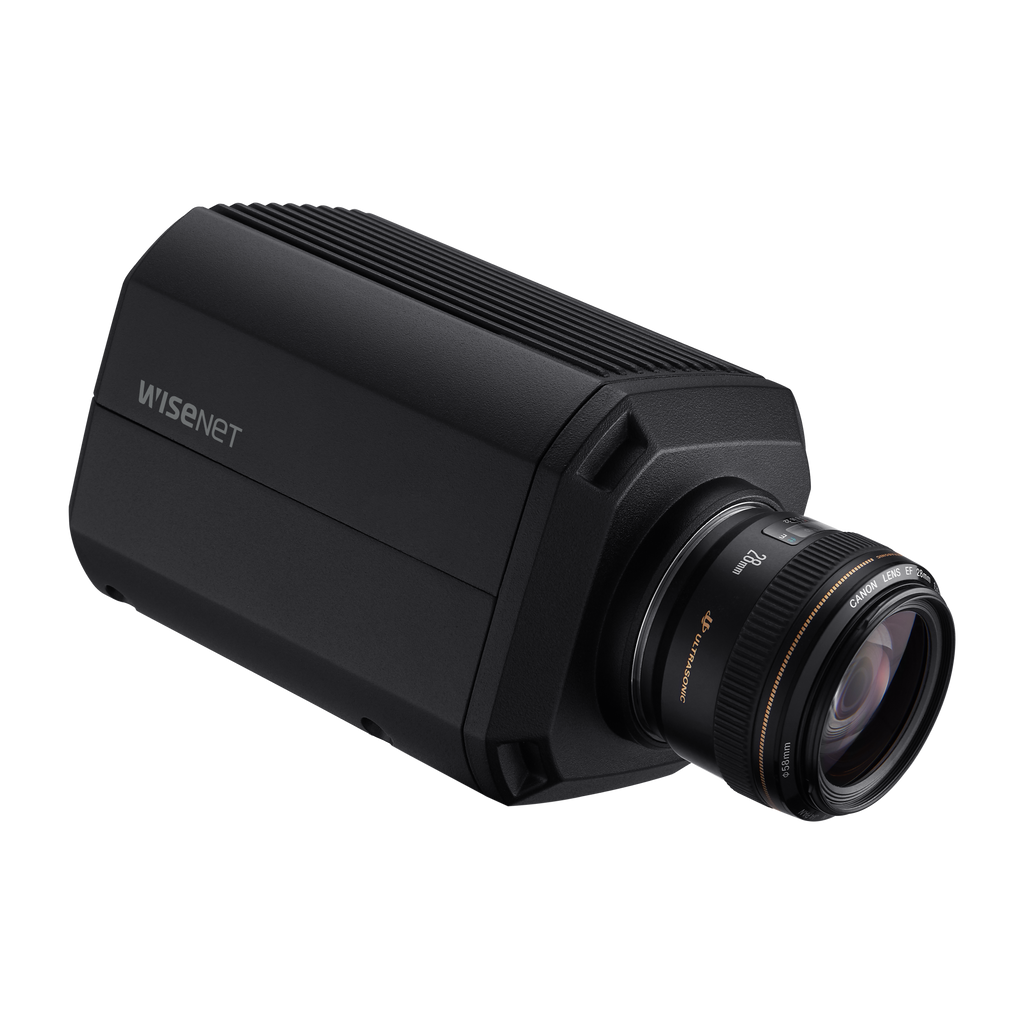

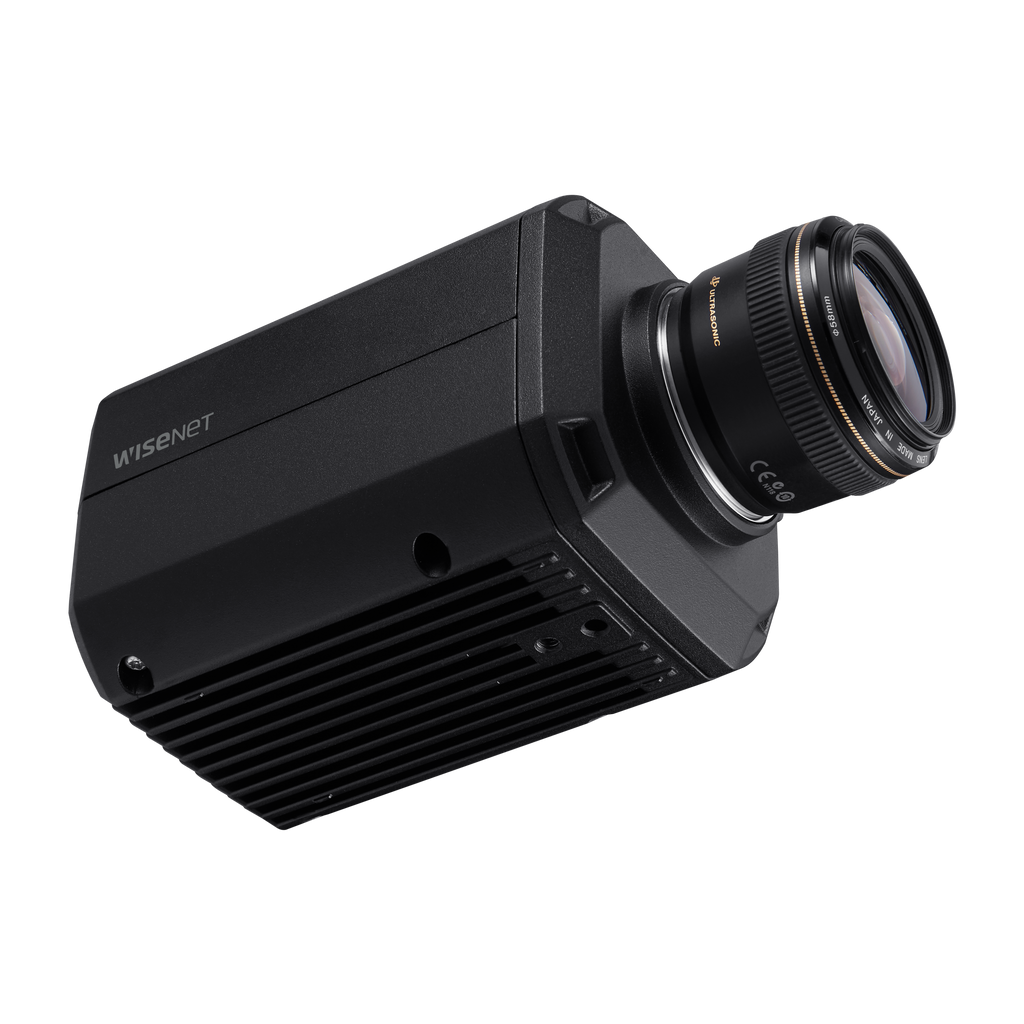

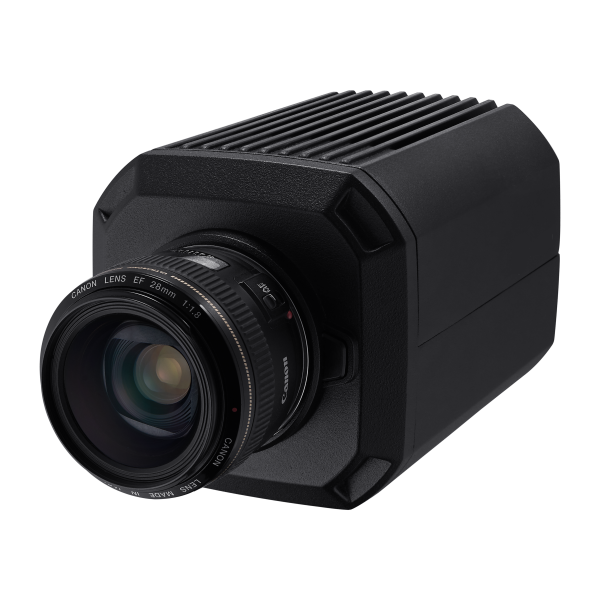

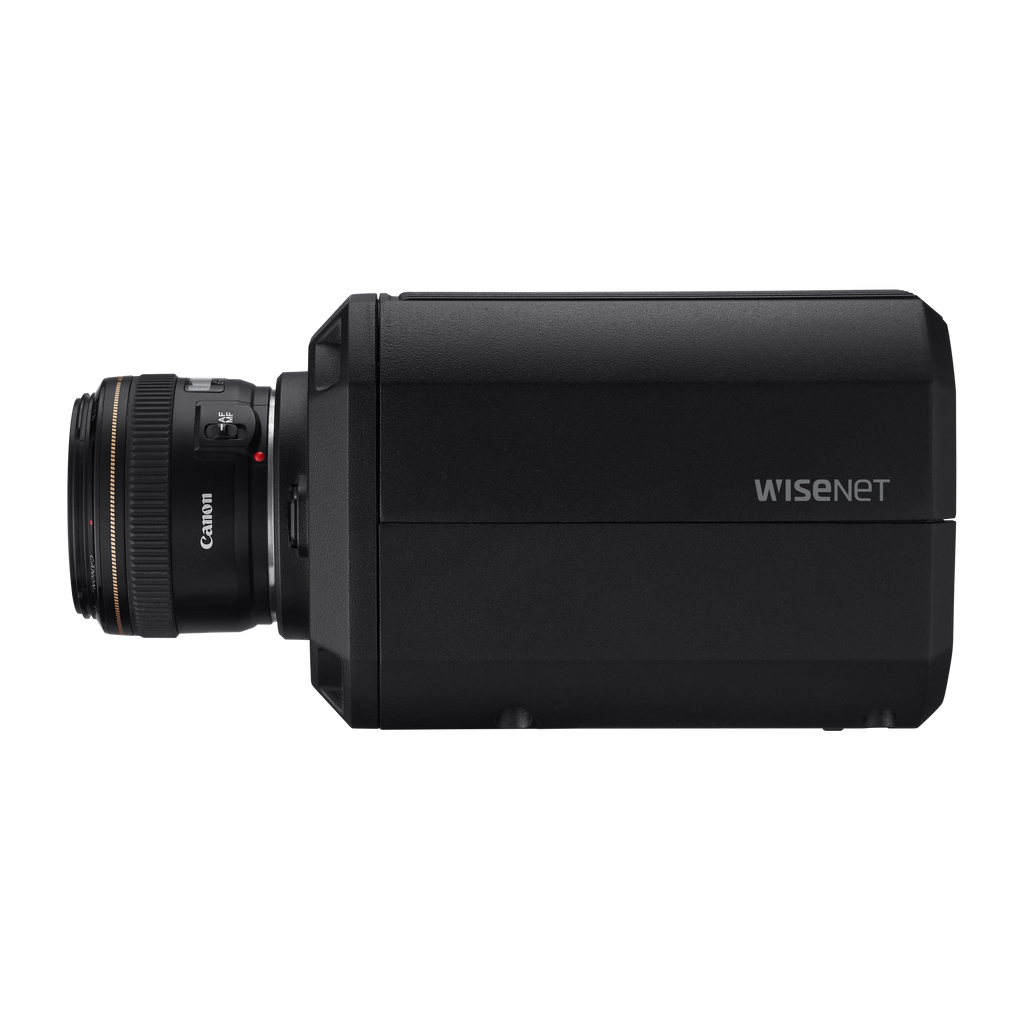

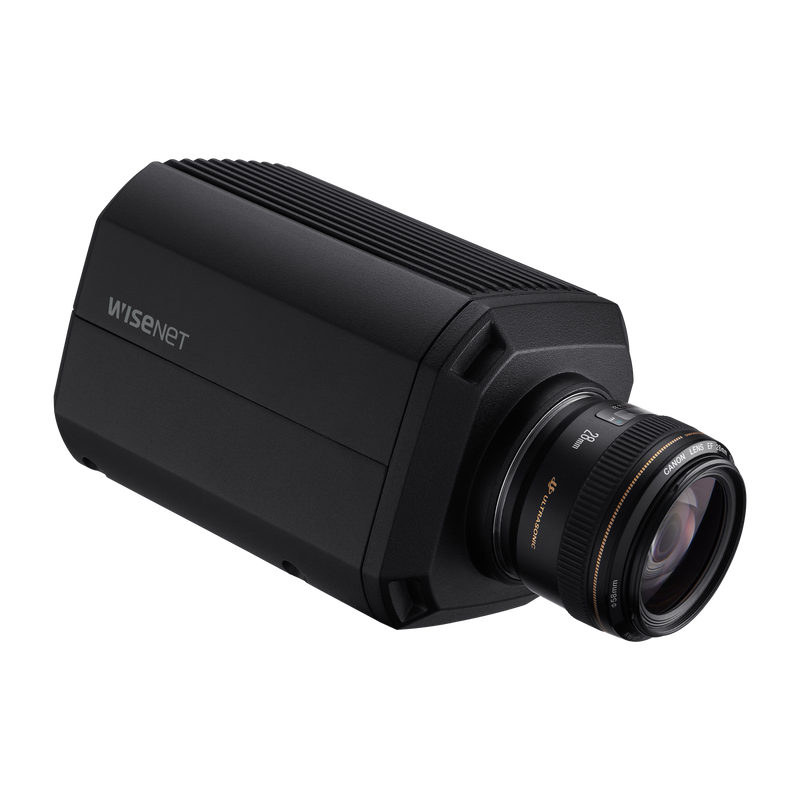

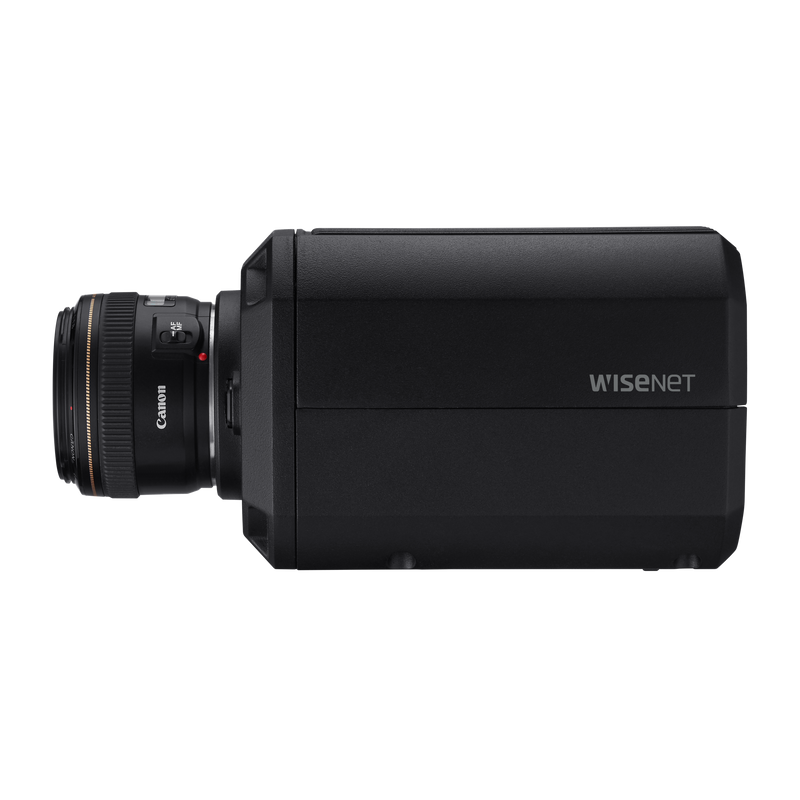

The Wisenet TNB-9000 is Hanwha’s highest-performance 8K box camera, engineered for expansive environments that demand uncompromising clarity. Powered by a full-frame 43.3mm CMOS sensor, it delivers true 8K video with exceptional low-light performance and precise detail capture—ideal for stadiums, airports, city surveillance, and critical-infrastructure monitoring.
Supporting Canon EF-mount lenses, the TNB-9000 offers exceptional optical flexibility with remote focus capability. Its advanced AI-based video analytics provide accurate detection, classification, and attribute tagging of people, vehicles, faces, and objects. With HDMI output, multiple streaming profiles, WiseStream II compression, HPoE, and onboard microSD storage, this camera delivers professional-grade image quality and operational efficiency in demanding surveillance setups.
| Category | Details |
|---|---|
| Imaging | 43.3mm full-frame CMOS sensor; Min. illumination: 0.015 Lux (Color), 0.0015 Lux (B/W) |
| Resolution | Up to 7680×4320 (8K) |
| Max Frame Rates | 15fps @ 32MP (8K), 20fps @ 24MP, 30fps @ 15MP, 60fps @ 4K |
| Video Compression | H.265 / H.264 (Main/High), MJPEG |
| Video Output | HDMI 1080p @ 30/25fps |
| Lens | Canon EF mount; supports EF auto-iris lenses |
| Focus Control | Simple focus |
| AI Analytics | Object detection/classification, attributes, BestShot; virtual line, intrusion, loitering; defocus, motion, tampering, sound classification |
| Day/Night | Auto (ICR) |
| Backlight & Noise Reduction | BLC, DWDR; SSNR V |
| Motion Detection | 8 polygonal zones |
| Privacy Masking | 6 rectangular zones |
| Audio | Audio in (mic/line selectable), audio out |
| Alarms | 1 input / 1 output; supports email/FTP upload, SD/NAS event recording |
| Network Interface | RJ-45 (10/100/1000BASE-T), SFP (100/1000Mbps) |
| Protocols | IPv4/IPv6, TCP/IP, UDP, RTP/RTSP, NTP, HTTP/HTTPS, SSL/TLS, DHCP, FTP, SMTP, IGMP, SNMP v1/v2c/v3, QoS, UPnP, Bonjour, LLDP |
| API Support | ONVIF S/G/T; SUNAPI |
| Edge Storage | MicroSD/SDHC/SDXC up to 256GB |
| Power | 12VDC; HPoE (IEEE 802.3bt Class 5) |
| Power Consumption | PoE: Max 30W (typ. 20W); 12VDC: Max 26W (typ. 18W) |
| Operating Temp | 0°C–45°C (32°F–113°F) |
| Product Dimensions | 120 × 118.1 × 179 mm |
| Weight | 2,100g (4.55 lbs) |
| Color / Build | Black; Aluminum housing |
