Description

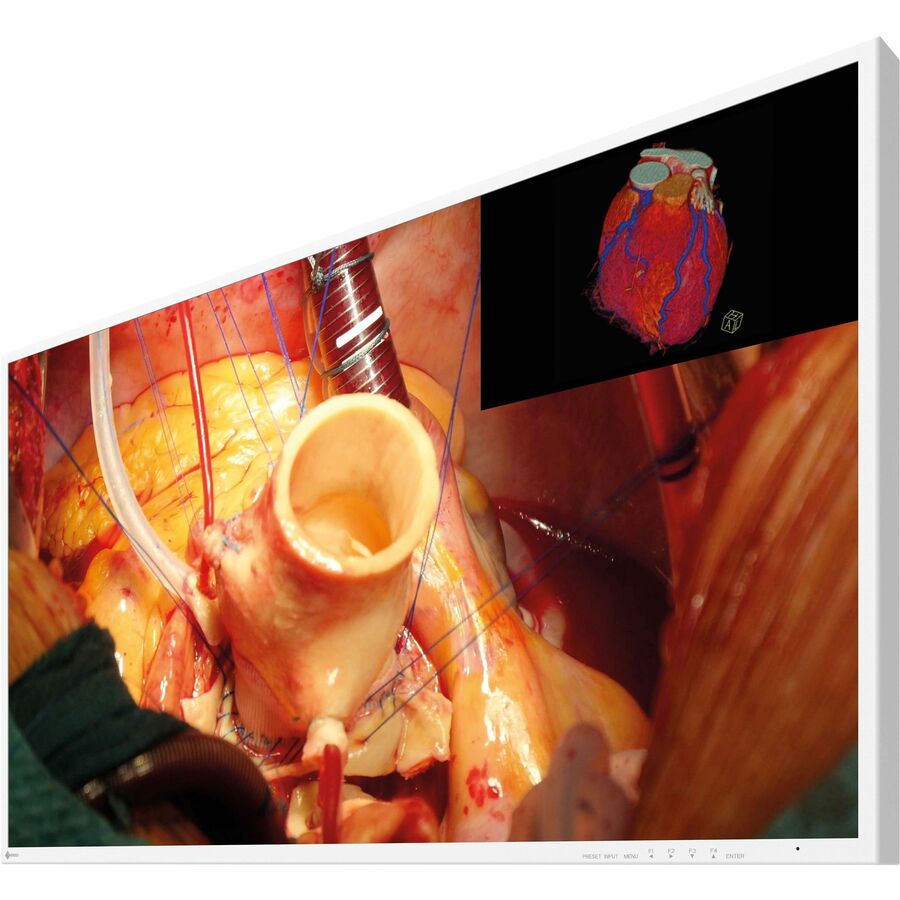

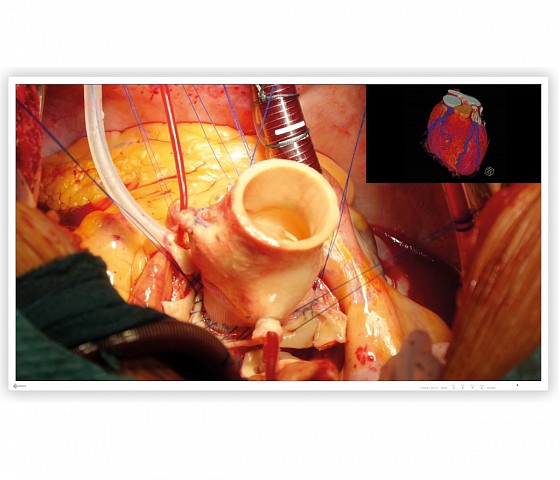

The EIZO CuratOR EX4342 is a high-performance 43-inch surgical monitor designed to deliver unparalleled imaging precision for endoscopy, operating microscopy, and other high-precision medical procedures. Featuring a stunning 4K UHD resolution (3840 x 2160) and 700 cd/m² brightness, it reproduces ultra-detailed images with exceptional clarity, enabling surgeons to differentiate even the most subtle color tones during operations.

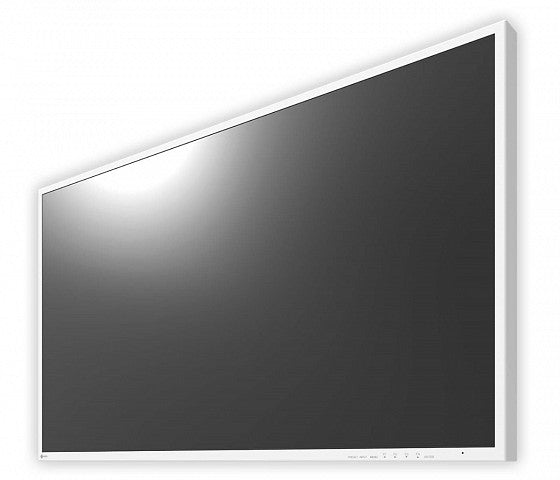

Equipped with BT.2020 wide color gamut support, the EX4342 ensures accurate representation of natural tones, while HDR compatibility (PQ and HLG) enhances contrast and dynamic range for life-like imaging. Its fully flat design and IP45-rated front panel make cleaning and disinfection easy, supporting optimal hygiene in sterile environments.
With a lightweight construction of only 17 kg and VESA-compatible mounting, the EX4342 offers versatile installation options, including medical carts, wall mounts, or ceiling arms. It supports multiple connectivity options — including 12G-SDI, DisplayPort, HDMI, and DVI-D — and features loop-through output for seamless multi-monitor configurations. Additional features like Picture-by-Picture (PbyP), Picture-in-Picture (PinP), Auto Input Detection, and remote control further enhance its usability in demanding surgical settings.
| Specification | Details |
|---|---|
| Model | EX4342 |
| Panel Type | TFT Color-LCD (IPS) |
| Backlight | LED |
| Display Size | 43" (109.2 cm) |
| Native Resolution | 3840 x 2160 (4K UHD, 16:9) |
| Viewable Area (H x V) | 941.2 x 529.4 mm |
| Pixel Pitch | 0.2451 x 0.2451 mm |
| Display Colors | 10-bit (1.07 billion colors), 8-bit (16.77 million) |
| Viewing Angles (H/V) | 178° / 178° |
| Brightness (typ.) | 700 cd/m² |
| Contrast Ratio (typ.) | 1000:1 |
| Response Time (typ.) | 8 ms (gray-to-gray) |
| Color Gamut | BT.2020 emulation |
| HDR Support | PQ and HLG |

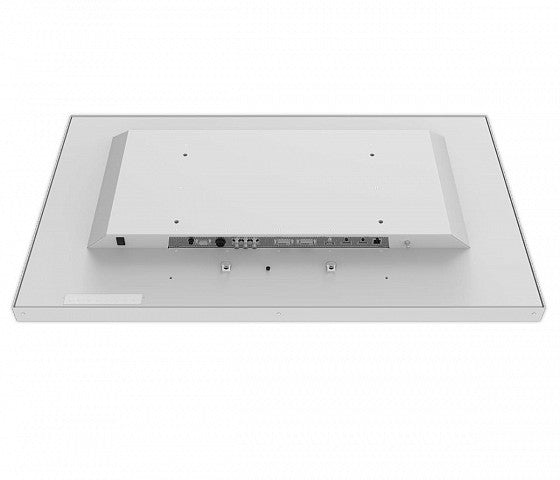

| Input Terminals | BNC (3G-SDI), BNC (12G-SDI), DVI-D, DisplayPort, HDMI |
| Output Terminals | BNC (12G-SDI), DVI-D, DisplayPort |
| Power Requirements | AC adapter: 100–240 V, 50–60 Hz; Monitor input: DC 48 V, 3.0 A |
| Max Power Consumption | 144 W |
| Features & Functions | PbyP, PinP, Auto Input Detection, Gamma Switch, Color Temp Switch, RS-232C Remote Control |
| Protective Screen | 9H laminated glass |
| Net Weight | Approx. 17 kg |

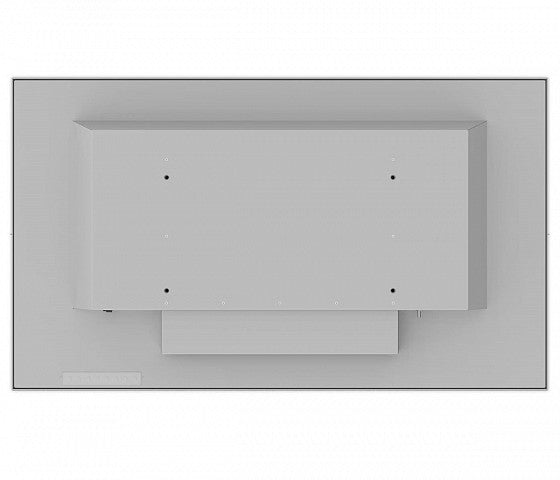

| Mounting Standard | VESA 400 x 200 mm |
| Ingress Protection | Front: IP45, Rear: IP32 |
| Certifications | CE/UKCA (Medical), ANSI/AAMI ES60601-1, CSA-C22.2 No. 60601-1, IEC/EN 60601-1, FCC-A, VCCI-A, RCM, RoHS, WEEE, CCC |
| Supplied Accessories | AC power adapter, cable cover, screws, cable ties, Utility Disk |
| Optional Accessories | Wall mount FWM6300 |
