48.5IN WS LCD 1920X1080 1300:1

EIZO CuratOR LX491W-BK Full HD LCD Monitor - 16:9 - Black

Large Display Area

With an image diagonal of 49" and a resolution of 1920 x 1080 pixels, the monitor is suited for displaying different image sources simultaneously. For example, DICOM X-rays and endoscopic images can be shown side-by-side in the surgical environment. The large image diagonal makes the monitor ideal for mounting on the OP wall and viewing images from a greater distance. Images can be scaled full screen, reproduced in their original size, or displayed in or next to one another with the PiP and PaP functions.

Flexible Usage

The monitor supports a wide spectrum of timings and can be adapted easily to the various signal requirements in the operating room. Together with its numerous input and output connectors, the monitor can be used in a variety of ways with established imaging systems. Depending on the procedure and requirements, users for example can quickly switch between endoscopic images, X-ray images in DICOM, and modality images with specialized timing, or combine these with other images.

Comfortably View from Any Angle

Wide viewing angles allow the monitor to be viewed from the side with minimal color shift, thus offering a quality image to multiple persons watching from different perspectives simultaneously.

Preset Look-Up Tables

The monitor is pre-calibrated in the factory. With five applicationoriented look-up table (LUT) presets and a user-configurable LUT function, the monitor is easy to install and maintain. It can be quickly adapted to the local viewing and lighting conditions or application preferences as needed.

User-Defined LUT Function

With the user-defined look up table (LUT), the default gamma model, color coordinates, and brightness of the LX491W can be adapted to individual requirements without additional sensors and software. With Force Mode, even the unknown timing of an older medical system can be analyzed and implemented in the monitor. As a result, even timing outside the standard range can be displayed on the monitor. This ensures compatibility, especially with older medical systems. And adaptations in the field, for example when replacing a device, become very easy.

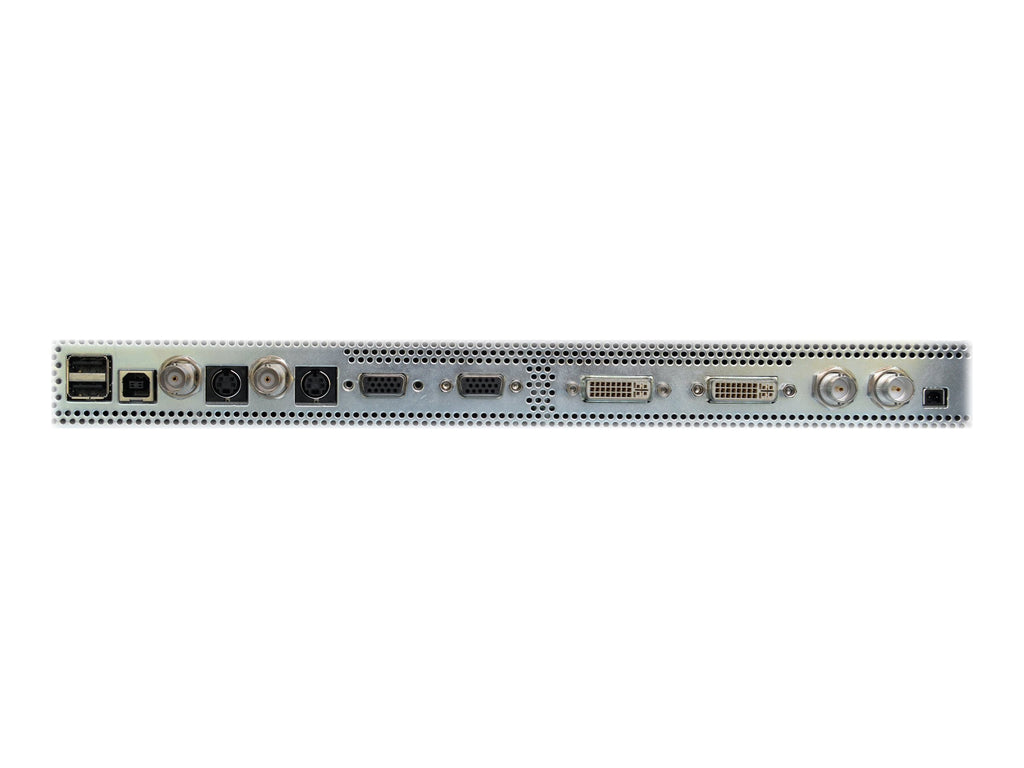

Numerous Video Inputs

The LX491W can be connected to imaging systems via the various video inputs, such as DVI, 3G-SDI, Composite, S-Video and VGA. The monitor can be simultaneously connected to both digital and traditional video signals (PAL, NTSC). If necessary, the video input settings can be adjusted using the OSD (On Screen Display) menu.

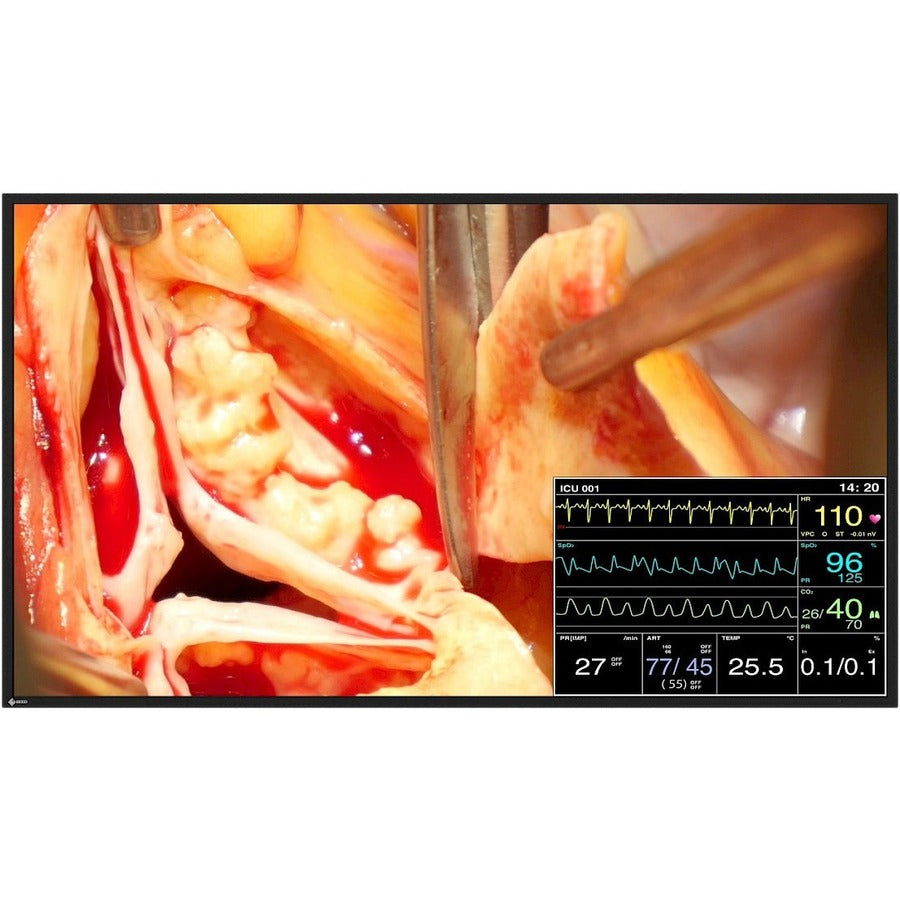

Simultaneous Display of Different Image Sources

Thanks to the monitor's widescreen format, the various input signals can be displayed in "picture-in-picture" (PiP) or side by side (PaP) orientations. This reduces the need for additional monitors, allowing users to view critical source image while simultaneously maintaining a view over other vital information.

Laminated Safety Glass for Easy Cleaning

The anti-reflective laminated safety glass ensures excellent image quality while protecting the monitor from scratch damage or liquid ingress during surgery or when cleaning and disinfecting the monitor.

LED Backlight

The monitor is equipped with an LED backlight that has been optimized for bright environments. LED technology offers a long lifetime expectancy even at high luminance settings.

• LCD Monitor offers maximum productivity with added dependability


• 48.5" viewable screen size showcases movies, games, and photos with striking clarity


• Allows pixels to adjust and accommodate moving scenes and video games with 8 ms response time


• View your content easily in well lit areas with 700 Nit brightness


• The CuratOR 48.5" monitor includes Full HD 1920x1080 resolution for staggering pixel-by-pixel picture execution


• LED backlight technology offers visual brilliance with maximum efficiency


• 1920 x 1080 maximum resolution for a spectacular, sharp display with added reliability


• 16:9 widescreen resolution perfect for watching movies, playing video games and getting on with office work


• VESA mount compatibility allows you to mount the display on a wall or with a stand depending on your specific needs


• Built-in USB hub allows quick transmission of data at a higher rate for your convenience
