Description

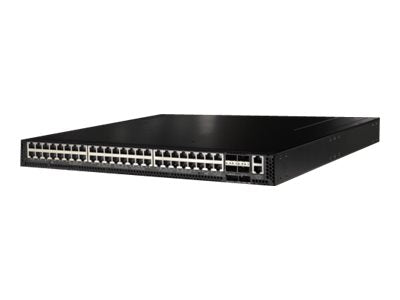

The Edgecore AS5812-54T is a high-performance Layer 3 managed switch engineered to meet the scalability, reliability, and efficiency requirements of enterprise and cloud data centers. This 1U rack-mountable switch provides 48 x 1GBase-T ports and 6 x 40G QSFP+ uplinks, offering flexible deployment for both aggregation and Top-of-Rack (ToR) applications.
Powered by the Broadcom Trident II chipset and an Intel Atom C2538 processor, the AS5812-54T delivers advanced Layer 2/3 switching, VXLAN and NVGRE tunneling, and ONIE (Open Network Install Environment) support for open networking. Its dual hot-swappable AC power supplies and 4+1 redundant fan modules ensure optimal uptime, while front-to-back airflow supports efficient cooling in dense rack environments.
Ideal for high-performance network fabrics, the Edgecore AS5812-54T delivers non-blocking throughput, 1 Bpps forwarding performance, and 720 Gbps switching capacity, making it a powerful and reliable solution for modern data centers.
| Category | Specification |
|---|---|
| General | |
| Device Type | Switch – 54 ports – L3 – Managed |
| Enclosure Type | Rack-mountable, 1U – Front to Back Airflow |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000Base-T + 6 x 40G QSFP+ (breakout compatible) |
| Performance | |
| Switching Capacity | 720 Gbps |
| Forwarding Performance | 1 Bpps |
| Latency | 720 ns |
| Capacity | |
| VLANs | 4000 |
| Host Table (IPv4 / IPv6) | 112,000 / 56,000 entries |
| MAC Address Table | 288K entries |
| Jumbo Frame Support | 9216 bytes |
| Hardware | |
| Processor | Intel Atom C2538 |
| RAM | 8 GB DDR3 SDRAM |
| Flash Memory | 8 GB |
| Packet Buffer | 16 MB |
| Status Indicators | Port status, link/activity |
| Expansion / Connectivity | |
| Interfaces | 48 x RJ-45 (1GBase-T) 6 x QSFP+ (40G) 1 x RJ-45 (Console) 1 x RJ-45 (Management) |
| Power | |
| Power Device | Internal Power Supply (Dual AC PSU) |
| Redundancy | 1+1 Redundant Hot-Swappable |
| Voltage | AC 120/230V (50/60 Hz) |
| Power Consumption | 348W (Operational) |
| Environmental | |
| Operating Temp | 32°F to 104°F (0°C to 40°C) |
| Storage Temp | -40°F to 158°F (-40°C to 70°C) |
| Humidity | 5–95% (non-condensing) |
| Compliance | UL, VCCI, cUL, EN60950, FCC Part 15A, RoHS |
| Physical Dimensions | |
| Width | 18.6 in |
| Depth | 17.4 in |
| Height | 1.7 in |
| Weight | 20.94 lbs |
| Included Software | Open Network Install Environment (ONIE) |
| Region | North America |
