Description

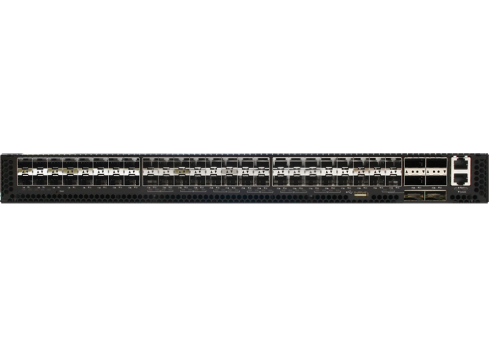

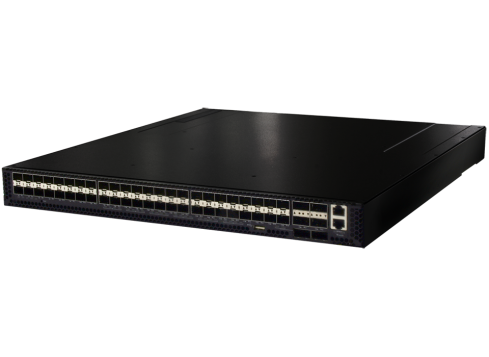

The Edgecore AS5812-54X is a high-performance Top-of-Rack (TOR) or spine switch designed for modern enterprise and cloud data centers. Equipped with 48 × 10 GbE SFP+ ports and 6 × 40 GbE QSFP+ uplinks, it delivers full line-rate Layer 2 and Layer 3 switching across all interfaces.
Powered by a Broadcom Trident II+ ASIC and Intel Atom C2538 4-core CPU, the AS5812-54X provides superior throughput, scalability, and programmability for virtualized network environments.
This open network switch comes pre-loaded with ONIE (Open Network Install Environment), enabling flexible installation of open-source or commercial Network Operating Systems (NOS).

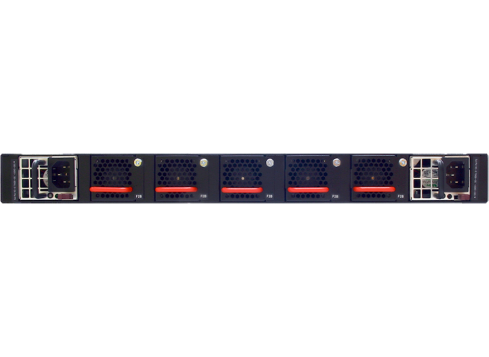

Designed for back-to-front airflow, with dual hot-swappable AC power supplies and 4 + 1 redundant fans, it ensures maximum reliability and efficiency in mission-critical deployments.
Ideal for data center fabrics, VXLAN/NVGRE-enabled cloud architectures, and open networking solutions requiring low-latency and high-density 10/40 GbE connectivity.
| Category | Specification |
|---|---|
| Model | Edgecore AS5812-54X |
| SKU | 5812-54X-O-AC-B-US |
| Device Type | Layer 2/Layer 3 Managed Switch |
| Ports | 48 × 10 GbE SFP+ / 6 × 40 GbE QSFP+ (breakout 4 × 10 GbE each) |
| Processor | Intel Atom C2538 4-Core 2.4 GHz x86 |
| Switch ASIC | Broadcom BCM56864 Trident II+ |
| Memory | 8 GB DDR3 ECC / 32 GB mSATA / 16 MB SPI |
| Switching Capacity | 720 Gbps (full duplex) |
| Forwarding Rate | 424.52 Mpps |
| MAC Address Table | Up to 288 K entries |
| VLAN IDs | 4 K |
| IPv4 Routes | 16 K LPM / 112 K Host Entries |
| IPv6 Routes | 8 K LPM / 56 K Host Entries |
| Jumbo Frames | Up to 9 KB |
| Packet Buffer | 16 MB Integrated |
| Airflow | Back-to-Front |
| Power Supply | Dual hot-swappable AC PSUs (90–264 VAC, 50/60 Hz) |
| Power Consumption | Max 282 W (with optics) |
| Fan Modules | 4 + 1 Redundant, Hot-Swappable |
| Operating Temp. | 0 °C – 40 °C (32 °F – 104 °F) |
| Dimensions (W × D × H) | 17.26 × 18.62 × 1.71 in (43.84 × 47.3 × 4.34 cm) |
| Weight | 8.95 kg (19.73 lb) |
| Compliance | CE, FCC Class A, UL, RoHS-6, TAA Compliant |
| Software Environment | ONIE installer for open source or commercial NOS options |
| Country of Origin | Taiwan |
