Description

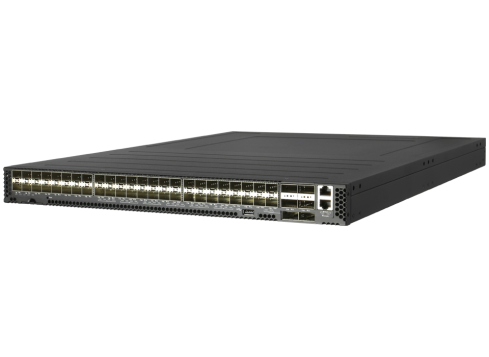

The Edgecore AS5916-54XM is a high-performance 10GbE/100GbE aggregation router designed for carrier access, data center, and cloud infrastructure deployments. Powered by the Broadcom StrataDNX® Qumran MX™ ASIC and an Intel® Xeon® D-1518 quad-core CPU, it delivers up to 800 Gbps switching capacity and 720 Mpps throughput in a compact 1RU form factor.

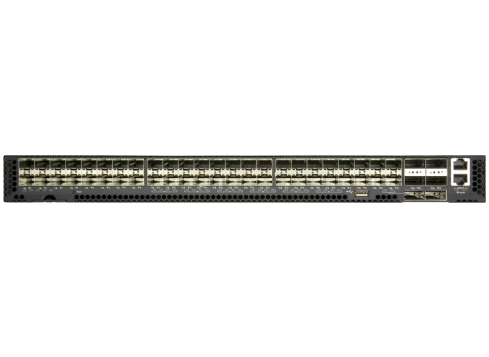

This deep-packet buffer platform supports 48 × SFP+ ports for 10 GbE or 1 GbE connections and 6 × QSFP28 uplinks for 40 GbE/100 GbE aggregation. It includes IEEE 802.1AE MACsec encryption, ensuring secure and reliable transmission for enterprise and service provider networks.

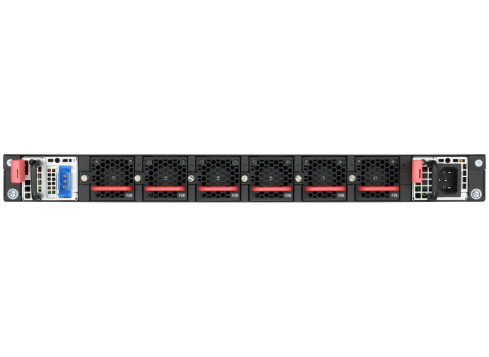

With dual hot-swappable AC power supplies, 5 + 1 redundant fan modules, and port-to-power airflow, the AS5916-54XM offers resilient performance and easy serviceability. Pre-loaded with ONIE, it supports open-source and commercial network operating systems, enabling flexible deployment in open networking environments.
| Category | Specification |
|---|---|
| Model | AS5916-54XM-O-AC-F-US |
| Form Factor | 1RU rack-mountable |
| Switch ASIC | Broadcom Qumran-MX BCM88370 |
| CPU | Intel Xeon D-1518 quad-core x86 |
| Memory / Storage | 16 GB DDR4 SO-DIMM (8 GB × 2), 32 GB M.2 SSD |
| Switching Capacity | 800 Gbps |
| Forwarding Rate | 720 Mpps |
| Ports | 48 × SFP+ (10/1 GbE) + 6 × QSFP28 (100/40 GbE) |
| Management Interfaces | 1 × RJ-45 console port, 1 × RJ-45 1 GbE management port, 1 × USB Type-A |
| Encryption | IEEE 802.1AE MACsec on 10G downlinks |
| Airflow | Port-to-Power |
| Power Supply Units | Dual hot-swappable AC PSUs (100–240 VAC input) |
| Fan Modules | 5 + 1 redundant hot-swappable |
| Dimensions (W × D × H) | 438.4 × 609 × 43.25 mm (17.26 × 23.98 × 1.70 in) |
| Weight | 9.7 kg (21.38 lb) with 2 PSUs |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Operating Humidity | 5 % to 95 %, non-condensing |
| Software Environment | Pre-loaded ONIE (Open Network Install Environment); compatible with Open Network Linux and other NOS options |
| Compliance | CE, FCC Class A, UL/cUL, BSMI, CCC, RoHS 2.0, WEEE Directive |
| Region | North America (Power Cord Included) |
| Warranty | Standard 3-Year Limited Warranty |
