Description

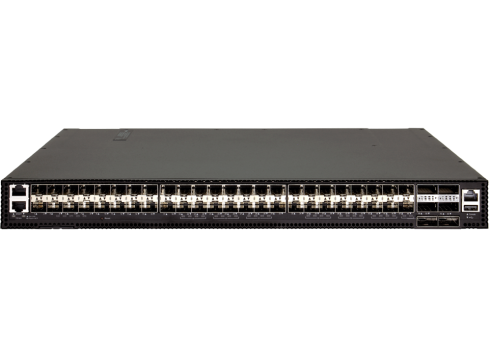

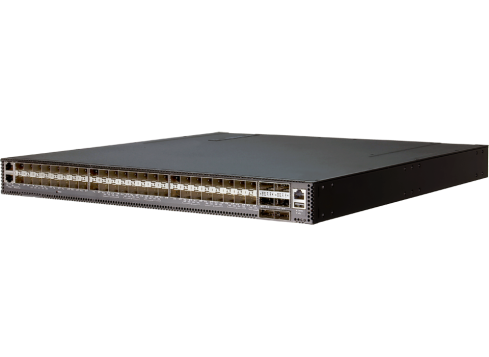

The Edgecore AS5835-54X-O-48V-B is a high-performance open network data-center switch built for top-of-rack or spine-layer deployments. Featuring 48 × 10 GbE SFP+ ports and 6 × 100 GbE QSFP28 uplinks, it delivers 1.08 Tbps of non-blocking switching capacity with advanced Layer 2 and Layer 3 features.

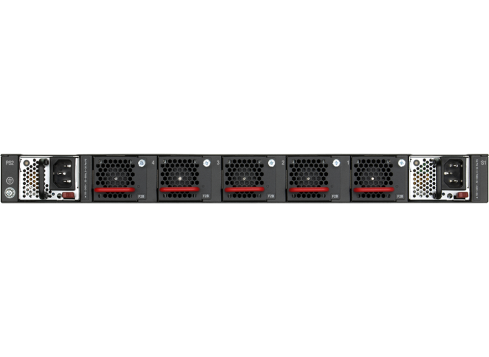

Powered by the Broadcom BCM56771 Trident 3 switch ASIC and an Intel Atom C3558 quad-core CPU, the AS5835-54X-O-48V-B supports VXLAN and NVGRE tunneling for large-scale virtualization. This model includes dual –48 V DC hot-swappable power supplies and 4+1 redundant fans with back-to-front airflow, ensuring reliable operation in demanding environments.
The switch comes pre-loaded with ONIE (Open Network Install Environment), allowing installation of compatible open-source or commercial network operating systems. Ideal for enterprises and cloud data centers, it combines scalability, energy efficiency, and open networking flexibility in a compact 1U rackmount design.
| Category | Specification |
|---|---|
| Model | Edgecore AS5835-54X-O-48V-B |
| Form Factor | 1U rack-mountable data-center switch |
| Switch Silicon | Broadcom BCM56771 Trident 3 |
| CPU | Intel Atom C3558 2.2 GHz quad-core x86 |
| Memory / Storage | 16 GB DDR4 (8 GB × 2 SO-DIMM); 64 GB M.2 MLC storage |
| Switching Capacity | 1.08 Tbps (full duplex) |
| Forwarding Rate | 964.28 Mpps |
| Packet Buffer | 32 MB integrated buffer |
| MAC / Routing Entries | 32 K min / 288 K max MAC; IPv4 16 K min / 168 K max; IPv6 8 K min / 100 K max |
| Ports | 48 × 10 GbE SFP+ (also 1 GbE); 6 × 100 GbE QSFP28 (support 4 × 25 GbE breakout mode on 2 ports) |
| Management Ports | 1 × RJ-45 console, 1 × RJ-45 100/1000BASE-T management, 1 × USB Type A |
| Tunneling Support | VXLAN and NVGRE in hardware |
| Jumbo Frame Support | Up to 9 KB |
| Airflow | Back-to-Front |
| Cooling | 4 + 1 hot-swappable redundant fan modules |
| Power Supply | Dual –48 V DC redundant, hot-swappable |
| Power Consumption | Max 356 W |
| Dimensions (W × D × H) | 44.25 × 47.33 × 4.395 cm (17.42 × 18.63 × 1.73 in) |
| Weight | 8.82 kg (19.43 lb) with two PSUs |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | –40 °C to 70 °C (–40 °F to 158 °F) |
| Operating Humidity | 5 % to 95 % non-condensing |
| LED Indicators | Link speed /status /activity, PSU1/PSU2, Fans, Diagnostics, Locator |
| Software Environment | ONIE pre-loaded for NOS installation (open source and commercial options) |
| Certifications | CE, FCC Class A, VCCI Class A, EN60950, EN62368, RoHS 2.0, WEEE Directive 2002/96/EC |
| Warranty | 3-year limited hardware warranty (extendable to 5 years) |
