Description

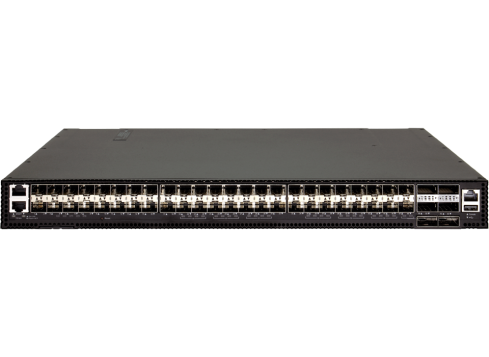

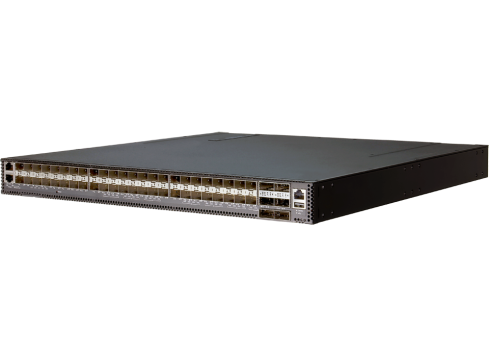

The Edgecore AS5835-54X-O-48V-F (DCS201) is a high-performance open network data center switch designed to meet the scalability and availability needs of modern enterprise and cloud environments. Featuring 48 x 10G SFP+ ports and 6 x 100G QSFP28 uplinks, this switch delivers non-blocking Layer 2 and Layer 3 switching for flexible top-of-rack or spine deployment in 40/100GbE data center fabrics.

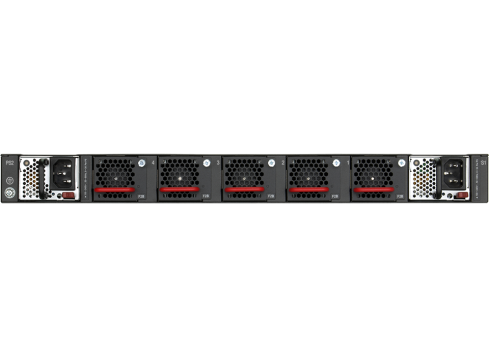

Built for efficiency and reliability, the AS5835-54X-O-48V-F supports dual -48V DC hot-swappable power supplies, 4+1 redundant fan modules, and front-to-back airflow for hot/cold aisle compatibility. Powered by the Broadcom Trident 3 switch ASIC and an Intel Atom C3558 quad-core processor, it provides exceptional throughput of 1.08 Tbps with hardware VXLAN and NVGRE tunneling for network virtualization.
This open network switch comes pre-loaded with the Open Network Install Environment (ONIE), allowing seamless installation of compatible open-source or commercial network operating systems. Designed for performance, flexibility, and openness, the AS5835-54X-O-48V-F is ideal for virtualization-ready data centers and high-density aggregation environments.
| Category | Details |
|---|---|
| Model | Edgecore AS5835-54X-O-48V-F |
| Switch Type | Open Network Data Center Switch |
| Processor | Intel® Atom® C3558 2.2 GHz 4-Core x86 |
| Memory & Storage | 16 GB DDR4 (2 × 8 GB SO-DIMM); 64 GB M.2 SSD; 16 MB × 2 SPI Flash |
| Switch ASIC | Broadcom BCM56771 (Trident 3) |
| Ports | 48 × 10G SFP+ (1G/10G) and 6 × 100G QSFP28 uplinks (each supports 1×100G or 4×25G breakout) |
| Management Ports | 1 × RJ-45 serial console, 1 × RJ-45 management (100/1000BASE-T), 1 × USB Type A |
| Switching Capacity | 1.08 Tbps (full duplex) |
| Forwarding Rate | 964.28 Mpps |
| Packet Buffer | 32 MB integrated buffer |
| Jumbo Frames | Up to 9 K bytes |
| VLAN / MAC / ECMP | 4 K VLAN IDs / 32 K–288 K MAC addresses / 4 K ECMP groups |
| IPv4 / IPv6 Entries | IPv4 – 16 K min. / 168 K max. ; IPv6 – 8 K min. / 100 K max. |
| Airflow Direction | Front-to-Back |
| Power Supply | Dual hot-swappable -48 V DC PSUs (load sharing, redundant) |
| Max Power Consumption | 356 W |
| Fans | 4 + 1 hot-swappable redundant fan modules |
| Dimensions (W × D × H) | 44.25 × 47.33 × 4.395 cm (17.42 × 18.63 × 1.73 in) |
| Weight | 8.815 kg (19.43 lb) with two PSUs |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | –40 °C to 70 °C (–40 °F to 158 °F) |
| Humidity | 5 % to 95 % (non-condensing) |
| Environmental Compliance | RoHS 2.0, WEEE, Taiwan RoHS CNS 15663 |
| Safety & EMC Standards | EN60950, UL60950, EN62368, FCC Part 15 Class A, CE Mark, VCCI Class A, BSMI Class A |
| Software Environment | Pre-loaded with ONIE installer; supports open-source and commercial NOS options |
| Warranty | 3-Year limited hardware warranty (extendable) |
