Description

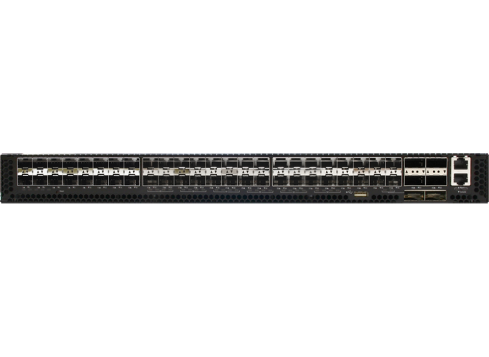

The Edgecore AS5812-54X-O-12V-F is a high-performance, open network Top-of-Rack (TOR) or spine switch designed for modern enterprise and cloud data centers. Featuring 48 x 10GbE SFP+ ports and 6 x 40GbE QSFP+ uplinks, it delivers full line-rate Layer 2 and Layer 3 switching for a non-blocking, folded-Clos data center fabric.
Built around the Broadcom Trident II+ switch ASIC and powered by an Intel® Atom® C2538 quad-core CPU, the AS5812-54X ensures low latency, high throughput, and hardware-based VXLAN/NVGRE tunneling support. Its 12 VDC power input and front-to-back airflow make it ideal for environments requiring integrated DC power systems and hot/cold aisle alignment.
The switch ships pre-loaded with the Open Network Install Environment (ONIE), supporting a variety of commercial and open-source NOS options for flexible deployment.
| Category | Specification |
|---|---|
| Model | AS5812-54X-O-12V-F |
| Form Factor | 1RU rack-mountable |
| Switch Silicon | Broadcom BCM56864 Trident II+ |
| CPU | Intel® Atom® C2538 4-core 2.4 GHz |
| Memory | 8 GB DDR3 with ECC |
| Storage | 32 GB mSATA, 16 MB SPI |
| Ports | 48 × SFP+ (1/10 GbE), 6 × QSFP+ (40 GbE or 4 × 10 GbE) |
| Management Ports | 1 × RJ-45 console, 1 × RJ-45 100/1000BASE-T, 1 × USB Type-A |
| Switching Capacity | 720 Gbps full duplex |
| Forwarding Rate | 424.52 Mpps |
| Packet Buffer | 16 MB integrated |
| Jumbo Frames | Up to 9 KB |
| Airflow Direction | Front-to-Back |
| Power Input | 12 V DC single input |
| Max Power Consumption | 282 W (with pluggable optics) |
| Cooling | 4+1 hot-swappable redundant fans |
| Dimensions (W × D × H) | 43.84 × 47.3 × 4.34 cm (17.26 × 18.62 × 1.71 in) |
| Weight | 8.95 kg (19.73 lb) |
| Operating Temperature | 0 °C – 40 °C (32 °F – 104 °F) |
| Compliance | CE, FCC Class A, UL, CB, VCCI, RoHS-6, TAA |
| Warranty | Standard 3-Year Return-to-Factory Warranty |
| Software Environment | Pre-loaded with ONIE; compatible with open-source and commercial NOS options |
