Description

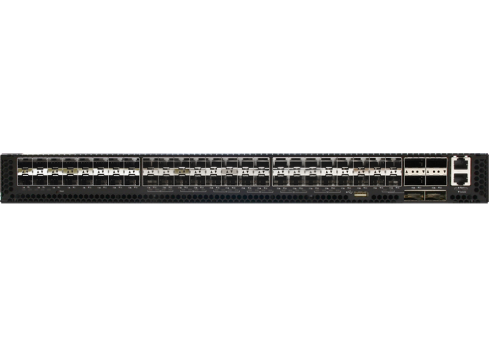

The Edgecore AS5712-54X is a high-performance Top-of-Rack (ToR) or spine switch designed for modern enterprise and cloud data centers. In a compact 1RU form factor, it delivers full line-rate Layer 2 and Layer 3 switching across 48 × 10 GbE SFP+ ports and 6 × 40 GbE QSFP+ uplinks—supporting flexible configurations such as 4 × 10 GbE breakout per QSFP+ port.
Powered by an Intel Atom C2538 2.4 GHz quad-core x86 processor, the AS5712-54X ensures fast control-plane performance and compatibility with leading open-network operating systems, including Cumulus Linux®, Open Network Linux, OpenSwitch, PicOS™, Big Cloud Fabric™, Netvisor®, and FlexSwitch.

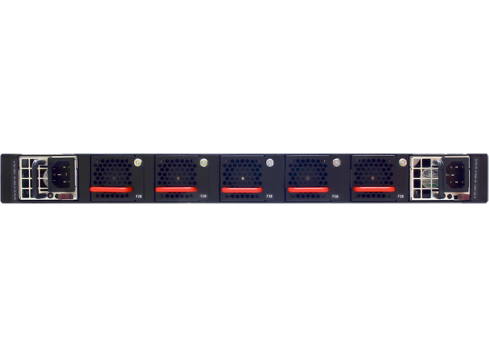

This bare-metal switch supports dual −48 V DC redundant hot-swappable power supplies and 4 + 1 redundant fan modules with power-to-port airflow, delivering high availability and serviceability. VXLAN and NVGRE tunneling are supported in hardware for network virtualization in cloud and multi-tenant environments.
Ideal for data center fabrics built on open standards, the AS5712-54X enables a cost-effective, scalable, and future-proof infrastructure aligned with the Open Compute Project (OCP) ecosystem.
| Category | Specification |
|---|---|
| Model | AS5712-54X |
| Manufacturer Part Number (Mfr. P/N) | 5712-54X-O-48V-B |
| Form Factor | 1RU rack-mountable |
| Processor | Intel Atom C2538 quad-core 2.4 GHz x86 |
| Memory | 8 GB DDR3 ECC SO-DIMM |
| Flash Storage | 8 GB NAND Flash + 16 MB SPI Flash + mSATA connector |
| Switching Capacity | 720 Gbps |
| Forwarding Rate | 1 Bpps |
| Ports | 48 × SFP+ (1/10 GbE) + 6 × QSFP+ (40 GbE or 4×10 GbE breakout) |
| Airflow | Power-to-Port |
| Power Supply | Dual −48 V DC hot-swappable, load-sharing |
| Max Power Consumption | 282 W (max, no optics) |
| Fan Modules | 4 + 1 redundant, hot-swappable |
| Performance Features | Line-rate L2/L3 forwarding, VXLAN & NVGRE tunneling, Port Grouping |
| Management Interfaces | 1 × RJ-45 console, 1 × RJ-45 management port (100/1000BASE-T), 1 × USB Type-A |
| Latency | 720 ns (cut-through mode) |
| Jumbo Frames | Up to 9216 bytes |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Dimensions (W × D × H) | 44.3 × 47.3 × 4.34 cm (17.4 × 18.6 × 1.71 in) |
| Weight | 8.5 kg (18.7 lb) |
| Compliance | CE, FCC Class A, UL/CUL, RoHS-6, TAA Compliant |
| Warranty | Standard 3-Year Return-to-Factory Warranty |
