Description
The Edgecore AS5835-54T (O-AC-F-US) is a high-performance, open-network data-center switch designed to meet the demands of enterprise and cloud environments. Powered by a Broadcom Trident III ASIC and an Intel Atom C3558 CPU, it delivers 2.56 Tbps switching capacity and 1 billion packets per second (Bpps) forwarding rate.

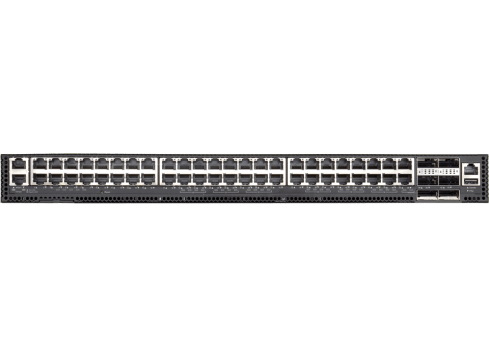

This flexible Top-of-Rack (ToR) switch supports 48× 10G RJ-45 ports and 6× 100G QSFP28 uplinks, enabling smooth migration to high-speed server connectivity. It supports VXLAN and NVGRE tunneling in hardware, providing optimal performance for virtualized or cloud-native data centers.

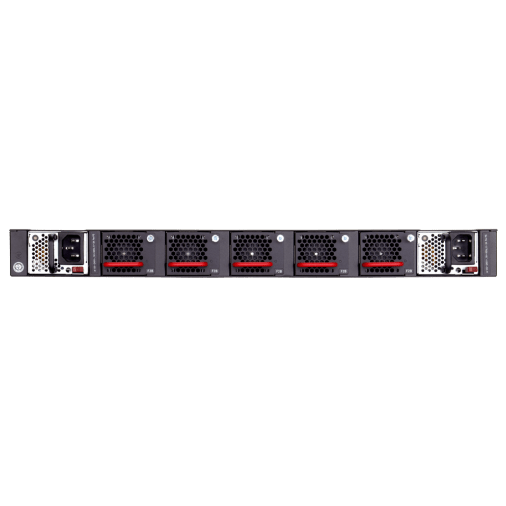

Featuring dual hot-swappable AC power supplies and 4+1 redundant fans, the switch offers front-to-back airflow (port-to-power) for efficient thermal management in hot/cold-aisle deployments. Pre-loaded with ONIE (Open Network Install Environment), the switch is ready for open-source or commercial Network Operating Systems (NOS), ensuring maximum software flexibility and scalability.
| Category | Specification |
|---|---|
| Model | Edgecore AS5835-54T (O-AC-F-US) |
| Form Factor | 1RU Rack-Mountable |
| Switch Silicon | Broadcom BCM56771 (Trident III 1.28 Tbps) |
| CPU | Intel Atom C3558 (2.2 GHz, 4 cores) |
| System Memory | 16 GB DDR4 (8 GB × 2 SO-DIMM) |
| Storage | 64 GB M.2 MLC SSD + 16 MB × 2 SPI Flash |
| Switching Capacity | 2.56 Tbps (full duplex) |
| Forwarding Rate | 1 Bpps |
| Packet Buffer | 32 MB integrated |
| MAC Addresses | 32 K (min) / 288 K (max) |
| VLAN IDs | 4 K |
| ECMP Groups | Up to 4 K |
| IPv4 Host Entries | 16 K (min) / 168 K (max) |
| IPv6 Host Entries | 8 K (min) / 100 K (max) |
| Ports | 48× 10GBASE-T RJ-45 ports + 6× QSFP28 uplinks (100G or 4×25G breakout) |
| Management Ports | 1× RJ-45 Console, 2× RJ-45 Mgmt Ethernet (100/1000BASE-T), 1× USB-A storage port |
| Airflow Type | Front-to-Back (Port-to-Power) |
| Power Supply | Dual AC hot-swappable, load-sharing (100–240 VAC, 50–60 Hz) |
| Max Power Consumption | 323 W |
| Fan Modules | 4 + 1 redundant, hot-swappable |
| Jumbo Frames | Up to 9 K bytes |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | −40 °C to 70 °C (−40 °F to 158 °F) |
| Operating Humidity | 5 % – 95 %, non-condensing |
| Dimensions (W×D×H) | 44.25 × 47.33 × 4.395 cm (17.42 × 18.63 × 1.73 in) |
| Weight | 9.59 kg (21.14 lb) |
| Certifications | CE, FCC Class A, VCCI, CCC, BSMI, RoHS 2.0, EN 60950/62368 |
| Warranty | 3-Year Hardware Warranty (Standard) |
| Pre-Installed Software | ONIE (Open Network Install Environment) |
| Compatible NOS | Open-source and commercial NOS options |
| Ideal Use Case | Top-of-Rack switch for virtualized or cloud data centers |
