Description
The Edgecore AS5835-54T-O-AC-B is a high-performance Top-of-Rack (ToR) data center switch designed to meet the demands of modern enterprise and cloud networks. Built on the Broadcom Trident III architecture, it delivers 2.56 Tbps switching capacity and 1 billion pps forwarding rate, providing non-blocking performance for data-intensive environments.

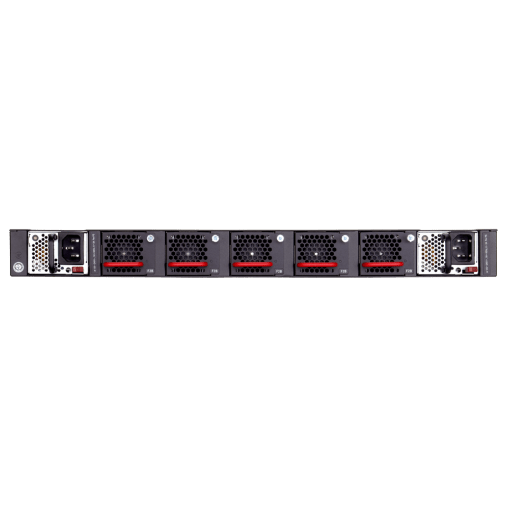

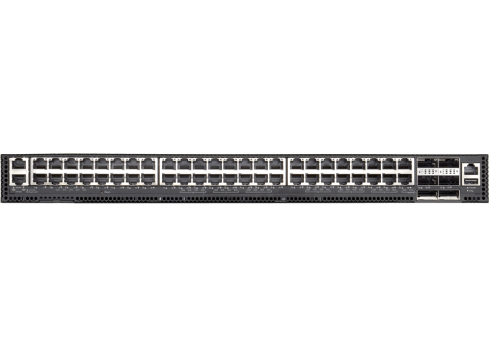

This 1U open network switch features 48 × 10GBASE-T RJ-45 ports and 6 × 100G QSFP28 uplinks, supporting flexible 10/25/100 GbE connectivity. It includes dual hot-swappable AC PSUs and 4 + 1 redundant fan modules with power-to-port airflow, ensuring reliability and serviceability in data center deployments. Pre-loaded with ONIE (Open Network Install Environment), it enables easy installation of commercial or open-source Network Operating Systems.
Ideal for virtualization, cloud infrastructure, or spine-leaf architectures, the AS5835-54T combines hardware VXLAN/NVGRE tunneling, high availability design, and open network flexibility for next-generation data centers.
| Category | Details |
|---|---|
| Model | Edgecore AS5835-54T-O-AC-B |
| Form Factor | 1U rack-mountable data center switch |
| Switch Silicon | Broadcom BCM56771 (Trident III) – 1.28 Tbps ASIC |
| CPU Module | Intel Atom C3558 (2.2 GHz, 4 cores) |
| System Memory | 16 GB DDR4 (2 × 8 GB SO-DIMM) |
| Storage | 64 GB M.2 MLC SSD |
| Switch Ports | 48 × 10GBASE-T (RJ-45) ports |
| Uplink Ports | 6 × QSFP28 (100 GbE or 4 × 25 GbE breakout) |
| Management Interfaces | 1 × RJ-45 console, 2 × RJ-45 100/1000BASE-T management, 1 × USB Type-A |
| Switching Capacity | 2.56 Tbps (full duplex) |
| Forwarding Rate | 1 billion packets per second (Bpps) |
| Packet Buffer | 32 MB integrated buffer |
| MAC Address Entries | Up to 288 K (32 K minimum depending on NOS) |
| VLAN IDs | 4 K |
| ECMP Groups | 4 K |
| IPv4 Host Entries | Up to 168 K (host) / 32 K (LPM TCAM mode) |
| IPv6 Host Entries | Up to 100 K (host) / 16 K (LPM TCAM mode) |
| Jumbo Frame Support | Up to 9 KB |
| Airflow | Power-to-Port |
| Cooling | 4 + 1 hot-swappable redundant fan modules |
| Power Supplies | Dual AC hot-swappable, load-sharing, 100–240 V AC, 50/60 Hz |
| Max Power Consumption | 323 W |
| Dimensions (W × D × H) | 44.25 × 47.33 × 4.395 cm (17.42 × 18.63 × 1.73 in) |
| Weight | 9.59 kg (21.14 lb) with two PSUs |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | –40 °C to 70 °C (–40 °F to 158 °F) |
| Operating Humidity | 5 % to 95 % non-condensing |
| Certifications | CE, FCC Class A, VCCI, EN60950/62368, RoHS 2.0, WEEE compliant |
| Pre-installed Software | ONIE (Open Network Install Environment) |
| NOS Compatibility | Supports open-source and commercial Network Operating Systems |
| Warranty | 3-year hardware warranty (PSU and fans excluded) |
