Description

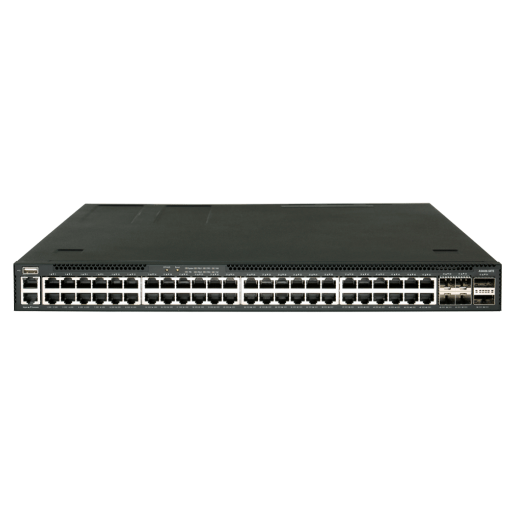

The Edgecore AS4630-54TE-O-AC-F-US is a high-performance, open-network Gigabit Ethernet Layer 3 switch designed for modern data centers, enterprises, and campus environments. It delivers 48 Gigabit Ethernet ports for server and storage connectivity, plus 25 GbE uplinks and 100 GbE stacking ports for flexible high-speed network aggregation.
Powered by the Broadcom BCM56371 Trident III ASIC and Intel® Atom C3558 quad-core CPU, this switch offers exceptional forwarding performance, hardware redundancy, and Open Networking flexibility. Pre-loaded with ONIE (Open Network Install Environment), it allows seamless installation of compatible open-source or commercial Network Operating Systems.

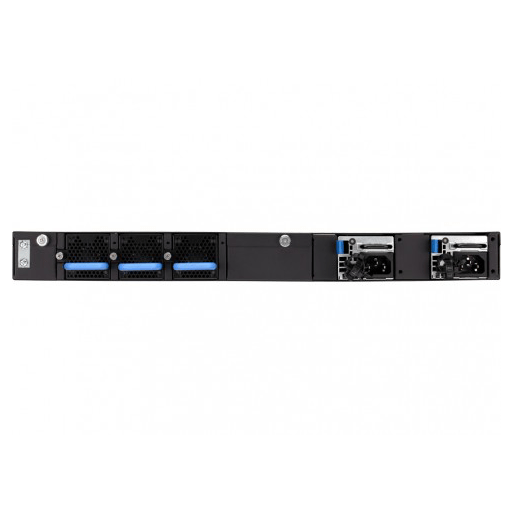

Engineered for reliability and scalability, the AS4630-54TE features dual hot-swappable AC power supplies, redundant fans, and port-to-power airflow for efficient thermal management—making it an ideal top-of-rack solution in high-density environments.
| Specification | Details |
|---|---|
| Model Number | AS4630-54TE-O-AC-F-US |
| Product Type | Enterprise Layer 3 Open Network Switch |
| Switch ASIC | Broadcom BCM56371 Trident III (480 Gbps) |
| CPU | Intel® Atom® C3558 Quad-Core 2.2 GHz |
| Memory | 16 GB DDR4 (2 × 8 GB SO-DIMM) |
| Storage | 32 GB M.2 SSD MLC + 16 MB × 2 SPI Flash |
| Switching Capacity | 960 Gbps full duplex |
| Forwarding Rate | 744 Mpps |
| MAC Address Table | 16K (min.) / 112K (max.) |
| VLAN IDs | 4K |
| Jumbo Frame Size | Up to 12,288 bytes |
| Packet Buffer | 8 MB integrated |
| Ports | 48 × RJ-45 100/1000BASE-T, 4 × SFP28 25 GbE uplinks, 2 × QSFP28 100 GbE stacking |
| Management Ports | 1 × RJ-45 serial console, 1 × RJ-45 100/1000BASE-T management, 1 × USB Type-A storage |
| LED Indicators | Link Status, Activity, Link Speed, Power, Fan, Stack, System |
| Software Environment | ONIE installer (pre-loaded), compatible with open-source and commercial NOS options |
| Power Supply | Dual redundant, hot-swappable AC PSUs (load-sharing) |
| Input Voltage | 100–240 VAC (50–60 Hz) |
| Power Consumption | 150 W maximum |
| Airflow Direction | Port-to-Power |
| Dimensions (W×D×H) | 43.8 × 47.4 × 4.4 cm (17.24 × 18.66 × 1.73 in) |
| Weight | 6.98 kg (15.39 lb) with two PSUs |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Storage Temperature | −40 °C to 70 °C (−40 °F to 158 °F) |
| Operating Humidity | 5% to 95% non-condensing |
| Regulatory Compliance | EN 55032 Class A, FCC Class A, VCCI Class A, CCC, BSMI, UL 62368-1, EN 55035, EN 61000-3-2/3 |
| Warranty | 3-Year Hardware Warranty (extendable via service plan) |
