Description

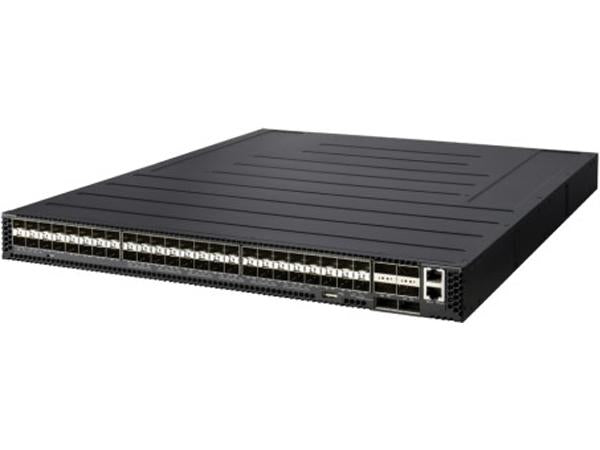

The Edgecore AS7312-54XS is a high-performance Top-of-Rack (TOR) or spine switch designed for next-generation data centers. Powered by the Broadcom Tomahawk ASIC and an Intel Atom C2538 CPU, this 1RU open network switch delivers full line-rate Layer 2 and Layer 3 switching across 48 x 25G SFP28 and 6 x 100G QSFP28 ports. Supporting configurations up to 48 × 10/25 GbE and 6 × 40/100 GbE, it is optimized for scalability and flexibility in cloud and enterprise environments.

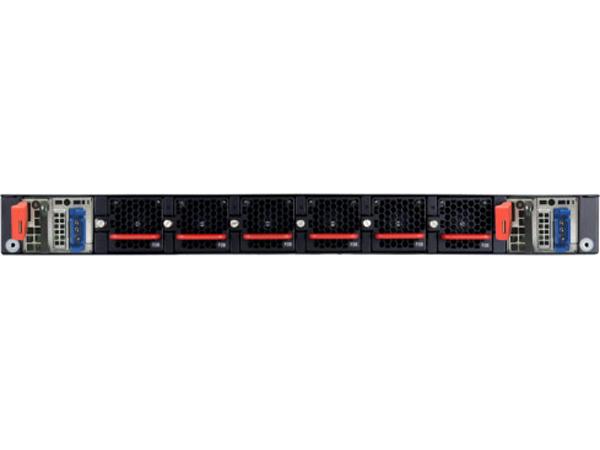

With dual hot-swappable, load-sharing AC power supplies, and 5+1 redundant fan modules, the AS7312-54XS ensures high availability and energy-efficient performance. The switch supports ONIE (Open Network Install Environment), allowing users to deploy a network OS of their choice, enabling complete control over the software stack for open networking solutions.
Ideal for high-density, low-latency data center deployments, the AS7312-54XS combines robust hardware reliability with open software flexibility—delivering top-tier performance for modern hyperscale and enterprise networks.
| Category | Specification |
|---|---|
| Model | Edgecore AS7312-54XS |
| Manufacturer Part Number (Mfr. P/N) | 7312-54XS-O-AC-B-US |
| Form Factor | 1RU rack-mountable |
| Switch Type | L2/L3 managed switch |
| Processor | Intel Atom C2538 Quad-Core CPU |
| Switching ASIC | Broadcom Tomahawk |

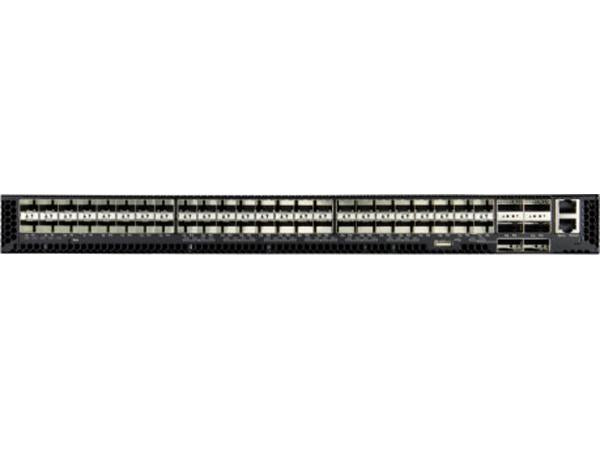

| Port Configuration | 48 x 25G SFP28 + 6 x 100G QSFP28 |
| Port Flexibility | SFP28: 1/10/25 GbE per port; QSFP28: 1x40/100 GbE or 4x10/25 GbE breakout |
| Management Ports | 1 x RJ-45 console, 1 x RJ-45 100/1000BASE-T management, 1 x USB Type-A |
| Switching Capacity | 3.2 Tbps full duplex |
| Forwarding Rate | 2.38 Bpps |
| Latency | <700 ns typical |
| Memory | 8 GB DDR3, 8 GB Flash |
| Power Supply | Dual hot-swappable, load-sharing AC PSUs |
| Power Requirements | 90–240 VAC, 50–60 Hz |
| Power Consumption | 310 W typical (without pluggable optics) |
| Cooling | 5+1 redundant hot-swappable fan modules |
| Airflow | Back-to-front (port-to-power) |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Dimensions (W x D x H) | 17.26" x 20.28" x 1.71" |
| Weight | 25 lbs |
| Compliance | RoHS, CE, FCC Class A |
| Country of Origin (COO) | Inquire |
| TAA Compliance | Inquire |
| UNSPSC Code | 43222612 |
| Included Accessories | Rack-mount kit, console cable, U.S. AC power cord |
| Warranty | Standard 3-Year Return-to-Factory |
