Description

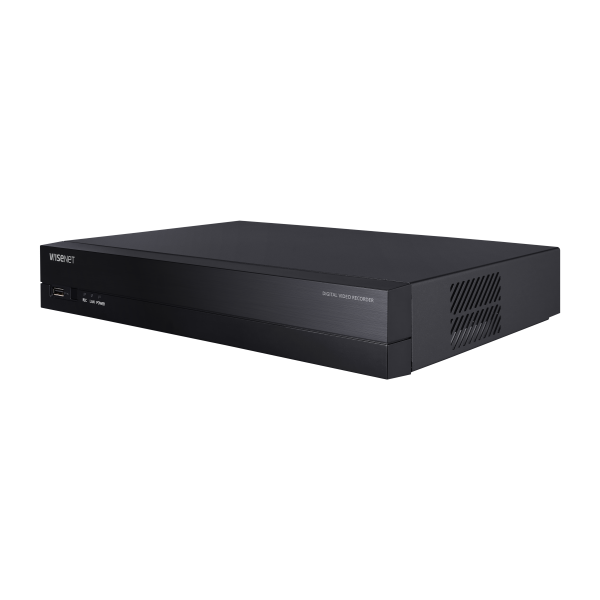

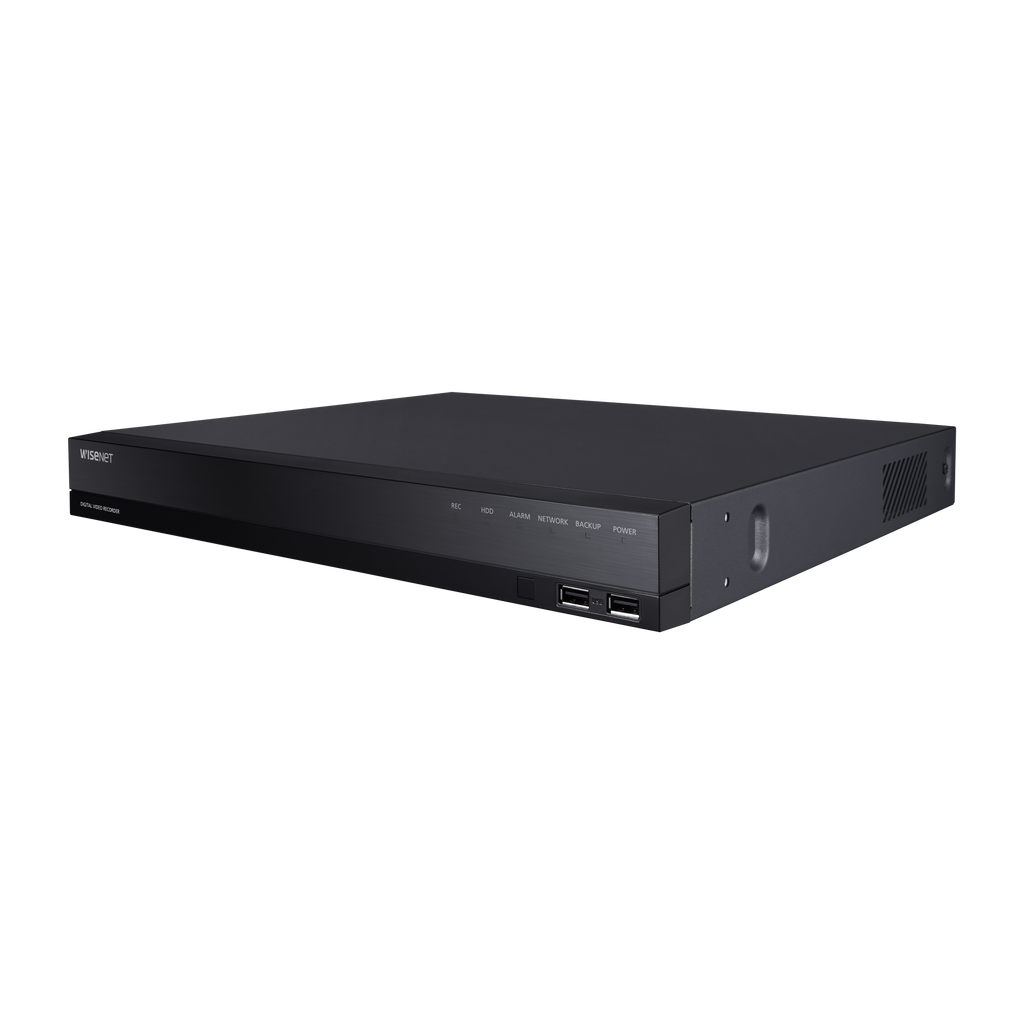

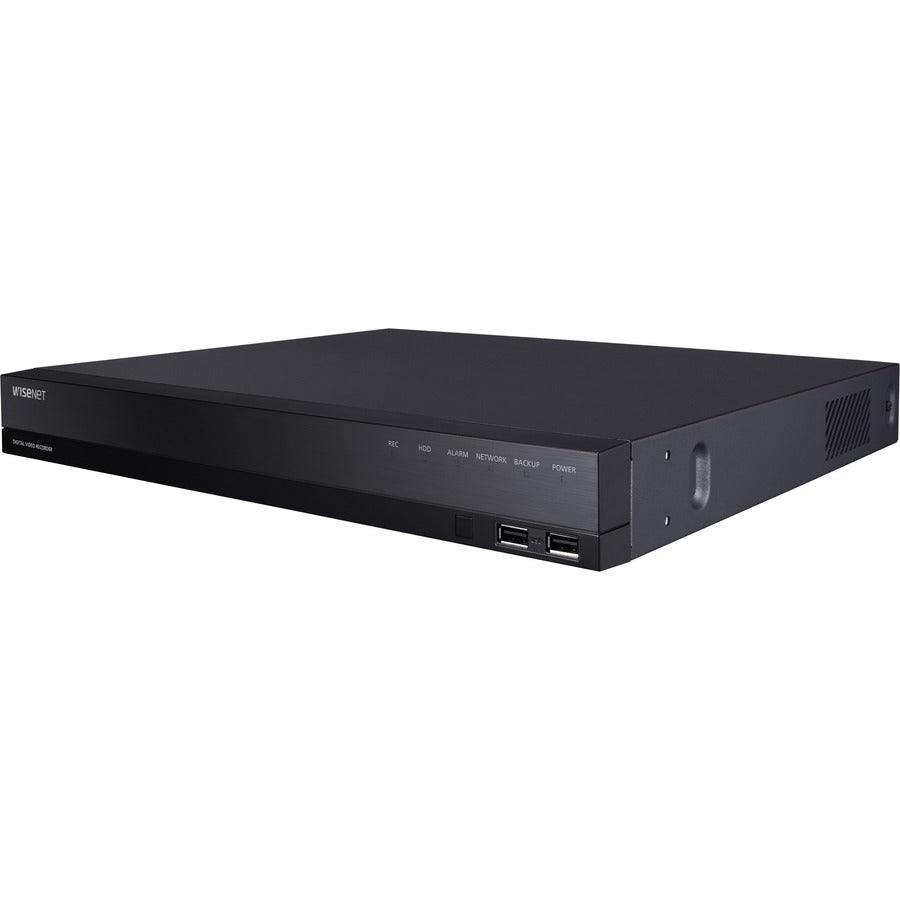

The Wisenet HRX-435 is a powerful 4-channel Pentabrid DVR engineered for flexible analog and IP surveillance environments. Supporting AHD, HDTVI, HDCVI, CVBS, and IP inputs, this unit accommodates up to 6 total channels and delivers recording resolutions up to 8MP. With advanced H.265/H.264/MJPEG compression, dual-monitor HDMI/VGA output, and coaxial control capability, it ensures efficient, high-quality monitoring.
Equipped with P2P QR-code connectivity, intuitive UI, and support for two SATA drives (up to 12TB total), the HRX-435 is built for reliable, scalable security deployments of any size.
| Category | Details |
|---|---|
| SKU | HRX-435-12TB |
| Form Factor | 4-Channel Pentabrid DVR |
| Video Input Types | AHD / HDTVI / HDCVI / CVBS / IP |
| Total Supported Channels | 6 Channels (Analog Max 4CH + Network Max 6CH) |
| Max Resolution | Up to 8MP |
| Compression Codecs | H.265, H.264, MJPEG |
| Recording Performance | 8/8fps @ 8MP, 12/12fps @ 5MP (per CH) |
| Recording Bandwidth | Max 30 Mbps |
| Live Display Outputs | HDMI + VGA (simultaneous) |
| Local Display Resolution | HDMI: 3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720; VGA: up to 1920×1080 |
| Coaxial Control | Supported (CVBS, AHD, CVI, TVI) |
| Network Protocols | SUNAPI, ONVIF, RTP/RTSP, HTTP, HTTPS, DHCP, SNMP, DDNS, NTP |
| Supported HDD | Up to 2× SATA (6TB each) – 12TB included |
| Backup Options | BU, EXE (w/ player), AVI |
| Mobile Support | iOS, Android (Wisenet Mobile) |
| Interface Ports | 1× HDMI, 1× VGA, 4× BNC In / 1× BNC Out, 4× Audio In / 1× Audio Out, RJ-45 LAN, USB × 2, RS-485/422 |
| Alarm I/O | 4× In, 2× Out |
| Power Input | DC 12V |
| Power Consumption | Max 40W (with two 6TB HDDs installed) |
| Operating Temperature | 0°C to +40°C |
| Dimensions | 370 × 44 × 320 mm |
| Weight | Approx. 2.3 kg (with 1 HDD) |
