Description

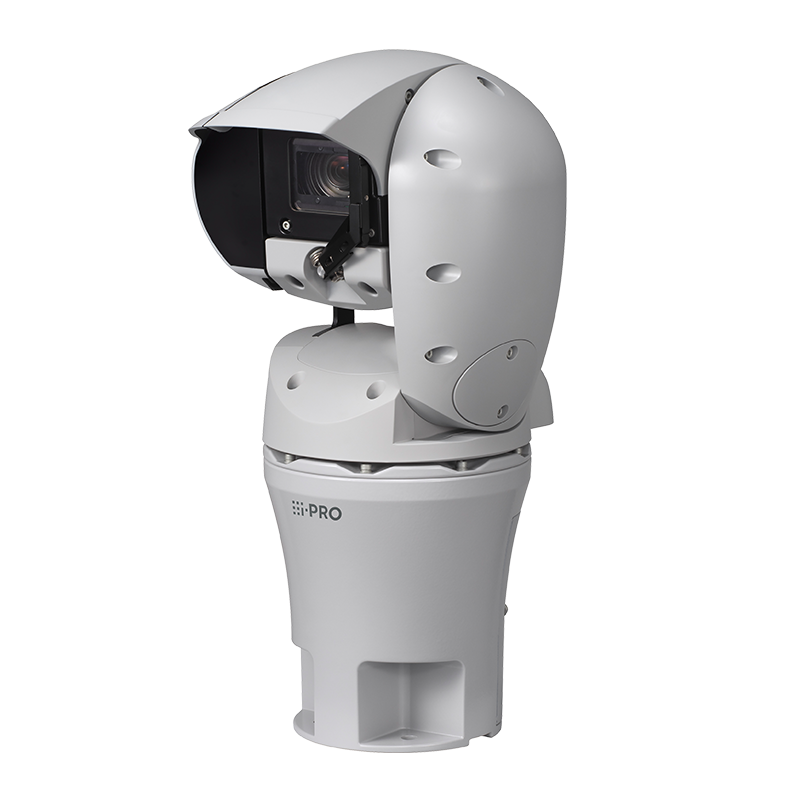

The i-PRO WV-X67710-Z3-3 is a 4K AI-powered rugged PTZ camera designed for extreme outdoor environments and mission-critical surveillance. Built to deliver superior imaging in all conditions, it features a 30x optical zoom, 4K resolution, and a wide dynamic range up to 132 dB for exceptional clarity in both bright and low-light scenes.
Equipped with an Ambarella CV22 SoC and support for up to three Edge AI analytics apps, the WV-X67710-Z3-3 enables real-time intelligent monitoring—including AI auto-tracking, people and vehicle detection, and privacy guarding. The camera is engineered for durability with IP66/IP68, IK10, and NEMA 4X/6P certifications, resisting wind speeds up to 270 km/h (167 mph) and operating reliably from -50 °C to +65 °C.
With its FIPS 140-2 Level 3 Secure Element (EdgeLock SE050F), NDAA compliance, and wide protocol compatibility, the WV-X67710-Z3-3 provides enterprise-grade security for airports, seaports, highways, and industrial facilities demanding uncompromising performance and reliability.
| Category | Specification |
|---|---|
| Image Sensor | Approx. 1/2.8 type CMOS |
| Effective Pixels | 4K (3840 × 2160) |
| Minimum Illumination | Color: 0.13 lx (F1.8, 1/30 s, AGC: 11); B/W: 0.10 lx (F1.8, 1/30 s, AGC: 11) |
| Shutter Speed | 1/30 to 1/10,000 (30 fps mode); 1/25 to 1/10,000 (25 fps mode) |
| Dynamic Range | Max. 132 dB (Super Dynamic On) |
| Optical Zoom | 30× (4.5 mm – 135 mm F1.8–F4.7) |
| Digital Zoom | Up to 480× |
| Field of View (H/V) | 62°–2.5° (H), 37°–1.4° (V) |
| Pan/Tilt Range | Pan 360° endless / Tilt –90° to +90° |
| Pan/Tilt Speed | Manual 0.065°–100°/s; Preset up to 200°/s |
| AI Analytics | AI VMD, Face Detection, Privacy Guard, People & Vehicle Detection, Occupancy Detection |
| Max AI Apps | 3 Edge AI applications supported |
| Video Compression | H.265 / H.264 / JPEG |
| Max Streams | 4 simultaneous streams |
| Audio Compression | G.711, G.726, AAC-LC (64 – 128 kbps) |
| Network Interface | 10BASE-T/100BASE-TX (RJ45) |
| Protocols | IPv4/IPv6, HTTP/HTTPS, RTSP, SNMP, SRTP, MQTT, IEEE 802.1X and more |
| Security | FIPS 140-2 Level 3, EdgeLock SE050F, GlobalSign® certificates, HTTPS authentication |
| Power Options | 24 V AC/DC, PoE++ (Class 6/8) |
| Power Consumption | Approx. 50 – 61 W (depending on power mode) |
| Operating Temperature | -50 °C to +65 °C (PoE++ Class 8) / -30 °C to +65 °C (Class 6) |
| Ingress Protection | IP66 / IP68 / NEMA 4X / NEMA 6P |
| Impact Resistance | IK10 (IEC 62262) |
| Wind Resistance | Operable up to 270 km/h (167 mph); Non-destructive up to 201 mph |
| Dimensions (W × H × D) | 226 × 450 × 266 mm (8.9 × 17.7 × 10.5 in) |
| Weight | Approx. 8.1 kg (17.9 lbs) |
| Finish | High-strength salt-resistant resin body with clear glass front |
| Certifications | UL, CE, FCC Class A, EN55032/EN55035, NEMA TS2, MIL-STD-810H |
| Compliance | NDAA Compliant |
| Optional Accessories | WV-QWL503S-G, WV-QWL503-G, WV-QCN500S-G, WV-QCA502 I/O Cable |
