Description

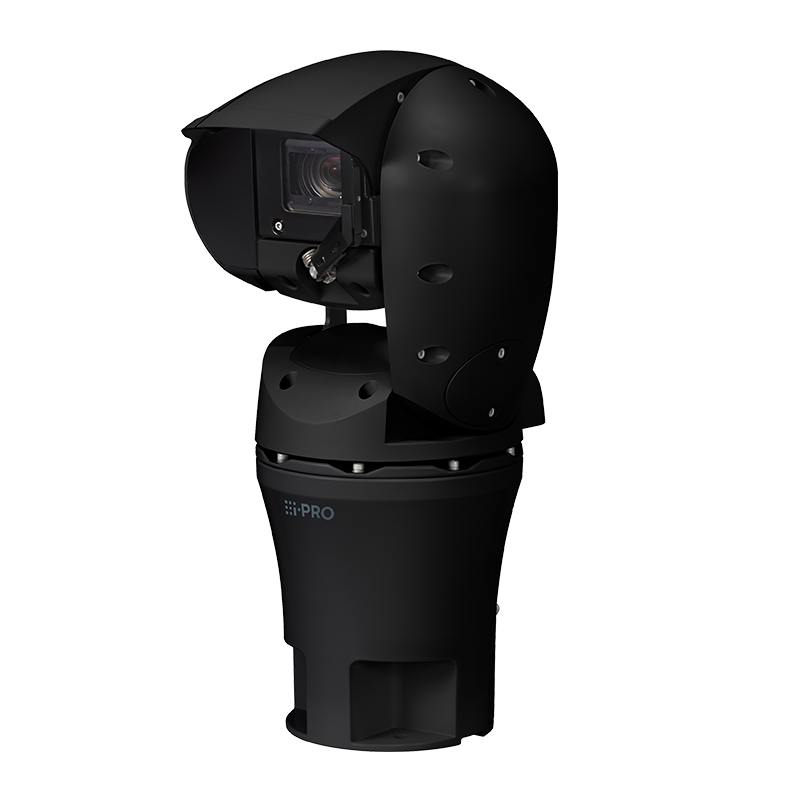

The i-PRO WV-X67710-Z3-1 is a 4K AI-powered rugged PTZ camera engineered for the most demanding surveillance environments. Featuring 30x optical zoom, AI auto tracking, and support for up to three edge AI analytic applications, this camera delivers unmatched performance in outdoor and mission-critical settings.
Its Ambarella CV22 SoC ensures powerful image processing, while the camera’s IP66/IP68 and IK10 certifications provide superior dust, water, and impact resistance. Built with a FIPS 140-2 Level 3 Certified Secure Element (EdgeLock® SE050F), the WV-X67710-Z3-1 guarantees advanced cybersecurity and NDAA compliance.
The unit withstands extreme temperatures from –50°C to +60°C and wind speeds up to 270 km/h (167 mph), making it ideal for airports, highways, seaports, and critical infrastructure surveillance.
| Category | Specification |
|---|---|
| Camera Type | 4K AI Rugged PTZ Camera |
| Image Sensor | Approx. 1/2.8-type CMOS image sensor |
| Resolution | Up to 3840 × 2160 (4K UHD) |
| Optical Zoom | 30x |
| Digital Zoom | Up to 480x |
| Lens Focal Length | 4.5 mm – 135 mm |
| Field of View (H/V) | 2.5° – 62° (H), 1.4° – 37° (V) |
| Minimum Illumination | Color: 0.13 lx (F1.8, 1/30 s), B/W: 0.10 lx (F1.8, 1/30 s) |
| Dynamic Range | Max. 132 dB (Super Dynamic On) |
| AI Analytics | AI VMD, Face, Privacy Guard, People, Vehicle & Occupancy Detection |
| AI Auto Tracking | Supported |
| Max. AI Apps | 3 Edge AI applications |
| System on Chip | Ambarella CV22 |
| Power Supply | 24 V AC/DC or PoE++ (Type 3/4 compliant) |
| Power Consumption | Approx. 60 W (24 V DC) / 54 W (PoE++ Type 4) |
| Operating Temperature | –50 °C to +60 °C (–58 °F to +140 °F) |
| Operating Humidity | 10 % – 100 % (no condensation) |
| Wind Resistance | Operable up to 270 km/h (167 mph) |
| Durability Rating | IP66 / IP68 / IK10 / NEMA 4X & 6P |
| Security Features | FIPS 140-2 Level 3 Secure Element, IEEE 802.1X, GlobalSign® cert. |
| Network Interface | RJ-45 (10BASE-T / 100BASE-TX) |
| Protocols Supported | IPv4/IPv6, HTTP/HTTPS, RTSP, SNMP, MQTT, SRTP, SFTP, ONVIF Profile M/S/T |
| Audio I/O | Line in/out, Half/Full duplex |
| Mount Options | Compatible with WV-QWL503-B, WV-QWL503S-B, WV-QCN500-B, WV-QCA502 |
| Dimensions (W × H × D) | 226 × 450 × 266 mm |
| Weight | Approx. 8.1 kg (17.9 lb) |
| Color/Finish | Black, high-strength salt-resistant resin, semi-gloss |
| Compliance | NDAA Compliant, UL / CE / FCC / EN certified |
