Description

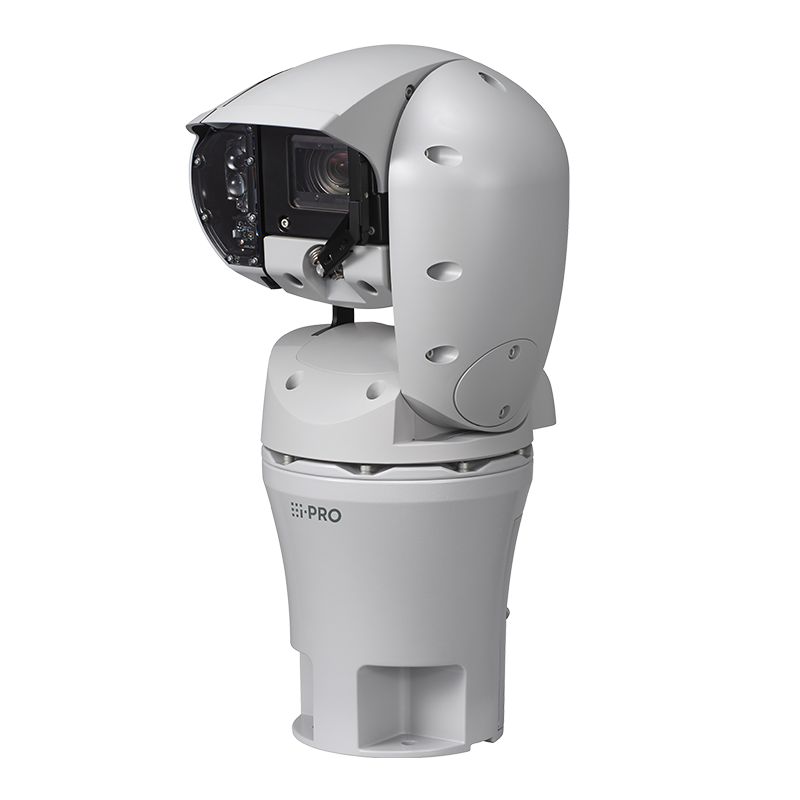

The i-PRO WV-X67710-Z3L3 is a next-generation 4K AI-powered Rugged PTZ Camera designed for extreme outdoor surveillance applications. Featuring a 30x optical zoom, built-in IR-LEDs (up to 350 m / 1,148 ft), and AI Auto-Tracking, it delivers crystal-clear imagery and intelligent analytics in any environment — from freezing cold to scorching heat.
Built to withstand the harshest conditions, this camera meets IP66/IP68, IK10, NEMA 4X/6P standards and operates in temperatures from -50 °C to +65 °C. Its FIPS 140-2 Level 3 Secure Element (EdgeLock® SE050F) and NDAA compliance ensure the highest levels of cybersecurity.
Powered by the Ambarella CV22 SoC, the WV-X67710-Z3L3 supports up to three Edge AI analytic apps such as people, vehicle, and occupancy detection. With advanced imaging functions — including Super Dynamic 132 dB, Intelligent Auto, and gyro-based image stabilization — it delivers exceptional clarity even in fast-changing or low-light conditions.
Ideal for critical infrastructure, transportation, ports, and city surveillance, the i-PRO WV-X67710-Z3L3 redefines reliability and performance in professional monitoring.
| Category | Specification |
|---|---|
| Image Sensor | Approx. 1/2.8-type CMOS image sensor |
| Resolution | Up to 3840 × 2160 (4K Ultra HD) |
| Minimum Illumination | Color 0.13 lx (30 IRE, F1.8); B/W 0 lx with IR LED |
| Dynamic Range | Max. 132 dB (Super Dynamic ON) |
| Optical Zoom | 30× optical zoom (4.5 – 135 mm) |
| Digital Zoom | Up to 480× |
| Field of View | H: 2.5° – 62°, V: 1.4° – 37° |
| IR Illumination | Built-in IR LED (350 m / 1,148 ft max range) |
| AI Analytics | AI Video Motion Detection, AI Face, People, Vehicle & Occupancy Detection, AI Privacy Guard |
| AI App Capacity | Supports up to 3 Edge AI apps |
| SoC Processor | Ambarella CV22 |
| Panning Range / Speed | 360° endless; manual 0.065°/s – 100°/s; preset up to 200°/s |
| Tilting Range / Speed | –90° to +90°; manual 0.065°/s – 100°/s; preset up to 200°/s |
| Preset Positions | 256 positions / Auto track, Auto pan, Patrol |
| Network Interface | 10BASE-T / 100BASE-TX (RJ-45) |
| Video Compression | H.265 / H.264 / JPEG (MJPEG) |
| Audio Compression | G.711, G.726, AAC-LC |
| Protocols | IPv6 & IPv4 support (TCP/IP, HTTPS, RTP, SNMP, MQTT, IEEE 802.1X etc.) |
| Secure Features | FIPS 140-2 Level 3, GlobalSign® Certificate, IEEE 802.1X, Brute-Force Protection |
| Power Supply | 24 V AC/DC or PoE++ (IEEE 802.3bt Type 4 Class 8) |
| Power Consumption | Approx. 79 W (24 V AC/DC), 70 W (PoE++ Class 8) |
| Operating Temperature | –50 °C to +65 °C (–58 °F to +149 °F) |
| Humidity | 10 % – 100 % (non-condensing) |
| Protection Ratings | IP66, IP68, IK10, NEMA 4X/6P, TS2 Compliant |
| Wind Resistance | Operable up to 75 m/s (167 mph); Non-destructive up to 90 m/s (201 mph) |
| Dimensions (W × H × D) | 226 × 450 × 266 mm (8.9 × 17.7 × 10.5 in) |
| Weight | Approx. 8.1 kg (17.9 lb) |
| Finish | Salt-resistant resin and die-cast aluminum, gray semi-gloss |
| Compliance | UL, CE, FCC, ICES-003, EN55032/35, NDAA Compliant |
| Optional Accessories | WV-QWL503S-G, WV-QWL503-G, WV-QCN500S-G, WV-Q189, WV-QCA502 I/O Cable |
