Description

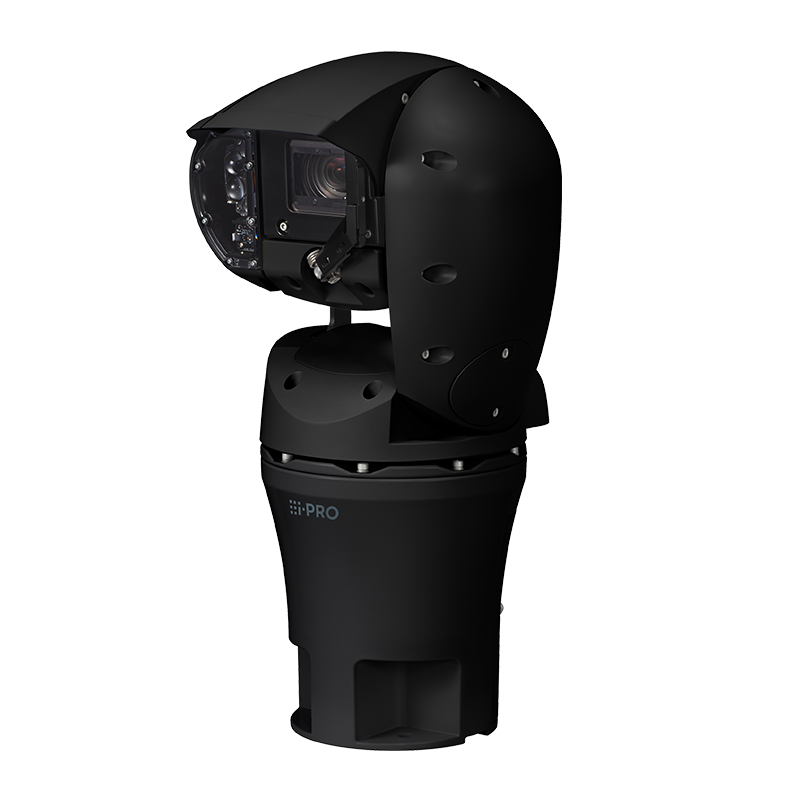

The i-PRO WV-X67710-Z3L1 is a high-performance 4K AI-driven rugged PTZ camera engineered for demanding surveillance environments. Featuring a 30x optical zoom and built-in IR illumination up to 350 m (1,148 ft), it delivers clear imaging even in total darkness. Designed for extreme conditions, it operates in -50 °C to +60 °C and withstands winds up to 270 km/h (167 mph) while maintaining IP66/IP68 and IK10 ratings for water, dust, and impact resistance.
Powered by an Ambarella CV22 SoC, this PTZ supports up to 3 Edge AI analytic apps for real-time intelligence, including AI-based motion, face, vehicle, and occupancy detection. The camera also integrates AI Auto Tracking for dynamic subject following and FIPS 140-2 Level 3 security for government-grade data protection. With support for PoE++ (Type 4 Class 8) and 24 V AC/DC power, it provides flexible installation options.
Built for mission-critical applications such as transportation hubs, ports, city surveillance, and perimeter security, the WV-X67710-Z3L1 combines durability, intelligence, and superior 4K imaging for next-generation situational awareness.
| Category | Specification |
|---|---|
| Model | WV-X67710-Z3L1 |
| Image Sensor | Approx. 1/2.8-type CMOS |
| Effective Resolution | Up to 3840 × 2160 (4K UHD) |
| Lens | 30x optical zoom (4.5 mm – 135 mm F1.8–4.7) |
| Digital Zoom | Up to 480x |
| IR Illumination | Up to 350 m (1,148 ft) |
| Minimum Illumination | Color 0.13 lx (F1.8, 1/30 s); B/W 0 lx (IR On) |
| Wide Dynamic Range | Max. 132 dB (Super Dynamic On) |
| AI Analytics | AI VMD, AI Face Detection, AI Privacy Guard, AI People/Vehicle/Occupancy Detection |
| AI Apps Supported | Up to 3 Edge AI applications |
| AI Auto Tracking | Supported |
| SoC Processor | Ambarella CV22 |
| Pan Range / Speed | 360° endless / 0.065° – 100° per sec (manual); 200° per sec (preset) |
| Tilt Range / Speed | –90° to +90° / 0.065° – 100° per sec |
| Preset Positions | 256 presets |
| Auto Modes | Auto Track, Auto Pan, Preset Sequence, Patrol |
| Video Compression | H.265, H.264, JPEG (MJPEG) |
| Bit Rate Control | CBR/VBR/Frame Rate/Best Effort |
| Streams | Up to 4 simultaneous streams |
| Smart Coding | Variable GOP, Smart VIQS, Smart P-Picture Control |
| Audio Compression | G.726, G.711, AAC-LC |
| Network Interface | 10BASE-T/100BASE-TX (RJ-45) |
| Protocols | IPv4/IPv6, HTTPS, RTSP, RTP, SNMP, SRTP, FTP, SFTP, MQTT, ONVIF Profiles M/S/T |
| Simultaneous Users | Up to 14 |
| Security | FIPS 140-2 Level 3 (NXP EdgeLock SE050F), IEEE 802.1X, GlobalSign certificates, Brute-force protection |
| Power Input | 24 V AC/DC or PoE++ (IEEE 802.3bt Type 4 Class 8 / Type 3 Class 6) |
| Power Consumption | Approx. 70–80 W (max.) |
| Operating Temperature | -50 °C to +60 °C (-58 °F to +140 °F) |
| Humidity | 10 % – 100 % (no condensation) |
| Ingress / Impact Protection | IP66, IP68, IK10, NEMA 4X/6P |
| Wind Resistance | Operable up to 270 km/h (167 mph); Non-destructive up to 90 m/s (201 mph) |
| Material / Finish | High-strength salt-resistant resin body, black (Munsell N1 semi-gloss) |
| Dimensions (H × W × D) | 450 × 226 × 266 mm (17.7 × 8.9 × 10.5 in) |
| Weight | Approx. 8.1 kg (17.9 lb) |
| Certifications | UL, c-UL, CE, FCC Part 15 Class A, NEMA TS2, MIL-STD-810-H |
| Optional Accessories | WV-QWL503-B, WV-QWL503S-B, WV-QCN500-B, WV-QCA502 (I/O Cable) |
| Compliance | NDAA Compliant |
