Description

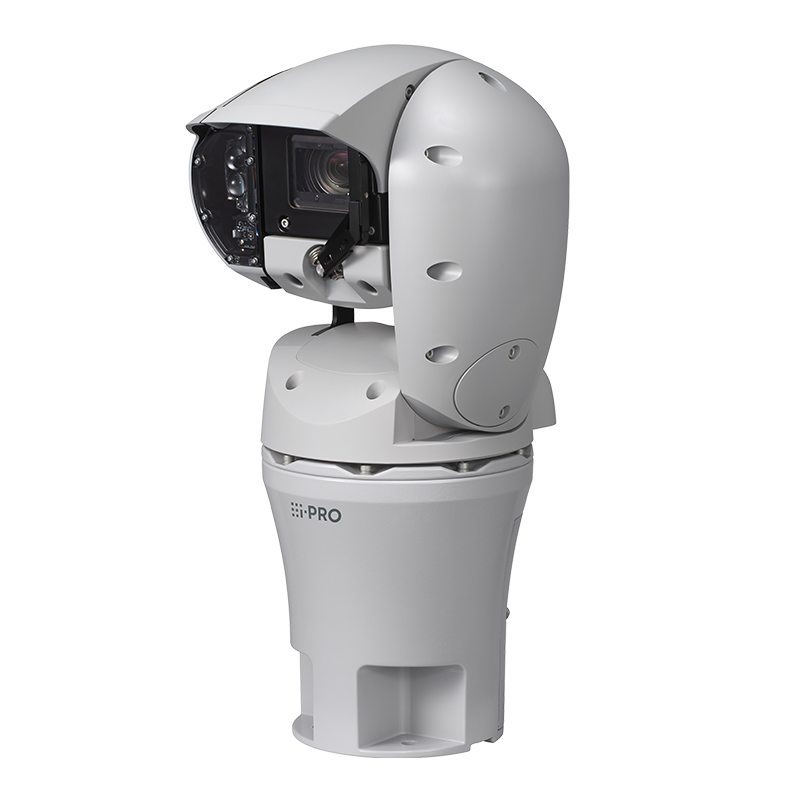

The i-PRO WV-X67711-Z3L3 is a next-generation 4K AI Rugged PTZ Camera designed for mission-critical surveillance in extreme outdoor environments. Equipped with a 30x optical zoom and built-in white LED illumination up to 160 m (524 ft), it delivers crystal-clear imaging even in total darkness. With support for up to three Edge AI analytic applications, advanced features like AI Auto Tracking, and AI-based sound and object detection, this PTZ camera ensures proactive monitoring and intelligent scene analysis.
Engineered for durability, it offers IP66/IP68 and IK10 ratings, FIPS 140-2 Level 3 security certification, and withstands harsh conditions from -50°C to +65°C and winds up to 270 km/h (167 mph). Featuring flexible power options including 24V AC/DC and PoE++, the WV-X67711-Z3L3 integrates seamlessly into high-security infrastructures requiring long-range precision, AI analytics, and rugged reliability.
| Category | Specification |
|---|---|
| Model | WV-X67711-Z3L3 |
| Image Sensor | 1/2.8-type CMOS image sensor |
| Resolution | Up to 3840×2160 (4K UHD) |
| Optical Zoom | 30x |
| Digital Zoom | Up to 480x |
| Focal Length | 4.5–135 mm |
| Field of View (16:9) | H: 2.5°–62°, V: 1.4°–37° |
| Minimum Illumination | 0 lx (with White LED on), 0.13 lx (Color, F1.8, 1/30s, AGC:11) |
| White LED Range | Up to 160 m (524 ft) |
| AI Features | AI Video Motion Detection, AI Face/People/Vehicle Detection, AI Privacy Guard, AI Sound Classification |
| Max. AI Applications | 3 Edge AI apps |
| Auto Tracking | Supported (AI Auto Tracking) |
| Dynamic Range | Max. 132 dB (Super Dynamic On) |
| Video Compression | H.265 / H.264 / JPEG |
| Frame Rate | Up to 30 fps (4K) |
| Smart Coding | GOP control, Smart VIQS, Smart P-picture |
| Audio Compression | G.711, G.726, AAC-LC |
| Network Interface | 10BASE-T / 100BASE-TX, RJ45 |
| Protocols | IPv4/IPv6, HTTPS, SNMP, MQTT, ONVIF Profile M/S/T |
| Simultaneous Streams | Up to 4 |
| Pan/Tilt Range | 360° endless pan / -90° to +90° tilt |
| Pan/Tilt Speed | Up to 200°/s |
| Presets | 256 positions |
| Power Supply Options | 24V AC/DC, PoE++ (Type 4 Class 8 or Type 3 Class 6) |
| Power Consumption | Up to 79.2 W (24V DC), 70.2 W (PoE++ Type 4) |
| Operating Temperature | -50°C to +65°C (-58°F to +149°F) |
| Environmental Rating | IP66, IP68, IK10, NEMA 4X/6P |
| Wind Resistance | Up to 270 km/h (167 mph) |
| Security | FIPS 140-2 Level 3 Certified, GlobalSign® Certificate |
| Browser Compatibility | Microsoft Edge, Firefox, Google Chrome |
| Mounting Options | WV-QWL503S-G, WV-QWL503-G, WV-QCN500S-G, WV-QCA502 |
| Dimensions (W×H×D) | 226 × 450 × 266 mm (8.9 × 17.7 × 10.5 in) |
| Weight | Approx. 8.1 kg (17.9 lbs) |
