Description

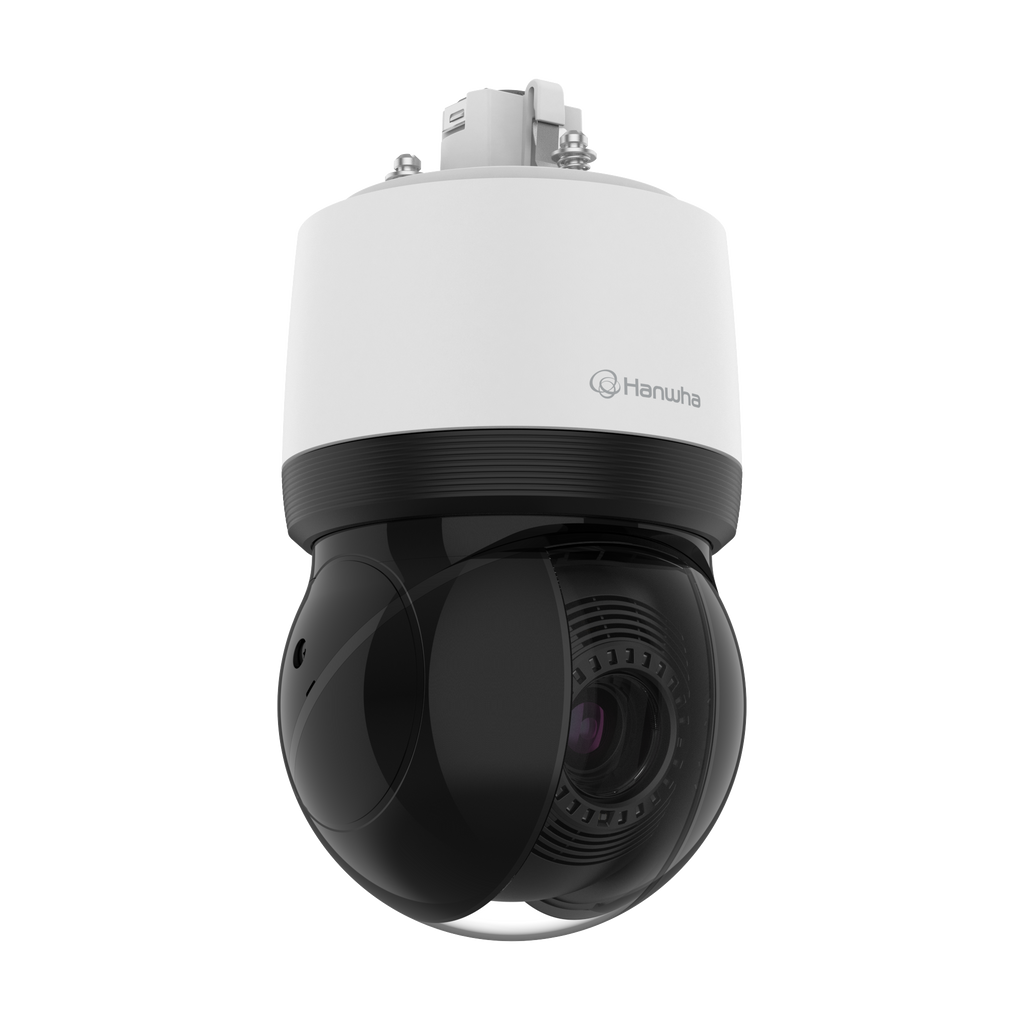

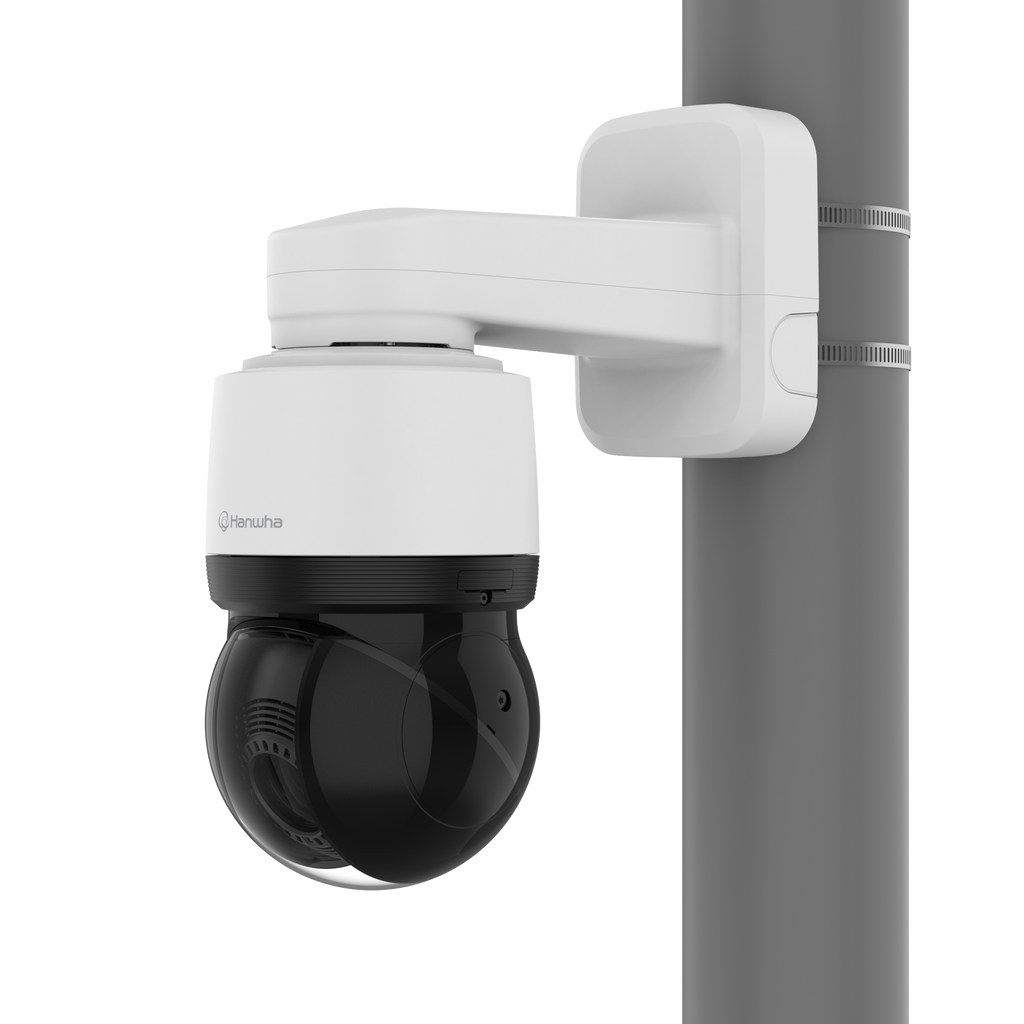

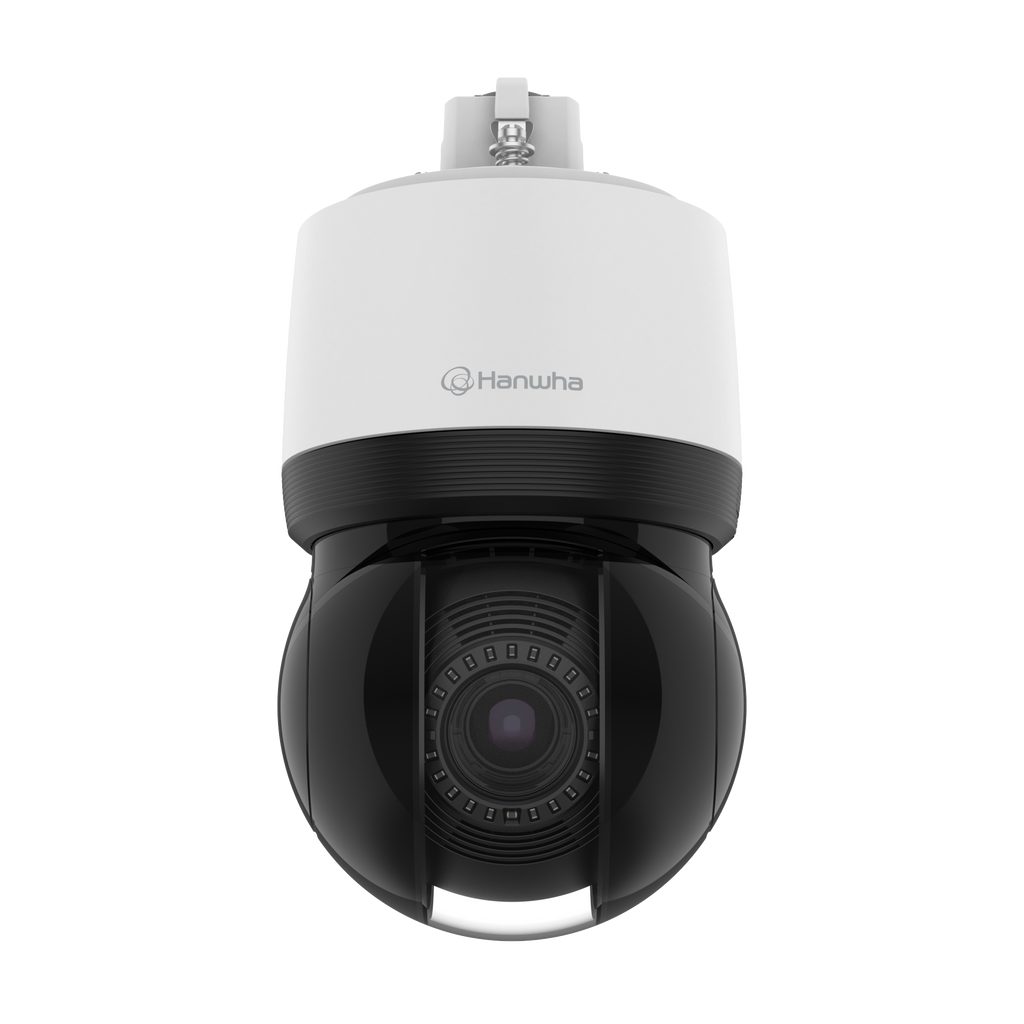

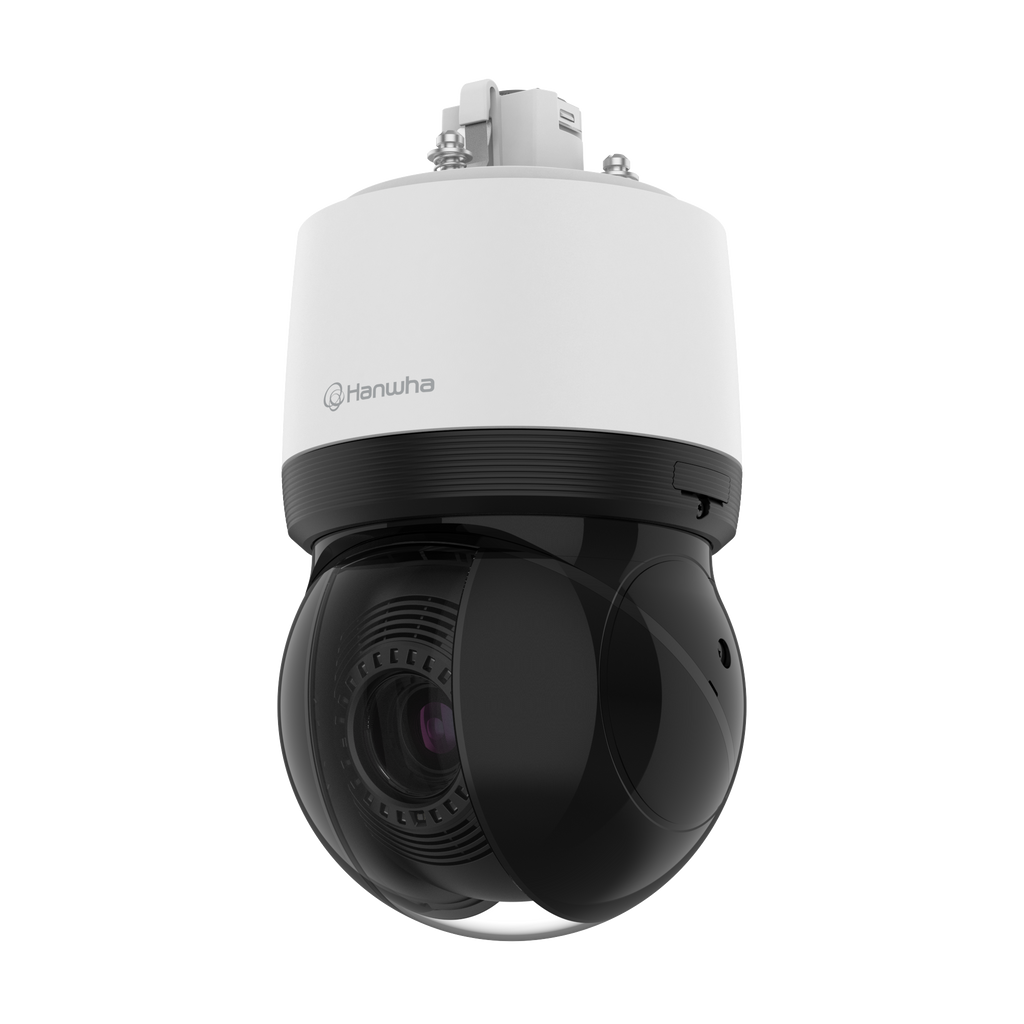

The Hanwha Vision XNP-C9253R is a high-performance 4K PTZ PLUS camera engineered for wide-area surveillance, long-range monitoring, and advanced AI-driven analytics. Powered by an 8MP CMOS sensor and a 25x optical zoom lens, it delivers exceptional clarity from wide overviews to detailed distant captures.
Designed for demanding outdoor environments, it features IR illumination up to 200m, IP66/IP67-rated weather protection, IK10 impact resistance, and compliance with NEMA 4X and NEMA-TS2 standards, ensuring reliability in extreme heat, cold, wind, and critical infrastructure applications.
The onboard AI engine enables precise object detection, classification (person, face, vehicle, license plate), virtual zones, auto-tracking, and target-lock tracking. Its PTZ PLUS design provides faster installation, simplified cabling, and smooth 360° endless pan with rapid preset speeds.
Ideal for transportation hubs, perimeters, smart city deployments, and mission-critical security, the XNP-C9253R maximizes situational awareness with robust durability and intelligent video analytics.
| Category | Specification |
|---|---|
| Image Sensor | 1/2.8" CMOS |
| Max Resolution | 8MP (3840×2160) |
| Framerates | 30fps (H.265/H.264), MJPEG up to 30fps (@8MP Max 5fps) |
| Minimum Illumination | Color: 0.1 Lux (1/30sec, 30IRE) • B/W: 0.01 Lux |
| Lens | 5–125mm, 25x optical zoom, 32x digital zoom (800x total) |
| Aperture | F1.6 (wide) – F3.73 (tele) |
| Horizontal FOV | 57.42° – 2.71° |
| Vertical FOV | 33.54° – 1.55° |
| Min. Object Distance | 5m (16.4 ft) |
| Pan Range / Speed | 360° endless • Up to 700°/sec preset |
| Tilt Range / Speed | -20° to 90° • Up to 500°/sec preset |
| Day/Night | Auto ICR |
| WDR | 120 dB Extreme WDR |
| Image Enhancements | DIS (gyro sensor), Defog, WiseNR II, SSNR V, Flip & Mirror |
| IR Illumination | 200m (WiseIR), 850nm |
| AI Analytics | Object detection, person/vehicle/face/license plate classification, virtual line, intrusion/loitering, appear/disappear, shock detection, tampering, target-lock tracking |
| Auto-Tracking | Person/vehicle auto-tracking |
| Video Compression | H.265/H.264 (Main/Baseline/High), MJPEG, WiseStream III |
| Streaming | Up to 10 profiles, 20 users (unicast), multicast supported |
| Protocols | IPv4/IPv6, HTTPS, SRTP, MQTT, ONVIF S/G/T/M, SUNAPI |
| Edge Storage | Dual SD/SDHC/SDXC (max 512GB each = 1TB total) |
| Audio Support | Via optional I/O box (in/out) |
| Alarm Events | Email, FTP/SFTP upload, NAS recording, PTZ preset, MQTT publish, HTTP/HTTPS/TCP messaging |
| Operating Temperature | -40°C to +55°C (-40°F to +131°F) |
| Storage Temperature | -50°C to +60°C (-58°F to +140°F) |
| Humidity | 0–100% RH (condensing) |
| Wind Load | 241 km/h (150 mph) |
| Ingress/Impact Rating | IP66, IK10, NEMA 4X, NEMA-TS2 |
| Power | PoE++ (IEEE 802.3bt Type 3 Class 6), Max 40W (Typical 24W) |
| Dimensions | Ø158 × 293.3 mm (6.22 × 11.55 in) |
| Weight | 3,200g (7.05 lb) |
| Certifications | FCC, CE, UL62368-1, RCM, IEC 62262, IEC 60529, etc. |
