Description

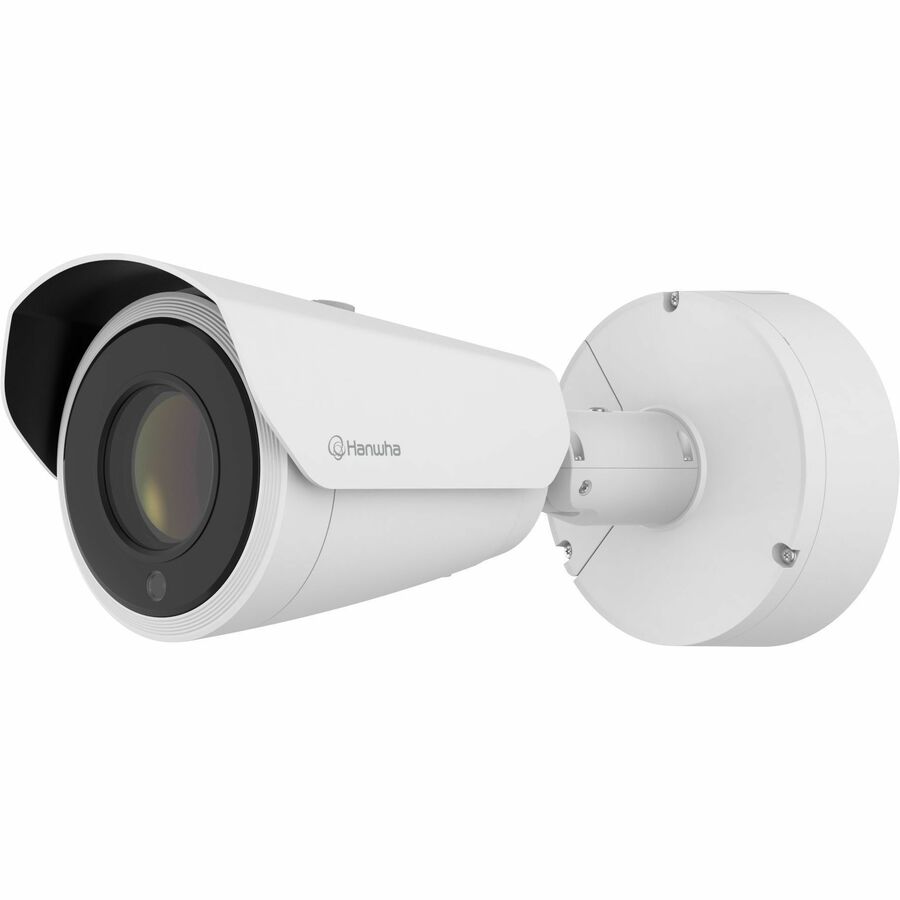

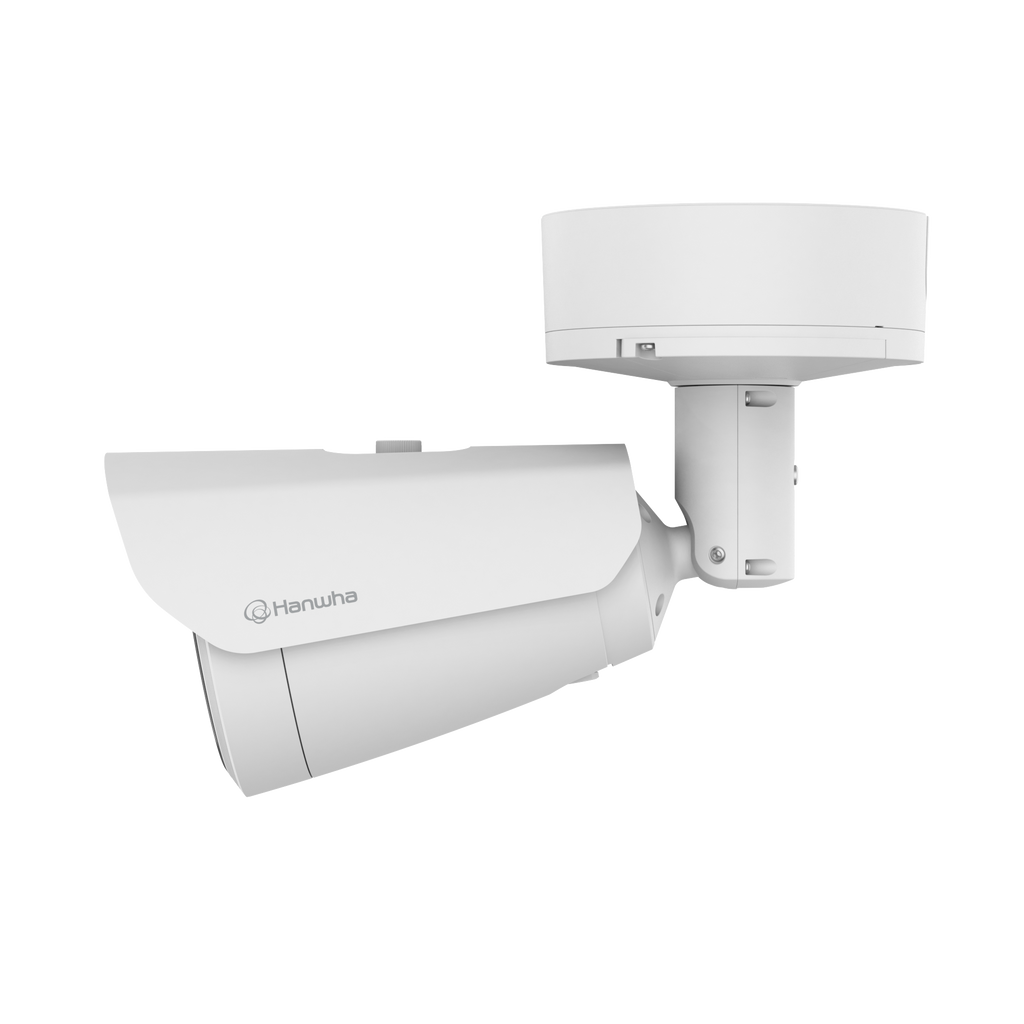

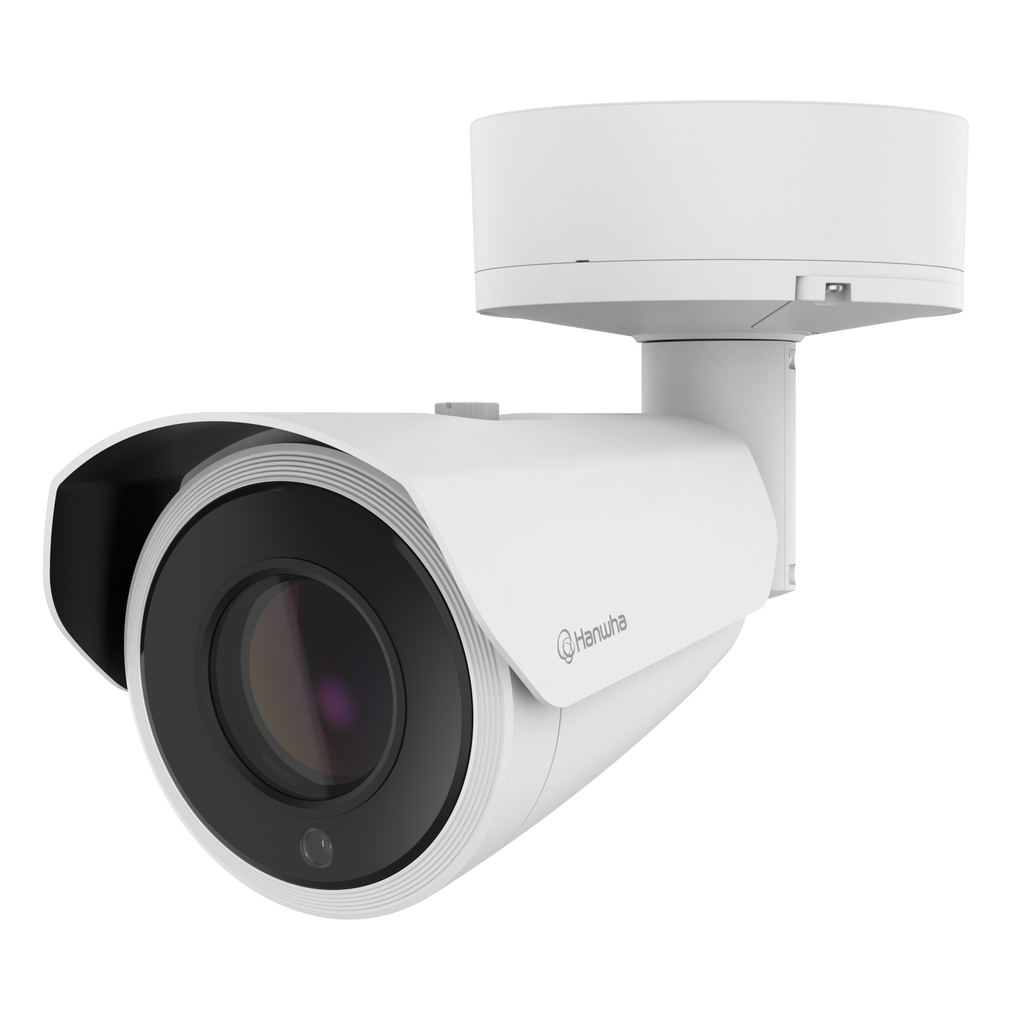

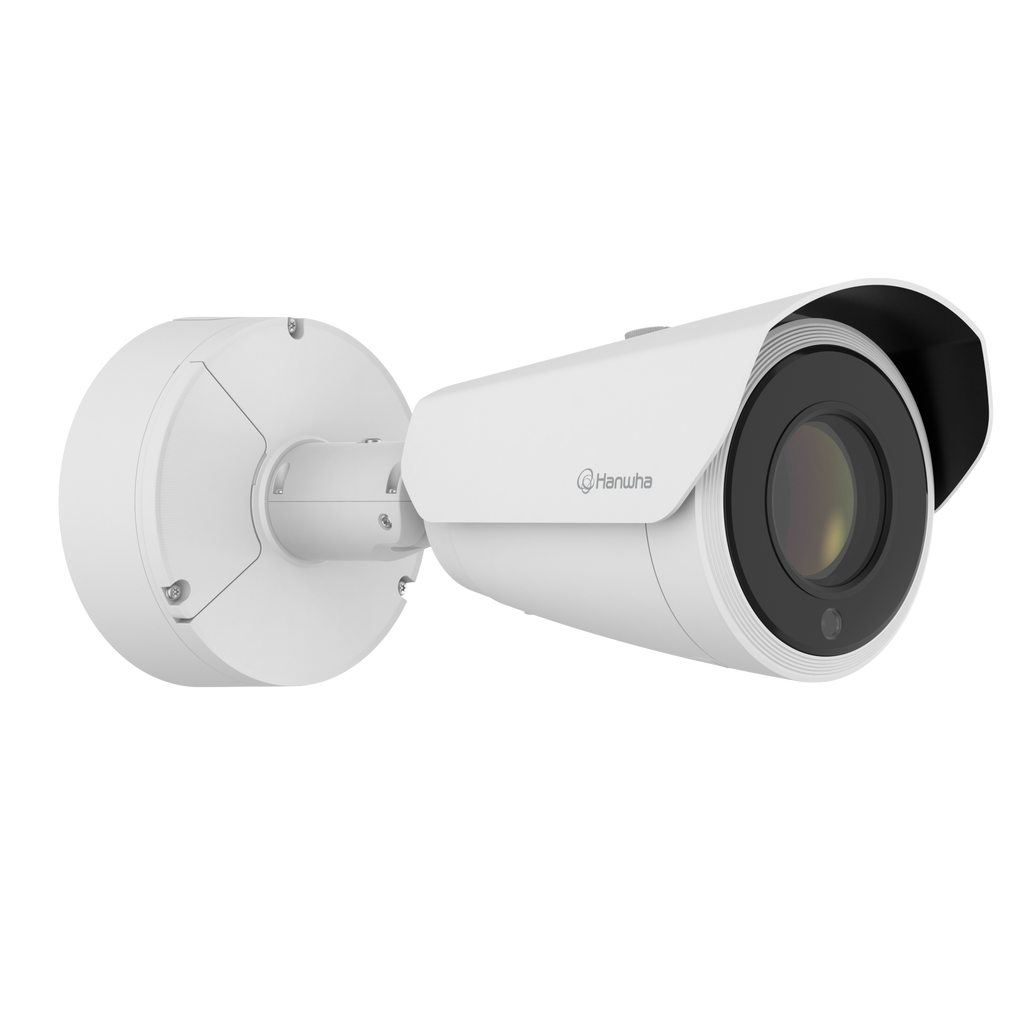

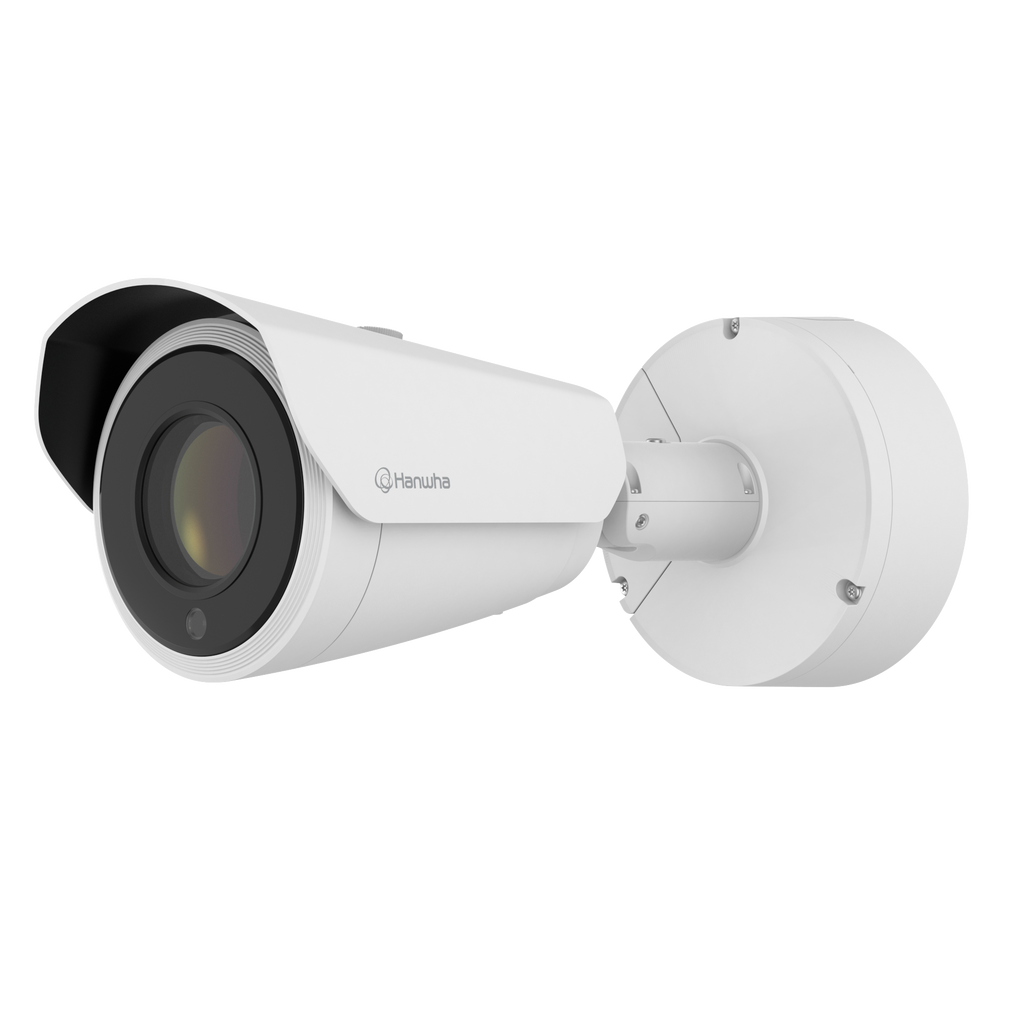

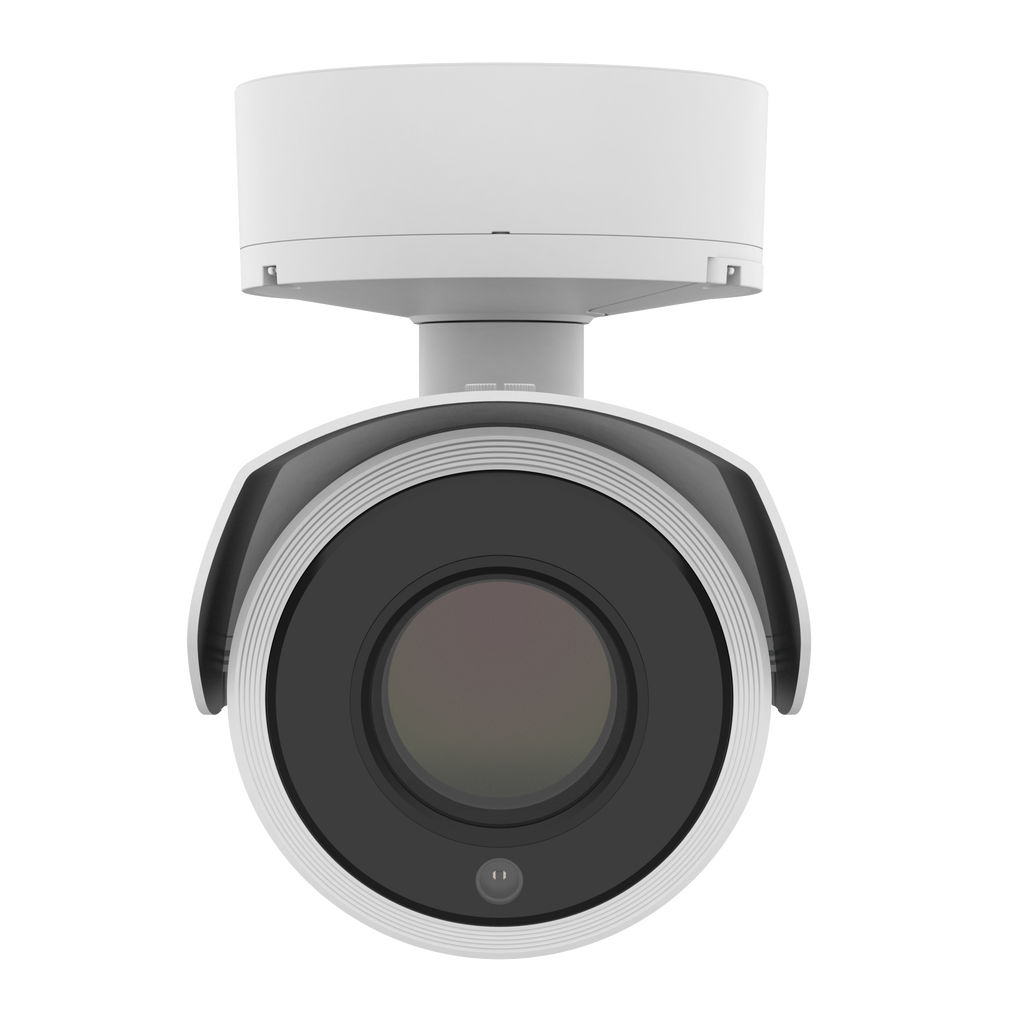

The Hanwha Vision PNO-A9311RLP is an advanced 4K IR bullet camera engineered for high-precision license plate recognition (LPR/ANPR/MMCR) in challenging traffic and environmental conditions. Featuring a powerful 31x optical zoom lens, wide dynamic range (120dB), and ultra-low-light sensitivity, this camera captures crisp, accurate vehicle and plate data day or night.
Pre-installed with Wisenet Road AI, it delivers exceptional recognition accuracy through AI-driven make, model, and color detection—optimized for high-speed and multi-lane environments. Its rugged IP66/IP67, IK10, and NEMA 4X construction ensures long-term durability, while TPM 2.0 with FIPS 140-2 Level 2 certification offers industry-leading cybersecurity.
Designed for critical traffic monitoring, law enforcement, and roadway analytics, the PNO-A9311RLP seamlessly integrates with major VMS platforms and supports flexible installation across single- to multi-lane setups.
| Category | Specification |
|---|---|
| Imaging | 1/1.8" CMOS, Max 4K (3840×2160), Min Illumination: 0.075 Lux (Color), 0.0075 Lux (B/W) |
| Framerate | H.265/H.264: 30/25fps, MJPEG: 30fps |
| Lens | 6.91–214.7 mm, 31x Optical Zoom, F1.36–F4.6, P-iris, IR-corrected |
| Field of View | H: 60.92°–2.2°, V: 35.26°–1.24°, D: 69.18°–2.52° |
| IR Illumination | IR LED with WiseIR, up to 70m (229.66 ft), 850nm |
| Day/Night | ICR Auto |
| Wide Dynamic Range | 120 dB |
| Image Enhancements | SSNR V noise reduction, DIS with gyro sensor, BLC, SSDR, Flip/Mirror/Hallway View |
| Video Output | CVBS composite, Micro USB Type-B |
| Analytics / AI | Wisenet Road AI LPR/ANPR/MMCR, CNN-based detection, SmartSearch (plate, country, brand, model, color) |
| Vehicle Recognition | 100+ makes, 4700+ models, 11 colors |
| Lane Coverage | 1–3 lanes (region dependent), capture up to 4K resolution |
| Speed Support | Up to 250 km/h (155 mph) depending on lane and region |
| Network | RJ-45 10/100/1000BASE-T, IPv4/IPv6, HTTPS, TLS/SSL, SRTP, MQTT, ONVIF S/G/T/M |
| Streaming | Up to 6 profiles, Unicast/Multicast, H.265/H.264/MJPEG, WiseStream II |
| Audio I/O | Mic/Line-in selectable, Line-out |
| Alarm I/O | 2 configurable I/O ports, 12VDC output |
| Edge Storage | 1× MicroSD/SDHC/SDXC slot (32GB pre-installed) |
| Cybersecurity | TPM 2.0 with FIPS 140-2 Level 2, secure boot, signed firmware, encrypted credentials |
| Operating Conditions | -40°C to +55°C (-40°F to +131°F), 0–90% RH |
| Power | PoE+ (IEEE 802.3at) max 25.5W, 12VDC max 24W |
| Construction | Aluminum body, IP66/IP67, IK10, NEMA 4X |
| Dimensions | Ø136.2 × 358.7 mm (Ø5.36 × 14.12 in) |
| Weight | 3.2 kg (7.05 lb) |
| Certifications | FCC, CE, UL 62368-1, IEC 60529 (IP66/IP67), IEC 62262 (IK10) |
| Integration | Wisenet WAVE, SSM, Genetec Security Center, Milestone XProtect, AutoVu |
