Description

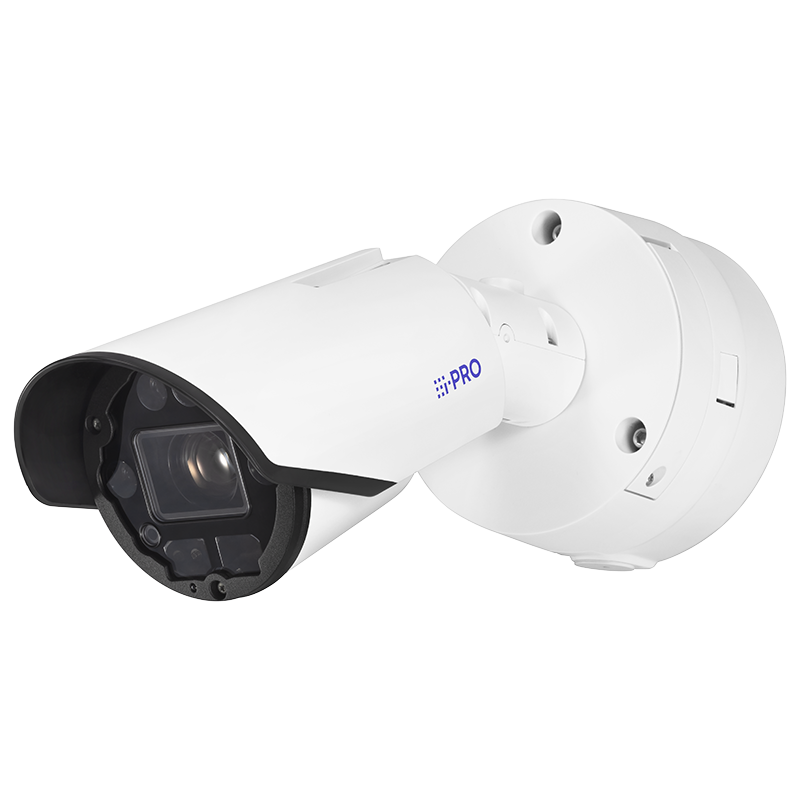

The i-PRO WV-X15701-Z3L is a high-performance 4K AI outdoor IR bullet camera engineered for advanced surveillance in demanding environments. Featuring a 1/2.8-type CMOS sensor, 30x optical zoom, and built-in IR LED illumination up to 140 meters, it delivers exceptional image clarity both day and night.
Equipped with Edge AI analytics supporting up to 9 simultaneous applications, this camera provides intelligent functions such as AI motion detection, people and vehicle detection, license plate recognition, and scene change detection. Its Ambarella CV52 System-on-Chip ensures high-speed AI processing and efficient video encoding.
Built to endure harsh conditions, the WV-X15701-Z3L is IP66/IP67-rated, IK10 vandal-resistant, and NDAA compliant. It also integrates FIPS 140-2 Level 3-certified Secure Element (NXP EdgeLock SE050F) for strong cybersecurity, safeguarding both device integrity and transmitted data.
Ideal for large outdoor spaces, highways, critical infrastructure, and perimeter security, this camera combines robust construction, AI-driven analytics, and flexible connectivity for next-generation surveillance performance.
| Category | Specification |
|---|---|
| Model | WV-X15701-Z3L |
| Camera Type | 4K AI Outdoor IR Bullet Camera |
| Image Sensor | Approx. 1/2.8-type CMOS image sensor |
| Resolution | Up to 3840 × 2160 (4K) |
| Optical Zoom | 30x (Motorized zoom/focus) |
| Digital Zoom | Up to 480x |
| Focal Length | 4.5–135 mm |
| Field of View (H/V) | 2.5°–62° (H) / 1.4°–37° (V) |
| Minimum Illumination | Color: 0.13 lx; B/W: 0 lx (IR On) |
| IR LED Illumination Distance | Up to 140 m (459 ft) with PoE++ |
| Dynamic Range | Max. 132 dB (Super Dynamic: On) |
| AI Analytics | AI Motion, People/Vehicle Detection, Face Detection, Occupancy Detection, AI Scene Change, AI Privacy Guard, AI On-Site Learning, AI Processing Relay, License Plate Recognition (3rd party apps) |
| Max. Number of AI Apps | 9 |
| AI Sound Classification | Gunshot, Yell, Vehicle Horn, Glass Break |
| SoC (Processor) | Ambarella CV52 |
| Video Compression | H.265 / H.264 / JPEG |
| Smart Coding | GOP control, Smart VIQS, Smart P-picture |
| Audio Compression | G.726, G.711, AAC-LC |
| Network Interface | 10BASE-T / 100BASE-TX, RJ45 |
| Protocols Supported | IPv4, IPv6, HTTPS, SSL/TLS, SNMP, MQTT, SRTP, IEEE 802.1X |
| Simultaneous Streams | Up to 4 |
| Edge Storage | microSD/microSDHC/microSDXC (up to 512 GB) |
| Power Supply | DC 12 V, PoE+ (IEEE802.3at), PoE++ (IEEE802.3bt) |
| Power Consumption | DC 12V: 15.6W / PoE+: 24.8W / PoE++: 32.4W |
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Ingress Protection | IP66 / IP67 / NEMA 4X / Type 4X |
| Impact Resistance | IK10 |
| Vibration/Wind Resistance | IEC 60721-3-4 4M4 compliant / Up to 40 m/s wind |
| Dimensions (Ø × D) | 168 × 403 mm (extends to 456 mm with sunshade) |
| Weight | Approx. 3.6 kg (8.0 lbs) |
| Finish | Aluminum die-cast, i-PRO white |
| Certifications | UL, CE, FCC, NDAA Compliant |
| Security Features | FIPS 140-2 Level 3 Certified, Secure Boot, Signed Firmware, HTTPS, Brute-force Protection |
| Optional Accessories | WV-QPL500-W, WV-QCN500-W, WV-QCL101-W, WV-QCL100-W, WV-Q105A, WV-SDB256G/128G/64G/32G, WV-QCA501A, WV-PM500, WJ-PU201P, WJ-PU201/G |
