Description

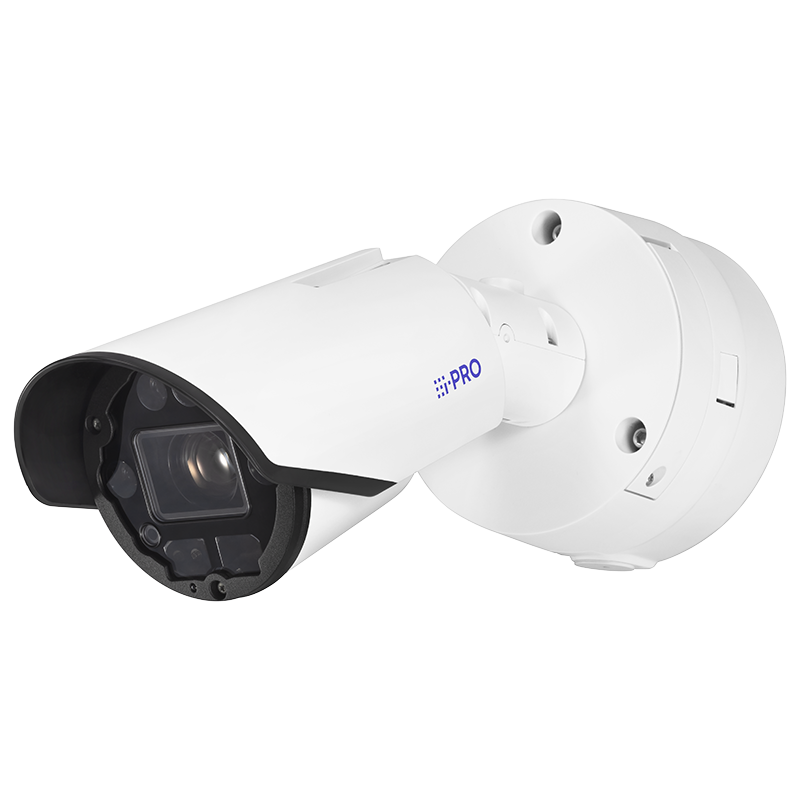

The i-PRO WV-S15701-Z3L is a high-performance 4K AI outdoor bullet camera engineered for advanced surveillance applications. Featuring a 30x optical zoom lens, built-in IR LEDs with up to 140 m (459 ft) illumination range, and an Ambarella CV22 SoC, it delivers exceptional image clarity and intelligent analytics powered by edge AI.
Designed to endure the harshest environments, the camera is IP66/IP67-rated, IK10 shock resistant, and NEMA 4X compliant, ensuring long-term durability in outdoor installations. With up to three onboard AI analytic apps, it supports features such as AI motion, face, people, and vehicle detection, while maintaining secure data protection through FIPS 140-2 Level 3 certification and an EdgeLock® SE050F security element.
Ideal for critical infrastructure, city surveillance, and perimeter security, the WV-S15701-Z3L provides superior performance, flexible installation, and top-tier cybersecurity—making it a reliable choice for enterprise-grade video monitoring.
| Category | Specification |
|---|---|
| Model | WV-S15701-Z3L |
| Camera Type | 4K AI Outdoor IR Bullet Camera |
| Image Sensor | Approx. 1/2.8-type CMOS |
| Resolution | Up to 3840 × 2160 (4K UHD) |
| Optical Zoom | 30× (motorized zoom/focus) |
| Digital Zoom | Up to 480× |
| Lens Focal Length | 4.5 – 135 mm |
| Field of View (H/V) | 2.5° – 62° (H) / 1.4° – 37° (V) |
| Minimum Illumination | Color: 0.13 lx (F1.8, 1/30 s); B/W: 0 lx (IR On) |
| IR Illumination Distance | Up to 140 m (459 ft) with PoE++ |
| Dynamic Range | Max. 132 dB (Super Dynamic On) |
| AI Analytics | AI Motion, Face, People, Vehicle, Occupancy & Scene Change Detection |
| Max AI Apps | Up to 3 Edge AI apps |
| Audio Detection | Gunshot, Yell, Vehicle Horn, Glass Break |
| Compression Formats | H.265, H.264, JPEG (MJPEG) |
| Smart Coding | GOP control, Smart VIQS, Smart P-picture control |
| Audio Compression | G.711, G.726, AAC-LC |
| Network Interface | RJ-45 (10BASE-T / 100BASE-TX) |
| Protocols Supported | IPv4/IPv6, HTTPS, SNMP, RTSP, MQTT, SRTP, 802.1X authentication |
| ONVIF Profile | G / M / S / T compliant |
| SD Card Support | microSD/microSDHC/microSDXC (2 GB – 512 GB) |
| Power Options | DC 12 V, PoE+ (IEEE 802.3at), PoE++ (IEEE 802.3bt) |
| Power Consumption | 15.6 W (DC 12 V), 24.8 W (PoE+), 32.4 W (PoE++) |
| Operating Temperature | –40 °C to +60 °C (PoE++ mode) |
| Protection Rating | IP66 / IP67 / NEMA 4X / IK10 shock resistance |
| Dimensions (Ø × L) | Ø 168 mm × 403 mm (initial) / 456 mm (extended) |
| Weight | Approx. 3.6 kg (8.0 lbs) |
| Material & Finish | Aluminum die-cast body, i-PRO white |
| Certifications | UL 62368-1, CE, FCC Class A, FIPS 140-2 Level 3 (Security) |
| Optional Accessories | WV-QPL500-W, WV-QCN500-W, WV-QCL101-W, WV-QCL100-W, WV-Q105A, WV-PM500, WJ-PU201P (PoE Injector) |
