Description

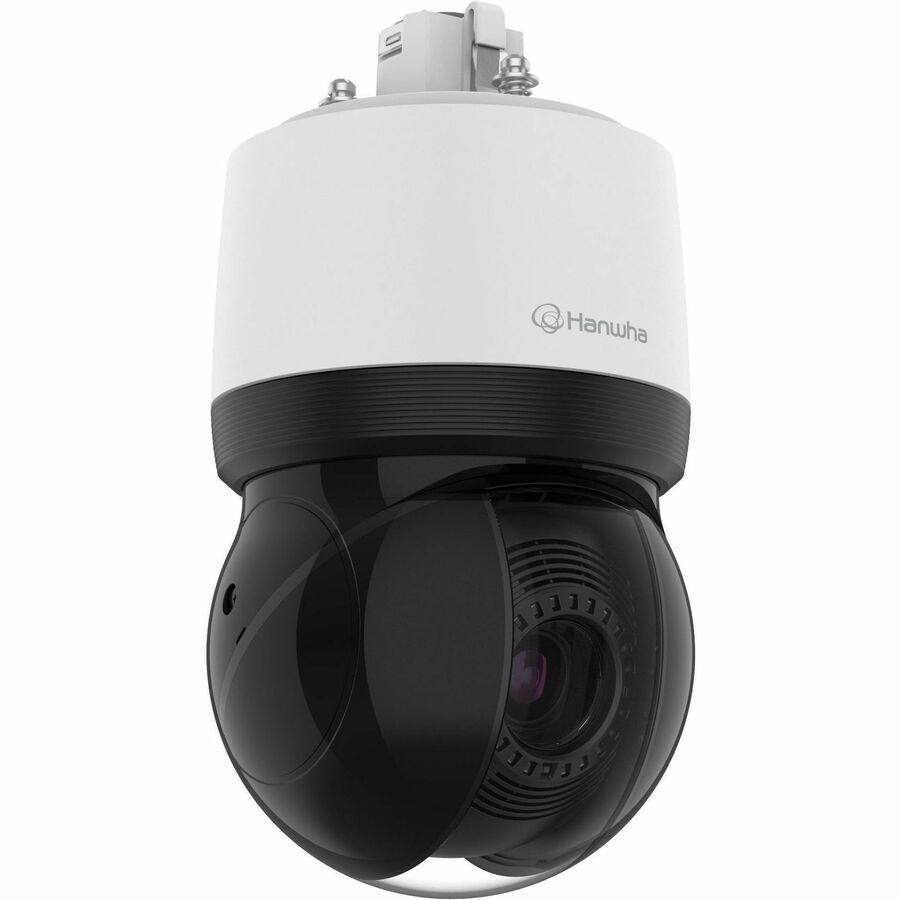

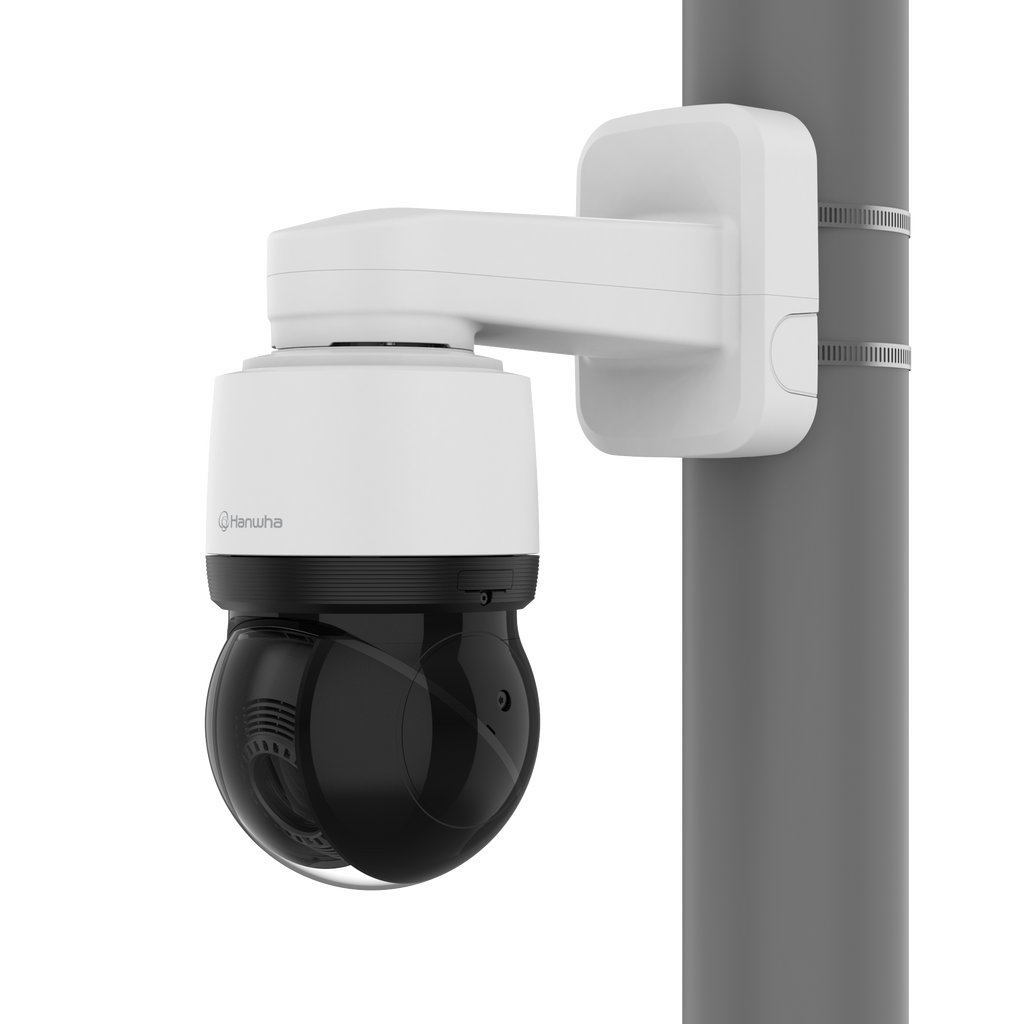

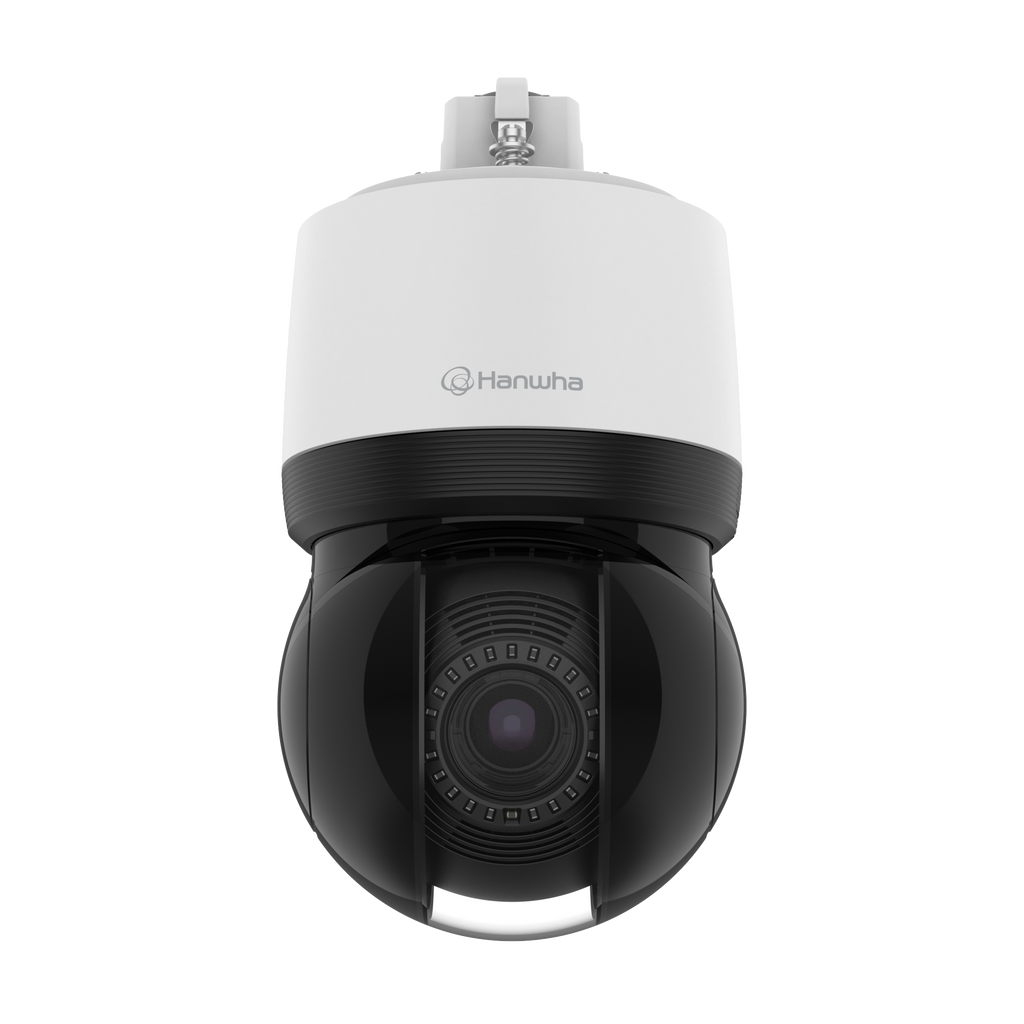

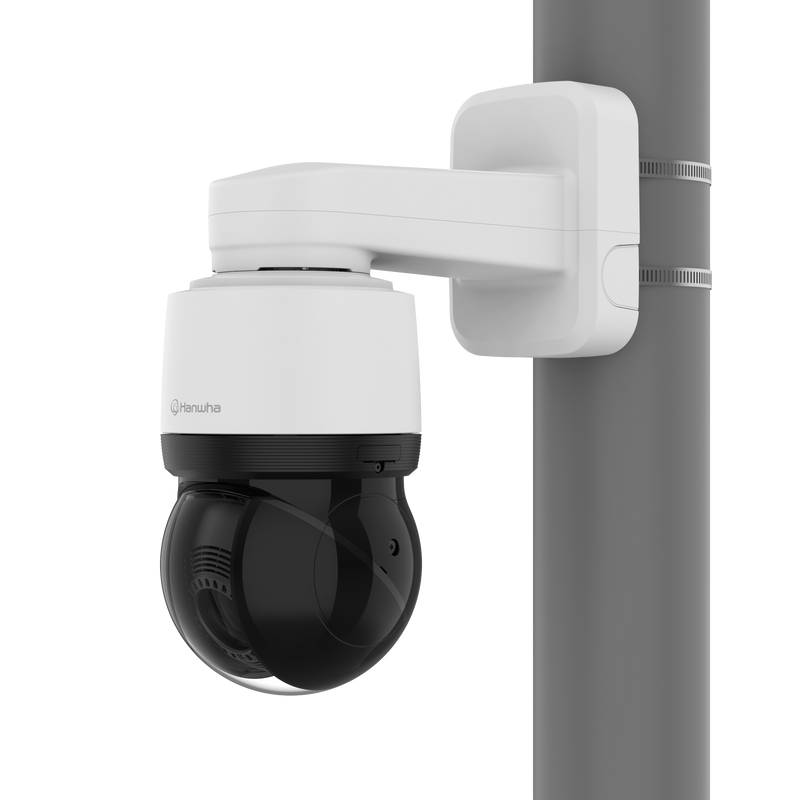

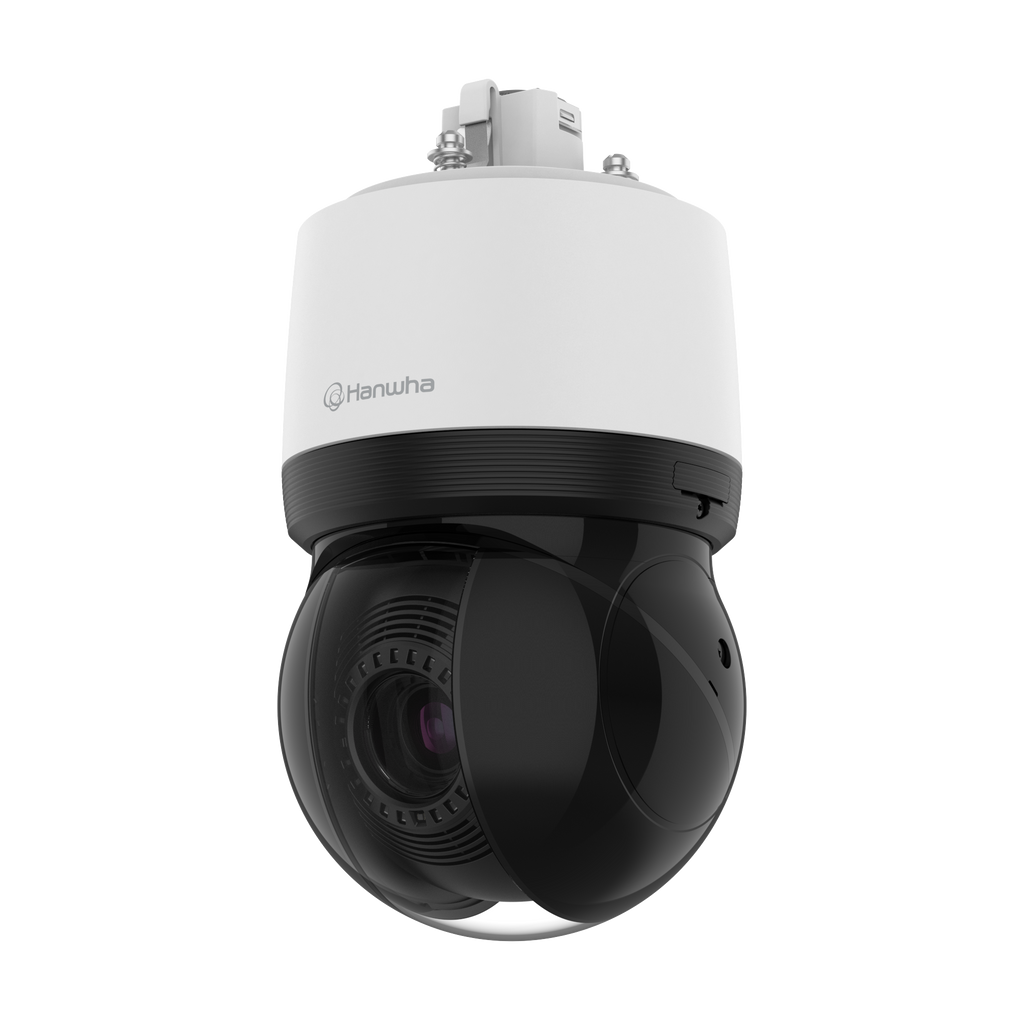

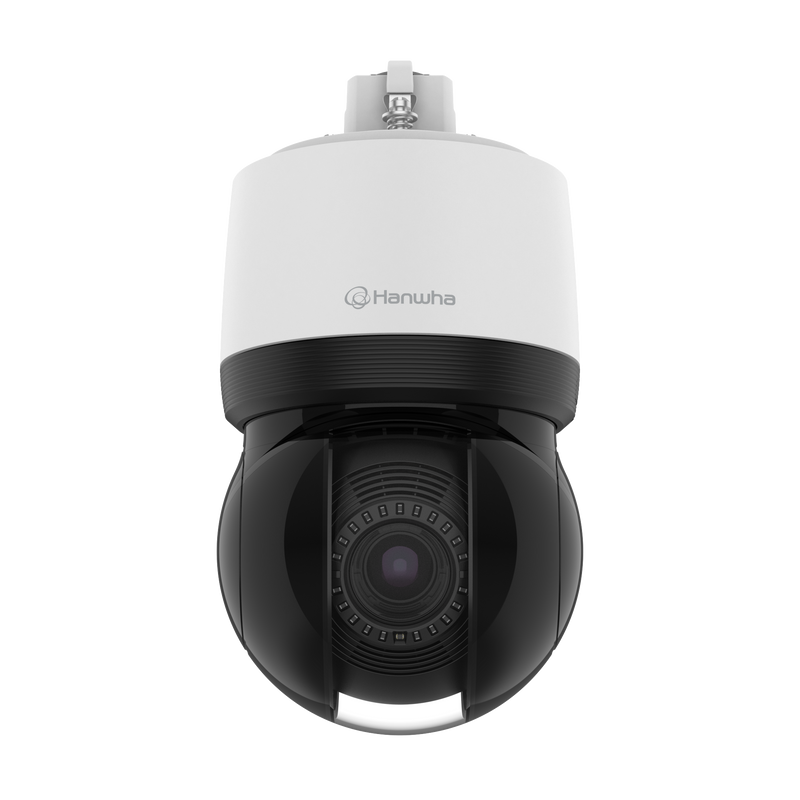

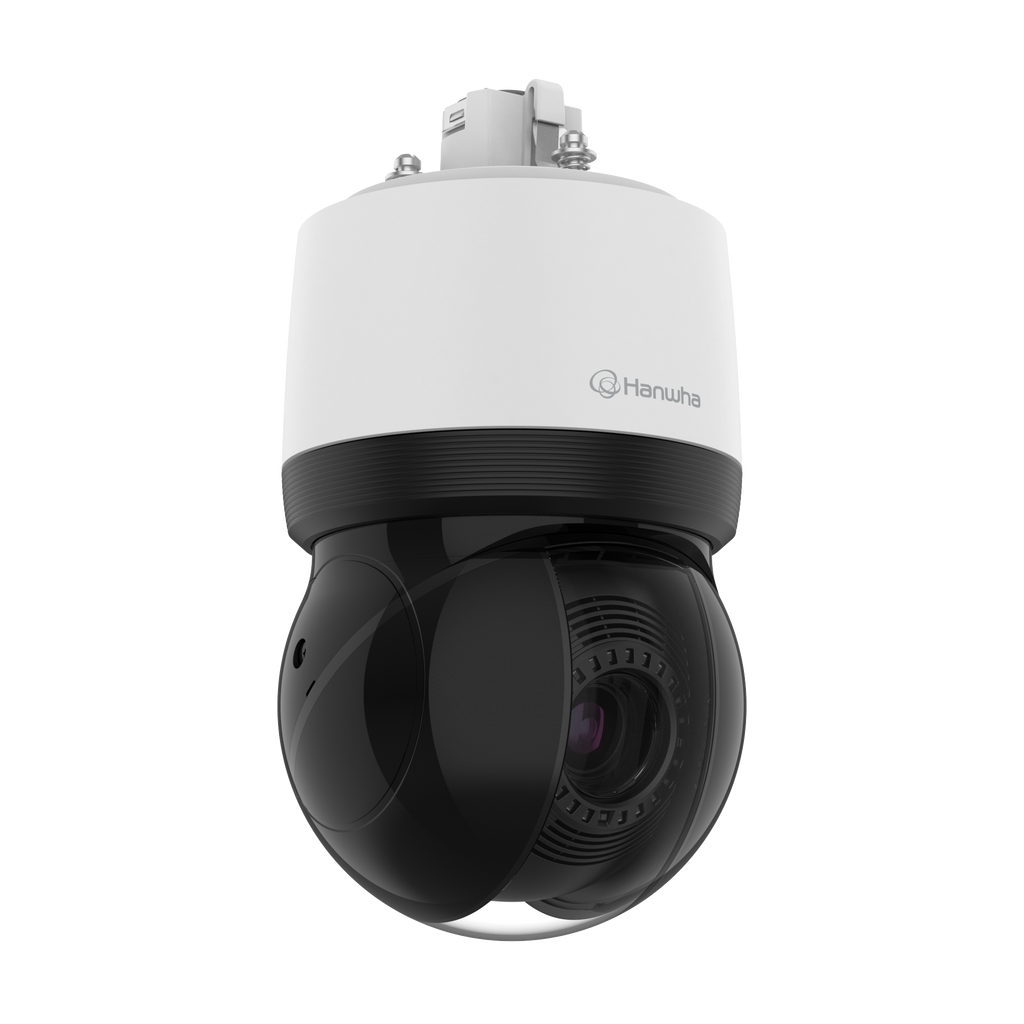

The Hanwha Vision XNP-C9253 is a high-performance 4K AI-powered PTZ PLUS camera engineered for demanding outdoor surveillance. Equipped with a 25x optical zoom lens and advanced AI analytics, it delivers exceptional long-range visibility, precision object detection, and intelligent auto-tracking for people and vehicles.
Designed for professional security environments, the camera provides extreme WDR, built-in gyro-based image stabilization, and long-range WiseIR illumination up to 200 meters. Its rugged IP66, IK10, and NEMA 4X housing ensures reliable operation in harsh weather conditions, while secure-by-design architecture—including TPM 2.0 and encrypted firmware—meets modern cybersecurity requirements.
The PTZ PLUS design offers a lighter, more compact form factor with simplified cabling, making installation easier without compromising performance. Ideal for critical infrastructure, transportation hubs, city surveillance, and large enterprise deployments, the XNP-C9253 delivers clarity, intelligence, and durability in one powerful platform.
| Category | Specification |
|---|---|
| Imaging | 1/2.8" CMOS, max resolution 3840×2160 (8MP), 30fps |
| Minimum Illumination | Color: 0.1 Lux (1/30s, 30IRE) • B/W: 0.01 Lux |
| Lens | 5–125mm, 25x optical zoom, 32x digital zoom, F1.6–F3.73 |
| Field of View | H: 57.42°–2.71° • V: 33.54°–1.55° |
| Pan/Tilt Range | Pan: 360° endless • Tilt: +90° to –20° |
| Pan/Tilt Speed | Pan: up to 700°/sec • Tilt: up to 500°/sec |
| Image Enhancements | Extreme WDR (120 dB), WiseNR II, DIS (gyro sensor), Defog |
| Day/Night | True Day/Night (ICR) |
| AI Analytics | Object detection (person/face/vehicle/license plate), virtual line/area, loitering, intrusion, sound classification, shock detection |
| Auto-Tracking | Object auto-tracking (person/vehicle), target-lock tracking |
| IR Illumination | WiseIR 200m range |
| Video Compression | H.265/H.264 (Main/High/Baseline), MJPEG, WiseStream III |
| Streaming | Up to 10 profiles, up to 20 users |
| Network Protocols | IPv4/IPv6, HTTPS, SRTP, SNMPv1/2/3, ONVIF S/G/T/M, MQTT |
| Security Features | Secure boot, TPM 2.0 (FIPS 140-2 Level 2), encrypted firmware |
| Edge Storage | Dual microSD/SDHC/SDXC slots, up to 512GB ×2 (1TB total) |
| Audio/Alarm | Audio I/O & alarm I/O via optional I/O box |
| Operating Temperature | –40°C to +55°C (–40°F to +131°F) |
| Ingress Protection | IP66, IK10, NEMA 4X |
| Power | PoE++ (IEEE 802.3bt Type 3), max 40W |
| Dimensions | Ø158 × 293.3 mm (6.22 × 11.55 in) |
| Weight | 3.2 kg (7.05 lb) |
| Color Options | White, Black |
