Description
The Kramer KIT-401/US-D(W) is a professional 4K auto-switcher and scaler kit designed for effortless, long-reach AV signal delivery in modern meeting rooms, classrooms, and collaborative spaces. This complete transmitter-and-receiver solution delivers reliable 4K HDMI™ and VGA connectivity over HDBaseT, extending signals up to 40m (130ft) at 4K@60Hz (4:2:0) and up to 70m (230ft) for 1080p content.

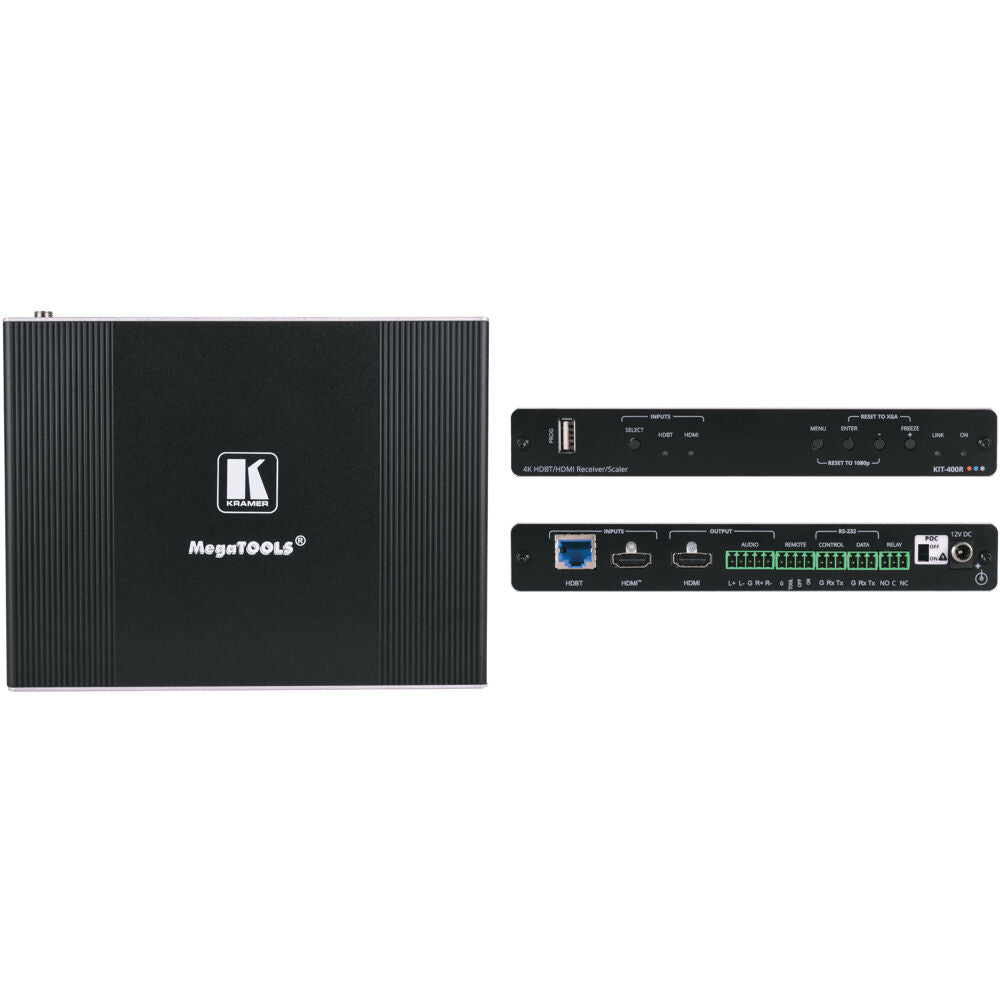

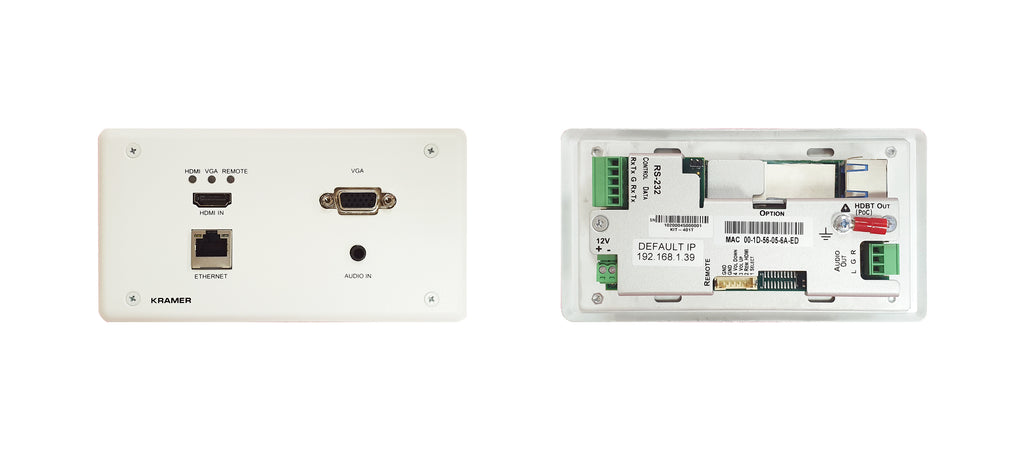

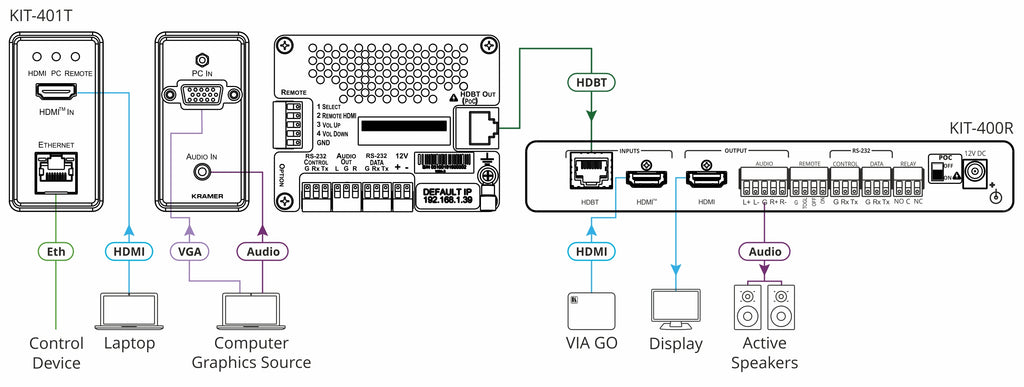

The KIT-401T wall-plate transmitter supports HDMI, VGA, and unbalanced audio inputs, while the KIT-400R receiver provides HDMI output, scaling, audio de-embedding, and advanced control capabilities. With simple auto-switching, intelligent EDID handling, PoC (Power over Cable), RS-232 extension, and seamless integration with Kramer Maestro room automation, this system minimizes setup time and streamlines user experience.

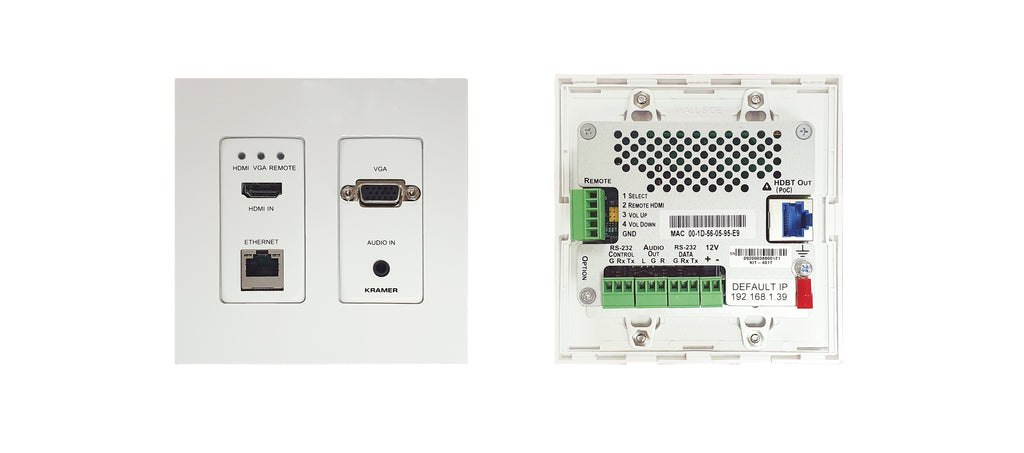

Designed for clean installations, the KIT-401/US-D(W) includes a white US-D size wall-plate frame and features fanless operation, embedded web control, relay triggers, and multiple configuration options—making it an elegant, dependable, and scalable AV solution.
| Category | Details |
|---|---|
| Product Type | 4K Auto-Switcher/Scaler Kit over Long-Reach HDBaseT |
| Included Components | KIT-401T wall-plate transmitter, KIT-400R receiver/scaler |
| Video Performance | Up to 4K@60Hz (4:2:0) over HDBaseT; Receiver supports 4K@60Hz (4:4:4) |
| Max Data Rate | KIT-400R: 18Gbps; KIT-400T: 10.2Gbps |
| HDBaseT Extension Distance | 40m (130ft) at 4K@60Hz (4:2:0); 70m (230ft) at 1080p |
| Transmitter Inputs | 1 HDMI, 1 VGA, 1 Unbalanced Audio |
| Transmitter Outputs | 1 HDBaseT, 1 Unbalanced Audio |
| Receiver Inputs | 1 HDBaseT, 1 HDMI |
| Receiver Outputs | 1 HDMI, 1 Balanced Audio |
| Audio Features | Audio de-embedding (balanced/unbalanced outputs) |
| Control Interfaces | Ethernet, bidirectional RS-232, contact-closure, relay, embedded web UI |
| User Controls | Source selection buttons, DIP-switches, OSD, Kramer API |
| Power | 12V DC; PoC (Power over Cable) supported |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Enclosure | Transmitter: 2-gang wall-plate; Receiver: MegaTOOLS™ aluminum |
| Included Accessories | Power adapter, rubber feet, bracket set, white US-D frame |
| Model Variant | KIT-401/US-D(W) – includes white US-D size wall-plate frame |
