Description

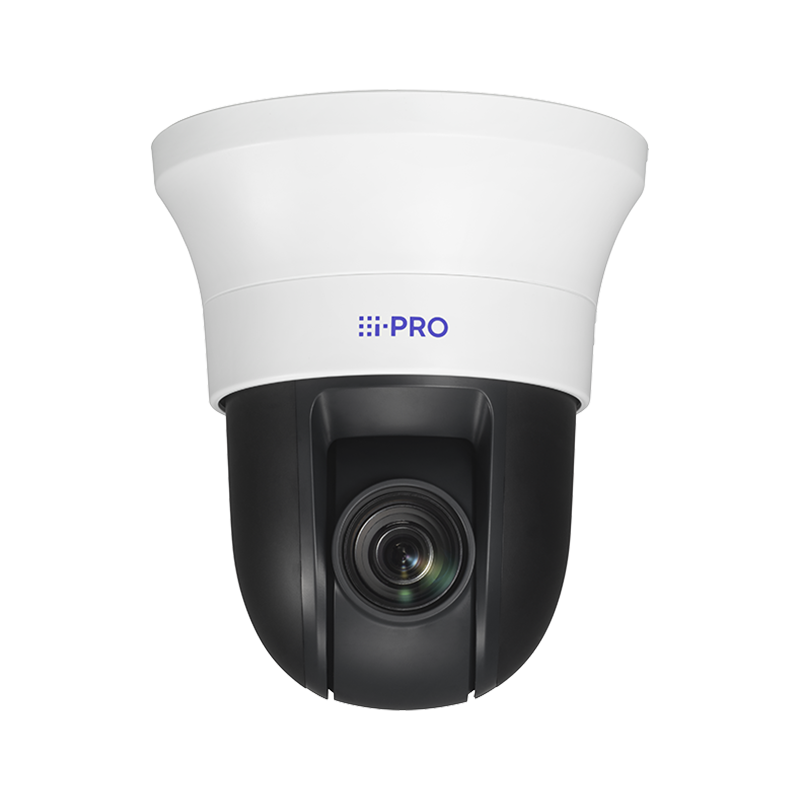

The i-PRO WV-S61702-Z3 is a high-performance 4K indoor PTZ camera engineered for precision surveillance and intelligent analytics. Powered by an AI engine with up to three Edge AI analytic apps, it enhances situational awareness through automated object detection, people and vehicle recognition, and AI-based tracking.
Featuring a 30x optical zoom and Super Dynamic range up to 132 dB, the WV-S61702-Z3 delivers crystal-clear images in challenging lighting conditions. Its Ambarella CV22 SoC ensures smooth performance and reliable AI processing. With advanced security—including FIPS 140-2 Level 3 certified EdgeLock SE050F—this camera meets stringent cybersecurity standards and is NDAA compliant for government and enterprise use.
Ideal for indoor applications such as airports, retail environments, public spaces, and control centers, the WV-S61702-Z3 combines intelligent automation, precision optics, and robust security in a sleek, professional form factor.
| Category | Specification |
|---|---|
| Camera Type | 4K Indoor PTZ Camera with AI Engine |
| Image Sensor | Approx. 1/2.8 type CMOS image sensor |
| Minimum Illumination | Color: 0.13 lx (F1.8, 1/30s, AGC:11); B/W: 0.10 lx (F1.8, 1/30s, AGC:11) |
| Dynamic Range | Max. 132 dB (Super Dynamic: On) |
| Lens | Motorized 30x Optical Zoom (4.5–135 mm) |
| Digital Zoom | Up to 480x |
| Field of View (16:9) | Horizontal: 2.5°–62°; Vertical: 1.4°–37° |
| AI Functions | AI Video Motion Detection, AI Face/People/Vehicle Detection, AI Occupancy, AI Privacy Guard |
| Max AI Apps | Up to 3 Edge AI analytic applications |
| Pan/Tilt Range | Pan: 0°–350°; Tilt: -25°–+90° |
| Pan/Tilt Speed | Manual: 0.065°/s–150°/s; Preset: Up to 500°/s |
| Presets | 256 positions |
| System on Chip | Ambarella CV22 |
| Resolution | 3840×2160, 2560×1440, 1920×1080, 1280×720, 640×360, 320×180 |
| Video Compression | H.265 / H.264 / JPEG |
| Smart Coding | GOP, Smart VIQS, P-picture control |
| Audio | G.711 / G.726 / AAC-LC |
| Network Interface | 10BASE-T/100BASE-TX (RJ45) |
| ONVIF Support | Profile G / S / T / M |
| Secure Features | FIPS 140-2 Level 3, HTTPS, IEEE802.1X, Signed Firmware, GlobalSign® Certificate |
| Memory Card Slot | microSDXC (up to 512 GB) |
| Power Supply | DC 12V or PoE+ (IEEE802.3at Class 4) |
| Power Consumption | DC12V: 15.0 W; PoE+: 16.7 W |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Humidity | 10–90% (non-condensing) |
| Dimensions (H × Ø) | 214 mm × 185 mm (8.43 × 7.28 in) |
| Weight | Approx. 1.8 kg (3.97 lbs) |
| Material / Finish | Aluminum die-cast / ABS resin, i-PRO white |
| Compliance | NDAA, UL, CE, FCC, IEC62368-1 |
| Optional Accessories | Mounts (WV-QWL500-W, WV-QEM101-W, WV-QJB500-W), Dome Covers (WV-QDC100G-W, WV-QDC100C-W), SD Cards (WV-SDB032G–WV-SDB256G) |
