Description

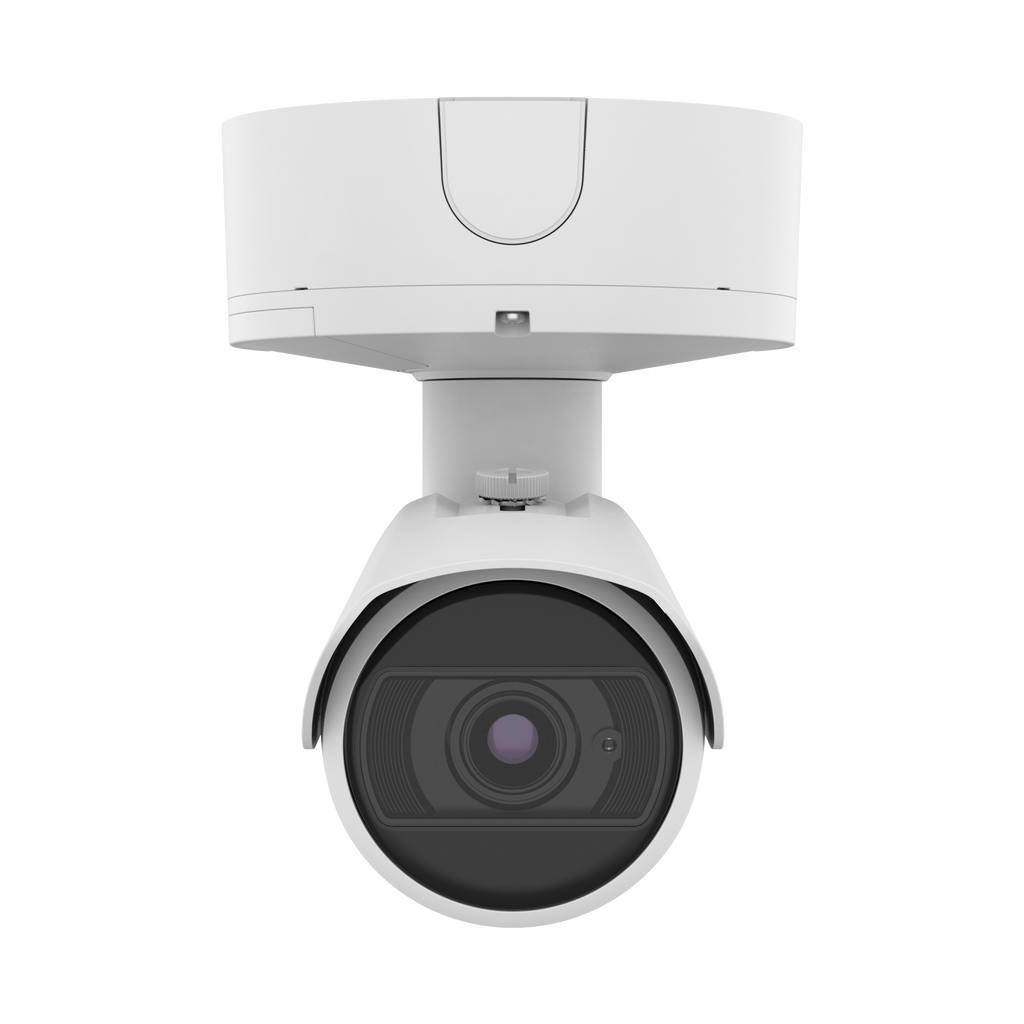

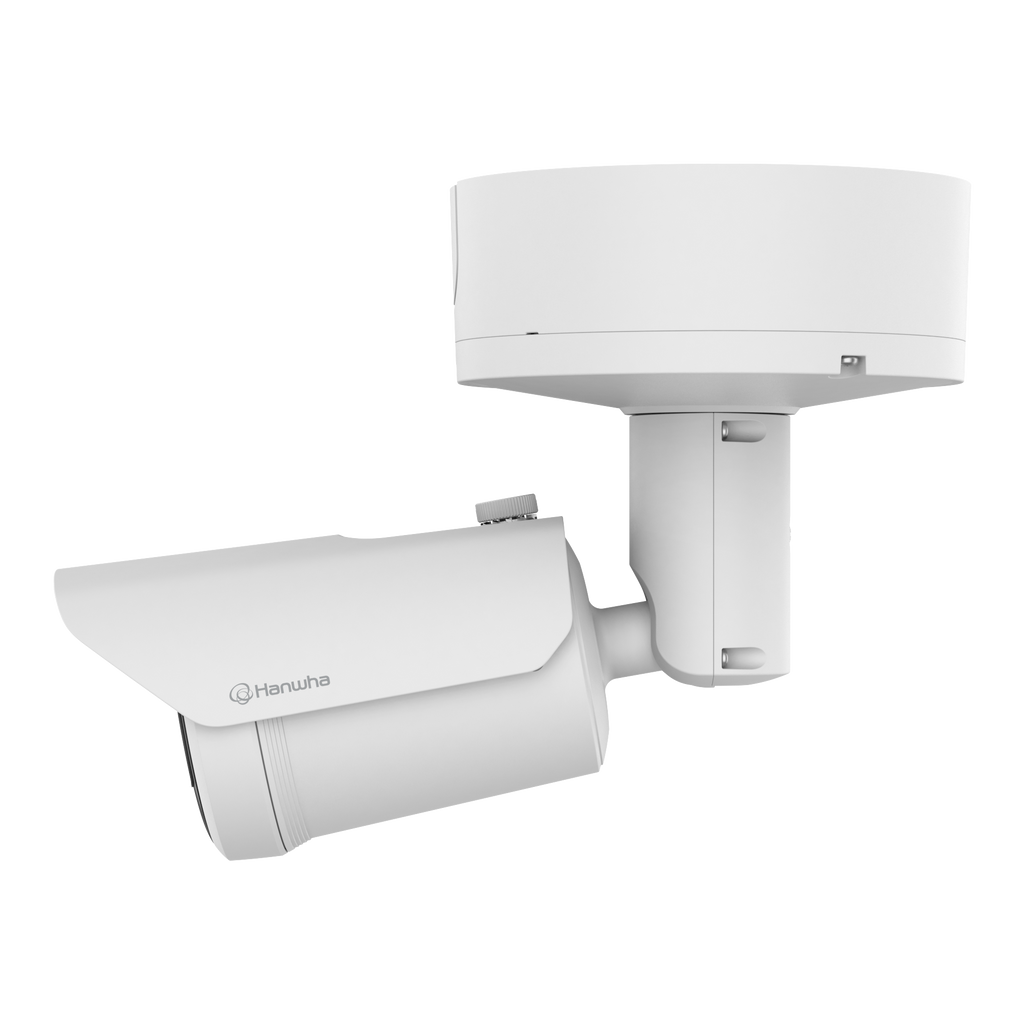

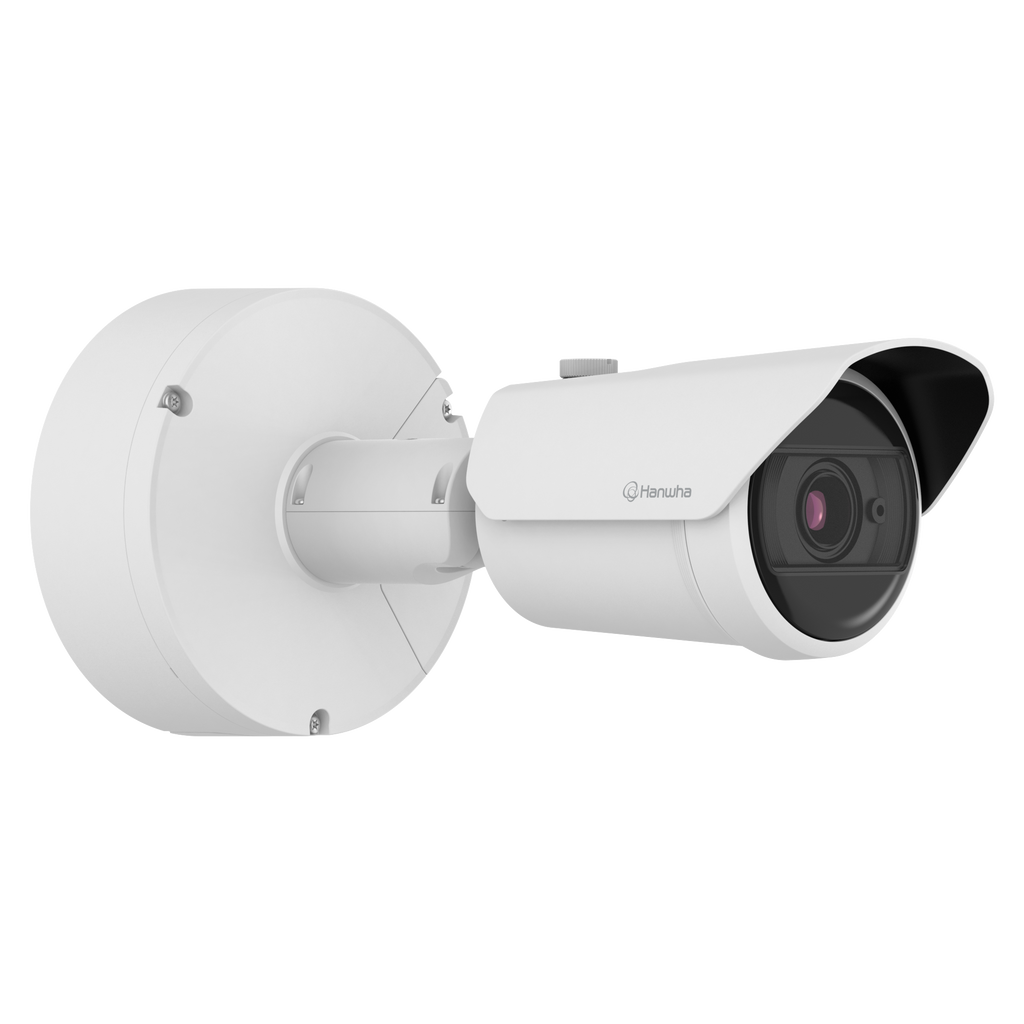

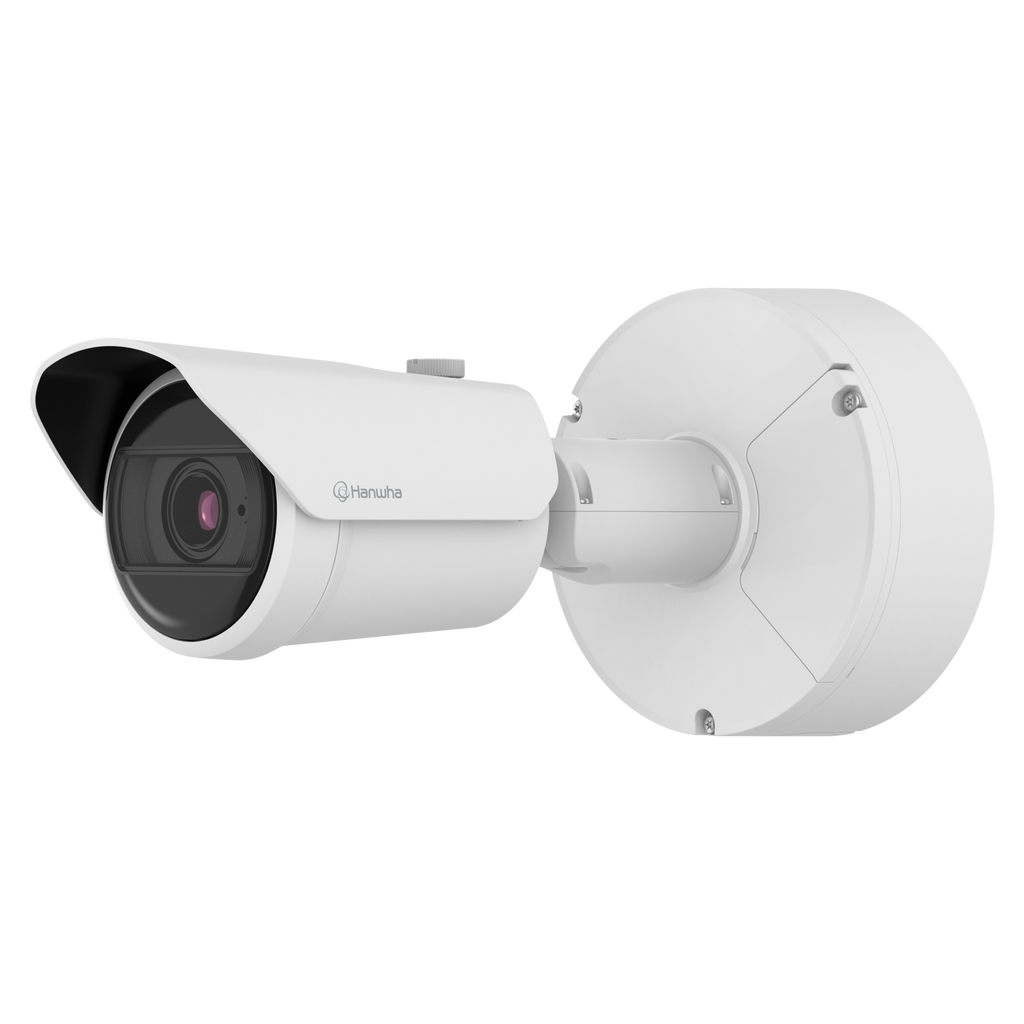

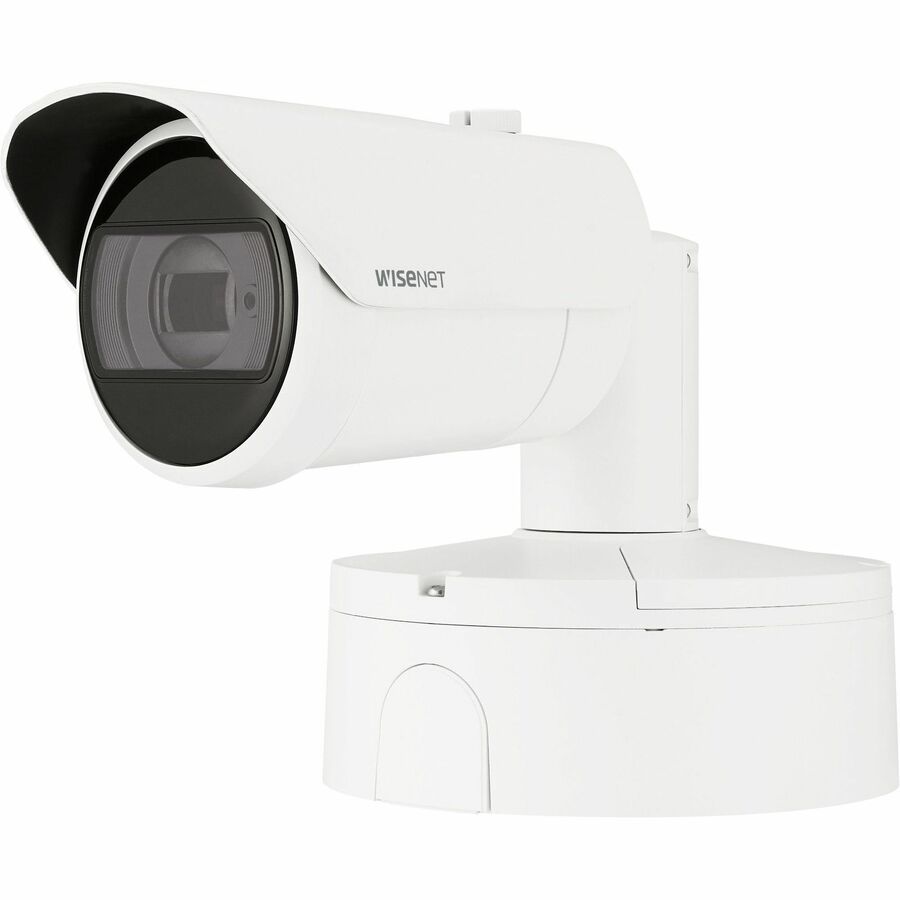

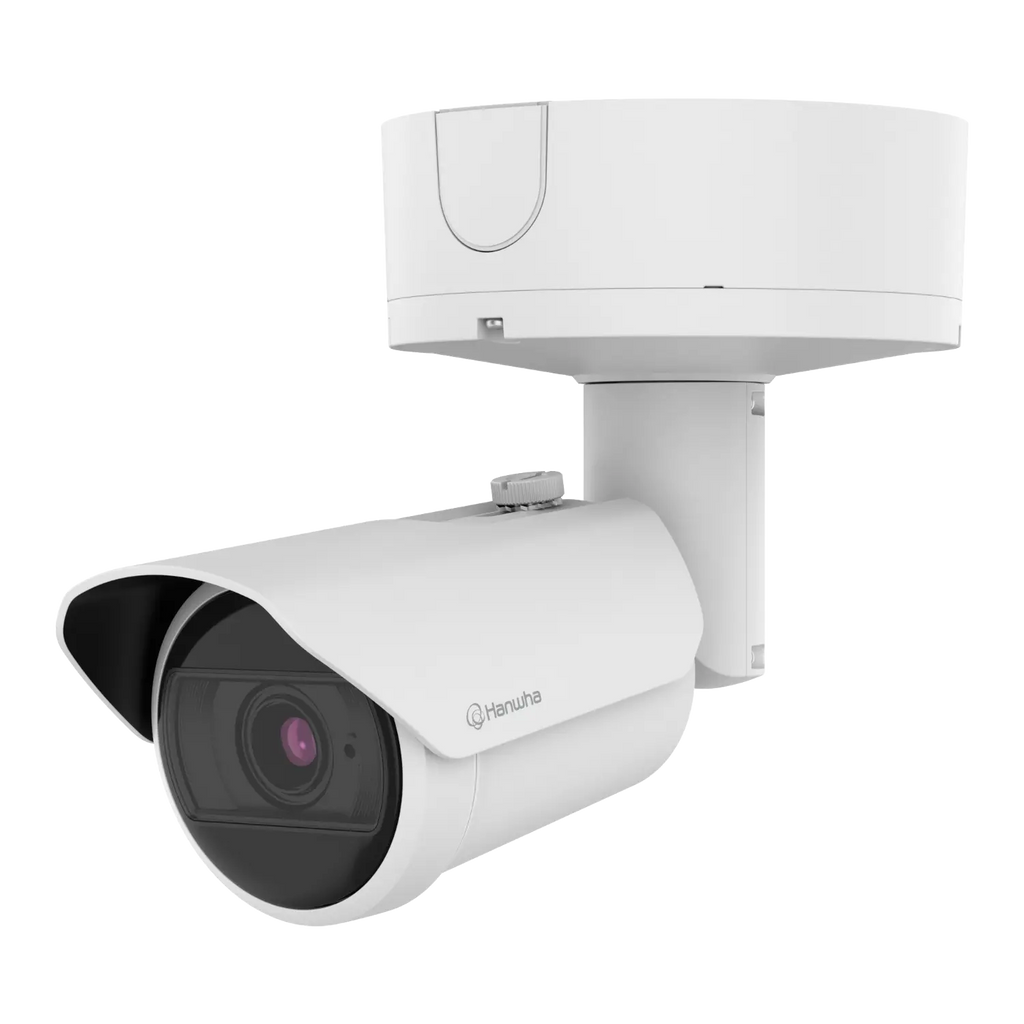

The Wisenet XNO-9083R is a premium 4K Outdoor Bullet Network Camera engineered for high-performance surveillance in demanding environments. Powered by an advanced AI engine and an NPU (Neural Processing Unit), it delivers accurate object detection, classification, and intelligent analytics across a wide range of scenarios—including vehicles (car, truck, bus, motorcycle, bicycle), persons, faces, and license plates.
Its 4.4–9.3mm motorized varifocal lens provides flexibility for diverse installation requirements, while extremeWDR (120 dB) ensures optimal detail in harsh lighting conditions. With ultra-low-light performance down to 0.04 Lux and WiseIR providing up to 50 m (164 ft) illumination, the camera maintains clarity day or night.
Built for harsh outdoor deployment, the XNO-9083R features IP66/IP67/IP6K9K weather protection, NEMA4X certification, IK10+ vandal resistance, and a durable hard-coated housing. Equipped with AI-powered WiseNR II, WiseStream III compression, DIS with gyro sensor, robust cybersecurity protection, and dual SD card support, this camera is ideal for enterprise, city surveillance, critical infrastructure, and commercial security applications.
| Category | Specification |
|---|---|
| SKU | XNO-9083R/KEX |
| Form Factor | Outdoor Bullet Camera |
| Image Sensor | 1/1.8" CMOS |
| Max Resolution | 4K (3840 × 2160) |
| Lens | 4.4–9.3mm motorized varifocal, 2.1x optical zoom, P-iris |
| Field of View | H: 113°–47° / V: 58°–26° / D: 138°–54° |
| Minimum Illumination | Color: 0.04 Lux (F1.3, 1/30 sec, 30IRE), 0 Lux with IR |
| IR Illumination | WiseIR up to 50 m (164.04 ft) |
| Frame Rate | Up to 30 fps (H.265/H.264) |
| Compression | H.265, H.264, MJPEG; WiseStream III |
| Day/Night | ICR (Auto) |
| WDR | extremeWDR 120 dB |
| Image Enhancements | WiseNR II (AI), SSNR V, DIS with gyro, Defog, LDC |
| AI Analytics (NPU) | Object detection (Person/Face/Vehicle/License plate), IVA (Virtual line/area, Enter/Exit, Loitering, Direction, Intrusion) |
| Additional Analytics | Defocus, Motion, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Appear/Disappear |
| Business Intelligence | People counting, Queue management, Heatmap, Vehicle counting |
| Audio I/O | Audio In (mic/line selectable), Audio Out |
| Alarm I/O | 2 configurable I/O ports |
| Networking | RJ-45 (10/100/1000BASE-T), ONVIF S/G/T/M, SUNAPI, Direct Cloud Connection |
| Security Features | Secure boot, TPM 2.0, Firmware encryption, HTTPS, SRTP, IEEE 802.1X |
| Edge Storage | Dual microSD/SDHC/SDXC (max 1 TB total) |
| Power | PoE+ (IEEE 802.3at), 12VDC |
| Power Consumption | PoE: Max 22.5W / 12VDC: Max 20W |
| Operating Temp | –58°F to +140°F (–50°C to +60°C) |
| Environmental Ratings | IP66/IP67/IP6K9K, NEMA4X |
| Vandal Resistance | IK10+ |
| Material / Color | Aluminum, hard-coated dome / White (RAL9003) |
| Dimensions | Ø93.4 × 298.4 mm (3.68 × 11.75 in) |
| Weight | 2,200 g (4.85 lb) |
