Description

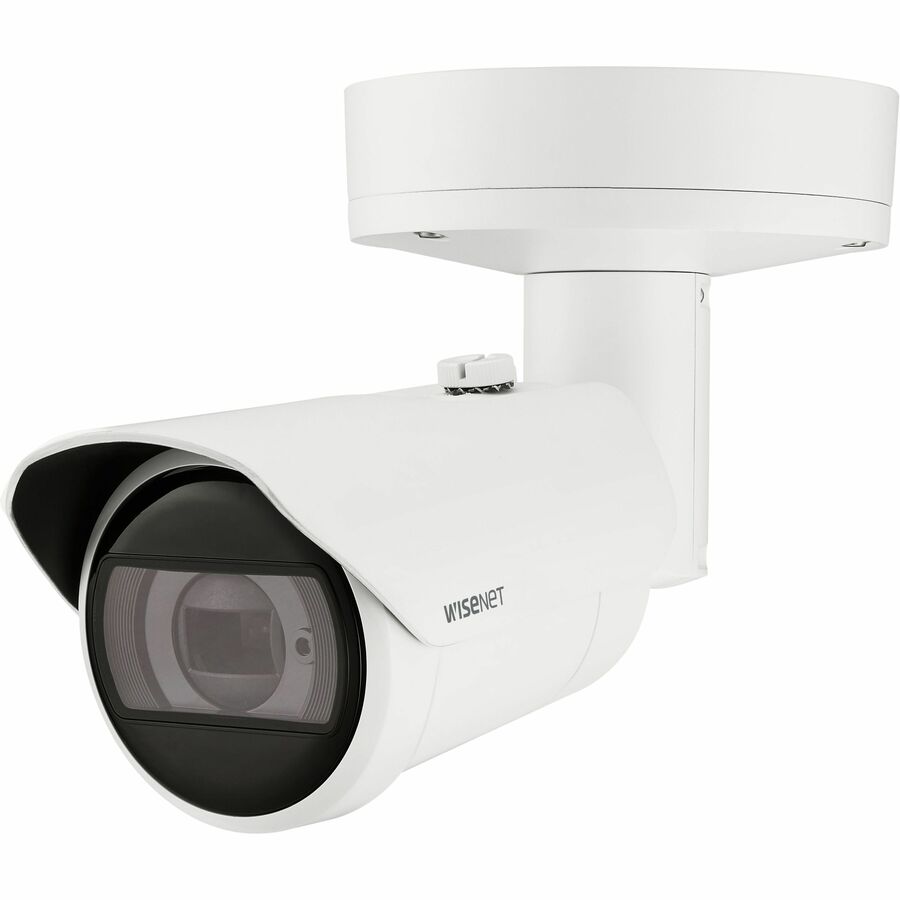

The Wisenet XNO-C9083R is a high-performance 4K AI-powered outdoor bullet camera engineered for demanding security environments. Built with a 1/1.8" CMOS sensor and a 4.4–9.3mm motorized varifocal P-iris lens, it delivers exceptional image clarity, intelligent analytics, and reliable operation in harsh conditions.
This model features advanced NPU-based AI object detection (person, face, vehicle, license plate), IVA event analytics, and enhanced video quality technologies including extreme WDR (120dB), WiseIR, and WiseNR II. With a 40m IR range, robust IP66/IP67/NEMA4X/IK10 protection, and cybersecurity-certified UL CAP compliance, the XNO-C9083R is ideal for perimeter surveillance, enterprise deployments, and critical infrastructure sites.
Power is supported via PoE or 12VDC, with multiple streaming profiles, onboard edge storage up to 512GB, and compatibility with Hanwha’s Open Platform.
| Category | Specification |
|---|---|
| Imaging | 1/1.8" CMOS sensor; 4K (3840×2160) resolution; 0.04 Lux (Color), 0.004 Lux (B/W), 0 Lux with IR |
| Lens | Motorized varifocal 4.4–9.3mm (2.1x); F1.3–F2.15; P-iris; Min. focus distance 0.5m |
| Field of View | H: 113°–47°; V: 58°–26°; D: 138°–54° |
| Frame Rate | Up to 30fps @ 4K (H.265/H.264); MJPEG up to 30fps |
| Video Codecs | H.265/H.264 (Main/High/Baseline), MJPEG; WiseStream II/III |
| Day/Night | ICR auto switch; Extreme WDR 120dB; WiseNR II; DIS (gyro-based); Defog |
| IR Illumination | WiseIR with 40m (131 ft) IR range; 850nm |
| AI Analytics | Object detection (person, face, vehicle types, license plate); virtual line/area; loitering; intrusion; directional; enter/exit |
| Standard Analytics | Motion, tampering, fog, defocus, sound classification, audio detection, shock, appear/disappear |
| Business Intelligence | People counting, queue management, heatmap, vehicle counting |
| Audio | Audio in (mic/line selectable), line out |
| Alarms | 2 configurable I/O ports; event triggers via analytics, network, schedule, MQTT, etc. |
| Network | RJ-45 (10/100BASE-T); ONVIF S/G/T/M; IPv4/IPv6; HTTPS; SRTP; QoS; MQTT; Direct Cloud |
| Security | Secure boot, encrypted firmware, HTPM, SD card encryption (AES-256), UL CAP cybersecurity |
| Edge Storage | 1× MicroSD/SDHC/SDXC slot up to 512GB (1TB for OnCloud) |
| Power | PoE (802.3af Class 3) or 12VDC; Max 12.95W |
| Operating Conditions | -40°C to +55°C (-40°F to +131°F); Humidity 0–100% condensing |
| Construction | Aluminum + PC housing; IK10 impact rating; IP66/IP67; NEMA 4X |
| Dimensions / Weight | Ø93.4 × 276.6 mm; 1.64 kg (3.62 lb) |
| Certifications | FCC, CE, UL62368-1, IK10, IP66/IP67, NEMA 4X |
