Description

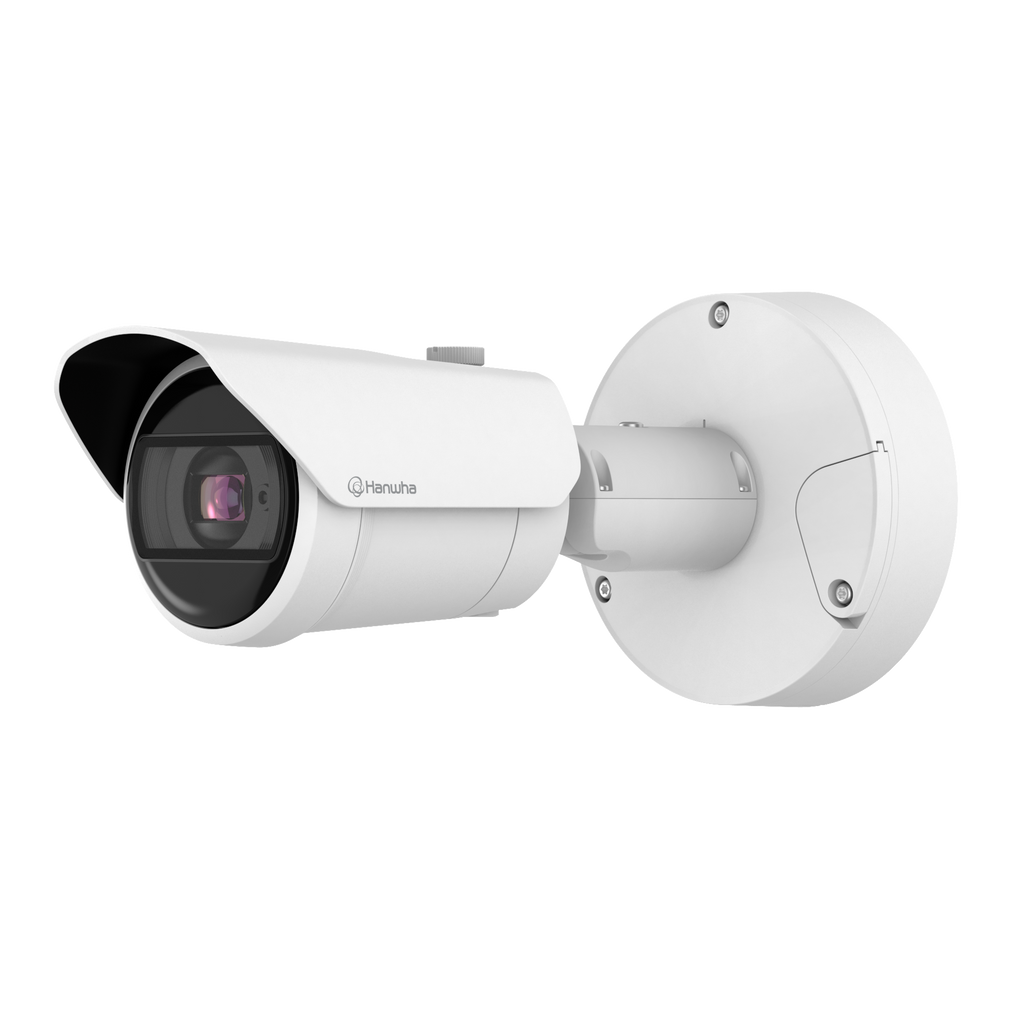

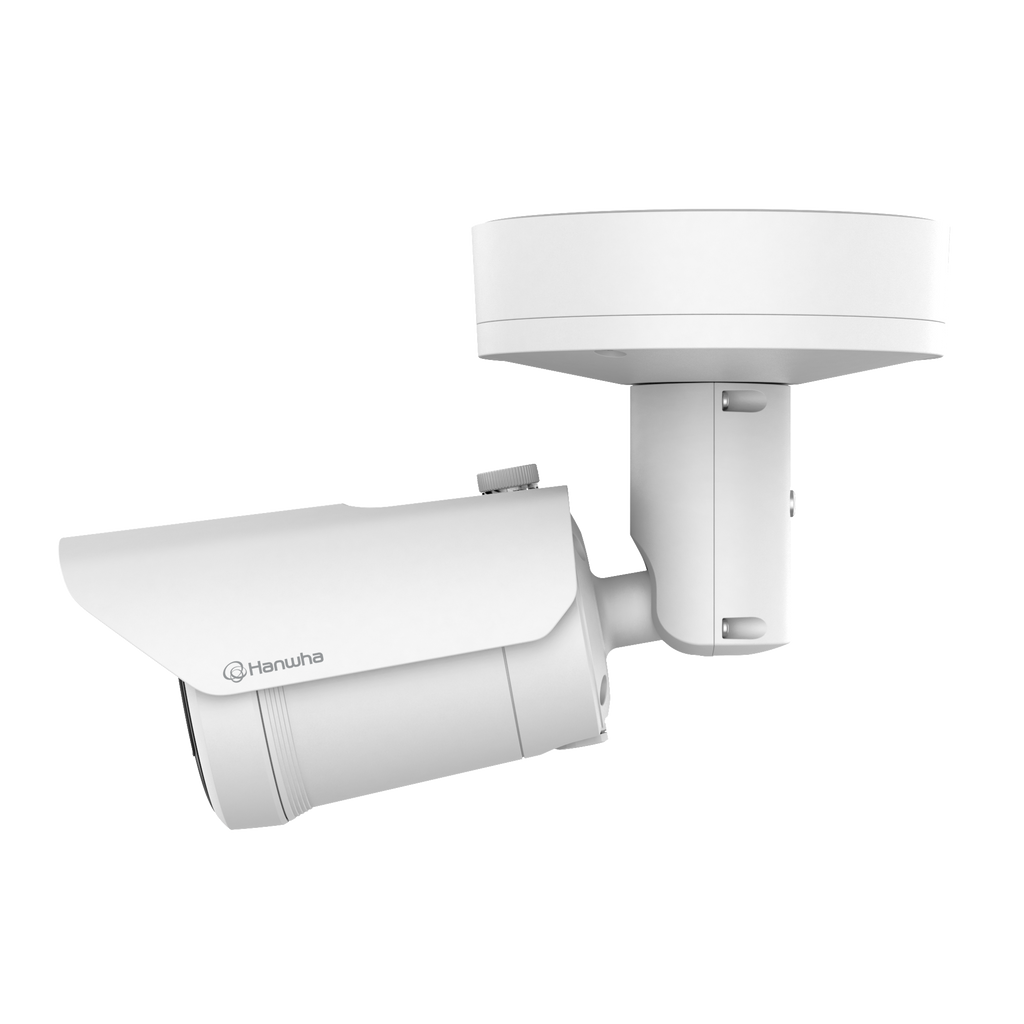

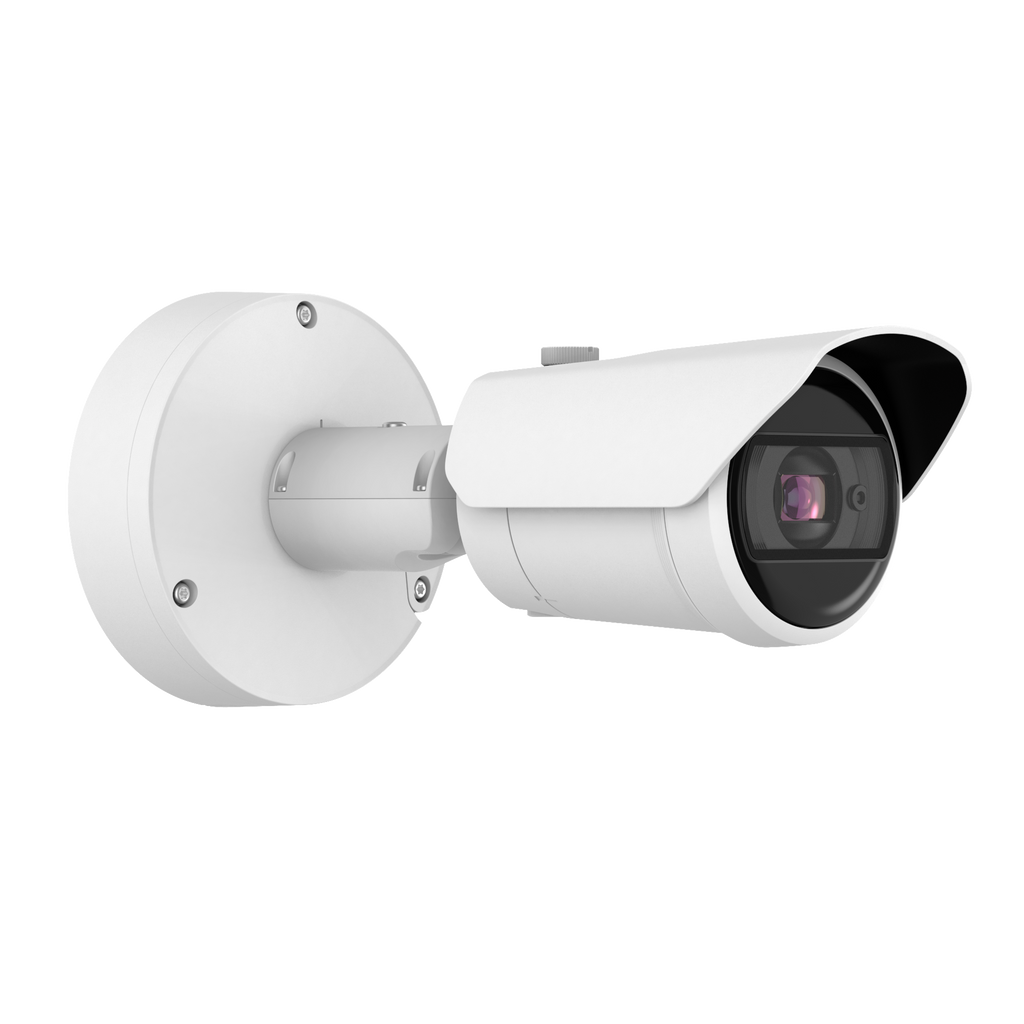

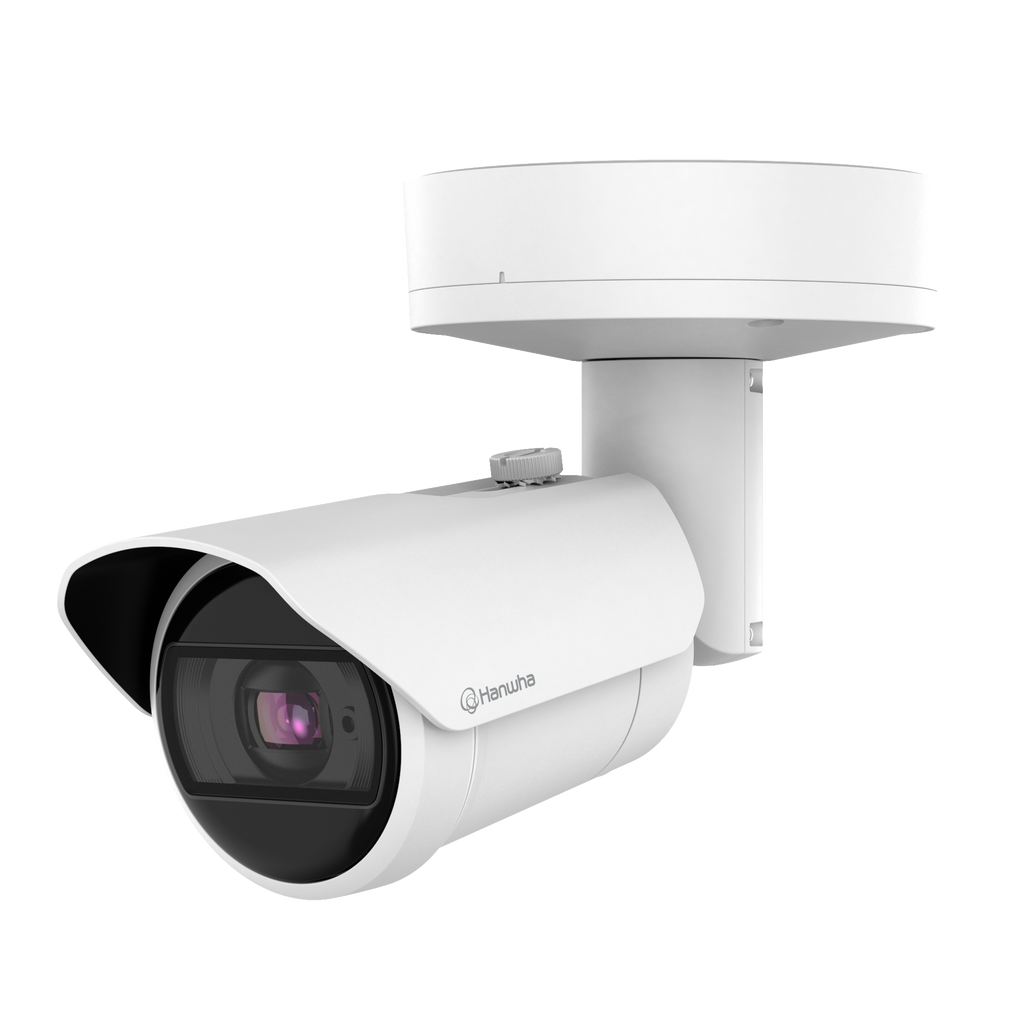

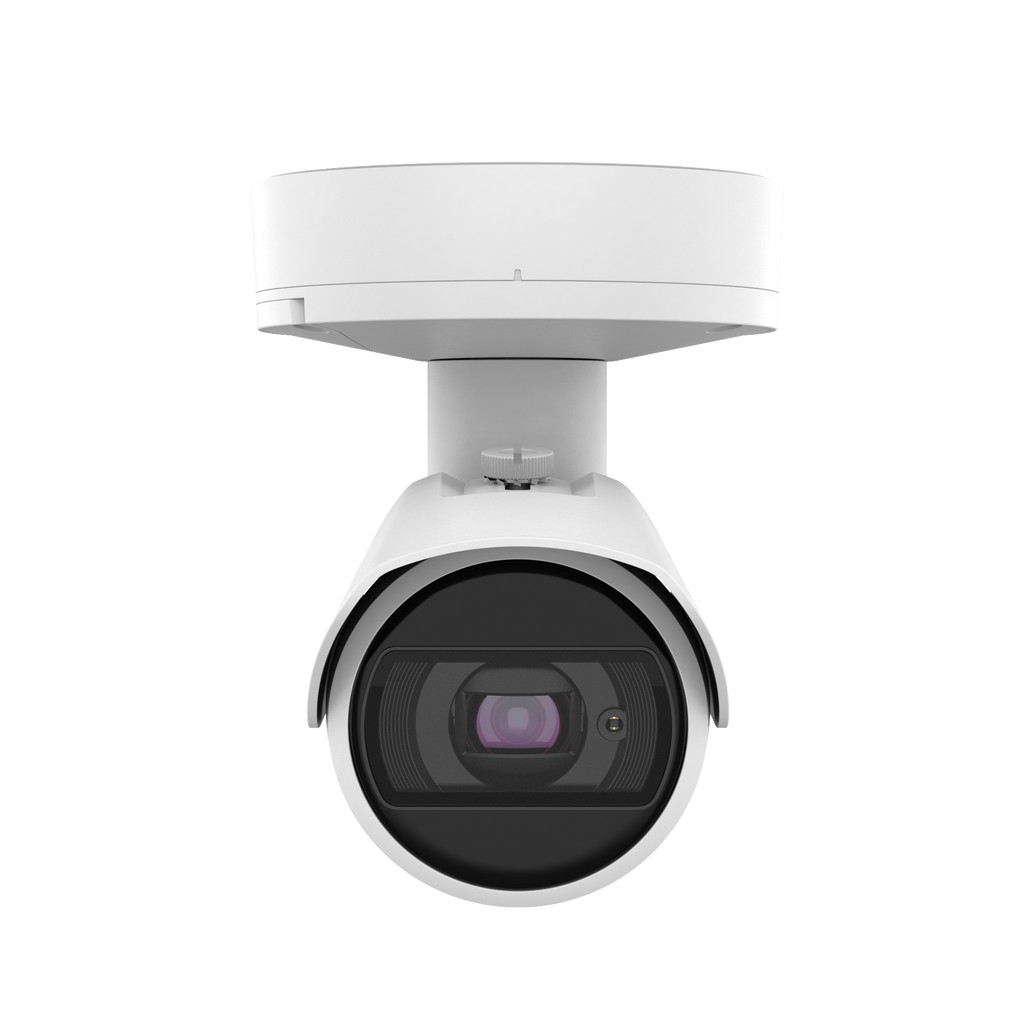

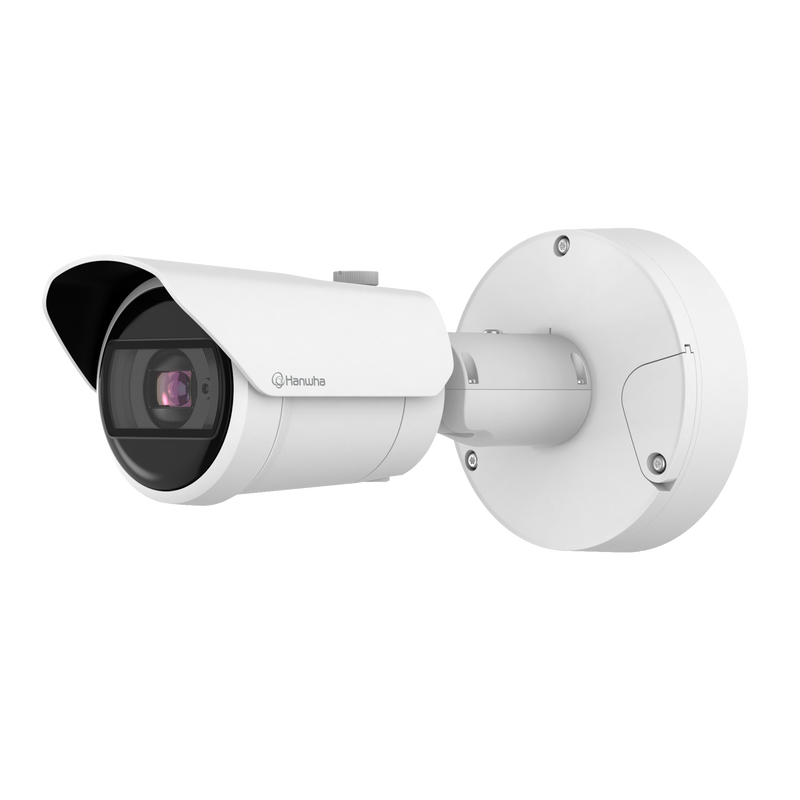

The Hanwha Vision XNO-C9083R is a high-performance 4K AI-powered IR bullet camera designed for demanding commercial and industrial surveillance environments. Built on a large 1/1.8" CMOS sensor and supported by advanced AI analytics, it delivers exceptional clarity, intelligent object detection, and reliable performance in all lighting conditions.
Equipped with a 4.4–9.3mm motorized varifocal P-iris lens, the camera offers wide coverage and precise detail capture, while WiseIR provides up to 40 meters of optimized infrared illumination. Its AI engine enhances noise reduction (WiseNR II), streamlines incident detection, and supports business intelligence features such as people counting, heatmaps, and vehicle classification.
The XNO-C9083R is built to withstand harsh environments with IP66/IP67, IK10, and NEMA 4X ratings, ensuring reliable operation from -40°C to +55°C. With strong cybersecurity protections, onboard edge storage, and multiple streaming profiles, this model is ideal for professional surveillance applications requiring accuracy, durability, and advanced analytics.
| Category | Details |
|---|---|
| Imaging | 1/1.8" CMOS, 4K resolution (3840×2160), 0.04Lux (color), 0Lux (IR on), 30fps |
| Lens | 4.4–9.3mm motorized varifocal, P-iris, 2.1x optical zoom |
| Field of View | H: 113°–47°, V: 58°–26°, D: 138°–54° |
| Day/Night | ICR auto switch |
| IR Illumination | WiseIR up to 40m, 850nm |
| Video Compression | H.265, H.264 (Main/Baseline/High), MJPEG, WiseStream II/III |
| AI Analytics | Person, face, vehicle, license plate detection; virtual line/area; loitering; intrusion; counting; heatmap |
| Image Enhancements | 120dB WDR, WiseNR II (AI-based), DIS with gyro, Defog, LDC |
| Audio | Audio in (mic/line selectable), audio out, G.711/G.726/AAC-LC |
| Networking | RJ-45 (10/100BASE-T), IPv4/IPv6, HTTPS, SRTP, IEEE 802.1X, ONVIF S/G/T/M |
| Edge Storage | MicroSD up to 512GB; OnCloud microSD up to 1TB |
| Operating Conditions | -40°C to +55°C, 0–100% RH (condensing) |
| Power | PoE (IEEE 802.3af, Class 3) or 12VDC; Max 12.95W |
| Durability | IP66, IP67, IK10, NEMA 4X |
| Construction | Aluminum & polycarbonate; RAL9003 white |
| Dimensions / Weight | Ø93.4 × 276.6mm; 1.64kg |
