Description

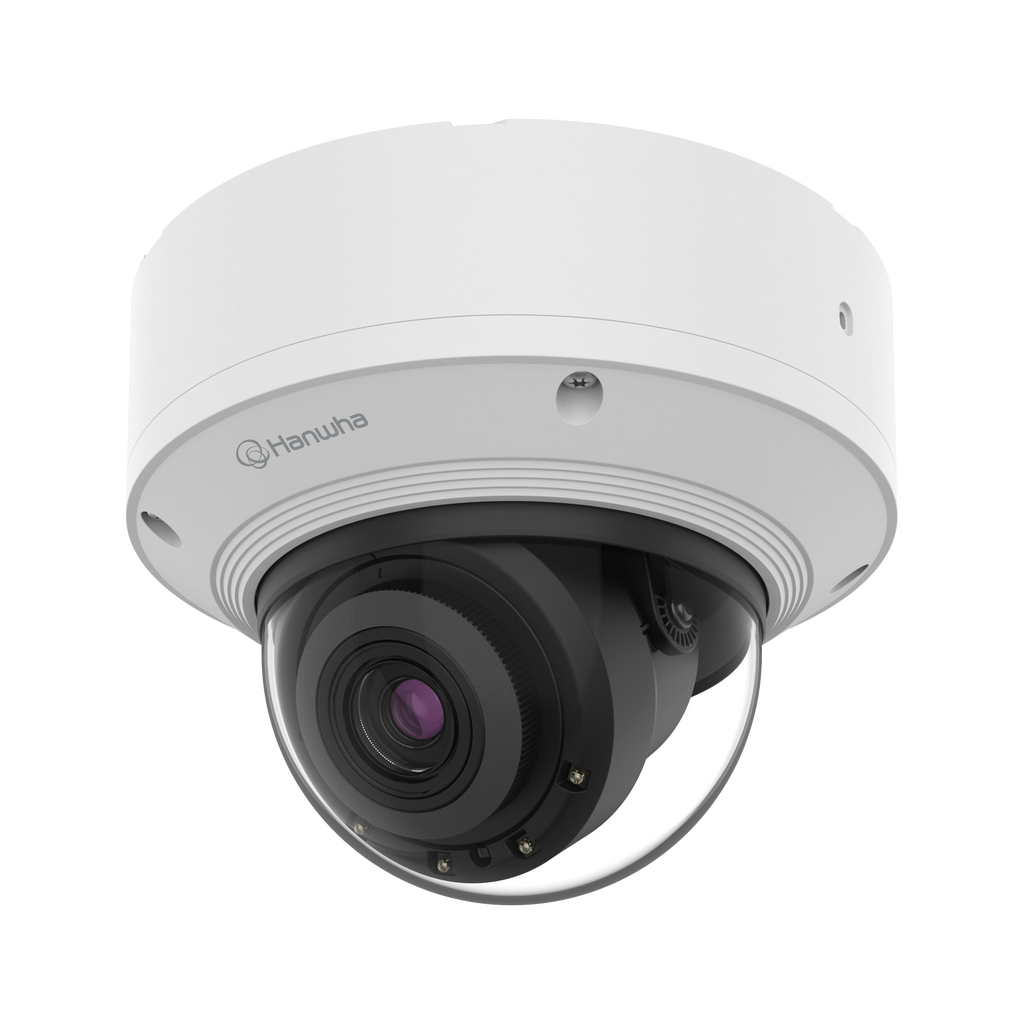

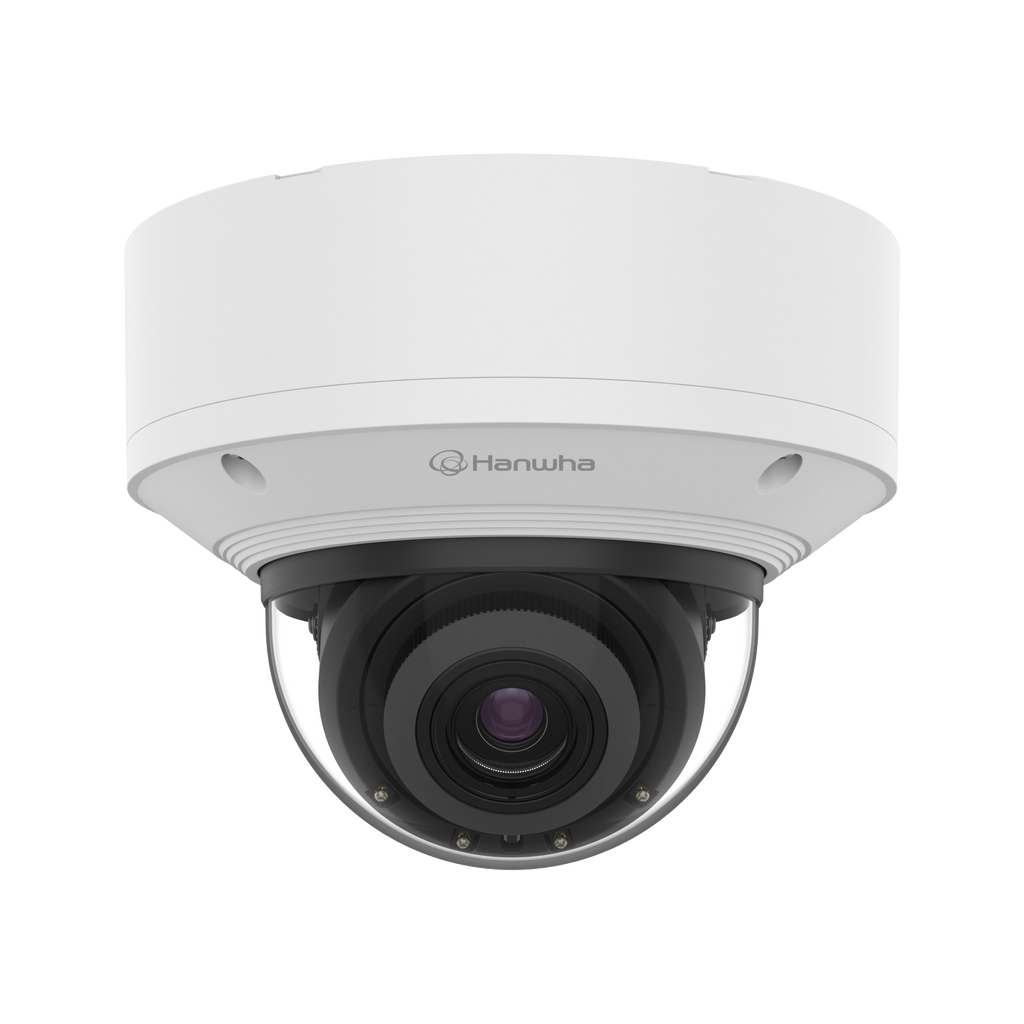

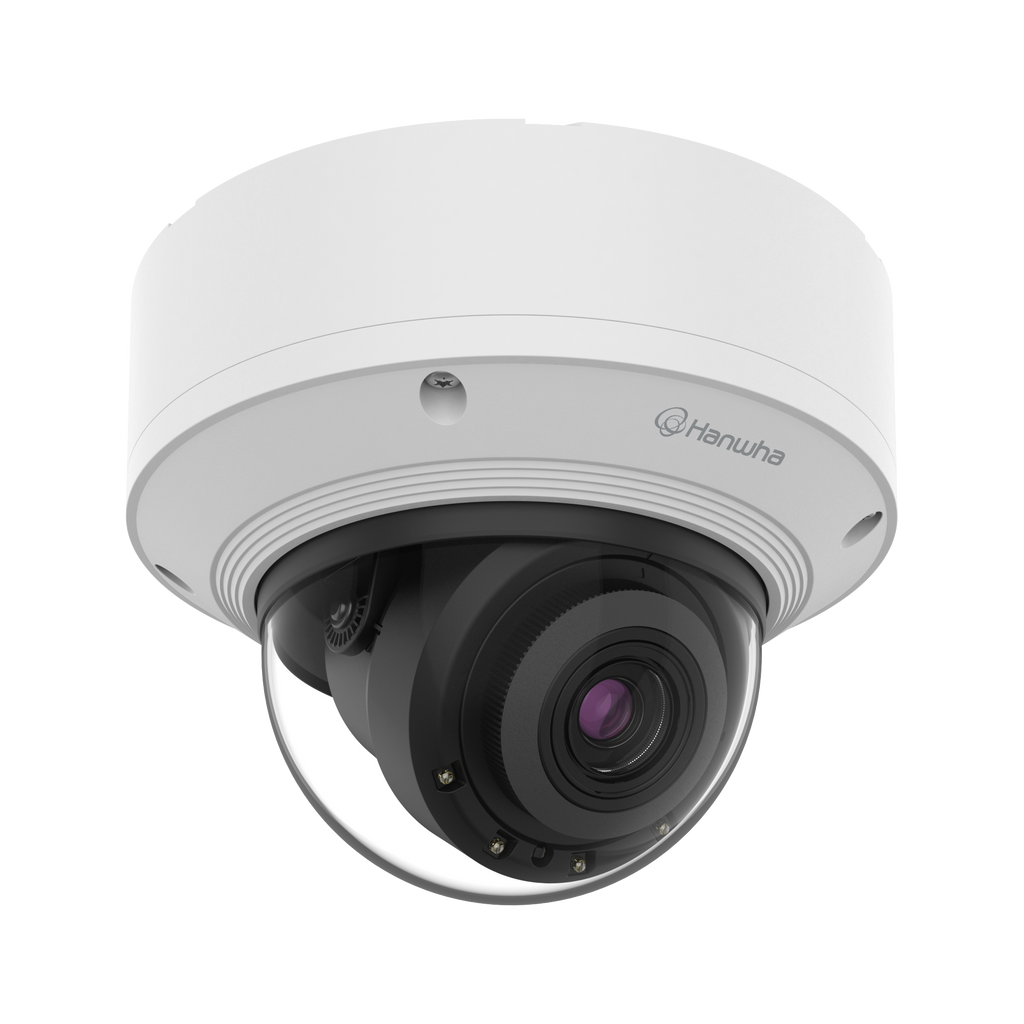

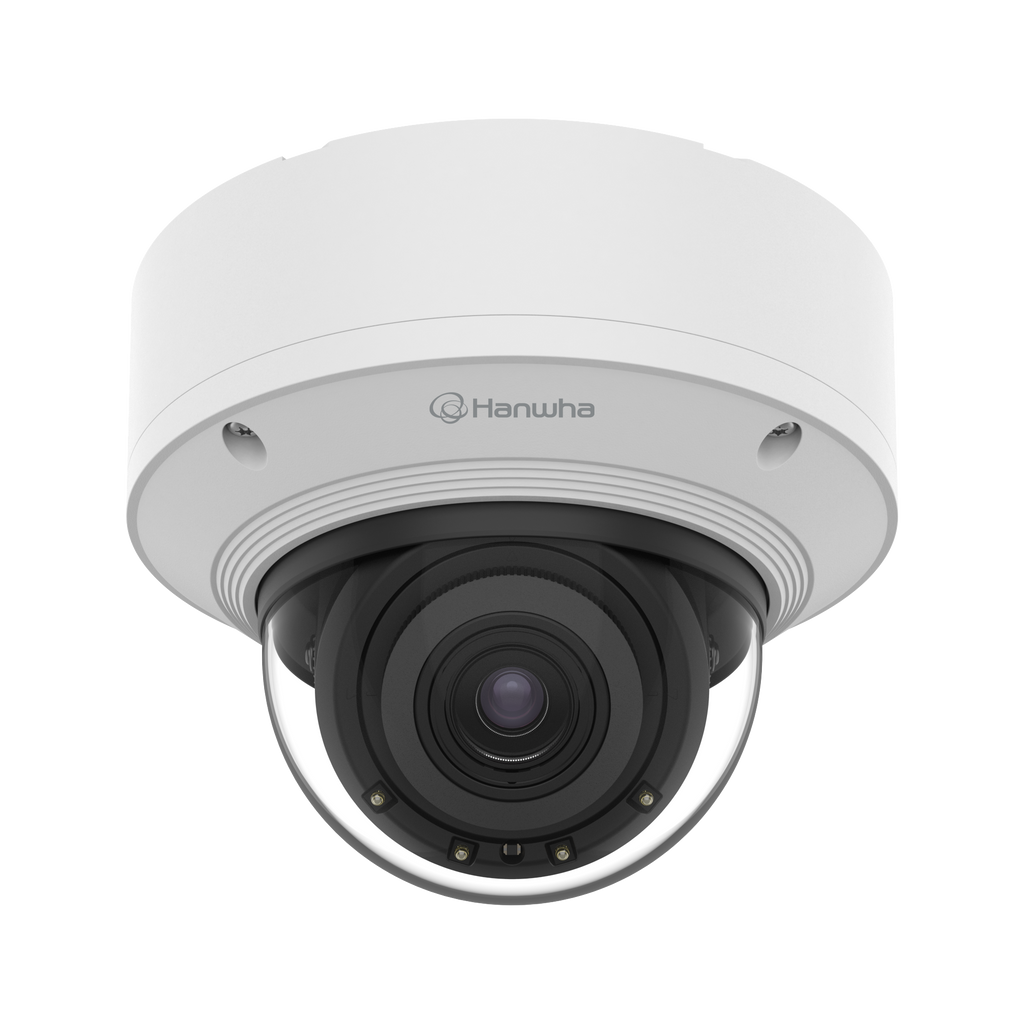

The Hanwha Vision PND-A9081RV/KAP is a high-performance 4K indoor dome camera designed for advanced AI-driven security applications. It delivers ultra-clear 8MP resolution, excellent low-light performance, and powerful AI analytics that detect and classify people, faces, vehicles, and license plates.
Featuring a 4.5–10mm motorized varifocal P-iris lens, modular construction for easy installation, and AI-enhanced image processing (WiseNR II, WiseStream III), this camera ensures exceptional image quality and bandwidth efficiency.
Built-in IR illumination provides up to 30m (98ft) of night visibility, supported by WDR 120dB, digital image stabilization with a gyro sensor, and multiple intelligent event triggers including face mask detection, virtual line/area analytics, loitering detection, shock detection, sound classification, and more.
With robust cybersecurity, dual SD card support (up to 512GB total), and compatibility with major VMS platforms, the PND-A9081RV/KAP is ideal for enterprise, government, transportation, healthcare, commercial, and critical infrastructure deployments.
| Category | Specification |
|---|---|
| Image Sensor | 1/1.8" CMOS |
| Max Resolution | 4K / 8MP (3840 × 2160) |
| Supported Resolutions | 4K to 640×360 (multiple options) |
| Frame Rate | 30fps (H.265/H.264/MJPEG) |
| Min. Illumination | Color: 0.05 Lux, B/W: 0.005 Lux (IR On: 0 Lux) |
| Lens | 4.5–10mm motorized varifocal, P-iris, IR-corrected |
| Optical Zoom | 2.2x |
| Horizontal FOV | 101.4°–45.5° |
| Vertical FOV | 53.6°–25.5° |
| IR Illumination | WiseIR, up to 30m (98ft), 850nm |
| Day/Night | ICR Auto |
| WDR | 120dB |
| Image Enhancements | WiseNR II (AI-based), DIS with gyro sensor, LDC |
| AI Analytics | Object detection & classification (Person, Face, Vehicle, License Plate), Attributes, BestShot, Virtual line/area, Face mask detection, Social distancing, Slip & Fall |
| Additional Analytics | Motion detection, Tampering, Shock detection, Audio detection, Sound classification |
| Business Intelligence | People counting, Crowd counting, Vehicle counting, Queue management, Heatmap |
| Video Compression | H.265/H.264 (Main/High), MJPEG |
| Smart Codec | WiseStream III |
| Audio I/O | Built-in mic, selectable mic/line-in; line-out |
| Alarm I/O | 2 configurable ports |
| Network Interface | RJ-45 10/100/1000BASE-T |
| Protocols | IPv4/IPv6, TCP/IP, UDP/IP, RTP, RTSP, HTTP/HTTPS, TLS, QoS, IGMP, SNMPv1/v2c/v3, ONVIF S/G/T/M, SUNAPI |
| Cybersecurity | Secure boot, encrypted firmware, signed firmware, IEEE 802.1X, SRTP, credential encryption, audit logs |
| Edge Storage | Dual microSD/SDHC/SDXC (max 256GB × 2, total 512GB) |
| Operating Temperature | –25°C to +50°C (–13°F to +122°F) |
| Power | PoE+ (IEEE 802.3at) or 12VDC |
| Power Consumption | PoE: max 20W; 12VDC: max 17.7W |
| Material / Color | Aluminum housing, hard-coated dome / White (RAL9003) |
| Dimensions | Ø160 × 125mm (6.30 × 4.92") |
| Weight | 1.60kg (3.53 lb) |
| DORI (Wide/Tele) | Detect: 62.2m / 185.4m; Recognize: 12.4m / 37.1m; Identify: 6.2m / 18.5m |
