Description

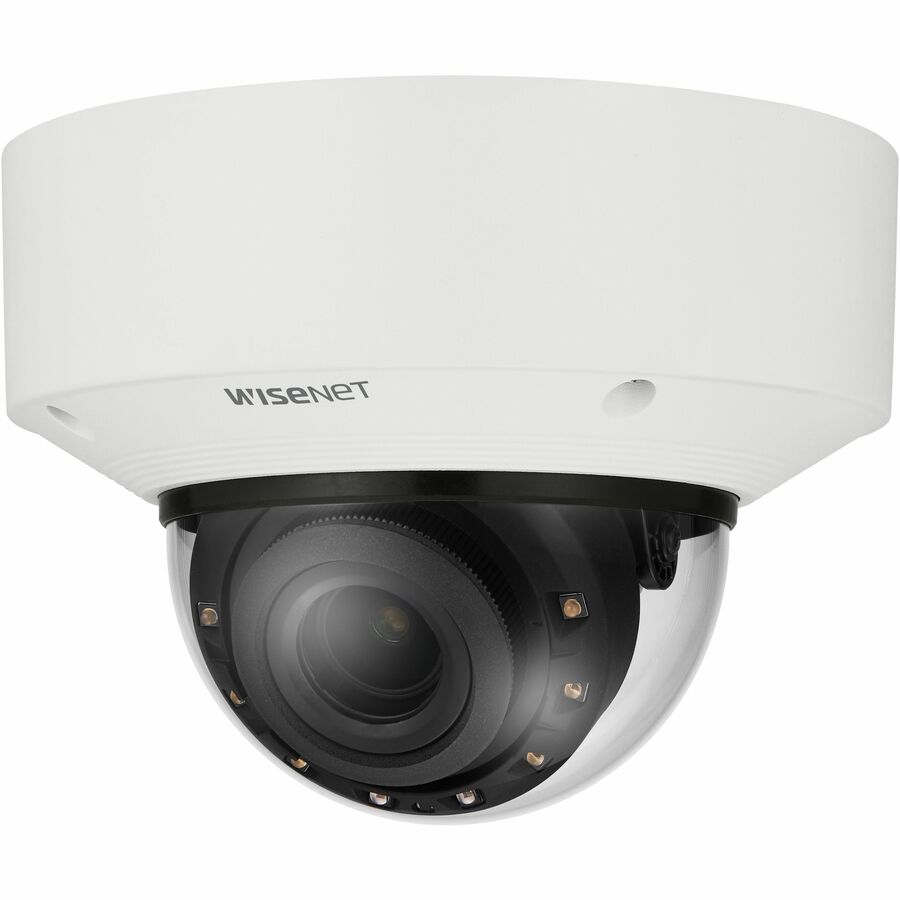

The Wisenet XNV-C9083R is a rugged 4K AI-powered outdoor dome camera engineered for high-performance surveillance in demanding environments. Featuring a 4.4–9.3mm motorized varifocal lens, extreme WDR (120 dB), and WiseIR illumination up to 40 meters, it delivers exceptional clarity in both bright and low-light scenes.
Equipped with an NPU-based AI engine, the camera provides advanced object detection (person, face, vehicle, license plate), sound classification, shock detection, and multiple IVA functions including virtual line, area intrusion, loitering, and directional analysis. WiseNR II and WiseStream III further enhance noise reduction and bandwidth optimization.
Built for durability, the XNV-C9083R features an IK10, IP66/IP67, and NEMA4X housing with a hard-coated dome bubble. Its wide operating temperature range, gyroscopic DIS, privacy masking, microSD edge storage, and comprehensive cybersecurity suite make it ideal for critical infrastructure, commercial security, and outdoor surveillance applications.
| Category | Details |
|---|---|
| Resolution | 4K UHD (3840×2160) |
| Image Sensor | 1/1.8" CMOS |
| Lens | 4.4–9.3mm motorized varifocal, P-iris |
| Aperture | F1.3 (wide), F2.15 (tele) |
| Field of View | H: 113°–47°, V: 58°–26°, D: 138°–54° |
| Min. Illumination | Color: 0.04 Lux; B/W: 0.004 Lux; 0 Lux (IR on) |
| IR Illumination | WiseIR, up to 40m (131 ft), 850nm |
| Frame Rate | 30fps (H.265/H.264), MJPEG up to 5fps @ 8MP |
| WDR | Extreme WDR 120 dB |
| Day/Night | ICR auto switching |
| Image Enhancements | WiseNR II (AI), SSNR V, DIS w/ gyro, Defog, LDC |
| AI Analytics (NPU-based) | Object detection (person, face, vehicle, license plate), virtual line/area, intrusion, loitering, directional, motion detection |
| Additional Analytics | Defocus, tampering, fog detection, audio detection, sound classification, shock detection, appear/disappear |
| Business Intelligence | People counting, heatmap, queue management, vehicle counting |
| Audio I/O | Selectable mic-in/line-in; line-out |
| Network Interface | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264 (Main/Baseline/High), MJPEG; WiseStream III |
| Audio Compression | G.711, G.726, AAC-LC |
| Streaming | Up to 10 profiles; unicast up to 20 users; multicast supported |
| Protocols | IPv4/IPv6, TCP/IP, UDP, RTP, RTSP, HTTPS, SNMP, QoS, ONVIF S/G/T/M, MQTT |
| Security | Secure boot, encrypted firmware, IEEE 802.1X, SRTP, device certificates, HTPM secure storage |
| Edge Storage | 1× microSD/SDHC/SDXC up to 512GB (1TB for OnCloud) |
| Operating Temperature | –40°C to +55°C (–40°F to +131°F) |
| Operating Humidity | 0–100% RH (condensing) |
| Power | PoE (802.3af Class 3) or 12VDC |
| Power Consumption | PoE: max 12.95W; 12VDC: max 13.2W |
| Construction | Aluminum housing, hard-coated dome, RAL9003 white |
| Ratings | IP66, IP67, IK10, NEMA 4X |
| Dimensions | Ø160 × 118 mm (6.30 × 4.65 in) |
| Weight | 1.45 kg (3.20 lb) |
