Description

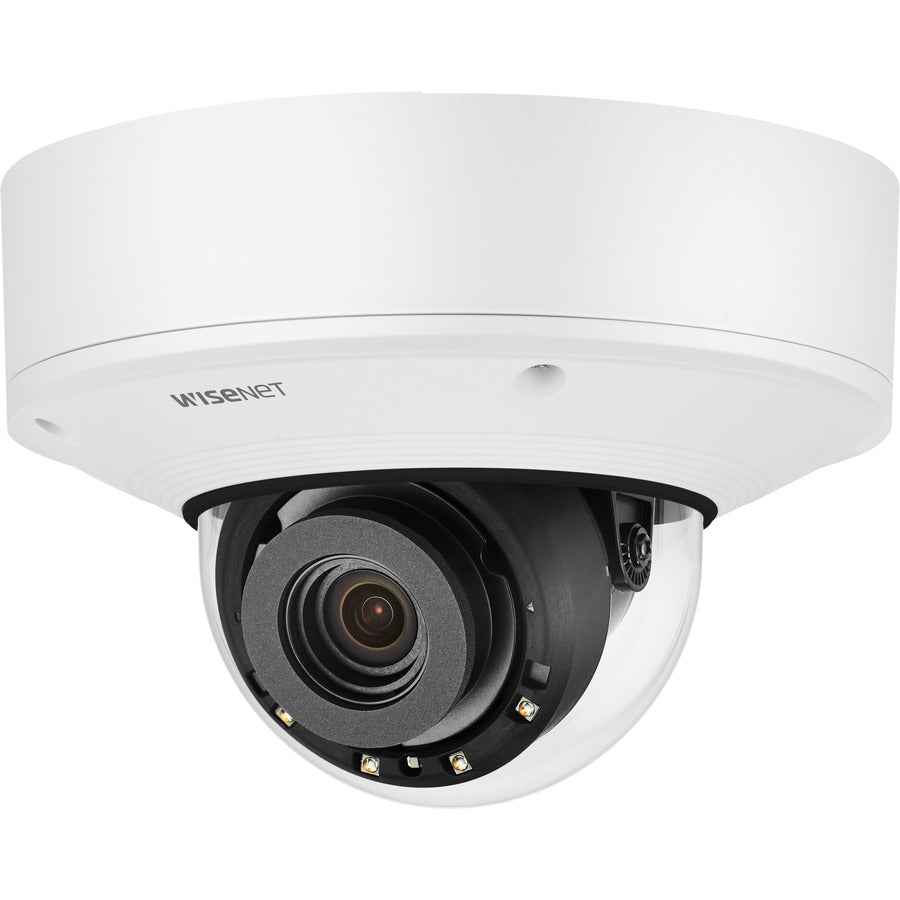

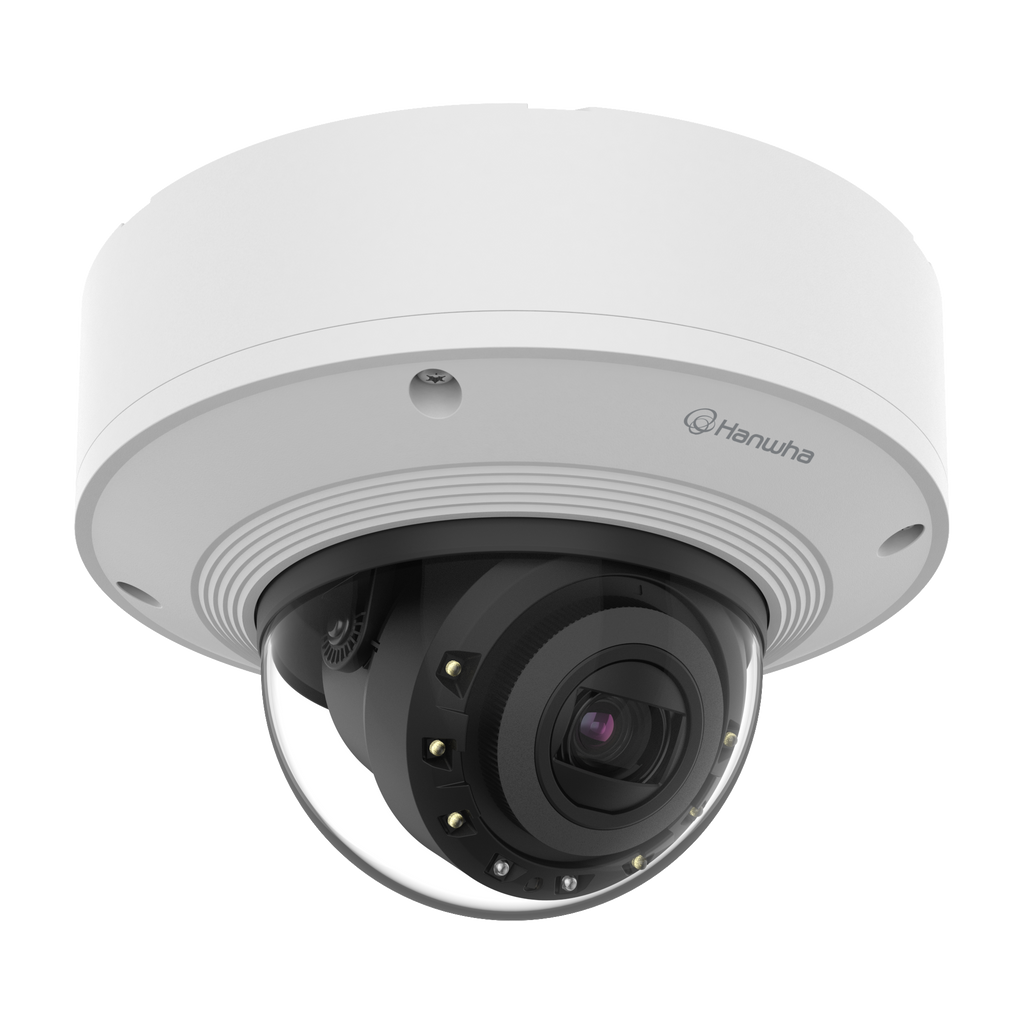

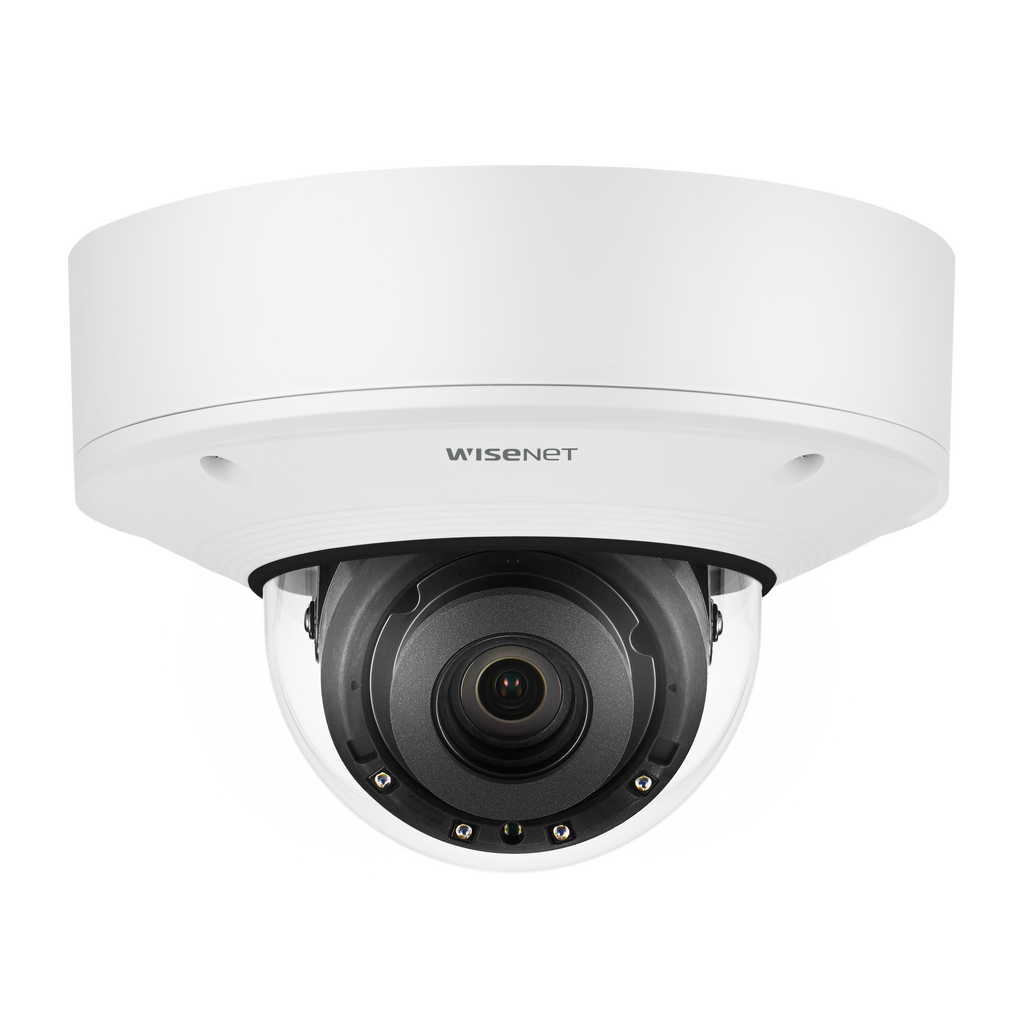

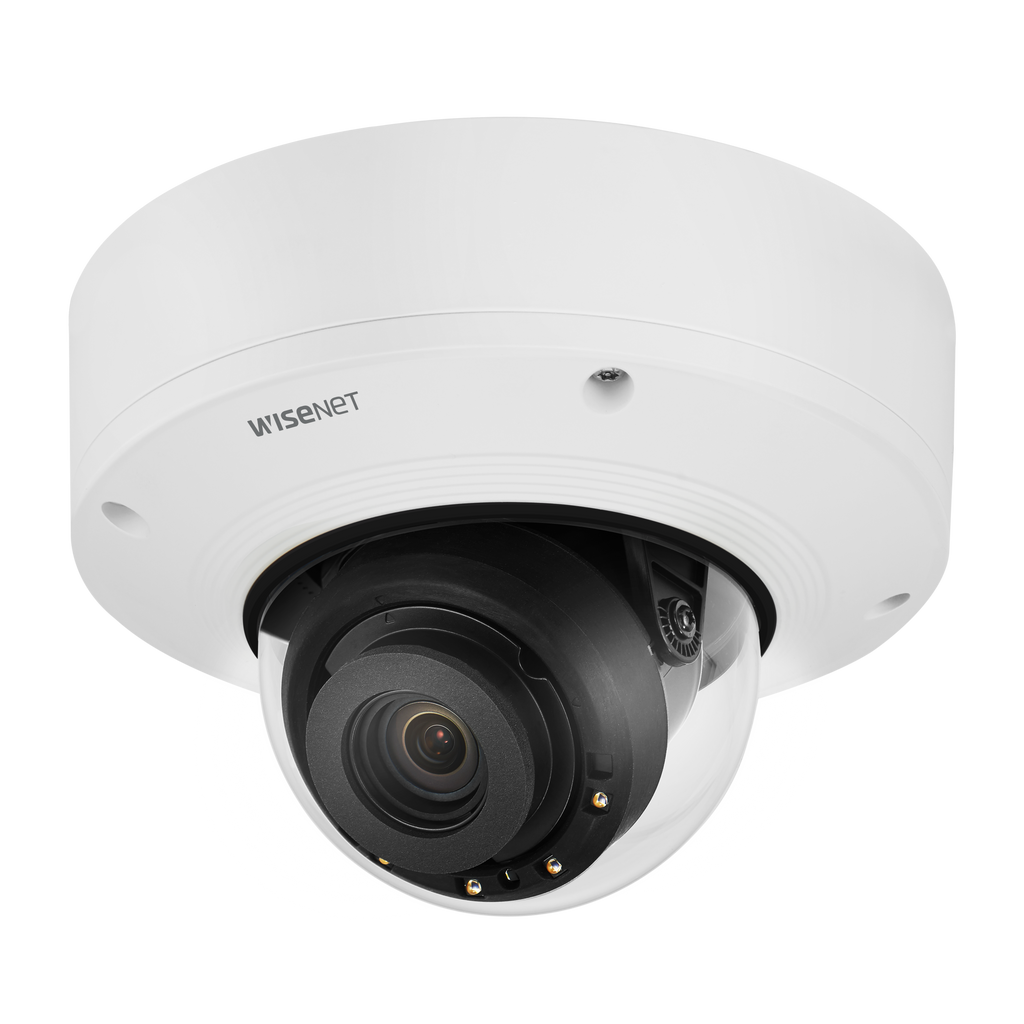

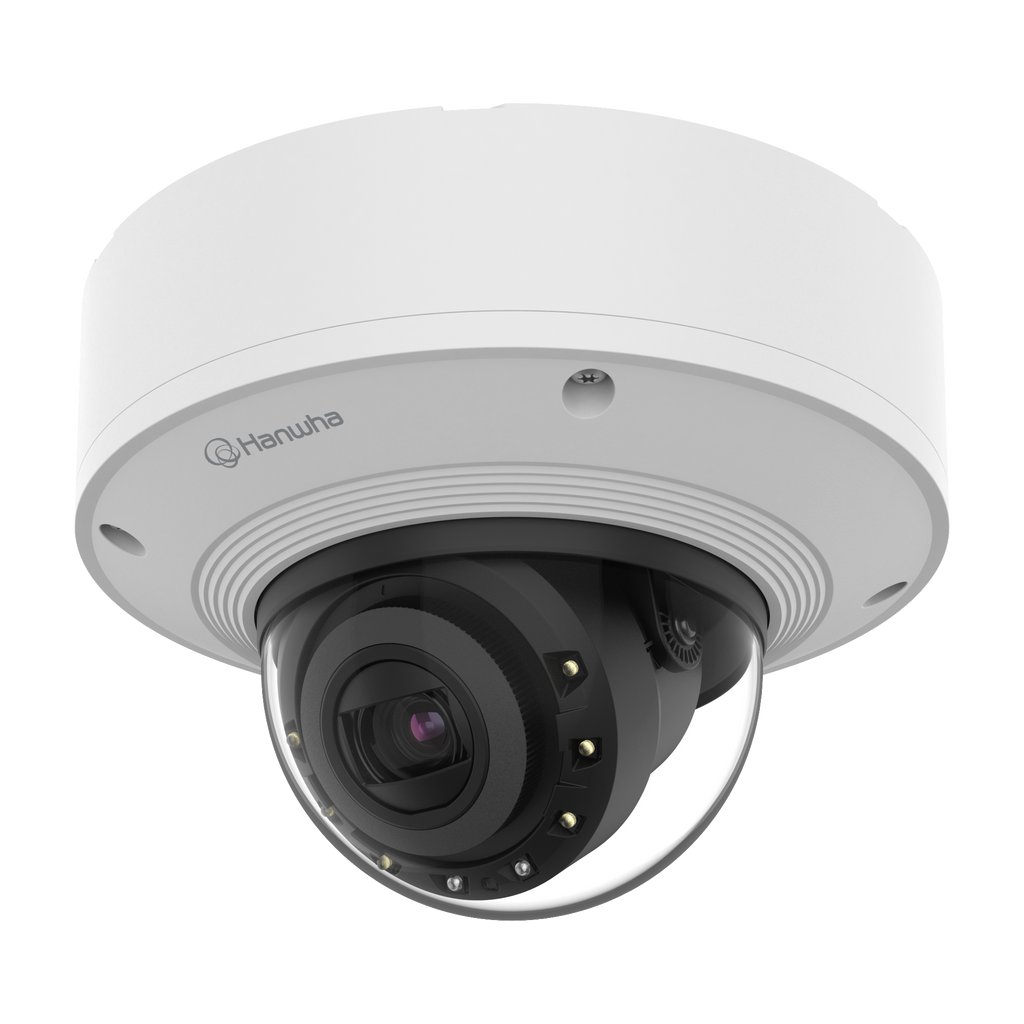

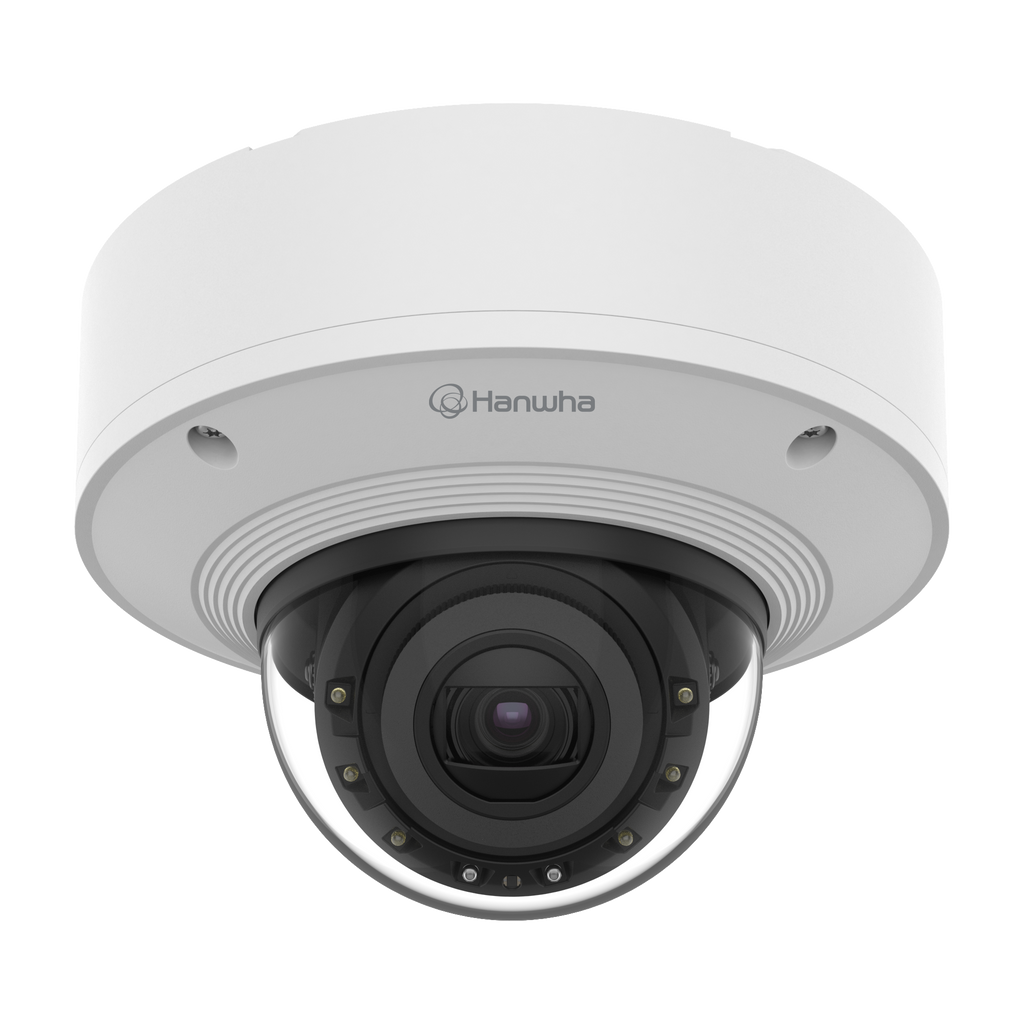

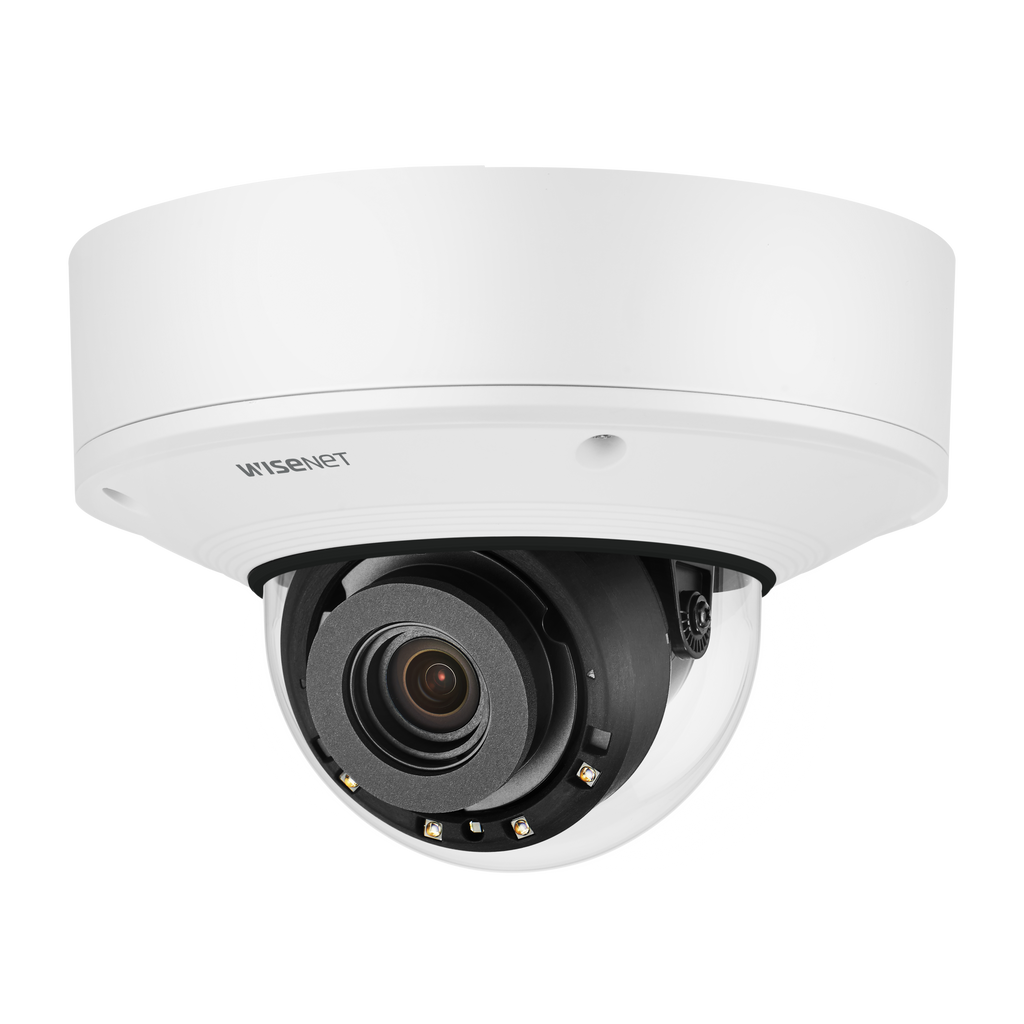

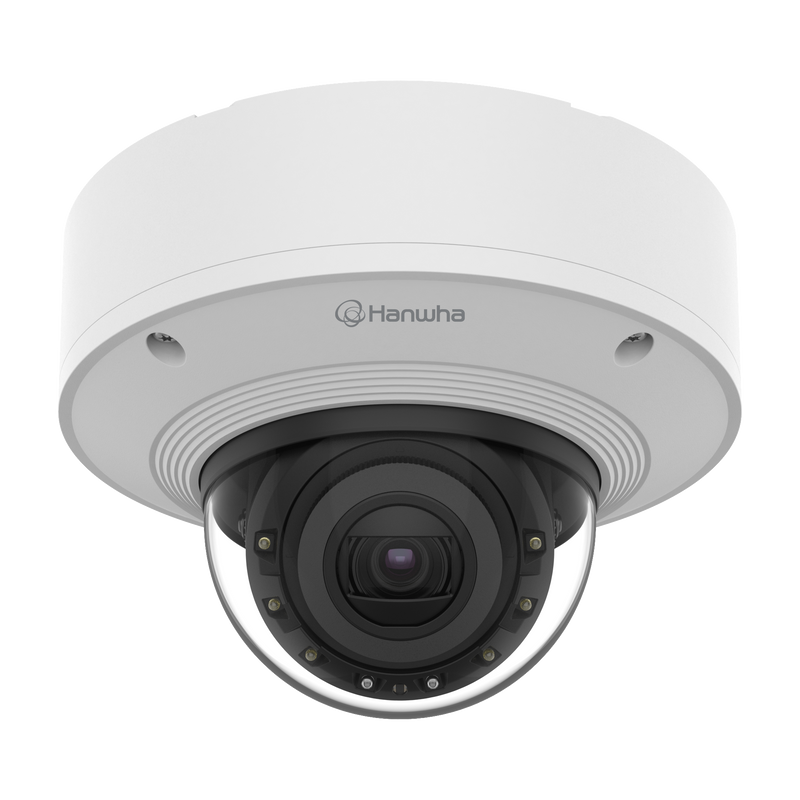

The Hanwha Vision XNV-9082R is a robust 4K IR vandal dome camera engineered for demanding outdoor security applications. Built with a rugged IP66/IP67/IP6K9K and IK10+ housing, it delivers exceptional durability while producing ultra-clear 4K imagery in all lighting conditions.
Equipped with a 2.8–8.4mm motorized varifocal lens, 3x optical zoom, 120dB WDR, advanced low-light performance, and 40m IR range, the XNV-9082R ensures precise detail capture day or night. Intelligent video analytics—including face/upper-body detection, shock detection, tampering, virtual line/area analytics, people counting, heat mapping, and queue monitoring—provide strong real-time insights for high-security environments.
Dual microSD slots (up to 1TB total), DIS with a built-in gyro sensor, WiseStream II compression, and extensive cybersecurity protections make this camera a reliable choice for enterprise-grade surveillance deployments.
| Category | Specification |
|---|---|
| Image Sensor | 1/2.8" CMOS |
| Resolution | Up to 4K (3840×2160) |
| Max Frame Rate | 30fps @ 4K (H.265/H.264) |
| Min. Illumination | Color: 0.05 Lux; B/W: 0.005 Lux (0 Lux with IR) |
| Lens | Motorized 2.8–8.4mm, 3x optical zoom, DC auto iris / P-iris |
| Field of View | H: 114°–40° / V: 62°–22° / D: 133°–46° |
| IR Range | Up to 40m (WiseIR) |
| WDR | 120dB |
| Image Enhancements | DIS with gyro, Defog, SSNR V, LDC |
| Video Compression | H.265/H.264 (CBR/VBR), MJPEG |
| Smart Codec | WiseStream II |
| Audio I/O | Mic/Line in (selectable), Line out |
| Alarm I/O | 2 configurable ports |
| Video Out | CVBS, Micro USB Type-B (installation) |
| Analytics | Motion, Tampering, Face/Upper body detection, Virtual line/area, Sound classification, Defocus, Fog detection, Digital auto-tracking |
| Business Intelligence | People counting, Queue management, Heatmap |
| Network | RJ-45 (10/100/1000BASE-T) |
| Protocols | IPv4/IPv6, TCP/IP, UDP/IP, RTP/RTSP, HTTP/HTTPS, QoS, SNMP, MQTT, ONVIF S/G/T |
| Cybersecurity | Secure boot, encrypted firmware, HTPM, IP-based access control, SRTP, HTTPS/WSS |
| Edge Storage | Dual microSD/SDHC/SDXC, up to 1TB total |
| Operating Temperature | –50°C to +60°C |
| Power Input | PoE (802.3af Class 3), 12VDC, 24VAC |
| Power Consumption | PoE max 12.95W; 12VDC max 11.5W; 24VAC max 13.5W |
| Housing Rating | IP66/IP67/IP6K9K, IK10+, NEMA 4X |
| Dimensions | Ø180 × 125 mm (7.09 × 4.92 in) |
| Weight | 1.9kg (4.19 lb) |
| Color | White (RAL9003) |
