Description

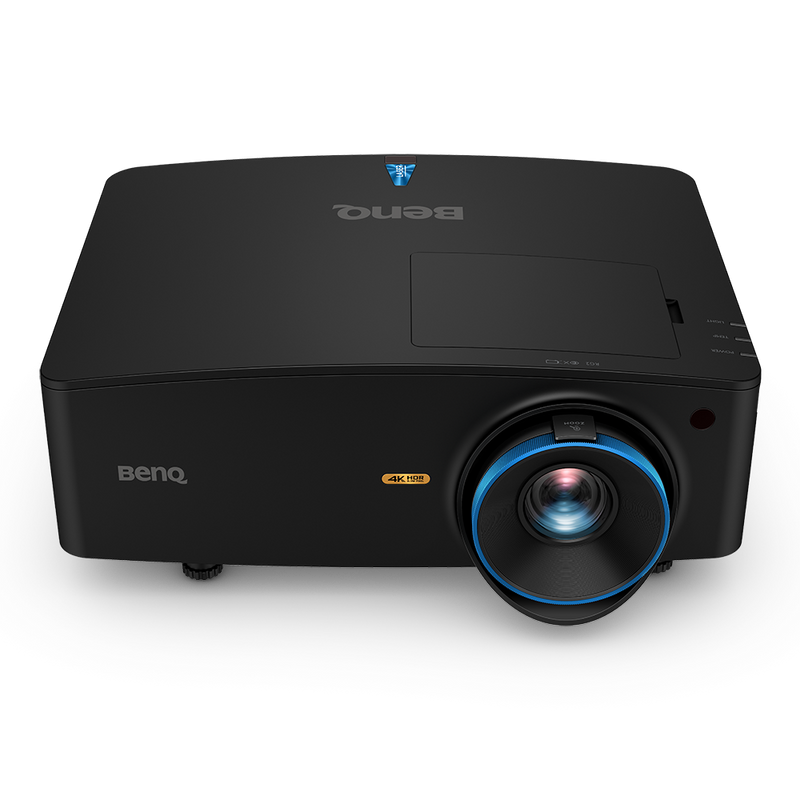

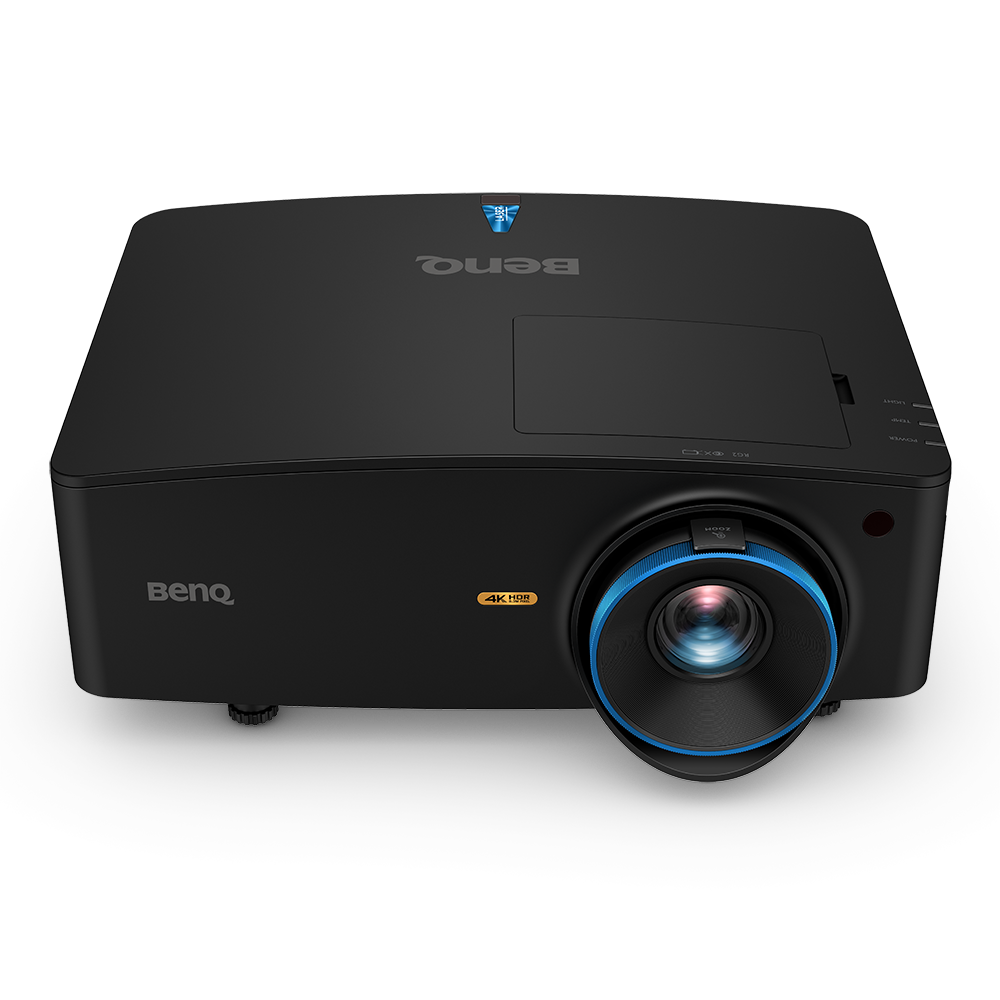

The BenQ LK936ST is a high-brightness 4K UHD laser projector engineered for immersive large-format visuals in professional environments. Delivering 5100 ANSI lumens and a 3,000,000:1 contrast ratio, it produces vivid detail, deep blacks, and accurate color performance for conference rooms, simulation spaces, museums, and high-impact installations.
Its short throw ratio of 0.81 to 0.89 enables large 4K images in tight spaces, while manual lens shift and 1.1x zoom provide flexible installation. Advanced features such as 3D keystone correction, digital shrink and shift, 4K upscaling, and 360 degree projection ensure precise alignment and creative deployment options.
With a long-lasting laser light source rated up to 20,000 hours in Normal mode and 30,000 hours in Eco mode, the LK936ST offers reliable, low-maintenance operation. Connectivity options including dual HDMI with HDCP 2.2, HDBaseT, DisplayPort, LAN control, and S/PDIF make it integration-ready for modern AV systems.
| Specification | Details |
|---|---|
| Projection System | DLP Single 0.47 inch 4K DMD |
| Native Resolution | 3840 x 2160 (4K UHD) |
| Brightness | 5100 ANSI Lumens |
| Contrast Ratio | 3,000,000:1 (Full On Full Off) |
| Display Color | 30-bit, 1.07 billion colors |
| Aspect Ratio | 16:9 native, multiple selectable ratios |
| Light Source | Laser |
| Light Source Life | Up to 20,000 hours Normal, 30,000 hours Eco |
| Throw Ratio | 0.81 to 0.89 |
| Zoom Ratio | 1.1x |
| Lens Control | Manual zoom and focus |
| Lens Shift | Vertical ±60%, Horizontal ±23% |
| Keystone Correction | 3D keystone, Vertical ±40°, Horizontal ±40°, Rotation ±40° |
| Projection Size | 30 inches to 300 inches |
| Built-in Speaker | 10W x1 |
| Resolution Support | VGA 640 x 480 to 4K UHD 3840 x 2160 |
| HDTV Compatibility | 480i to 2160p |
| Horizontal Frequency | 15K to 135KHz |
| Vertical Scan Rate | 23 to 240 Hz |
| Power Consumption | Max 495W, Normal 440W, Eco 315W |
| Standby Power | Less than 0.5W normal, less than 2W network |
| Power Supply | 100 to 240V AC |
| Noise Level | 40 dBA Normal, 33 dBA Eco |
| Operating Temperature | 0 to 40°C |
| Dimensions | 416 x 166 x 351 mm |
| Weight | Approximately 7.0 kg |
| Connectivity | HDMI x2, HDBaseT, DisplayPort, LAN RJ45, RS232, USB Type-A power, S/PDIF, 12V Trigger, 3D Sync in and out, Wired Remote in and out |
| Special Features | Digital shrink and shift, 4K upscaling, 360 projection, portrait mode, white balance adjustment, HDBaseT integration |
