Description

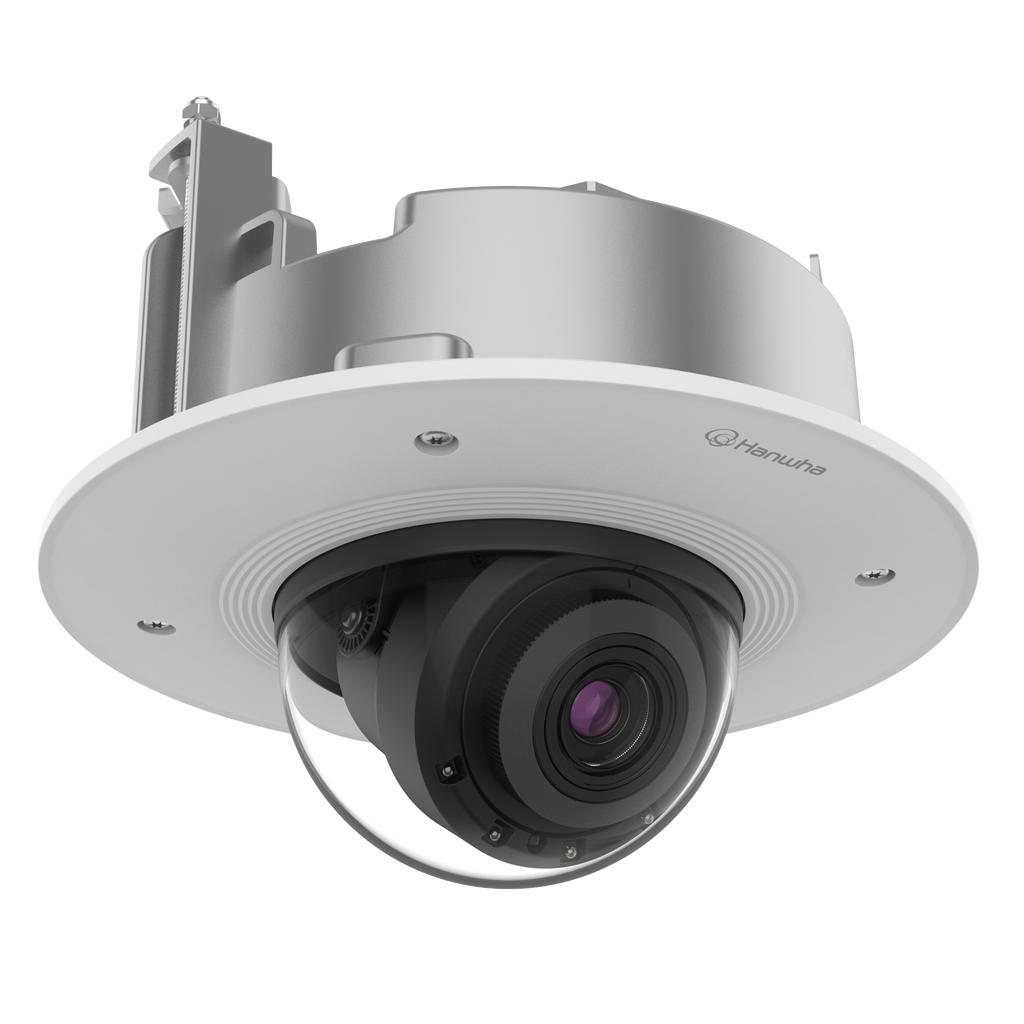

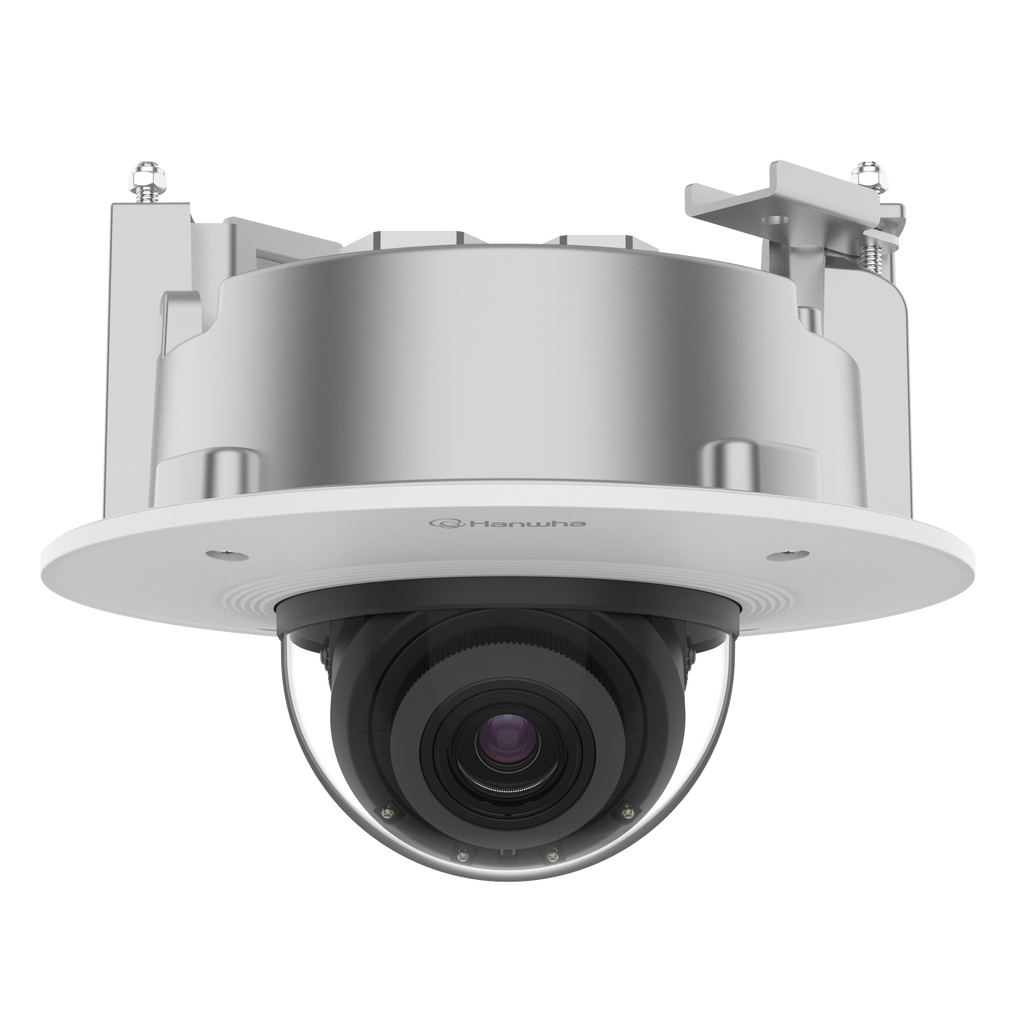

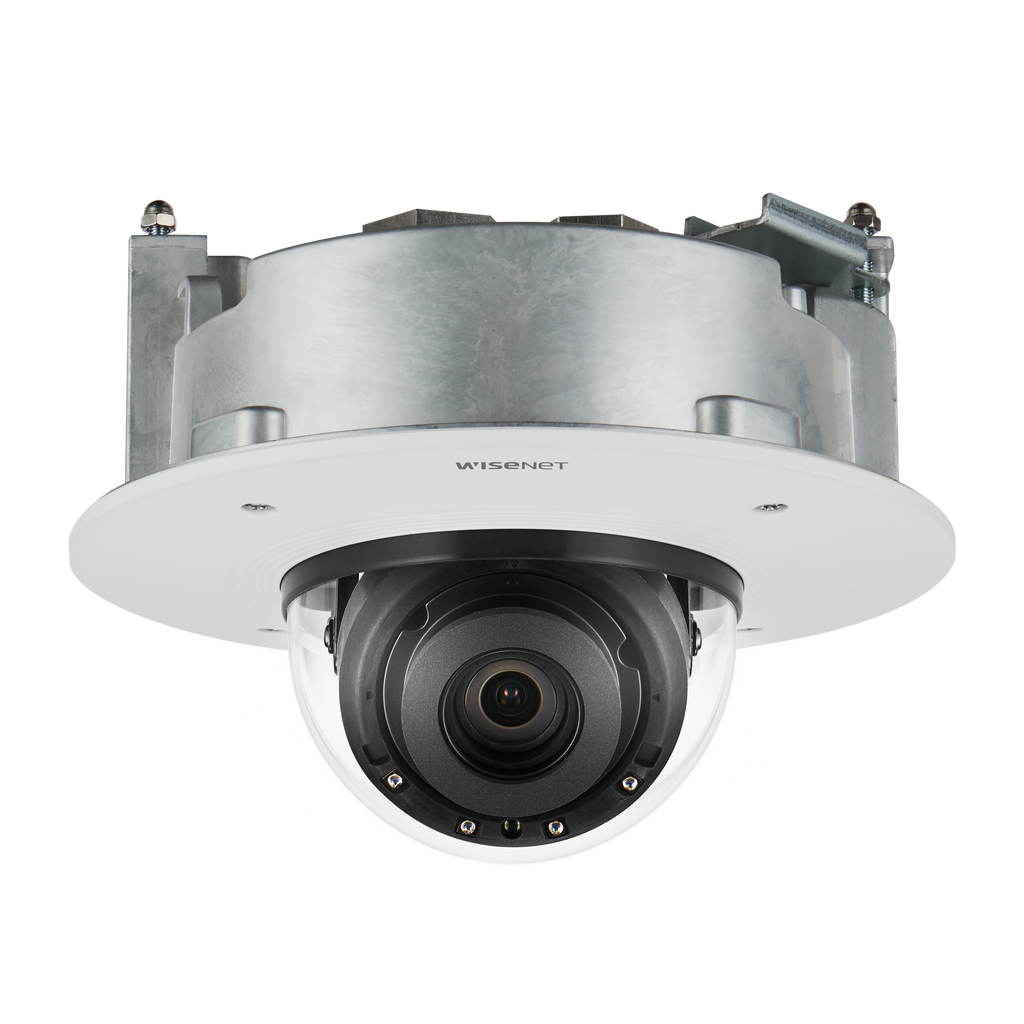

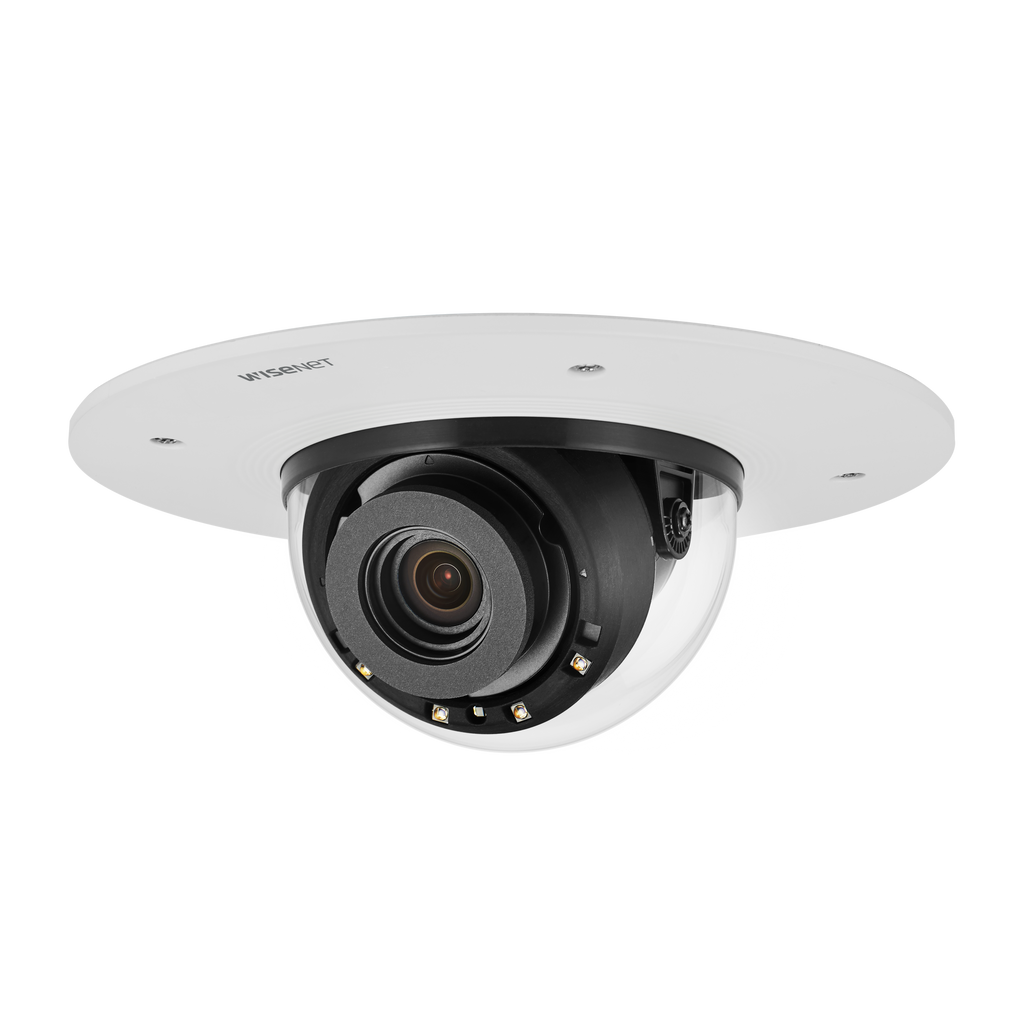

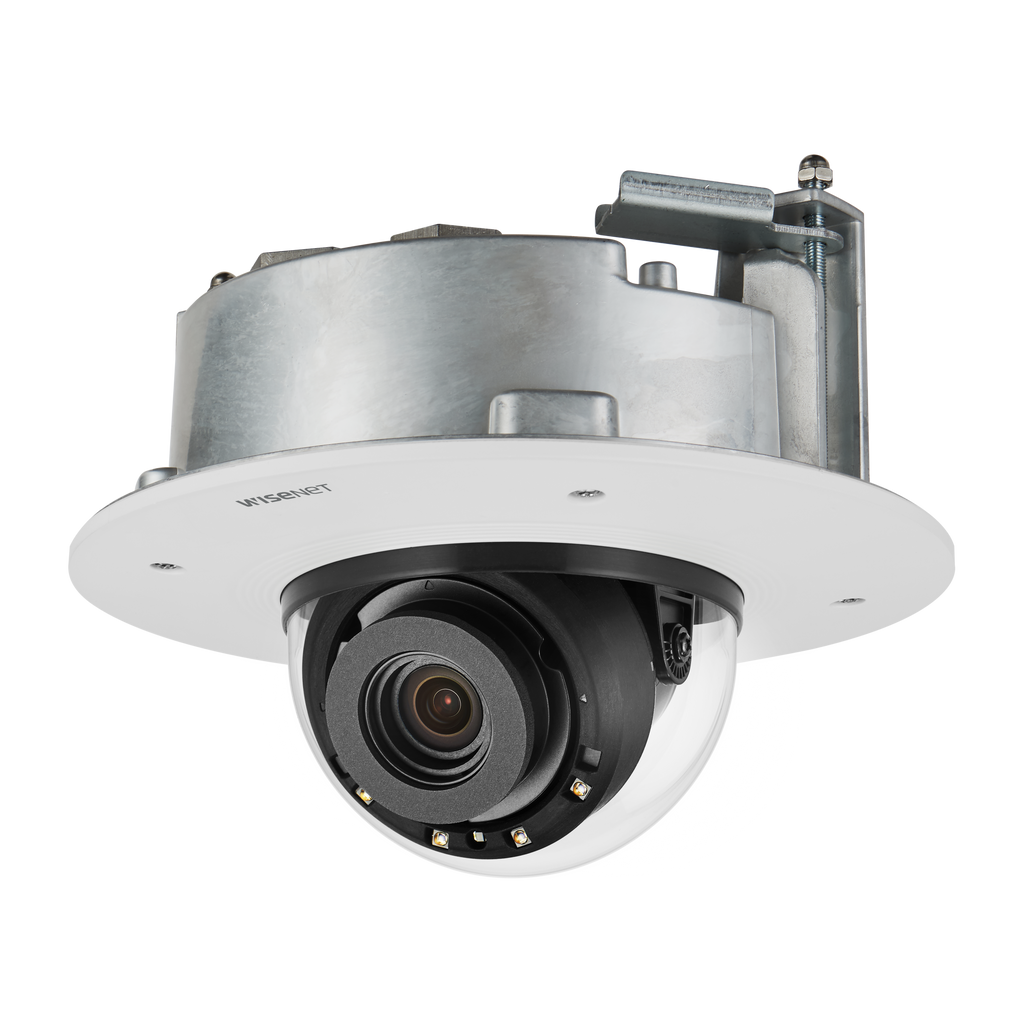

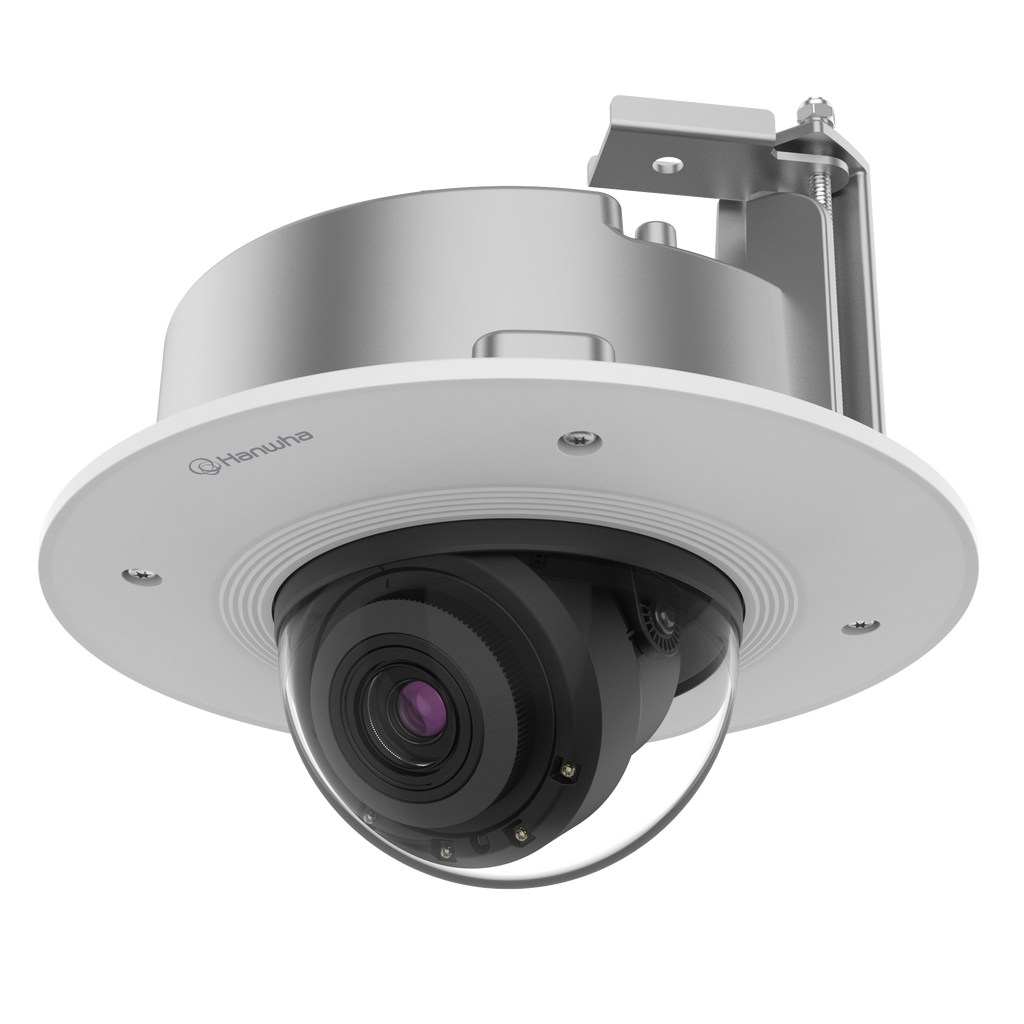

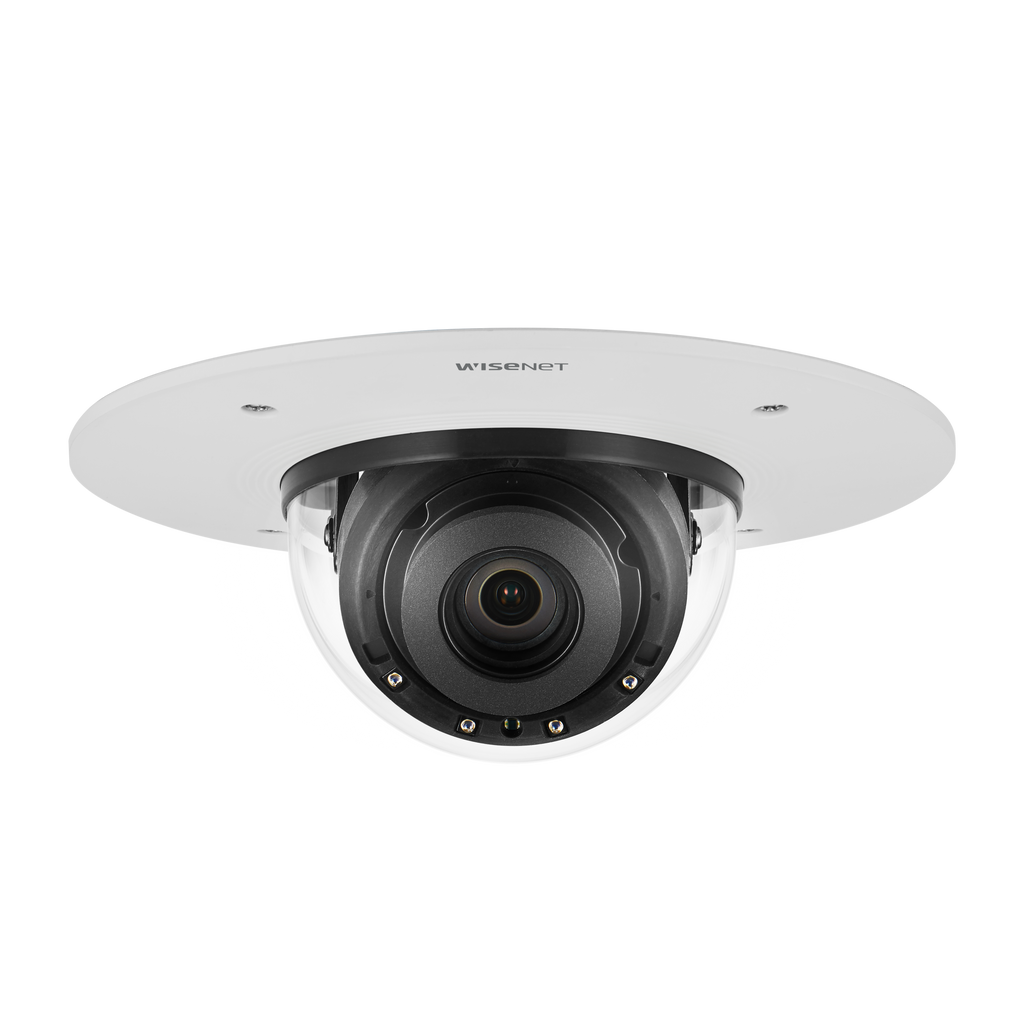

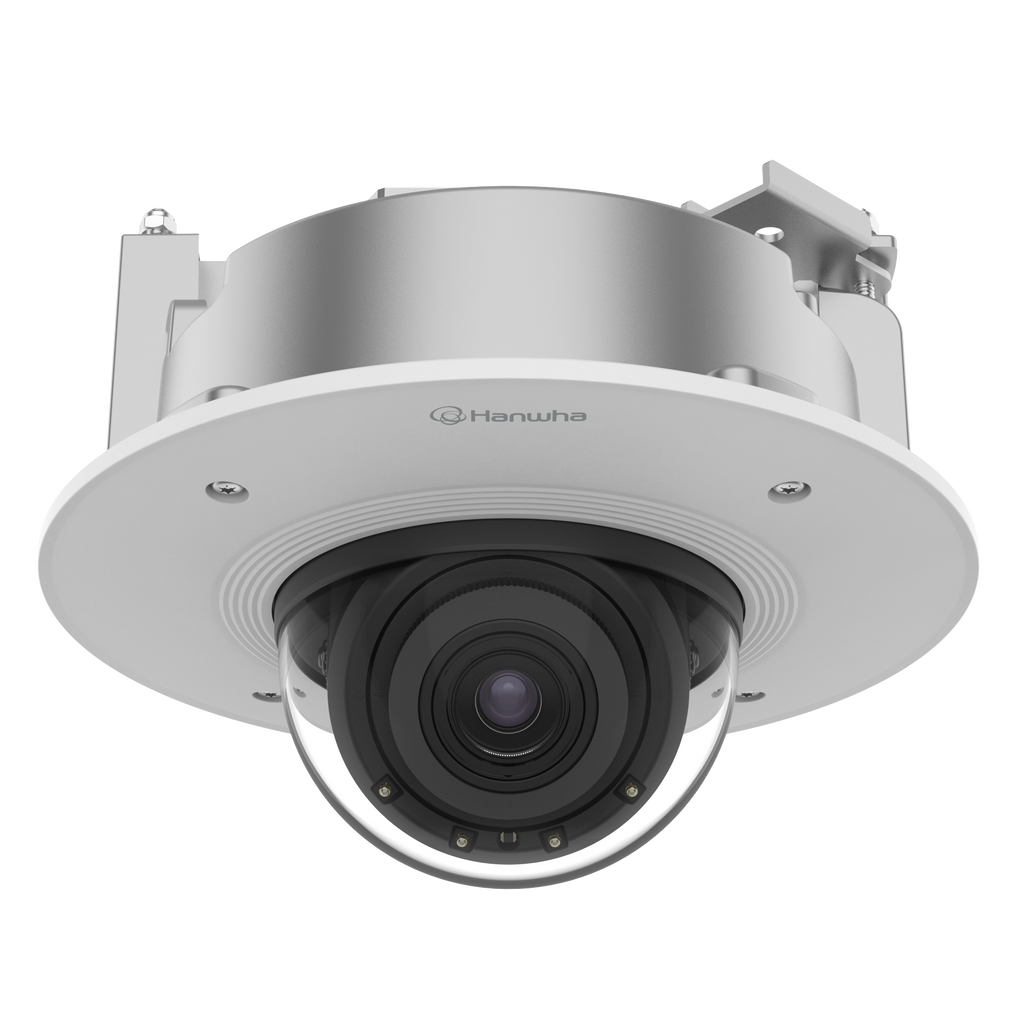

The Hanwha Vision PND-A9081RF is a high-performance 4K AI-powered IR dome camera designed for advanced security applications requiring exceptional clarity, intelligent analytics, and reliable low-light performance. Built with a 1/1.8" CMOS sensor and a motorized 4.5–10mm P-iris varifocal lens, it delivers sharp UHD imaging with wide dynamic range and AI-enhanced noise reduction.
Powered by Hanwha’s next-generation AI engine, the camera accurately detects and classifies persons, faces, vehicles, and license plates, while offering rich attribute detection including clothing color, gender, vehicle type, age, face mask, and more. It also supports advanced analytics such as virtual line, intrusion, loitering, social distancing, slip/fall detection, and business intelligence tools like heatmap, people counting, and queue monitoring.
Engineered for demanding environments, the PND-A9081RF features WiseIR 30m illumination, durable aluminum construction, dual SD card slots (up to 512GB total), and secure connectivity through encrypted firmware, HTTPS, and secure boot. With modular installation, hallway view, direct cloud connectivity, and ONVIF compatibility, it integrates seamlessly into modern surveillance infrastructures.
| Category | Specification |
|---|---|
| Imaging | 1/1.8" CMOS, up to 4K (3840×2160) |
| Resolutions Supported | 4K, 3072×1728, 2688×1520, 2592×1944, 2560×1440, 2048×1536, 1080p, 720p, and more |
| Frame Rate | H.265/H.264: 30fps (60Hz), MJPEG: 30fps |
| Minimum Illumination | Color: 0.05 Lux, B/W: 0.005 Lux (0 Lux with IR) |
| Lens | Motorized 4.5–10mm, P-iris, Optical zoom 2.2x |
| Field of View | H: 101.4°–45.5°, V: 53.6°–25.5°, D: 120.7°–52.3° |
| Day/Night | ICR Auto |
| WDR | 120dB |
| Noise Reduction | WiseNR II (AI-based), SSNR V |
| IR Illumination | WiseIR up to 30m, 850nm |
| Pan/Tilt/Rotate | Pan: 0–360°, Tilt: –45° to 85°, Rotate: 0–355° |
| AI Object Classification | Person, Face, Vehicle, License Plate |
| AI Attributes | Clothing color, gender, bag, vehicle type/color, face mask, glasses, age |
| AI Events | Object detection, line crossing, intrusion, loitering, social distancing, slip/fall |
| General Analytics | Motion, tampering, audio detection, sound classification |
| Business Intelligence | People counting, heatmap, queue management, crowd counting |
| Audio I/O | Mic/line-in (selectable), Line-out |
| Video Compression | H.265, H.264 (Main/High), MJPEG |
| Audio Compression | G.711, G.726, AAC-LC |
| Streaming | Up to 6 streams, Unicast/Multicast |
| Protocols | IPv4/IPv6, TCP/UDP, RTP/RTSP, HTTPS, DHCP, NTP, MQTT, ONVIF S/G/T/M |
| Security | Secure boot, encrypted firmware, HTTPS, 802.1X, signed firmware |
| Edge Storage | Dual microSD/SDHC/SDXC, up to 512GB total |
| Power | PoE+ (IEEE 802.3at) or 12VDC |
| Power Consumption | PoE: Max 20W (Typ 16W), 12VDC: Max 17.7W (Typ 14W) |
| Operating Temperature | –25°C to +50°C (–13°F to +122°F) |
| Materials | Aluminum body, hard-coated dome |
| Dimensions | Ø205 × 163mm (8.07 × 4.92") |
| Weight | 1.95kg (4.30 lbs) |
| DORI (Wide–Tele) | Detect: 62.2m–185.4m; Observe: 24.9m–74.2m; Recognize: 12.4m–37.1m; Identify: 6.2m–18.5m |
