Description

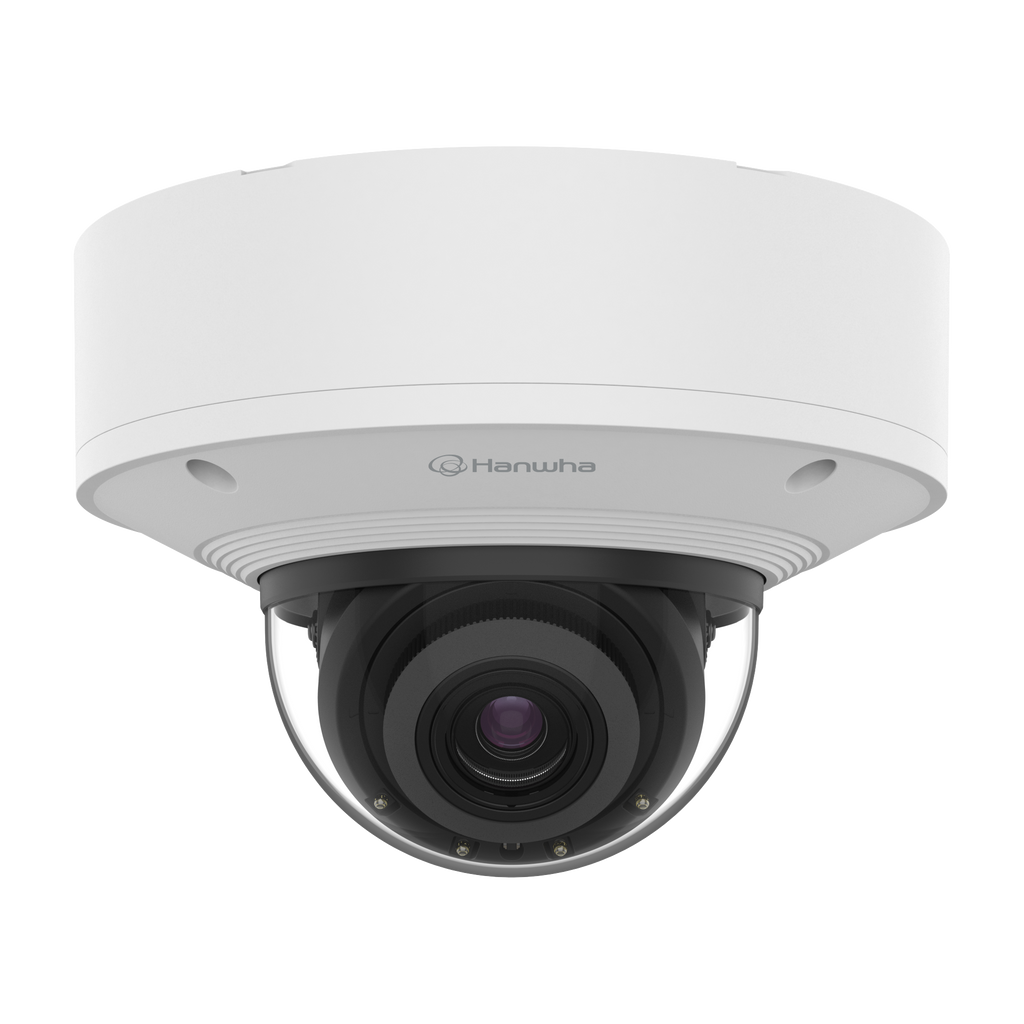

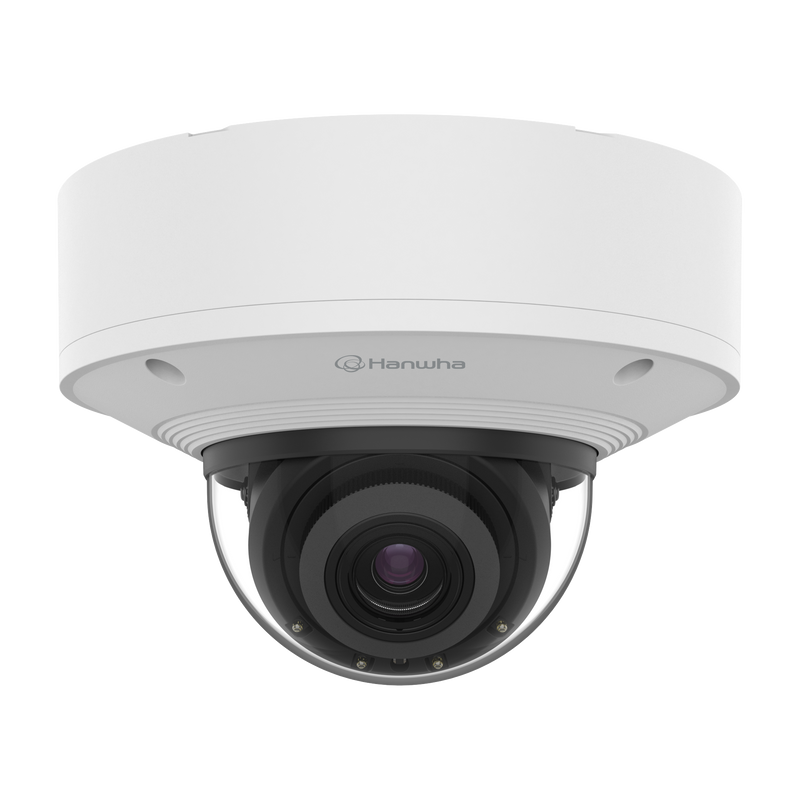

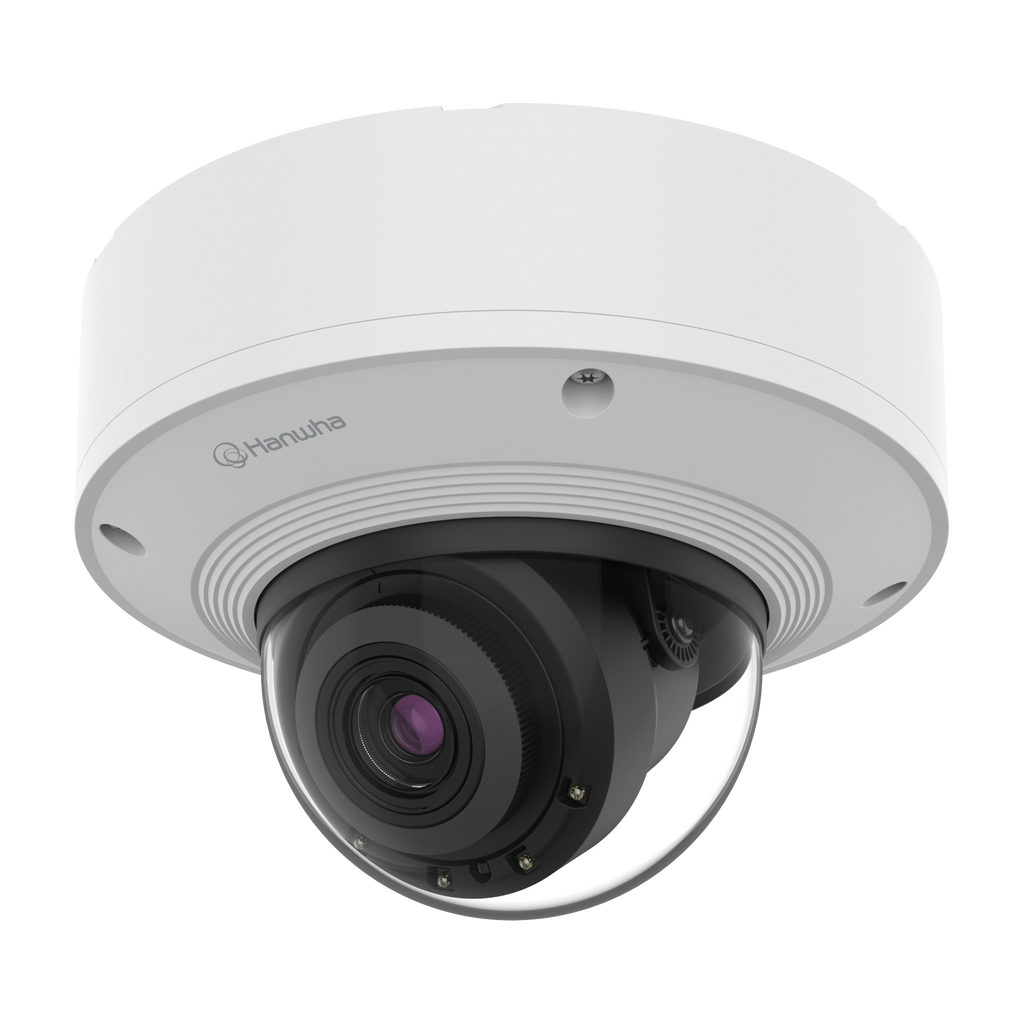

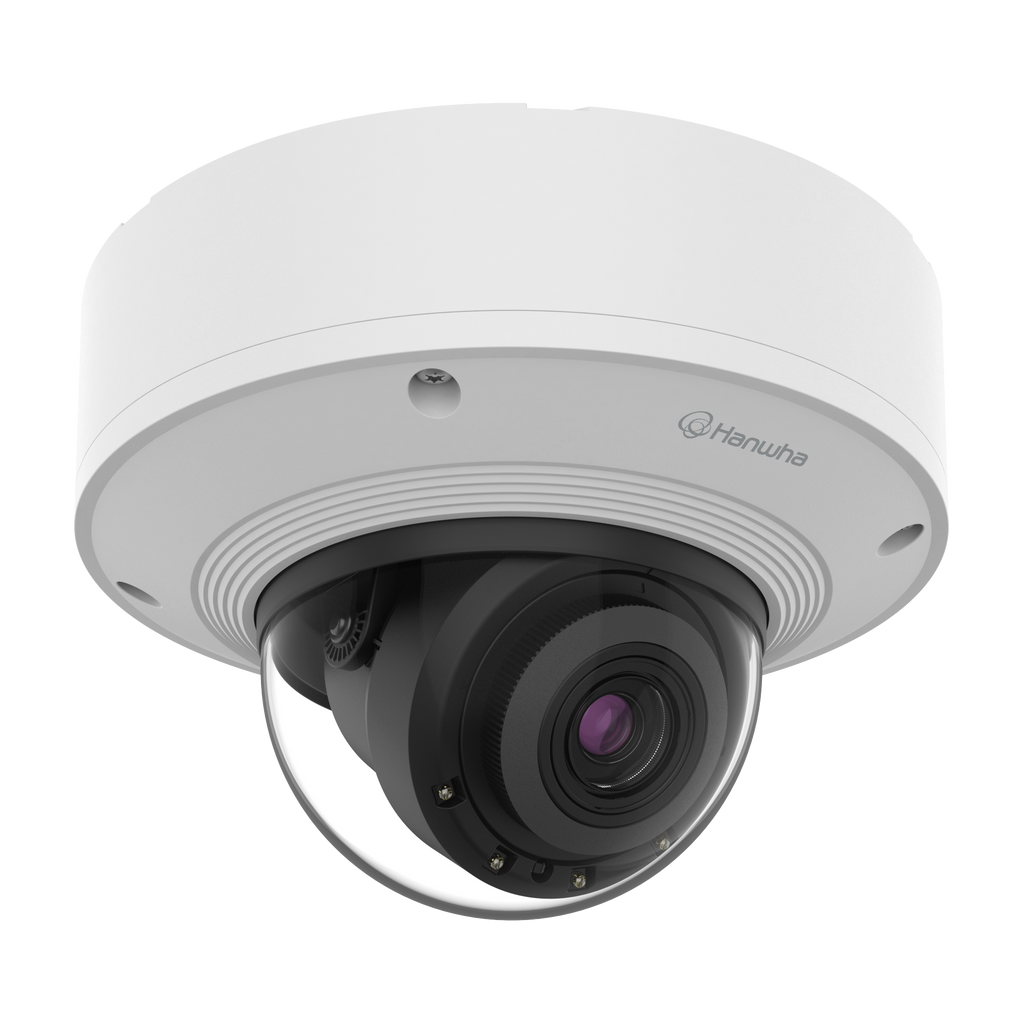

The Hanwha PNV-A9081R is a high-performance 4K AI-powered IR vandal dome camera designed for demanding outdoor and indoor surveillance environments. Built on Hanwha’s advanced imaging platform, it delivers crystal-clear 4K resolution, exceptional low-light performance, and intelligent analytics driven by deep-learning AI.
Its AI engine accurately detects and classifies people, faces, vehicles, and license plates while providing attribute data and BestShot images for enhanced forensic review. The camera supports business intelligence features such as heatmaps, queue management, and people counting—ideal for retail, commercial, and enterprise security applications.
Featuring a durable IK10+ vandal-resistant housing, IP66/IP67/IP6K9K weather protection, and integrated IR illumination up to 30 meters, the PNV-A9081R ensures reliable performance in harsh environments. With H.265/H.264/MJPEG compression, WiseStream II optimization, and triple streaming, it offers efficient bandwidth and storage management.
| Category | Specification |
|---|---|
| Imaging | 1/1.8" CMOS sensor; 4K (3840×2160) resolution; 0.05 Lux color, 0 Lux IR |
| Lens | 4.5–10mm (2.2×) motorized varifocal; F1.6 (wide) ~ F2.65 (tele) |
| Field of View | H: 101.4°–45.5° · V: 53.6°–25.5° · D: 120.7°–52.3° |
| IR Range | Up to 30m (98.4 ft) |
| AI Analytics | Object/face/vehicle/license plate detection, attributes, BestShot; mask detection; loitering; virtual line; intrusion; audio detection; shock detection |
| Business Intelligence | People counting, queue management, heatmap |
| Video Compression | H.265/H.264/MJPEG; WiseStream II |
| Max Frame Rate | 30fps (H.265/H.264/MJPEG) |
| Video Features | WDR 120dB, SSNRV noise reduction, hallway view, DIS with gyro |
| Audio I/O | Mic/line in selectable; line out |
| Alarm I/O | 1 input / 1 output; 12V power output |
| Network | RJ-45 10/100/1000 Base-T; IPv4/IPv6; ONVIF S/G/T; SUNAPI |
| Edge Storage | Dual microSD/SDHC/SDXC slots (up to 256GB × 2) |
| Power | PoE+ (IEEE 802.3at) or 12VDC |
| Power Consumption | PoE+: Max 20W · 12VDC: Max 18.7W |
| Operating Temp | –40°C to +55°C (–40°F to +131°F) |
| Durability Ratings | IK10+, IP66/IP67/IP6K9K, NEMA 4X |
| Construction / Color | Aluminum; White (RAL9003) |
| Dimensions / Weight | Ø180 × 125mm (7.09 × 4.92"); 1.90kg (4.19 lb) |
Payment & Security
Your payment information is processed securely, and we do not store credit card details or access your credit card information.
Return Policy (Short Summary)
We offer a 30-day return window for most unopened, factory-sealed items.
Returns must be authorized before shipping back and must include all original packaging and accessories. Opened or used items are not returnable unless defective.
Some products—such as custom orders, special-order items, audio gear, software, and LED video walls—are non-returnable. Non-defective returns may be subject to a 20–30% restocking fee, and customers are responsible for return shipping costs.
For damaged or incorrect items, please contact us immediately.
