Description

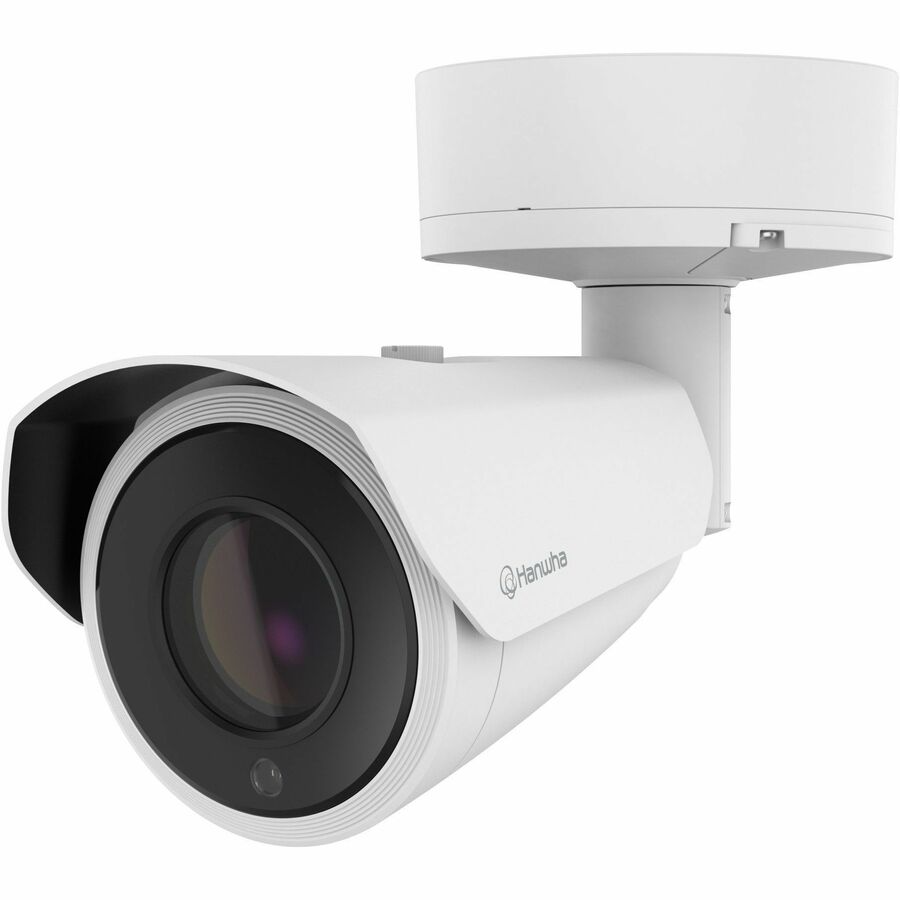

The Hanwha Vision PNO-A9311R is a powerful 4K AI-driven outdoor bullet camera designed for long-range monitoring, detailed analytics, and exceptional low-light performance. Equipped with a 31x optical zoom lens and IR illumination up to 70 meters, it delivers clear, high-resolution imaging in demanding environments.
This camera features advanced AI analytics including object classification, face/vehicle attributes, virtual line and intrusion detection, people counting, queue management, and more. Its enhanced cybersecurity framework includes TPM 2.0 with FIPS 140-2 Level 2, secure boot, and encrypted firmware to protect critical data.
Built with reinforced durability (IP66/IP67, IK10, NEMA 4X), the PNO-A9311R ensures reliable operation in harsh climates. With wide dynamic range (120 dB), WiseNR II noise reduction, and WiseStream III smart codec technology, it provides optimized performance and bandwidth efficiency for large-scale surveillance deployments.
| Category | Specification |
|---|---|
| Imaging | 1/1.8" CMOS sensor; up to 4K (3840×2160) resolution; 30fps (H.265/H.264) |
| Minimum Illumination | Color: 0.075 Lux; B/W: 0.0075 Lux; 0 Lux (IR On) |
| Lens | 6.91–214.7mm focal length; 31x optical zoom; P-iris, IR-corrected |
| Field of View | H: 60.92°–2.2°; V: 35.26°–1.24°; D: 69.18°–2.52° |
| IR Illumination | WiseIR up to 70m (229.66 ft); 850nm wavelength |
| Day/Night | Auto ICR |
| WDR | 120 dB |
| Image Enhancements | WiseNR II, SSDR, DIS (gyro-based), Flip/Mirror/Hallway view |
| Analytics (AI-Based) | Object detection (person, face, vehicle, license plate), attribute extraction, BestShot, slip & fall detection, virtual line/area, social distancing, crowd counting, people counting, queue management, heatmap |
| Compression Codecs | H.265, H.264, MJPEG; WiseStream II & III |
| Audio | Audio in (mic/line selectable), line out; G.711, G.726, AAC-LC |
| Network | RJ-45 10/100/1000BASE-T; ONVIF S/G/T/M; SUNAPI; IPv4/IPv6 |
| Security | TPM 2.0 with FIPS 140-2 Level 2; secure boot; encrypted firmware; 802.1X |
| Storage | Dual microSD slots (up to 512GB total) |
| Operating Conditions | -40°C to +55°C (-40°F to +131°F); 0–100% RH (condensing) |
| Power | PoE+ (IEEE 802.3at) or 12VDC; Max 25.5W |
| Construction | Aluminum housing; IP66/IP67, IK10, NEMA 4X |
| Dimensions / Weight | Ø136.2 × 358.7 mm (5.36 × 14.12 in); 3,200 g (7.05 lb) |
| Certifications | UL, CE, FCC, IEC 62471, IP66/IP67, IK10 |
